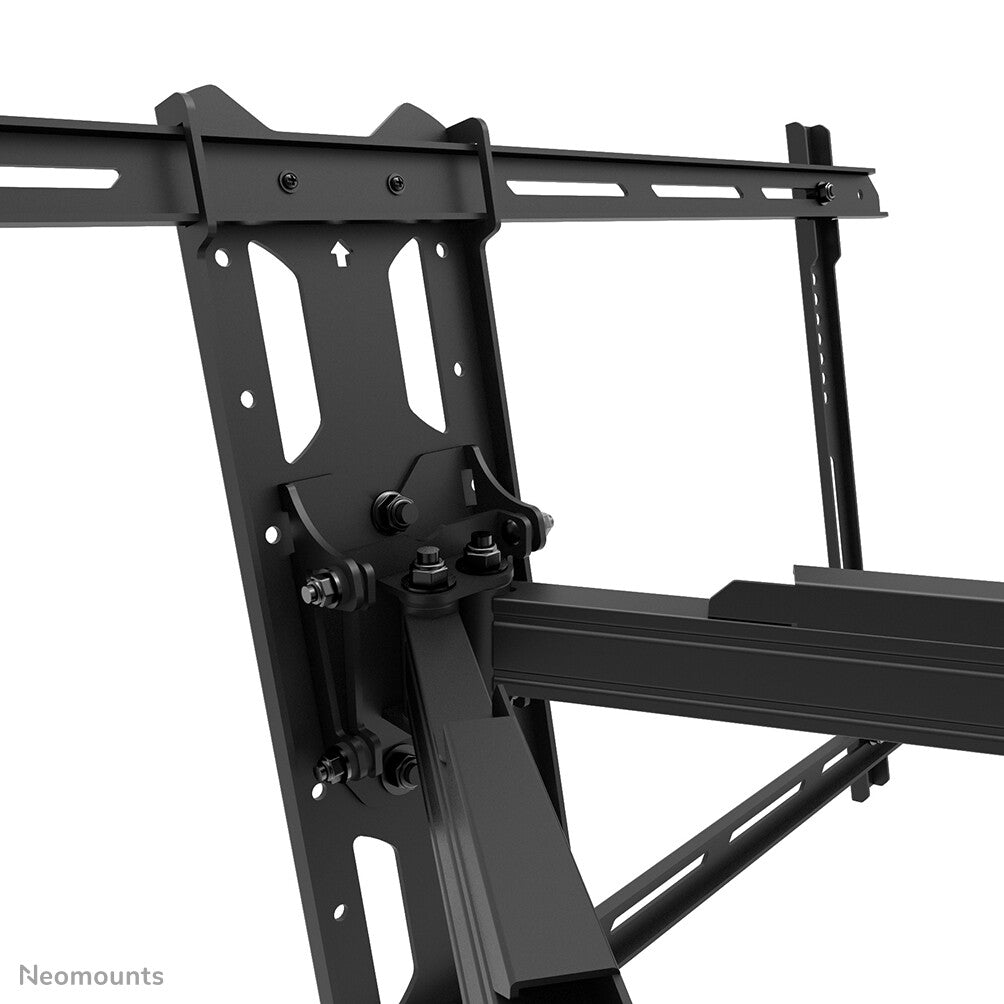

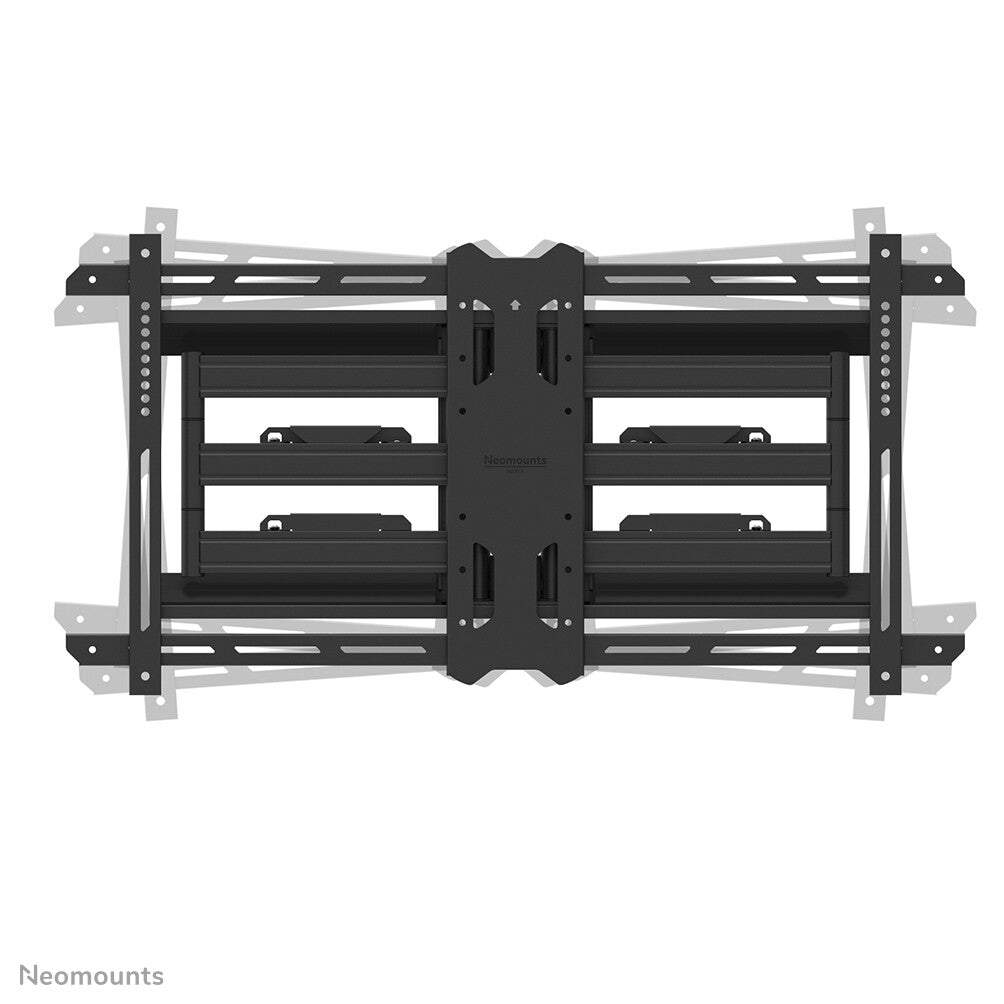

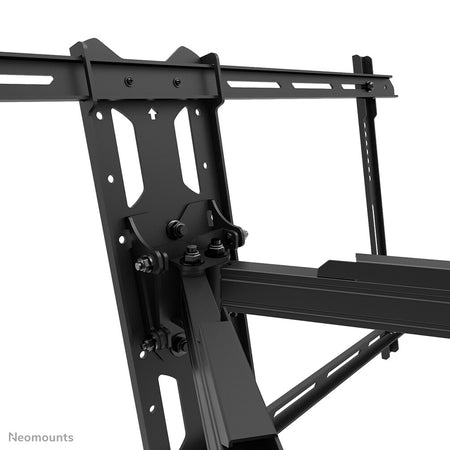

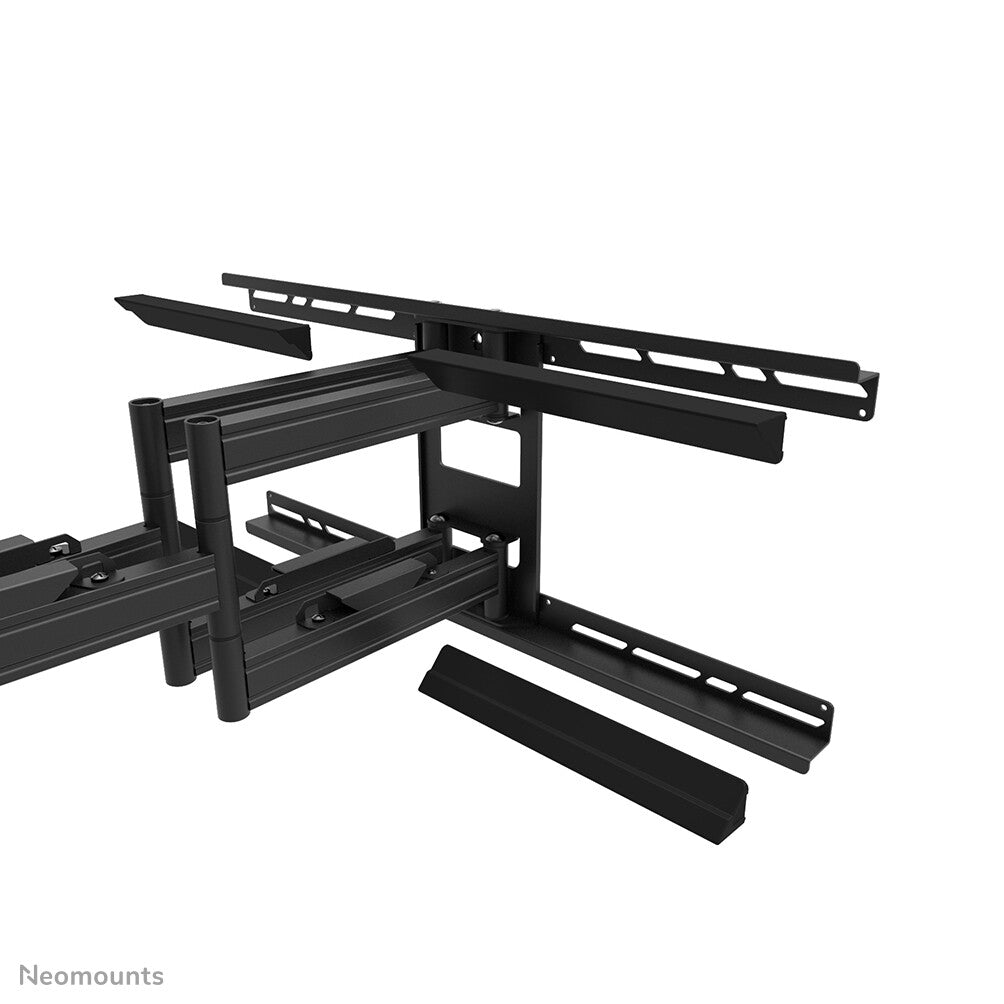

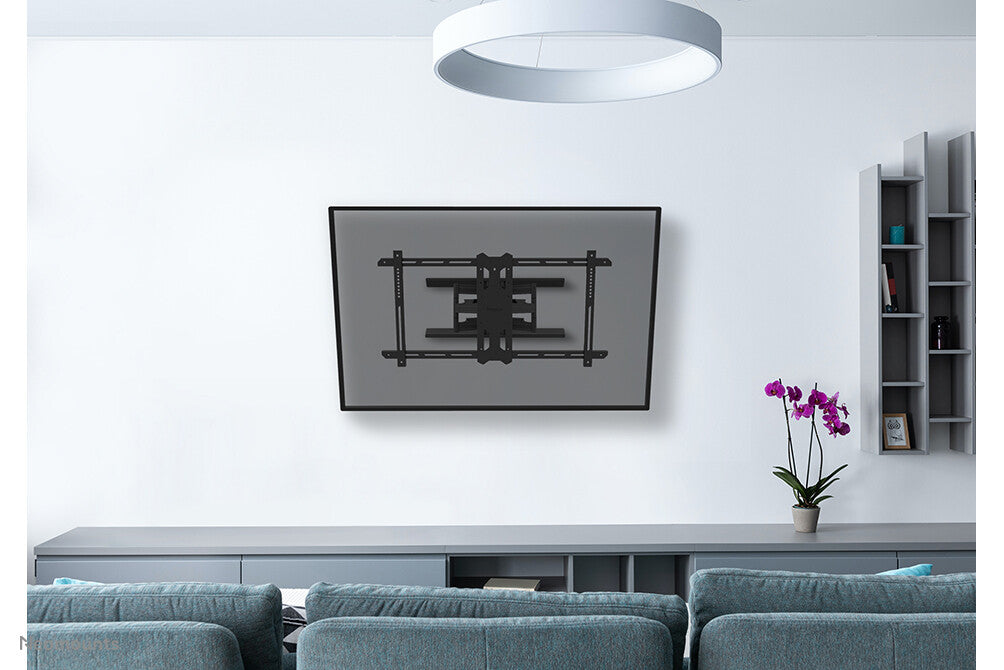

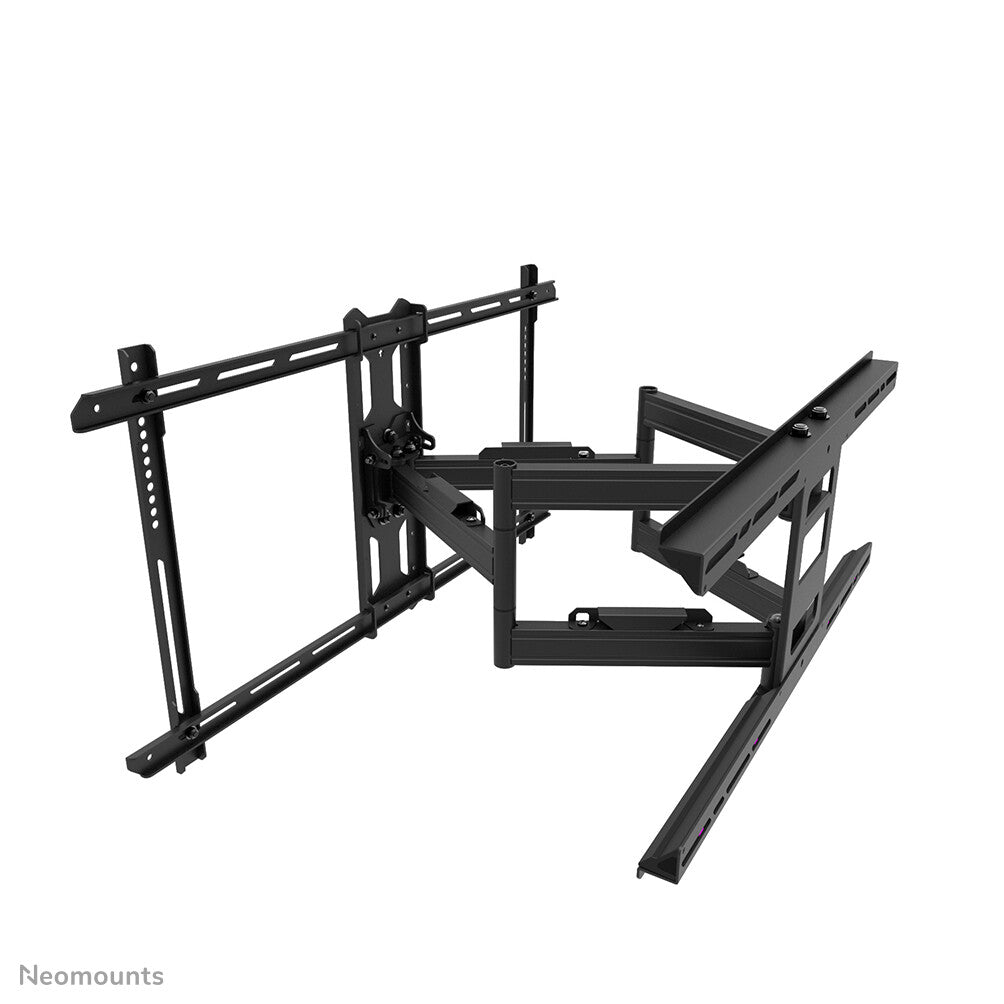

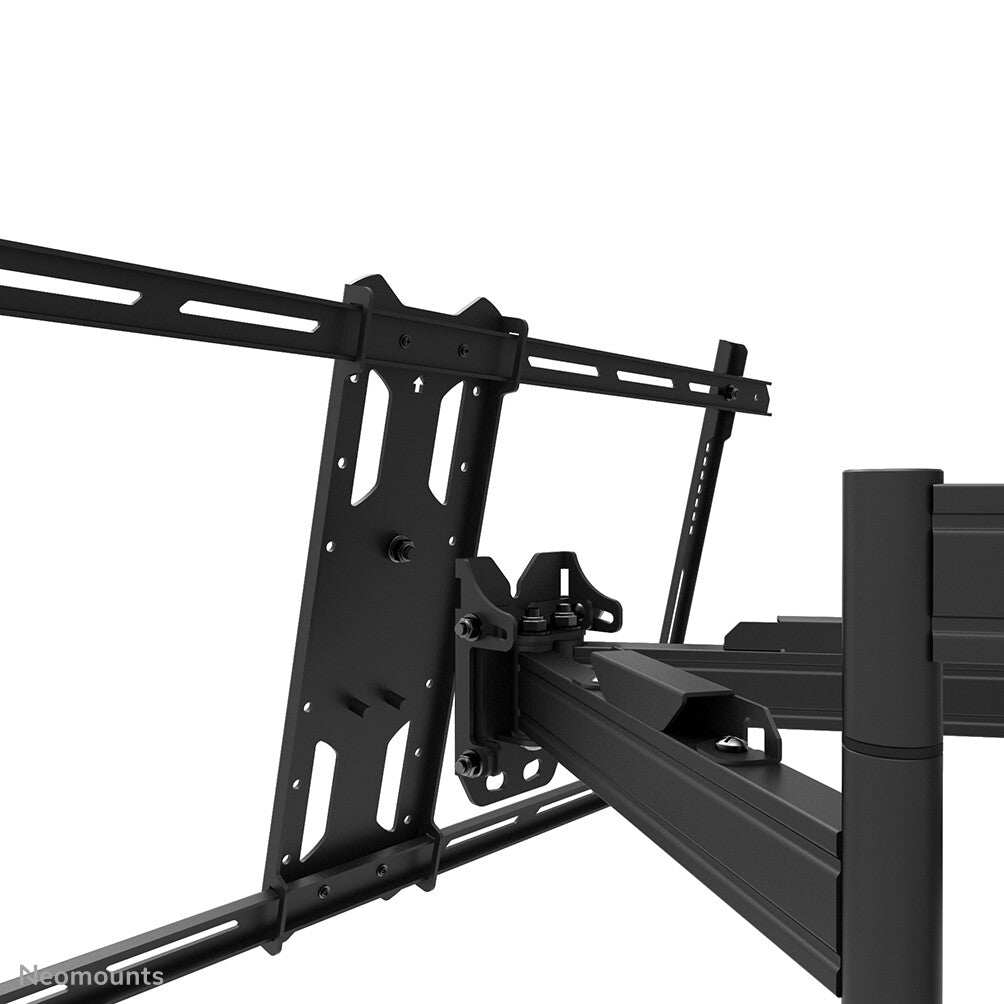

The Neomounts WL40S-850BL18 LEVEL is a full motion wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. The versatile tilt (18°) and swivel (35°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-850 wall mount has a depth of 5-61 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400mm.

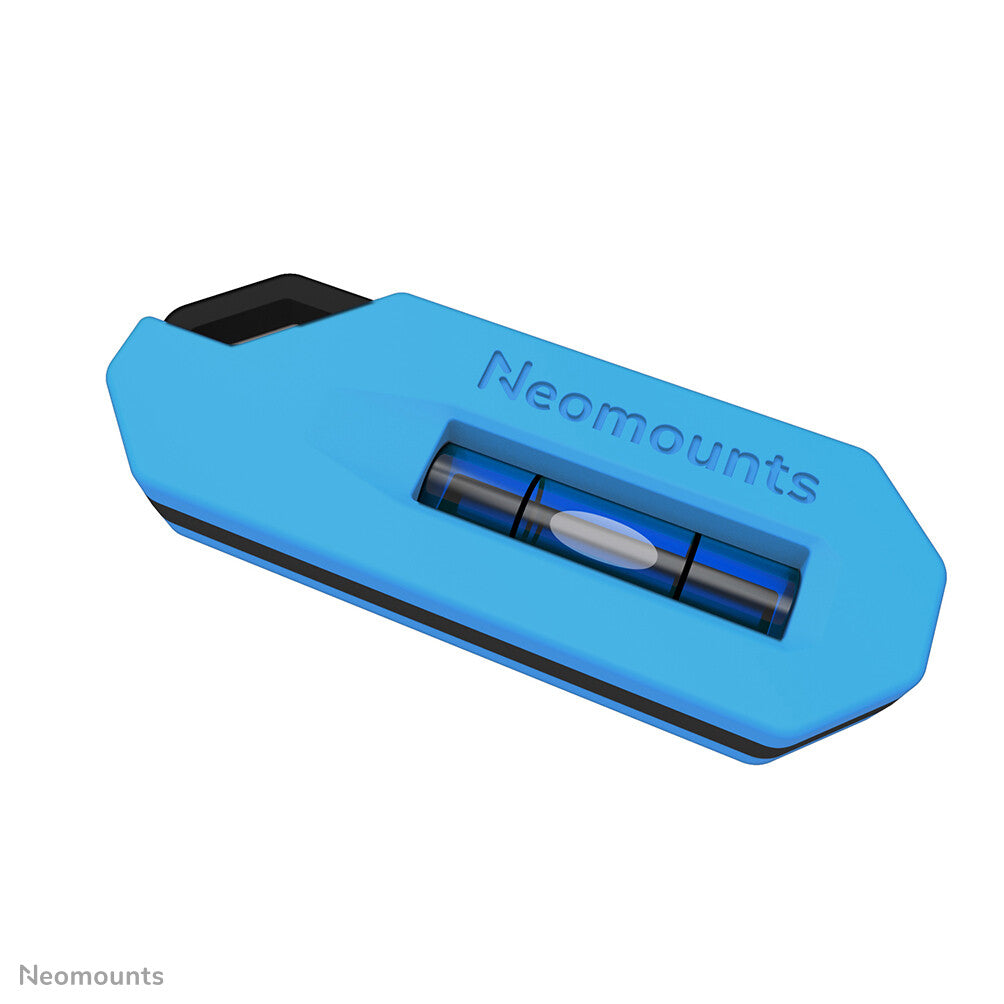

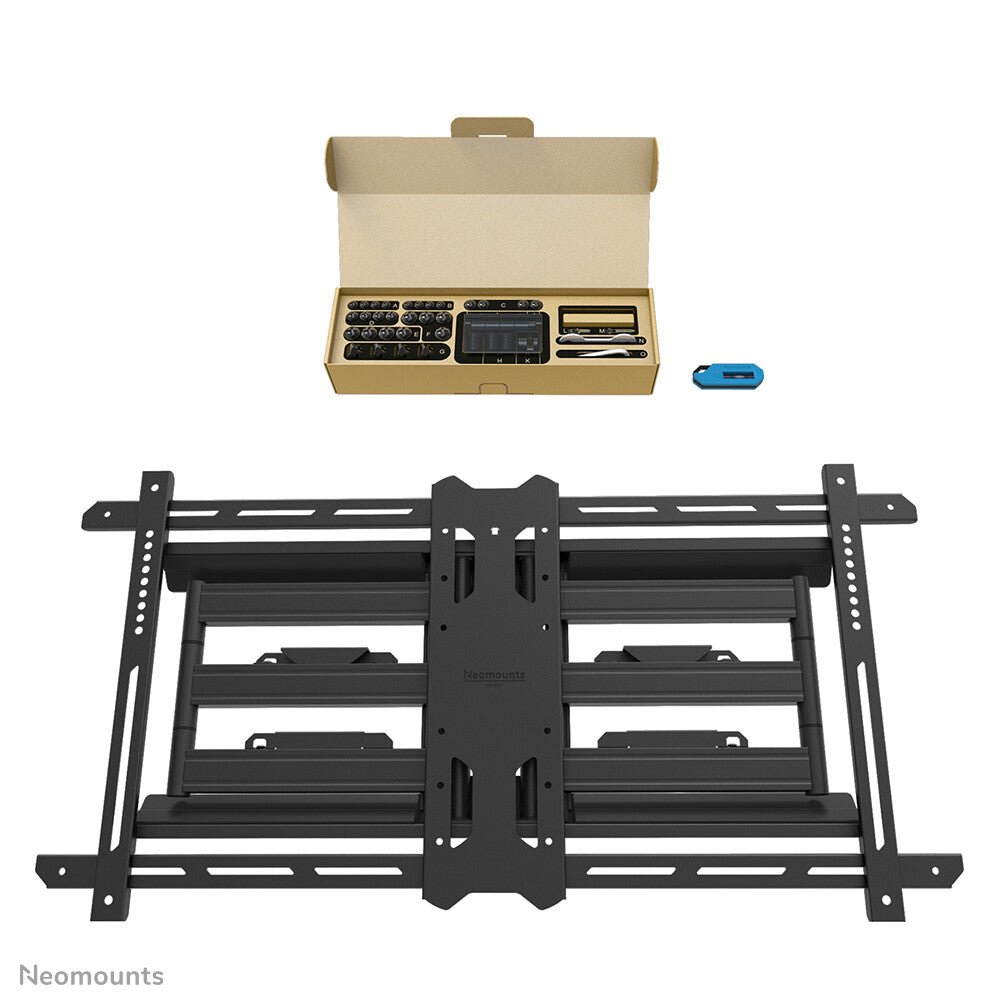

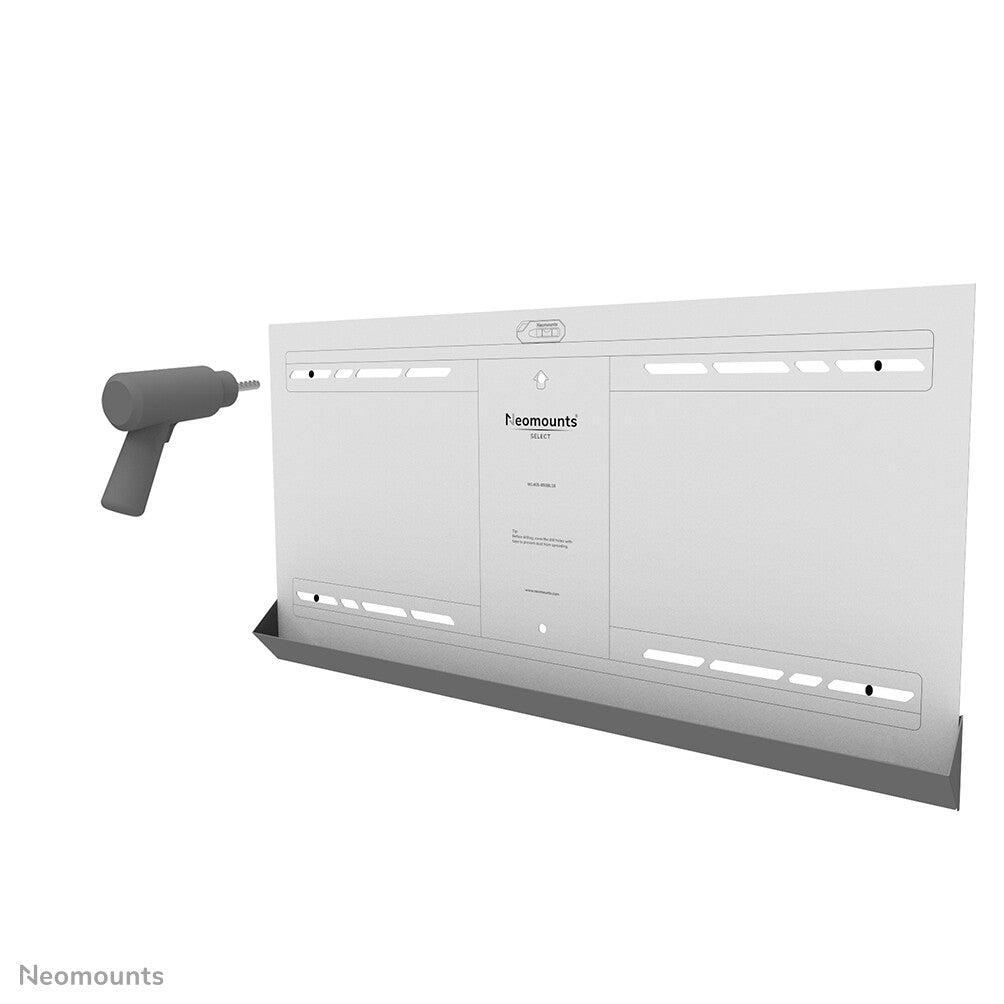

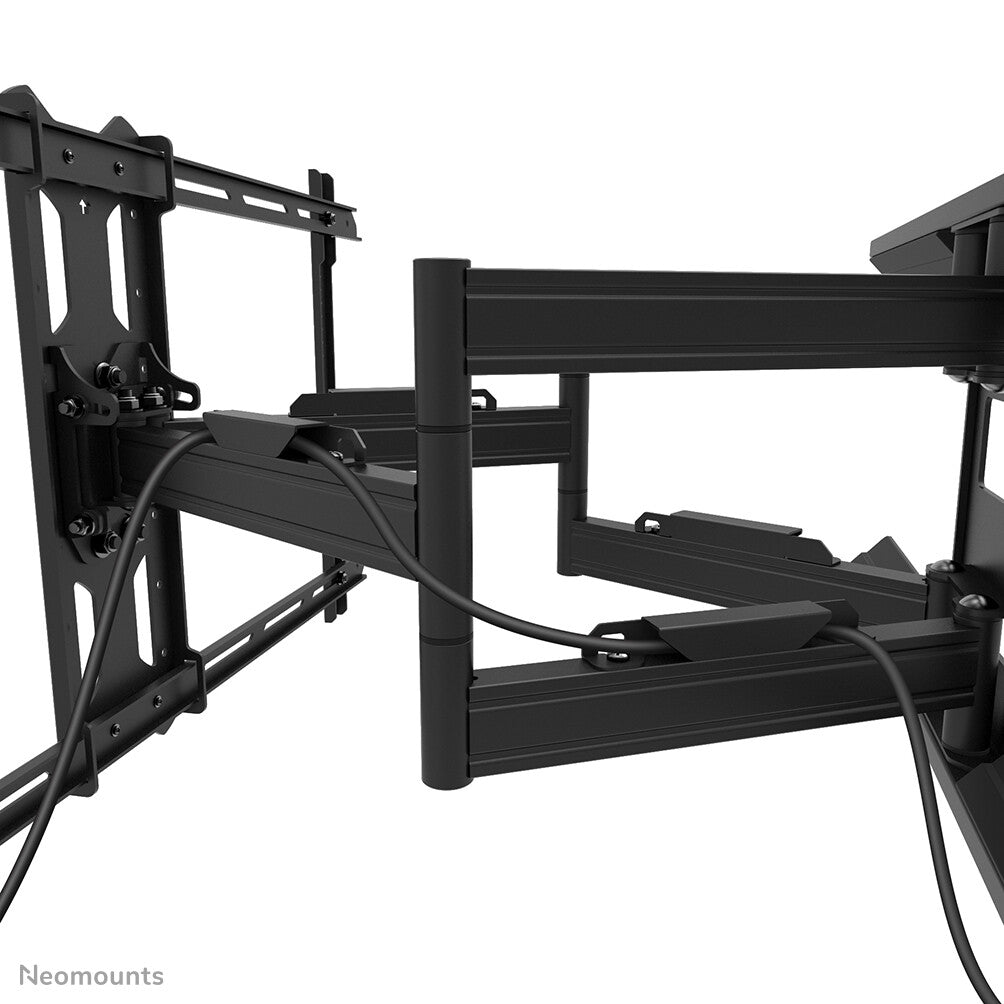

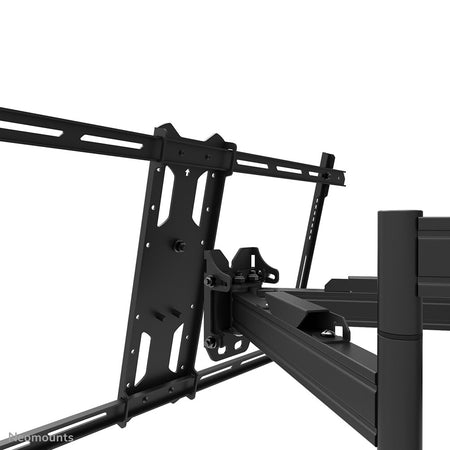

The WL40S-850BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400 |
| Maximum VESA mount |
800 x 400 mm |
| Minimum VESA mount |
200 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
2.18 m (86") |
| Minimum screen size |
109.2 cm (43") |
| Maximum weight capacity |
60 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
5 cm |
| Distance to the wall (max) |
61 cm |
| Type |
Full motion |
| Cable management |
Yes |
| Pivot angle |
-3 - 3° |
| Angle of rotation |
6° |
| Rotating |
Yes |
| Swivel angle range |
0 - 35° |
| Swivel angle |
35° |
| Swivelling |
Yes |
| Tilt angle range |
-3 - 15° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |

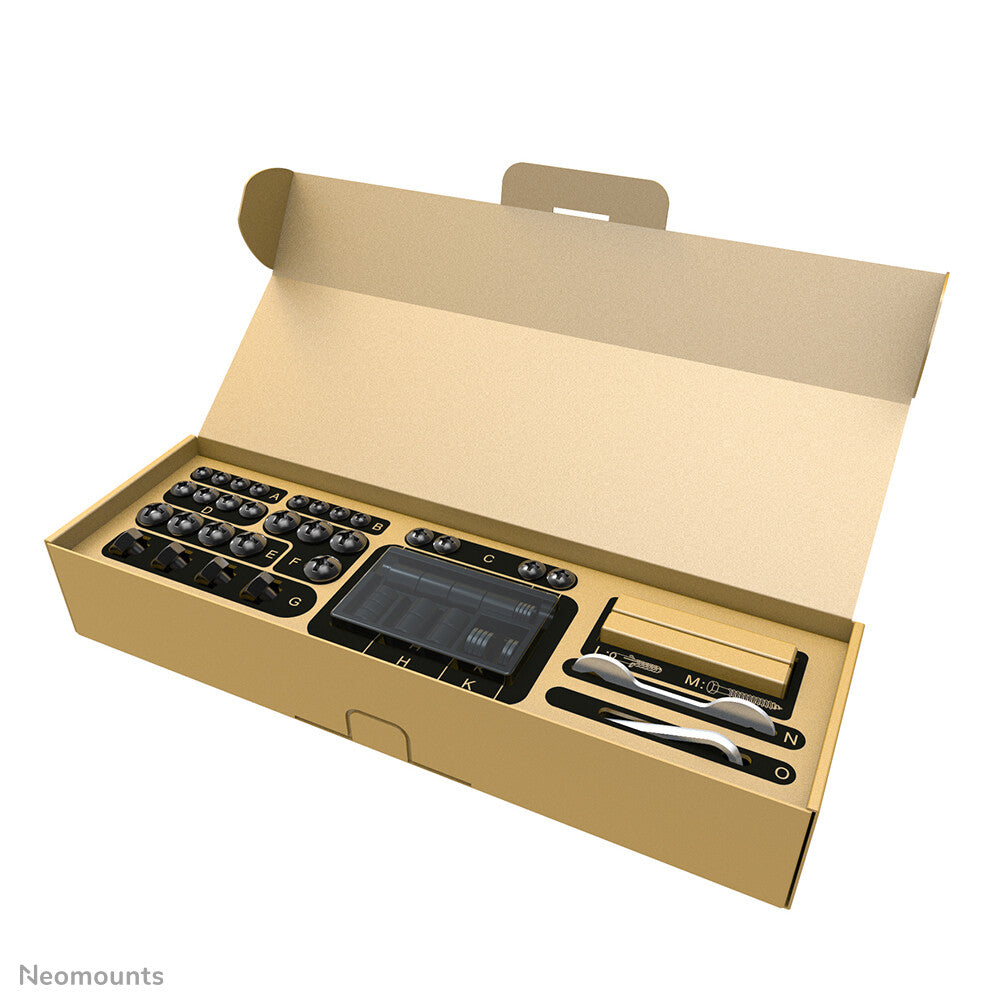

| Packaging content |
|---|
| Number of wrenches included |
1 |
| Hex key included |
Yes |
| Mounting kit |
Yes |
| Technical details |
|---|
| Lockable |
Not lockable |
| Package net weight |
12.7 kg |
| Country of origin |
China |
| Quantity per pack |
1 pc(s) |

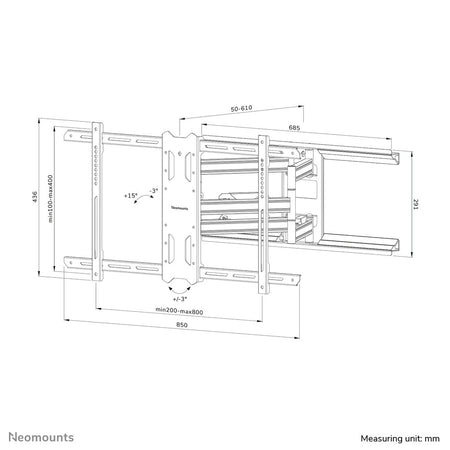

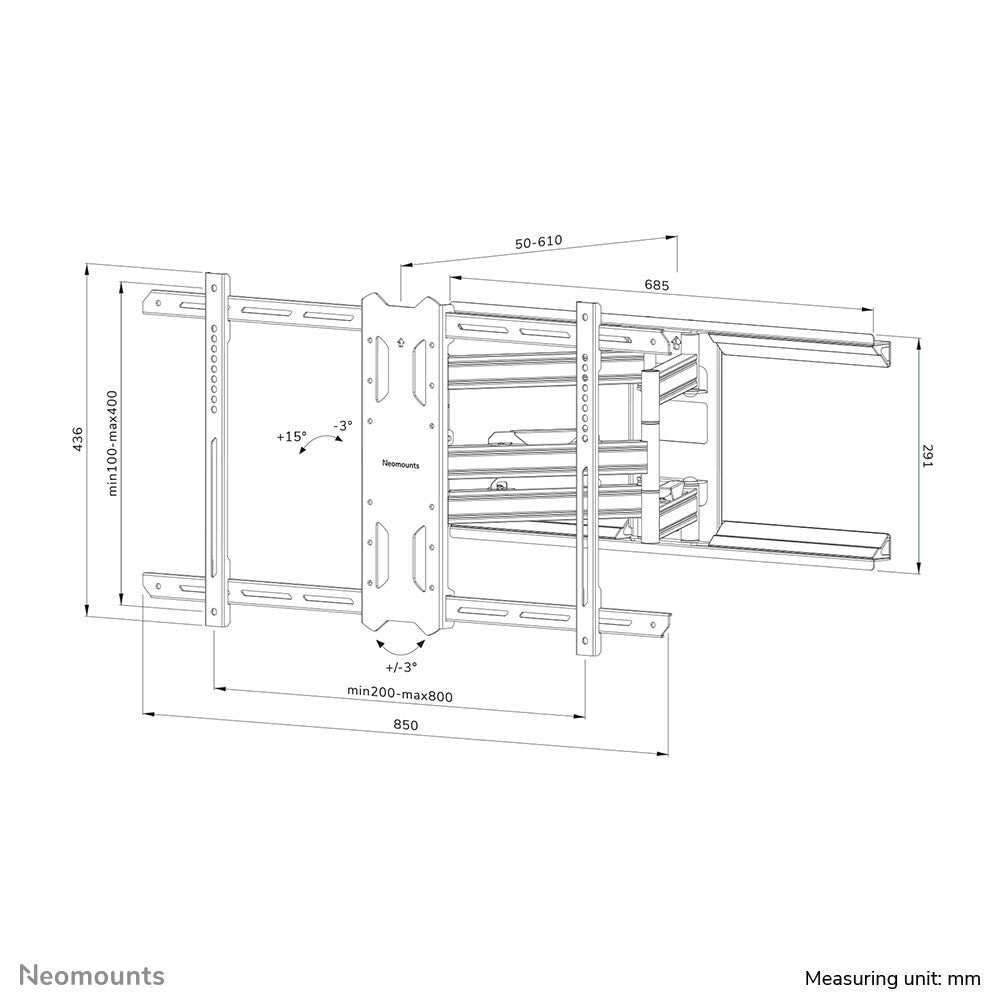

| Weight & dimensions |
|---|
| Height |
436 mm |
| Depth |
50 mm |
| Width |
850 mm |
| Packaging data |
|---|
| Package weight |
12.7 kg |
| Package height |
90 mm |
| Package depth |
311 mm |
| Package width |
882 mm |
| Logistics data |
|---|
| Products per pallet (EU) |
30 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case net weight |
21 kg |
| Master (outer) case gross weight |
26.1 kg |
| Master (outer) case height |
330 mm |
| Master (outer) case length |
195 mm |
| Master (outer) case width |
902 mm |
