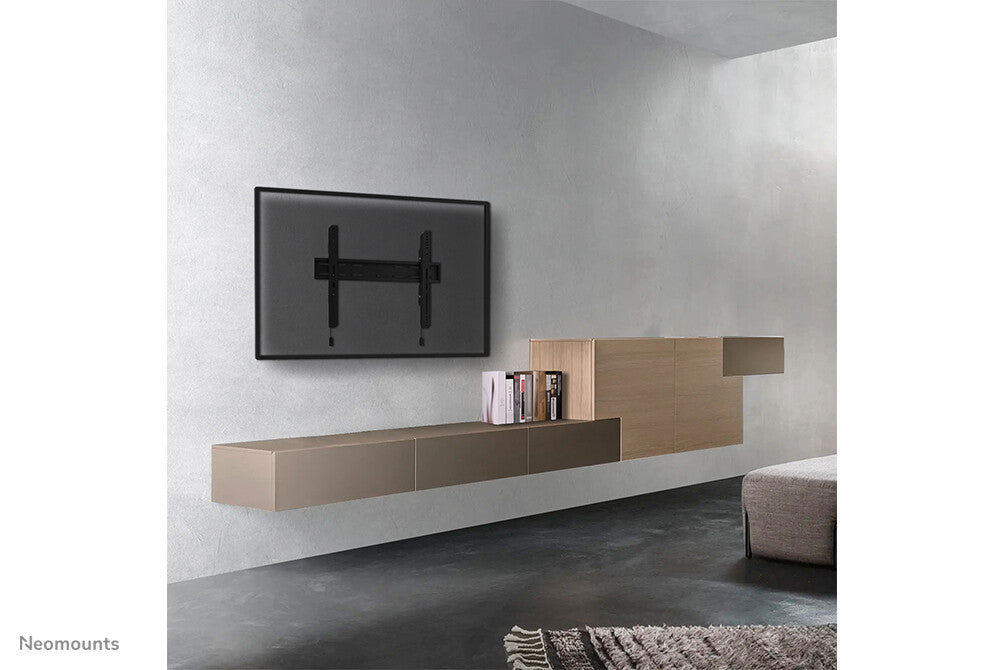

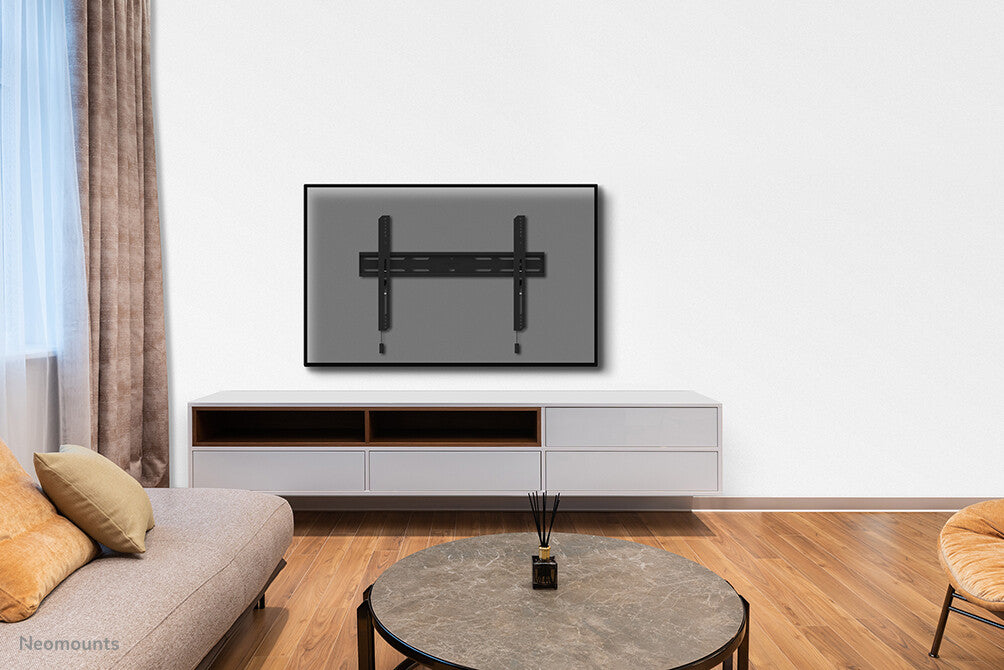

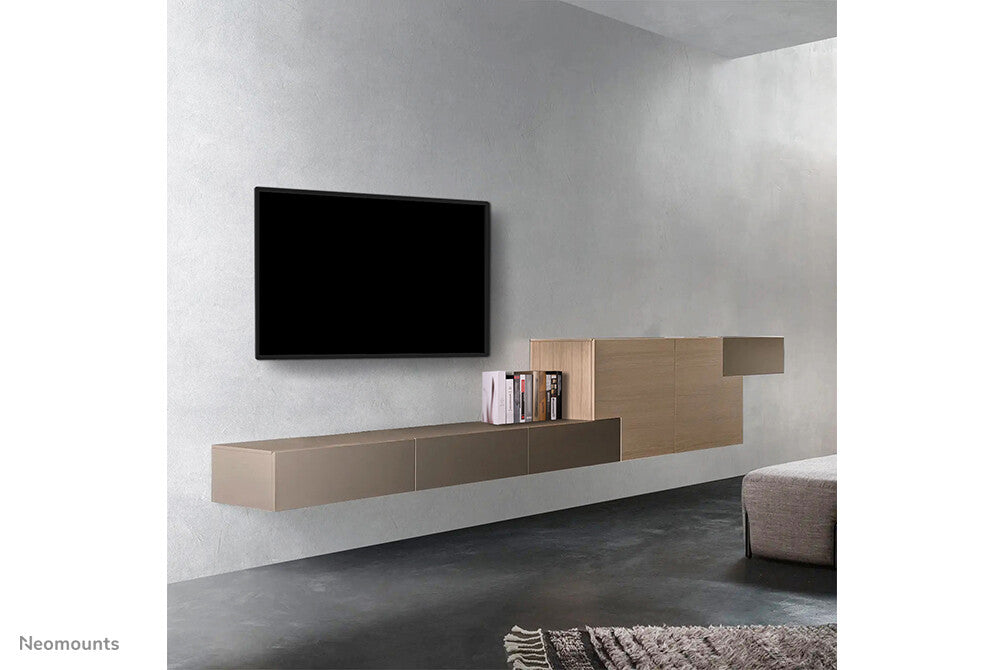

The Neomounts WL30S-850BL16 LEVEL is a fixed wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. Height and level adjustment is available for the perfect installation.

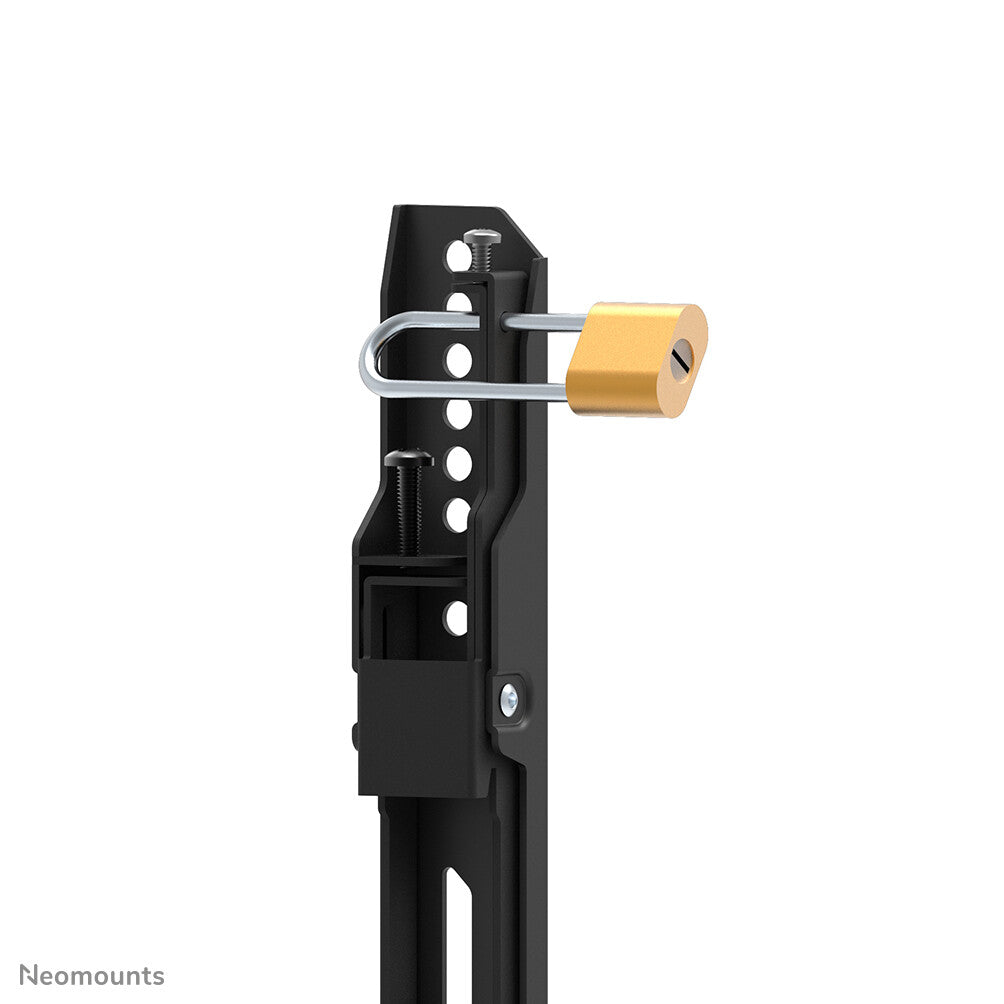

The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

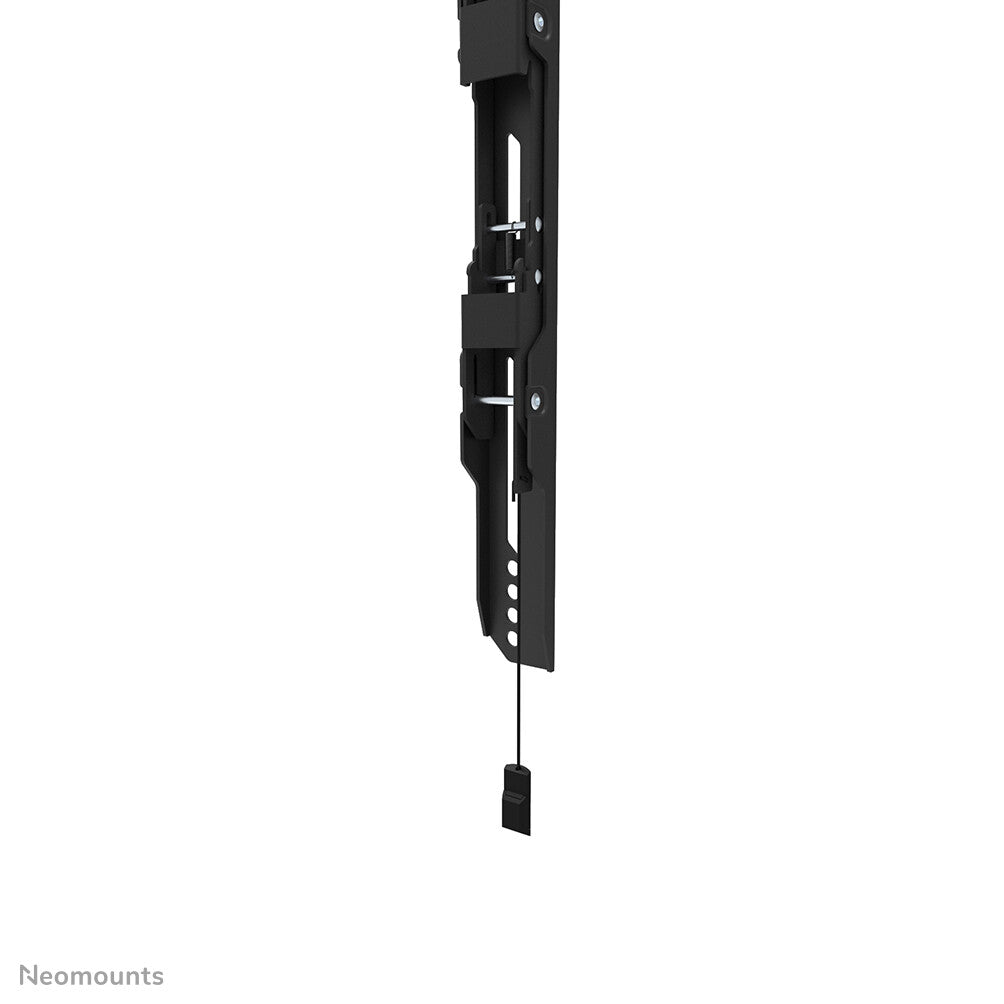

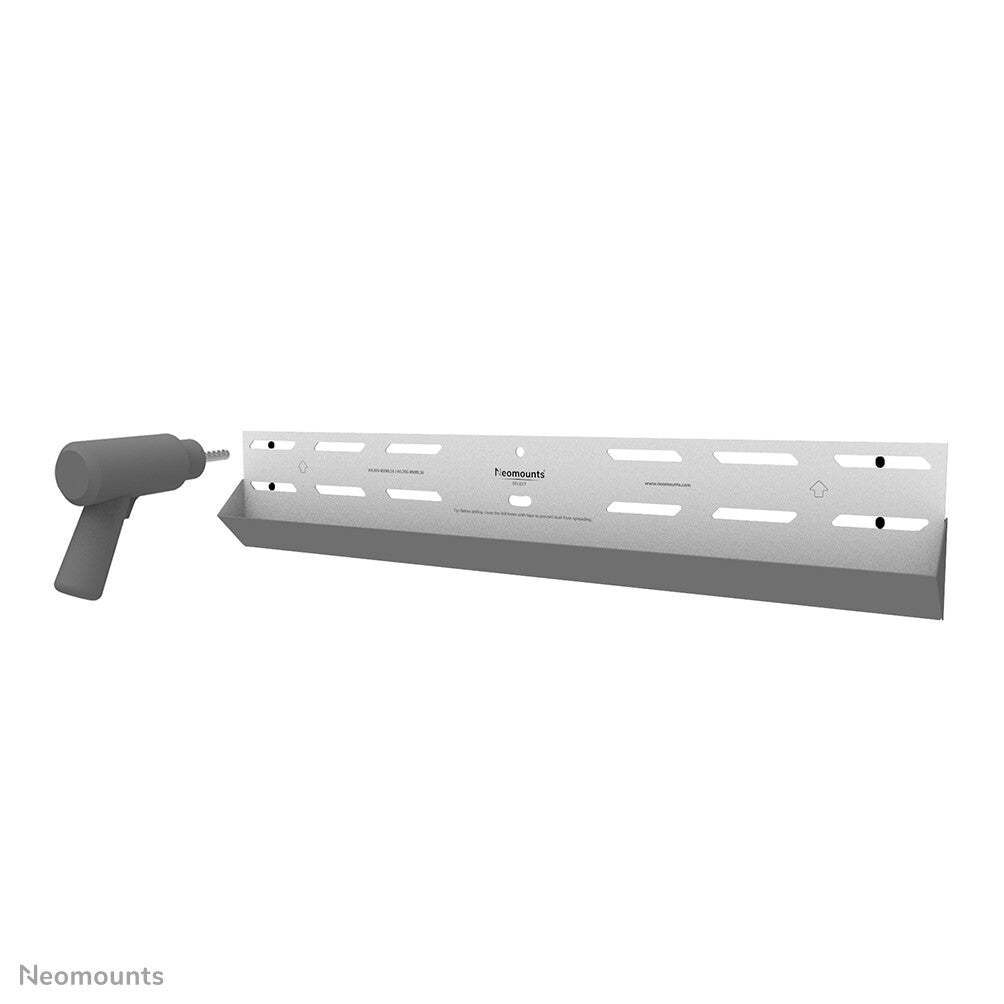

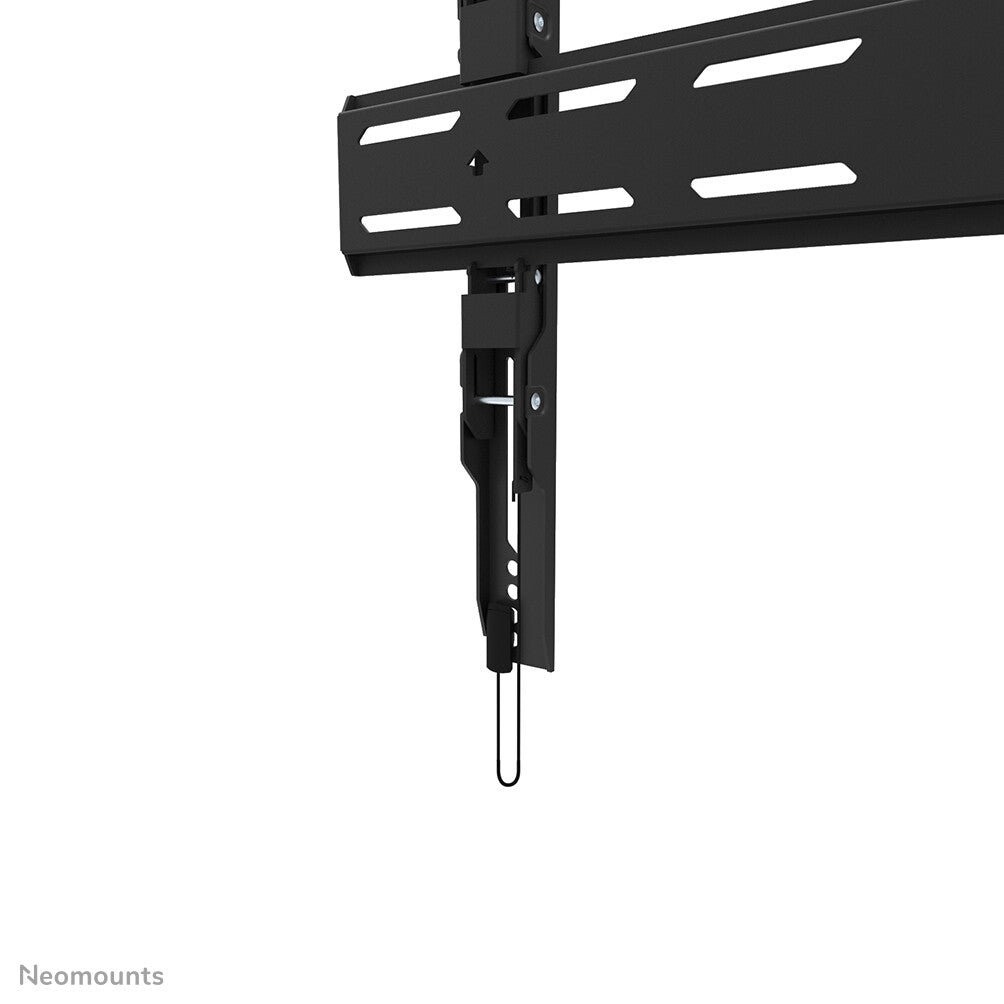

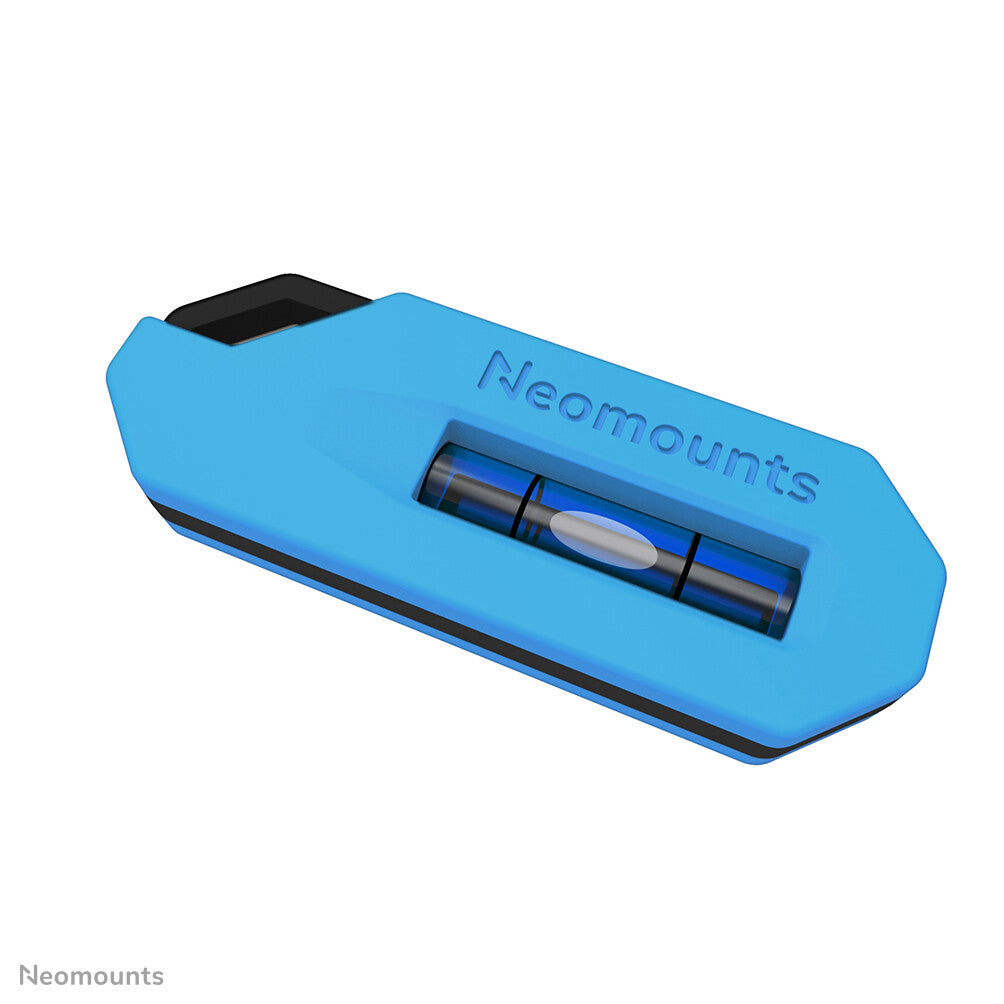

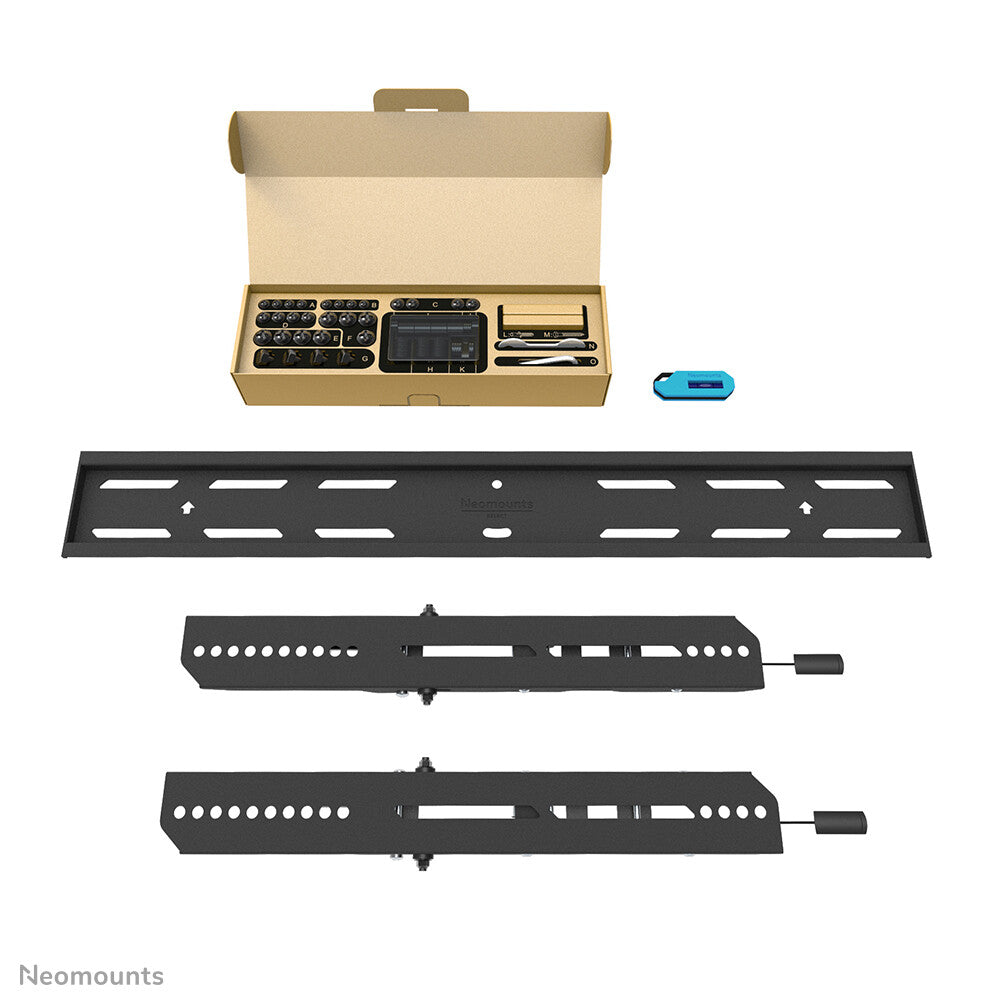

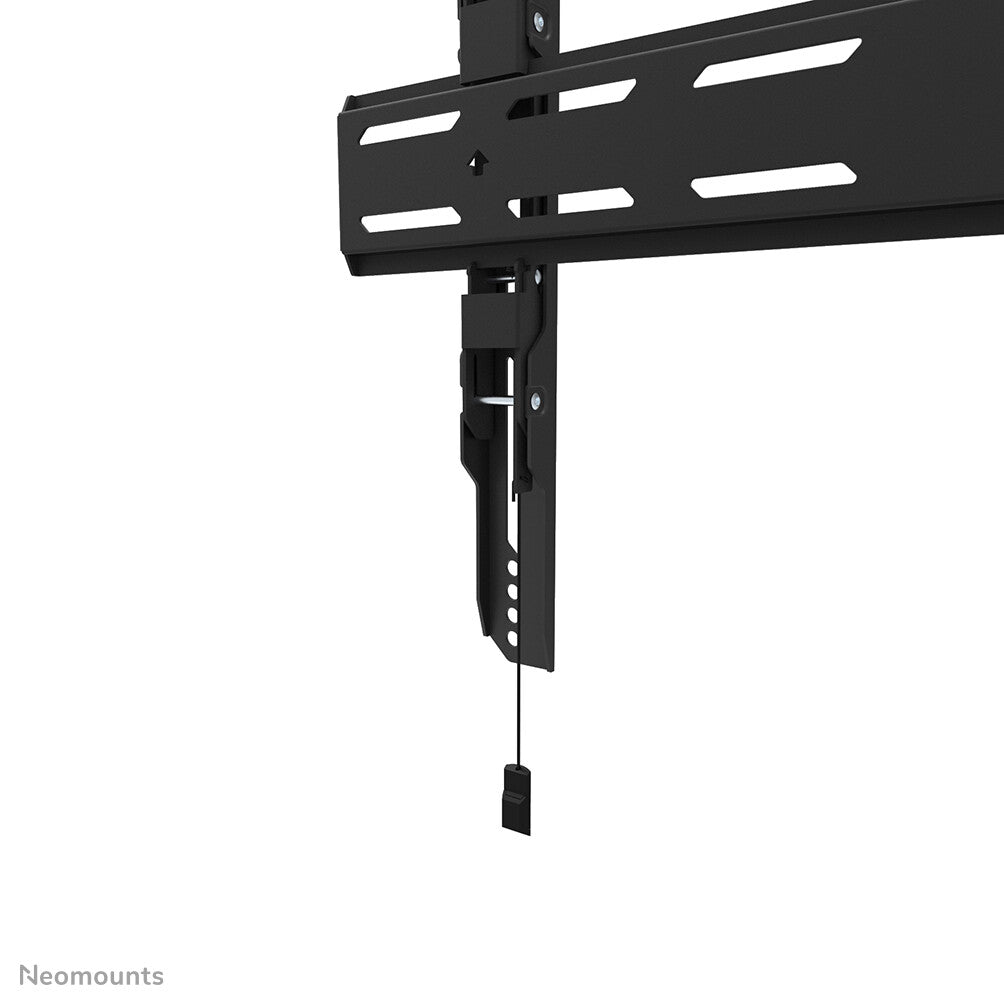

The WL30S-850BL16 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400 |
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
100 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
2.18 m (86") |
| Minimum screen size |
106.7 cm (42") |
| Maximum weight capacity |
60 kg |
| Ergonomics |
|---|
| Distance to the wall (max) |
3.3 cm |
| Type |
Fixed |
| Height adjustment range |
0 - 20 mm |
| Height adjustment |
Yes |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Technical details |
|---|
| Lockable |
Security screw included |
| Package net weight |
3.4 kg |
| Country of origin |
China |

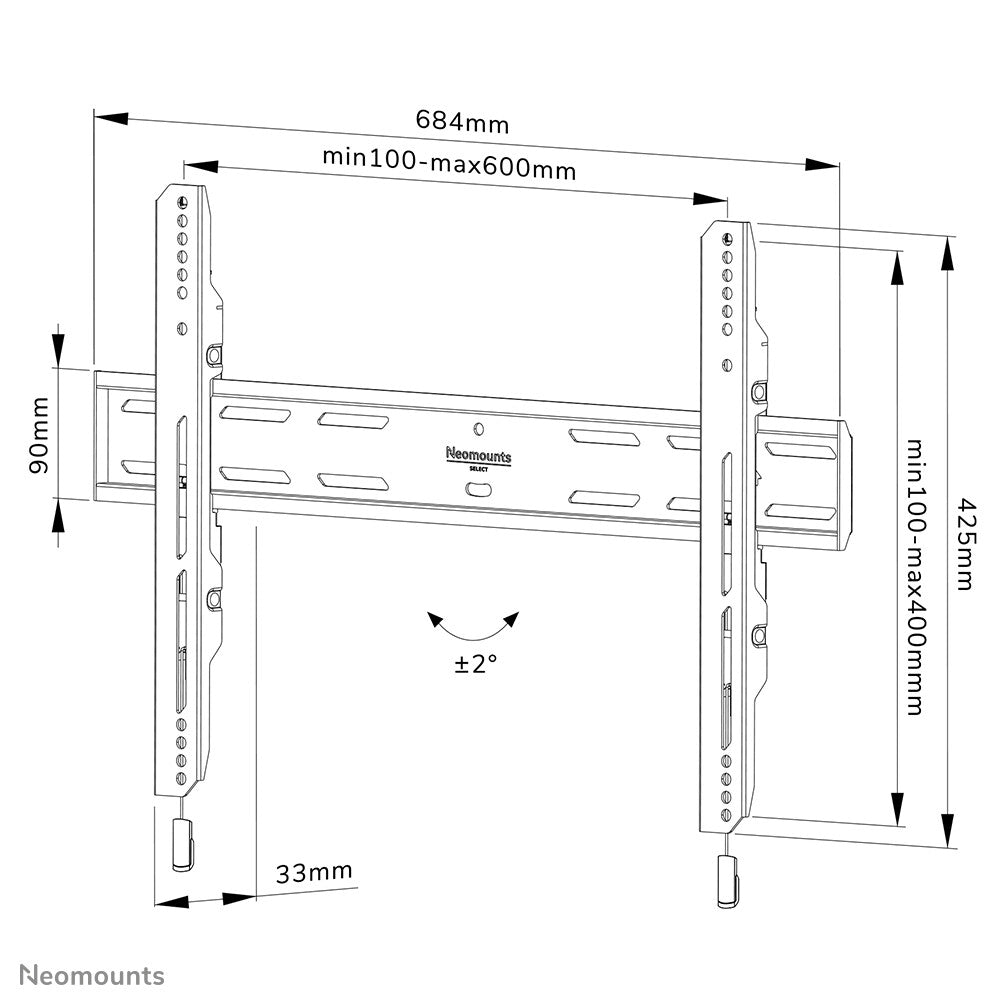

| Weight & dimensions |
|---|
| Weight |
2.4 kg |
| Height |
425 mm |
| Depth |
33 mm |
| Width |
684 mm |
| Packaging data |
|---|
| Package weight |
3.4 kg |
| Package height |
74 mm |
| Package depth |
158 mm |
| Package width |
704 mm |
| Logistics data |
|---|
| Products per pallet (EU) |
120 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case net weight |
16.2 kg |
| Master (outer) case gross weight |
21 kg |
| Master (outer) case height |
343 mm |
| Master (outer) case length |
240 mm |
| Master (outer) case width |
724 mm |
