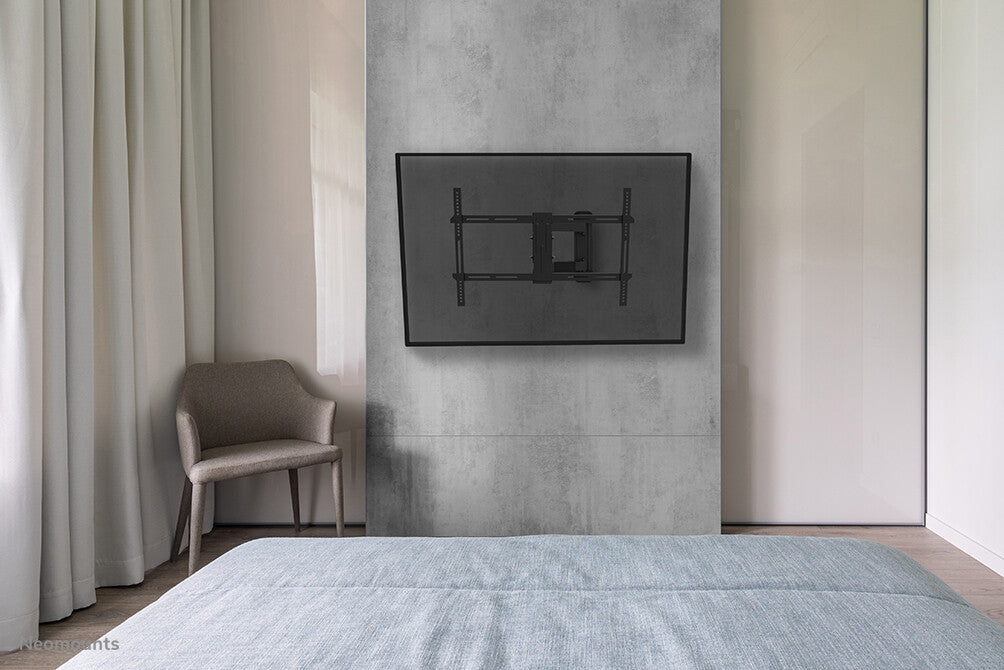

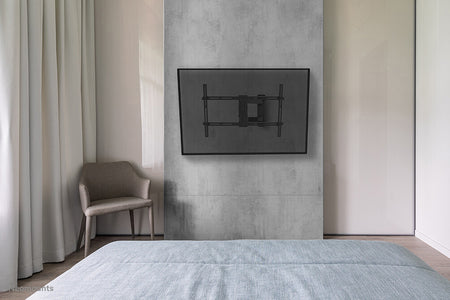

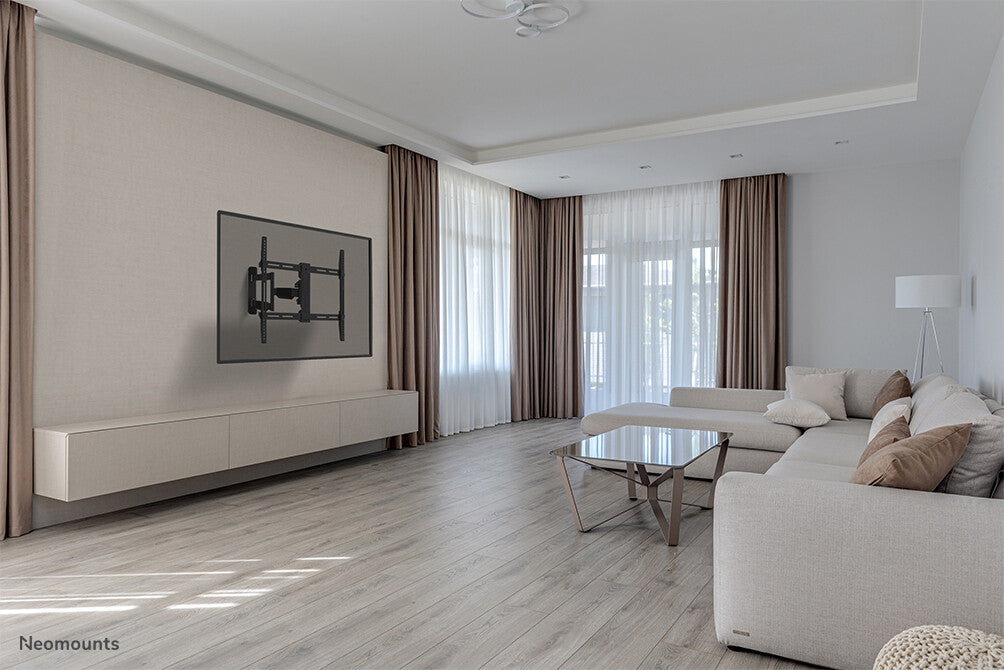

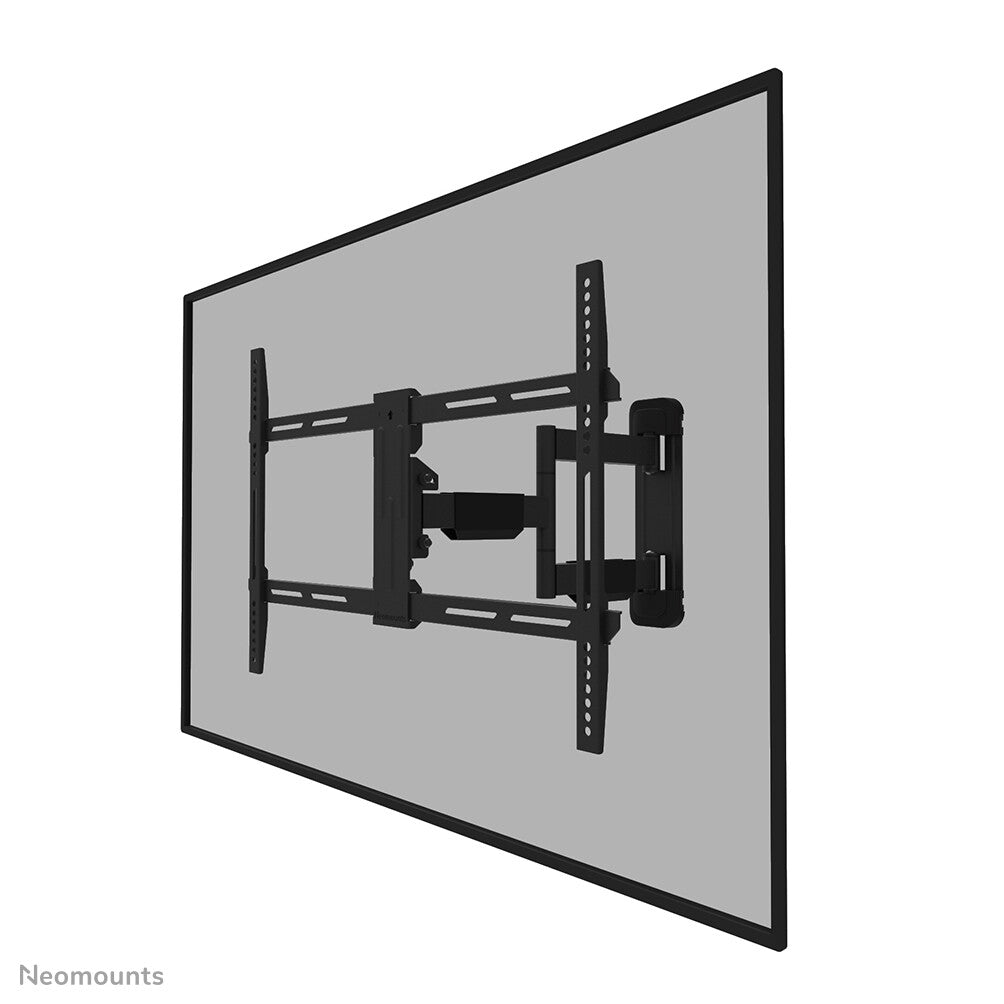

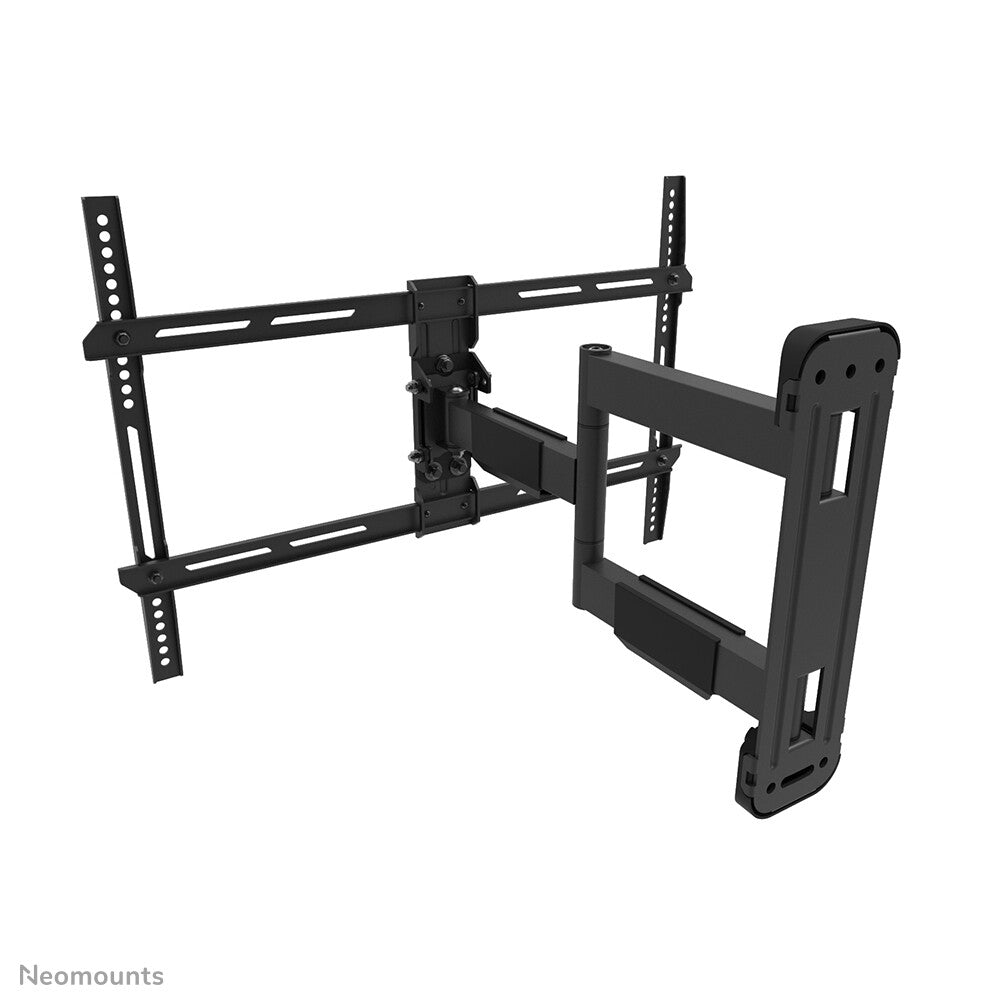

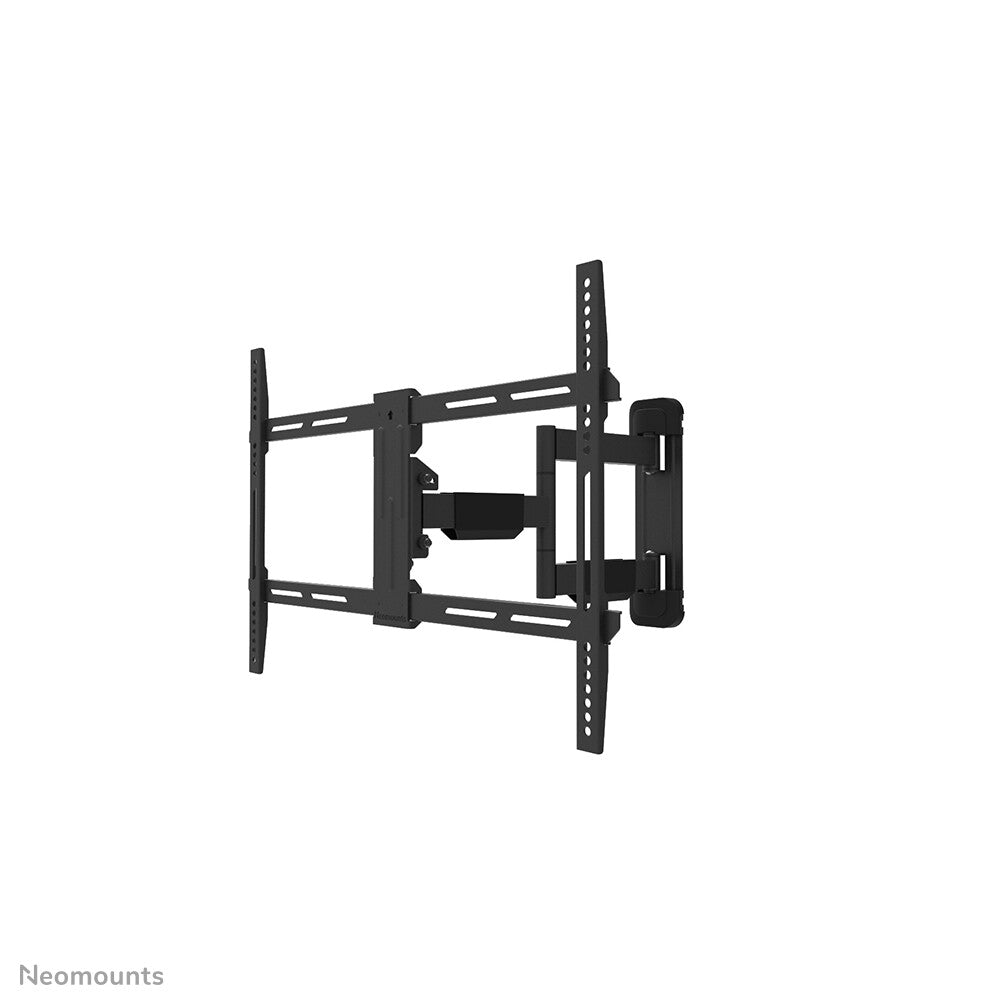

The Neomounts WL40-550BL16 LEVEL is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (+45°/-45°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-550 wall mount has a depth of 5,3-49 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm.

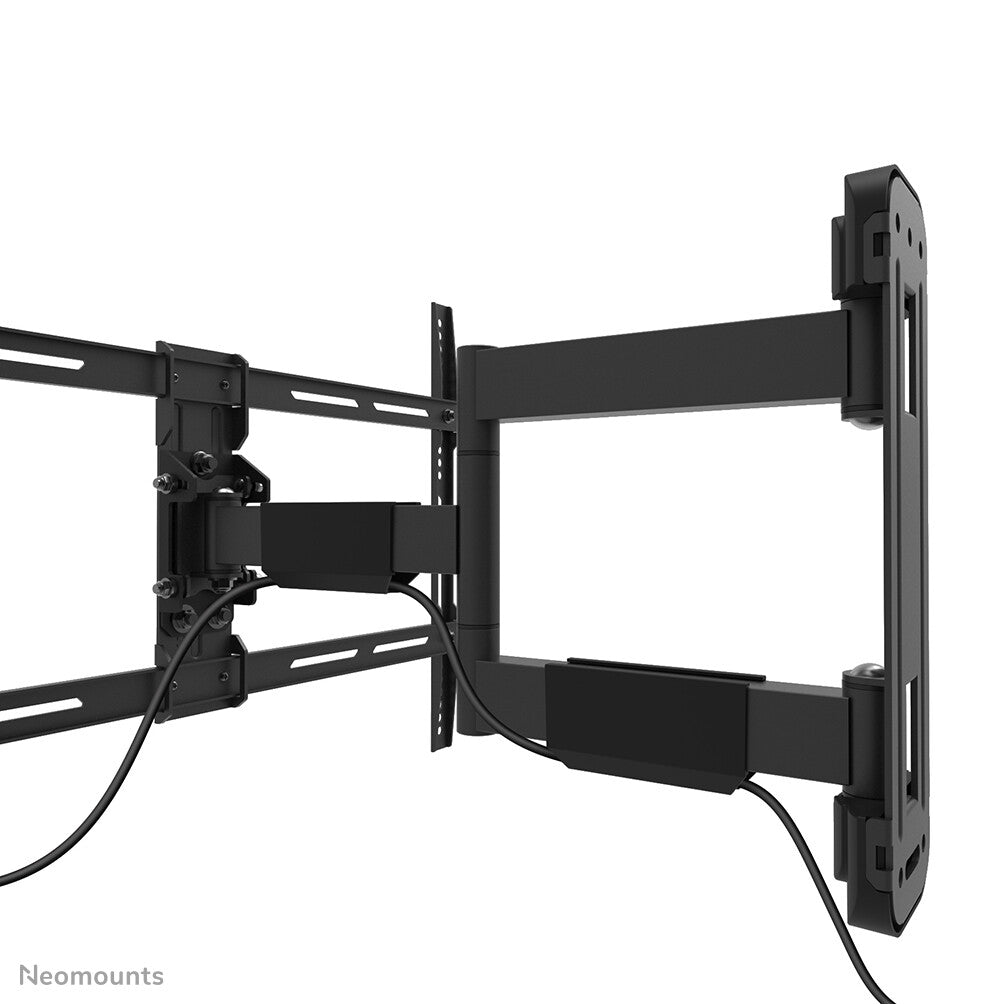

The WL40-550BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 200,600 x 300,600 x 400 |
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
200 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
165.1 cm (65") |
| Minimum screen size |
101.6 cm (40") |
| Maximum weight capacity |
40 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
5.3 cm |
| Distance to the wall (max) |
49 cm |
| Type |
Full motion |
| Cable management |
Yes |

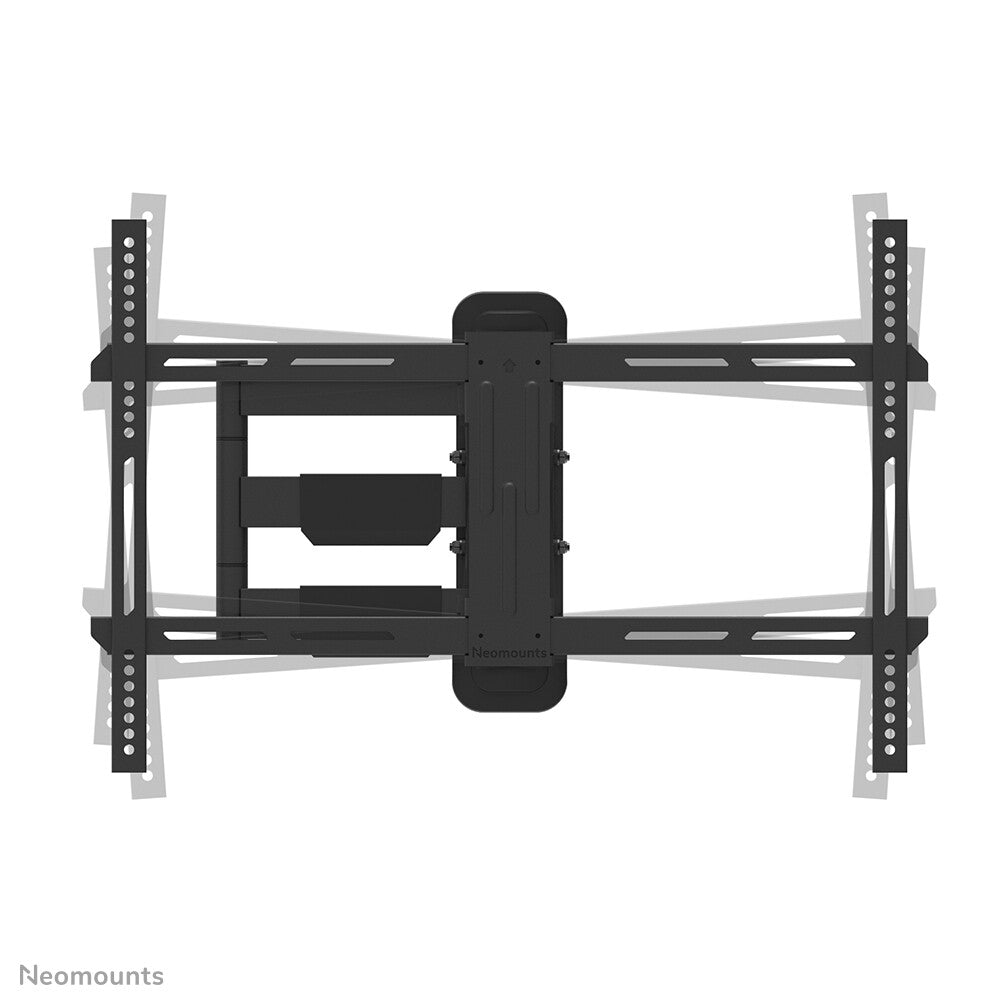

| Pivot angle |
-3 - 3° |
| Angle of rotation |
6° |
| Rotating |
Yes |
| Swivel angle range |
-45 - 45° |
| Swivel angle |
40° |
| Swivelling |
Yes |
| Tilt angle range |
-2 - 12° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Packaging content |
|---|

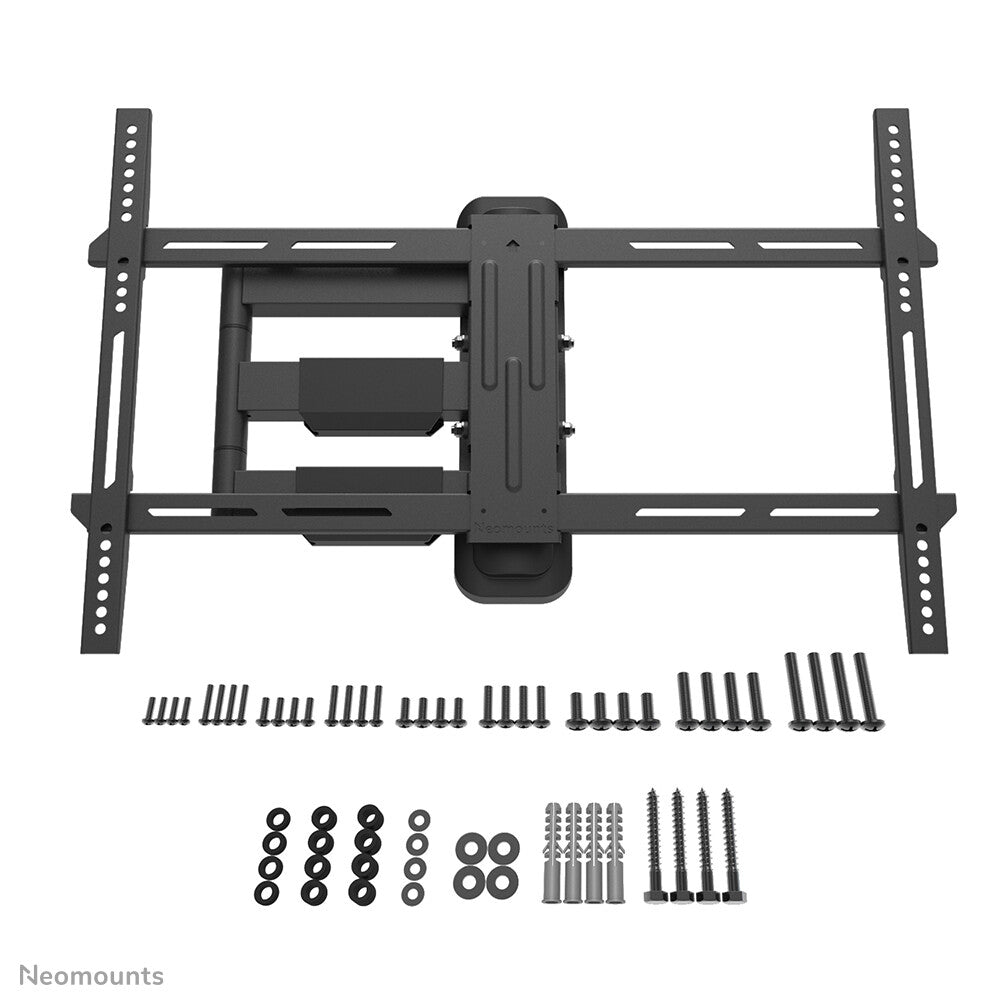

| Mounting kit |
Yes |
| Technical details |
|---|
| Lockable |
Not lockable |
| Package net weight |
6.6 kg |
| Country of origin |
China |
| Quantity per pack |
1 pc(s) |

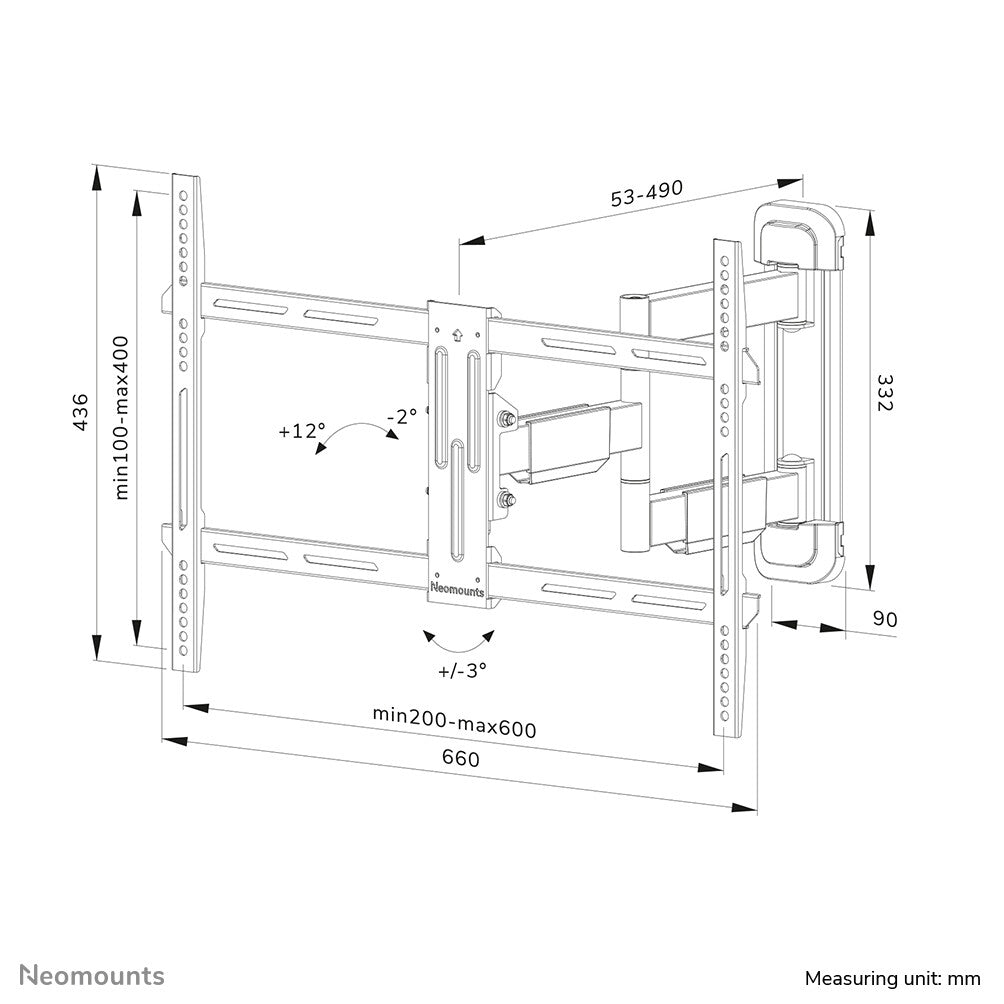

| Weight & dimensions |
|---|
| Weight |
5 kg |
| Height |
436 mm |
| Depth |
53 mm |
| Width |
660 mm |
| Packaging data |
|---|
| Package weight |
6.6 kg |
| Package height |
56 mm |
| Package depth |
323 mm |
| Package width |
684 mm |
| Logistics data |
|---|
| Products per pallet (EU) |
72 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case net weight |
18 kg |
| Master (outer) case gross weight |
20.4 kg |
| Master (outer) case height |
343 mm |
| Master (outer) case length |
185 mm |
| Master (outer) case width |
704 mm |
