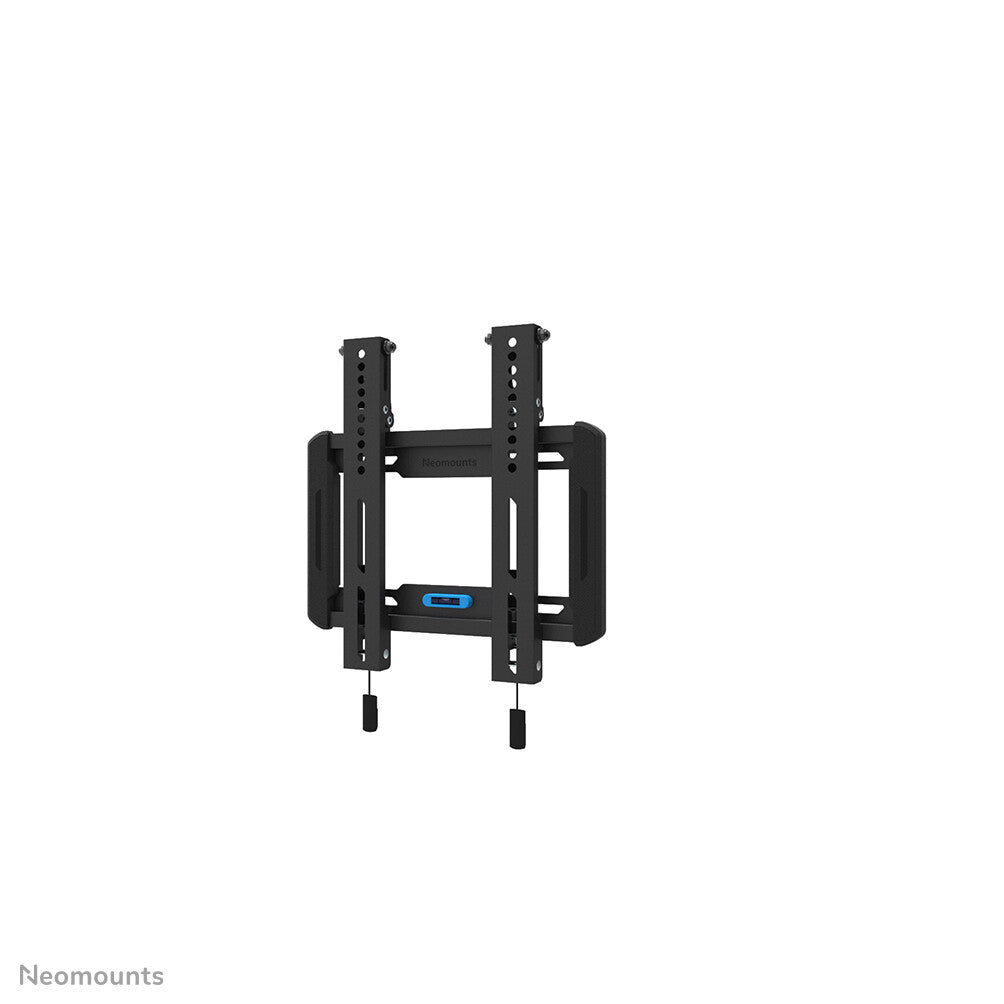

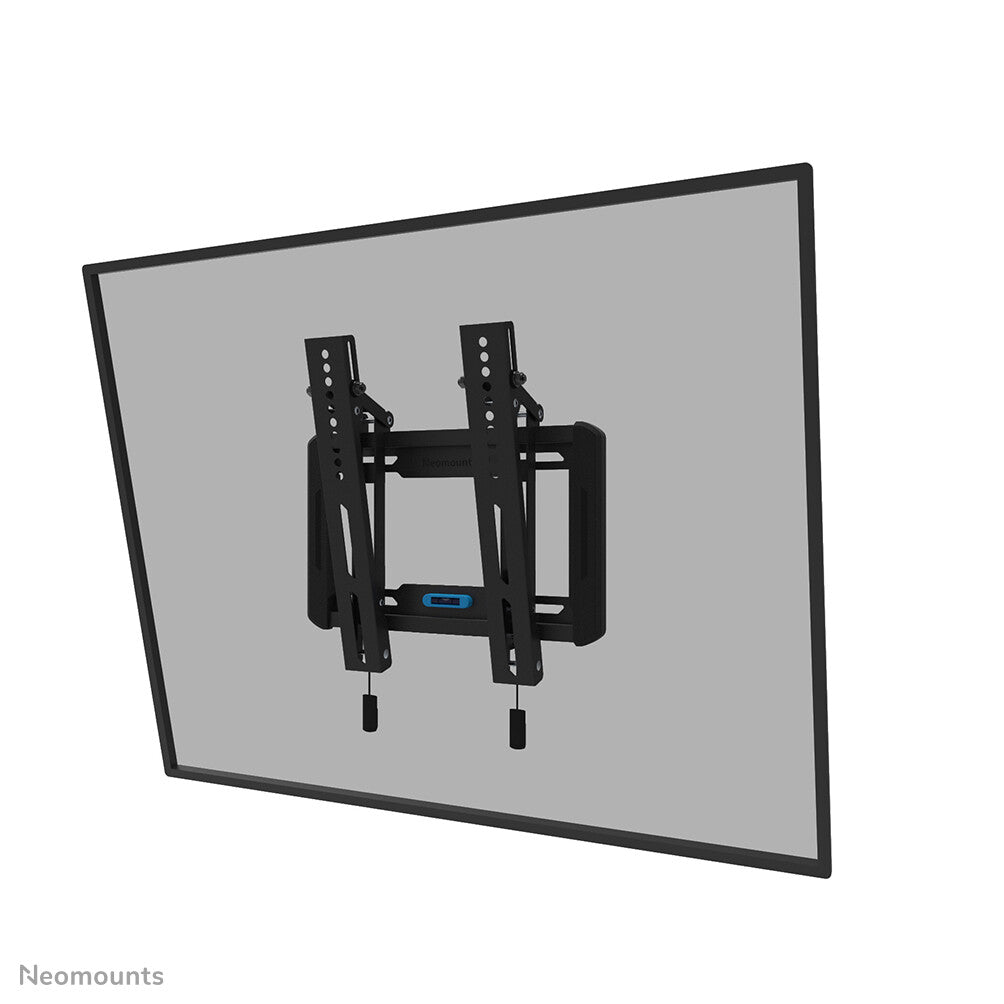

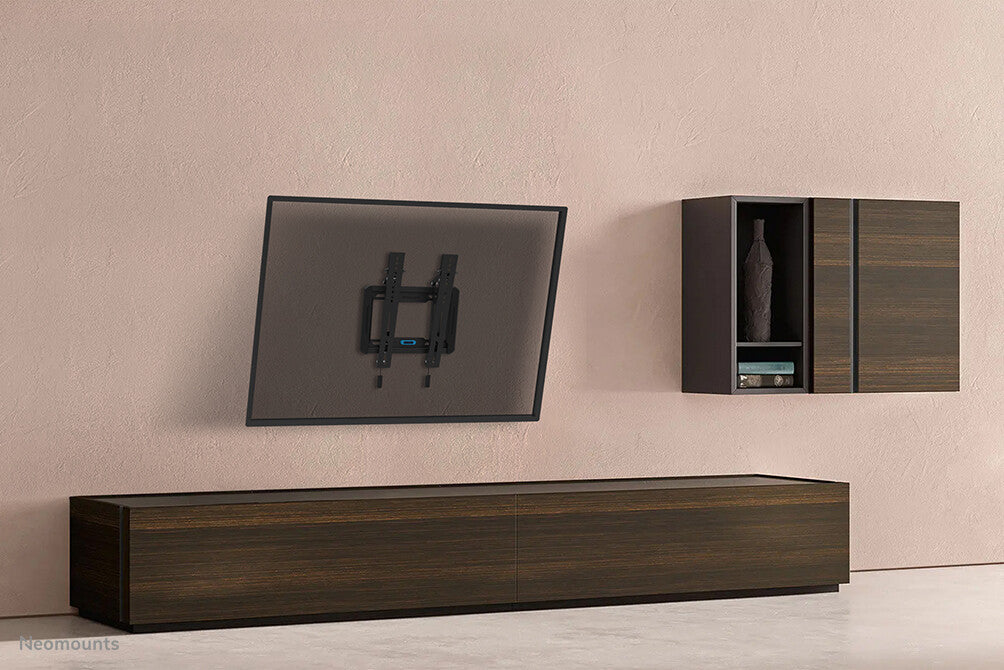

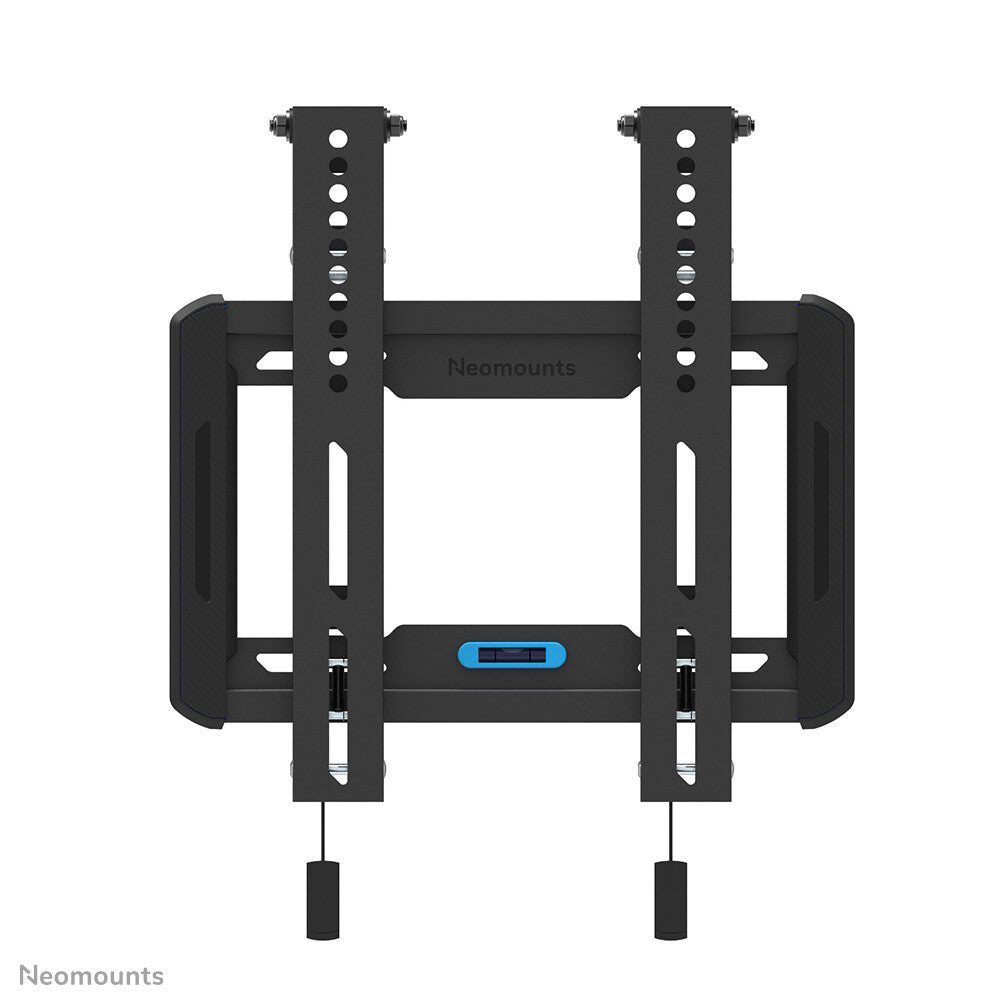

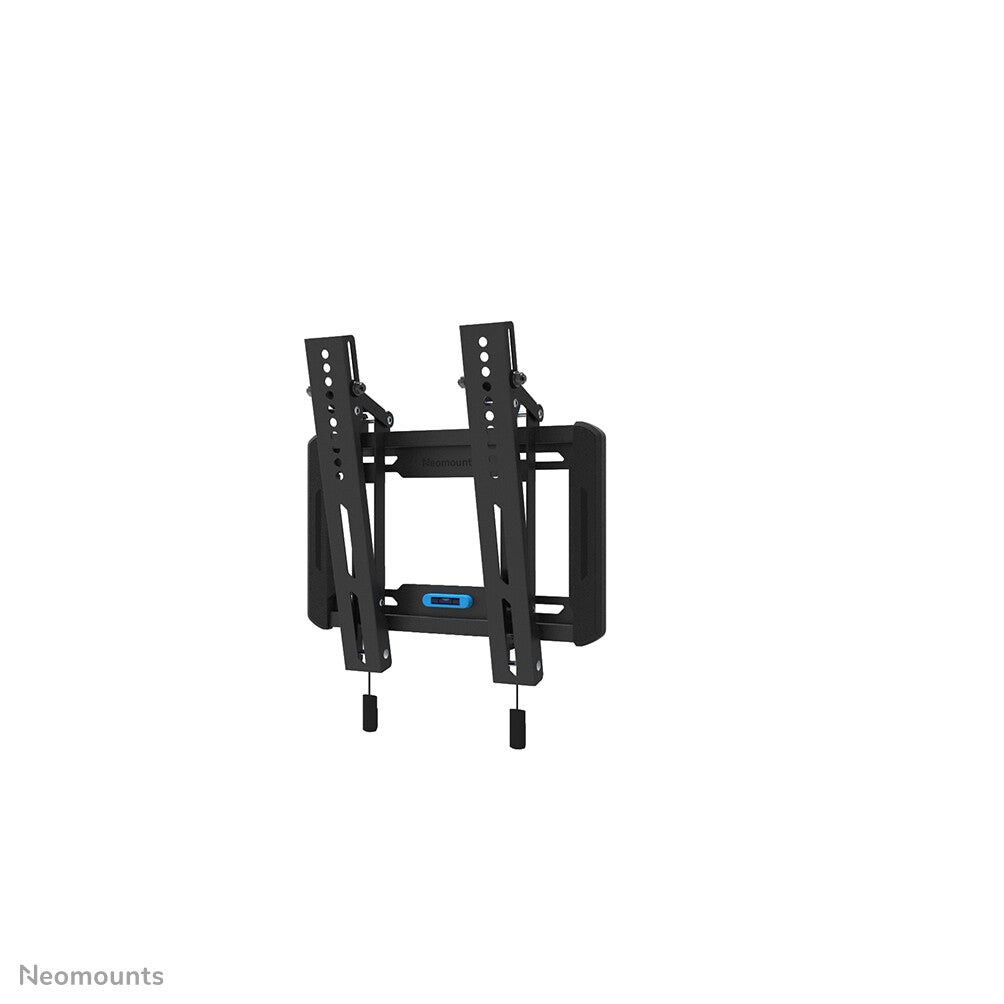

The Neomounts WL30-550BL14 LEVEL is a fixed wall mount for flat screens up to 75" with a maximum weight capacity of 50 kg.

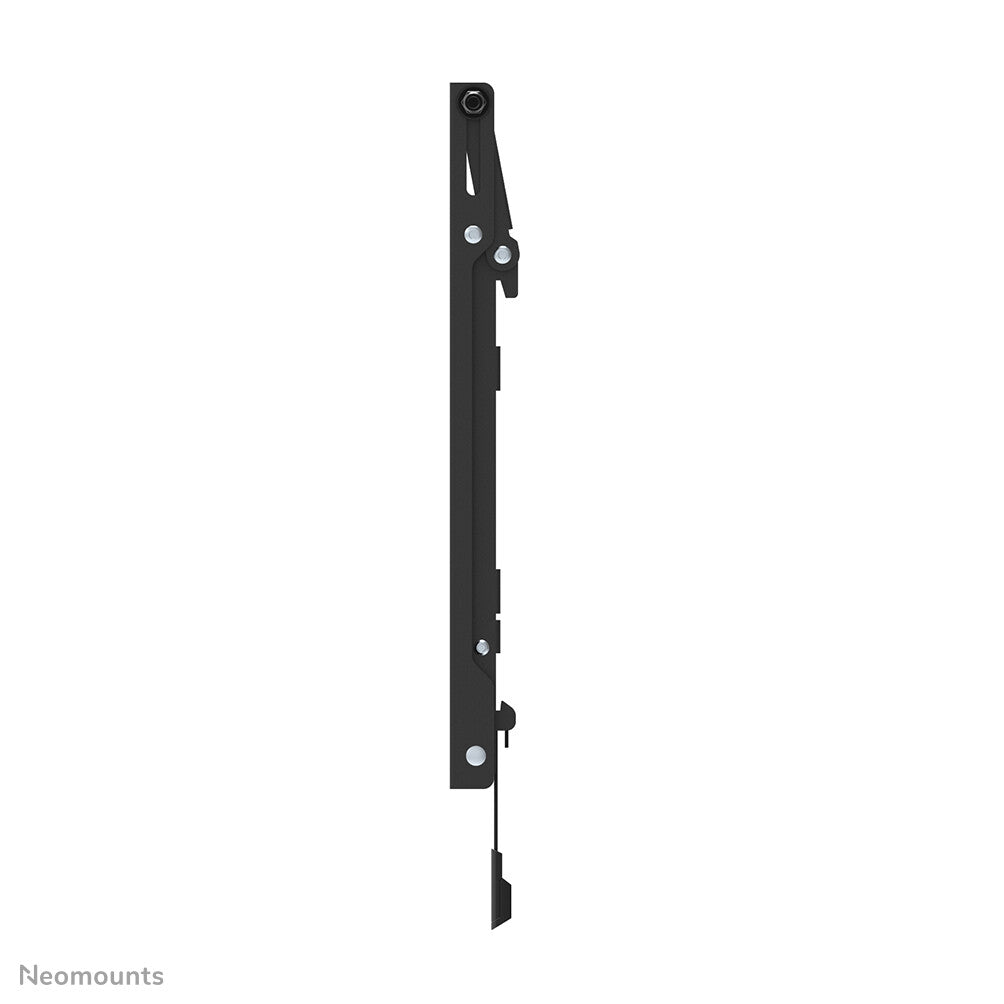

The LEVEL-550 wall mount is ultra-flat with a depth of 2,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm.

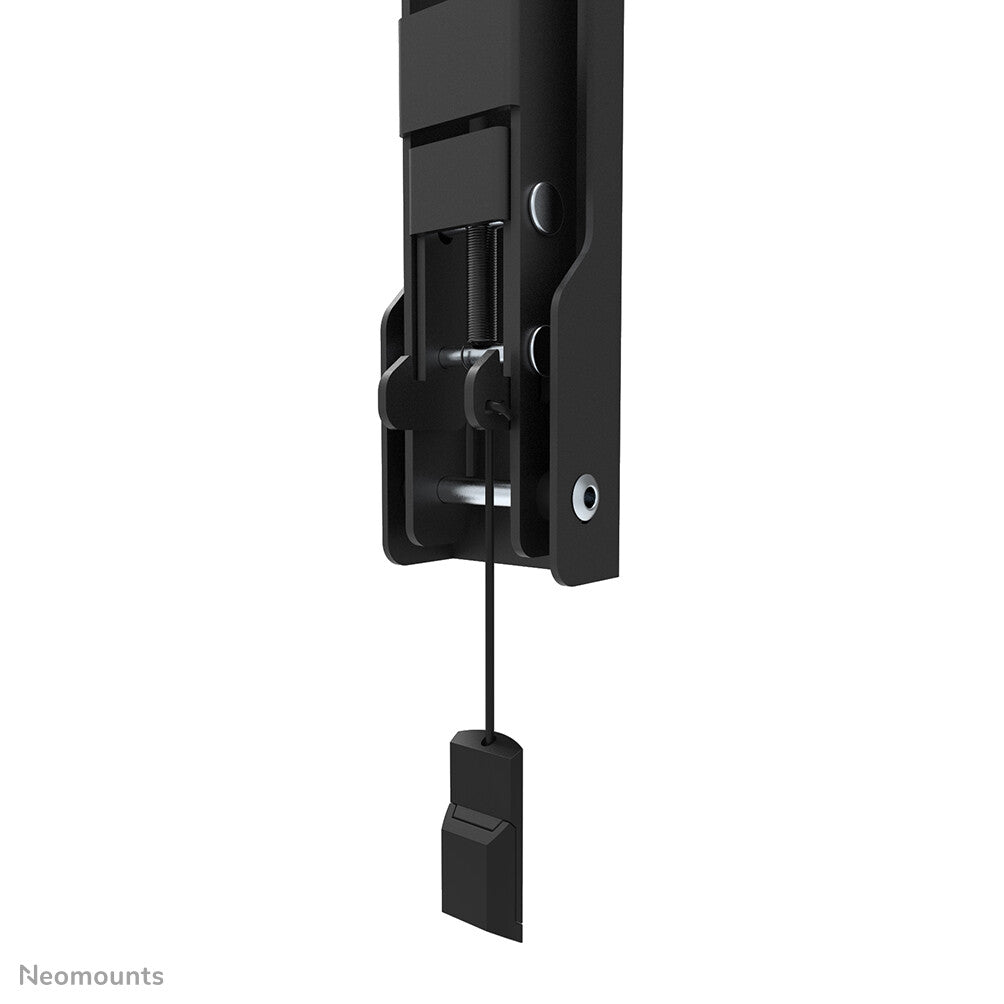

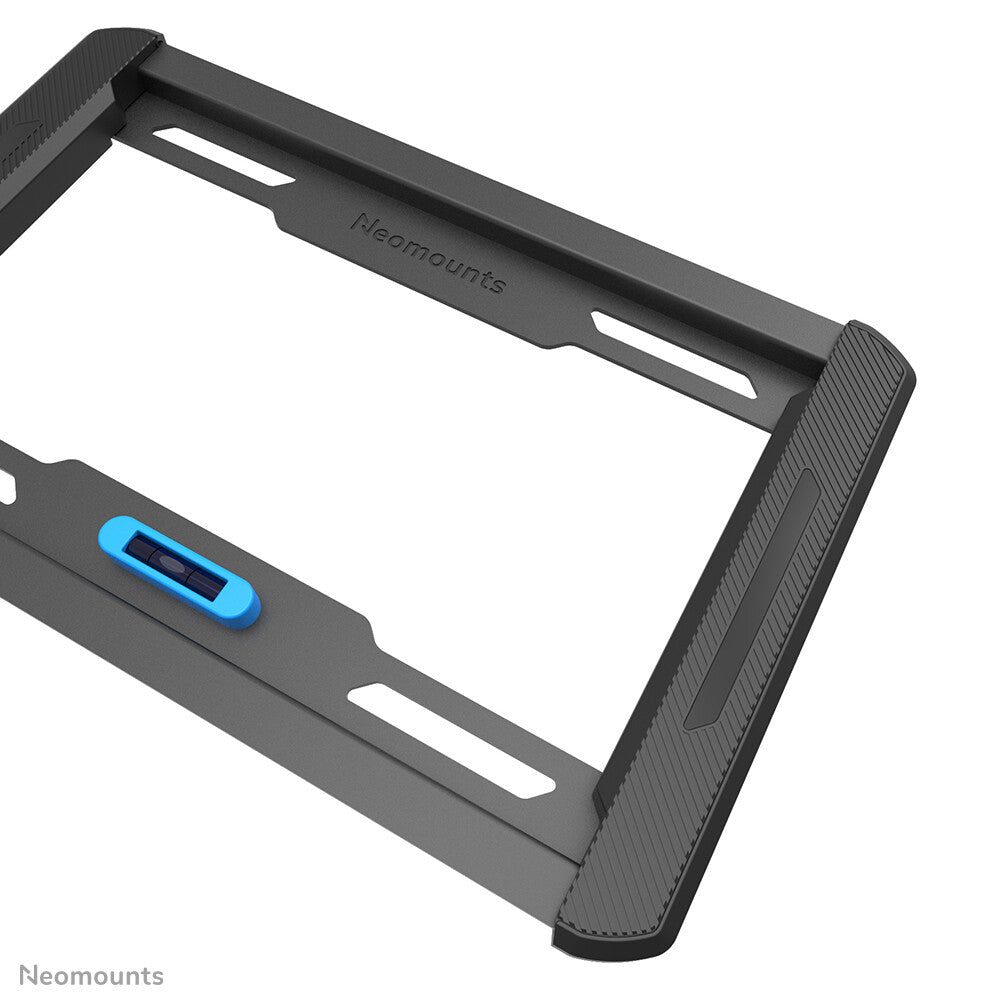

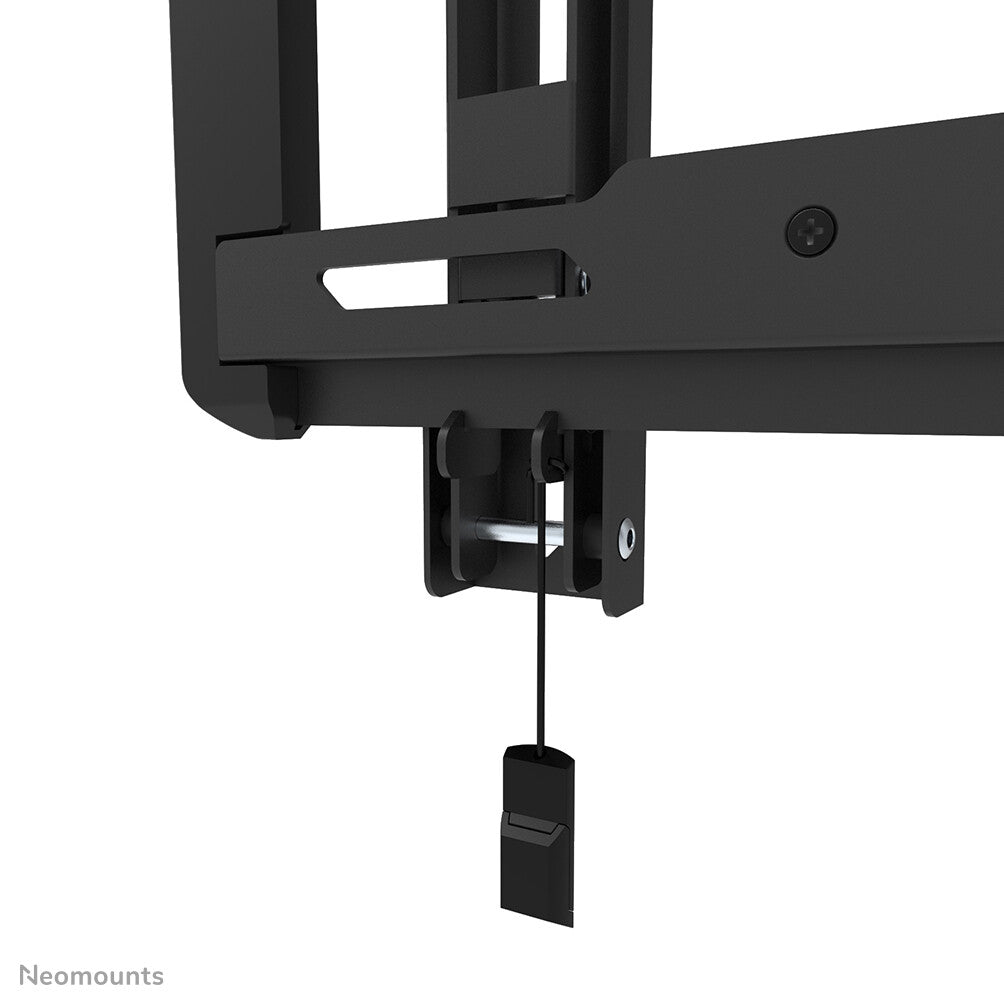

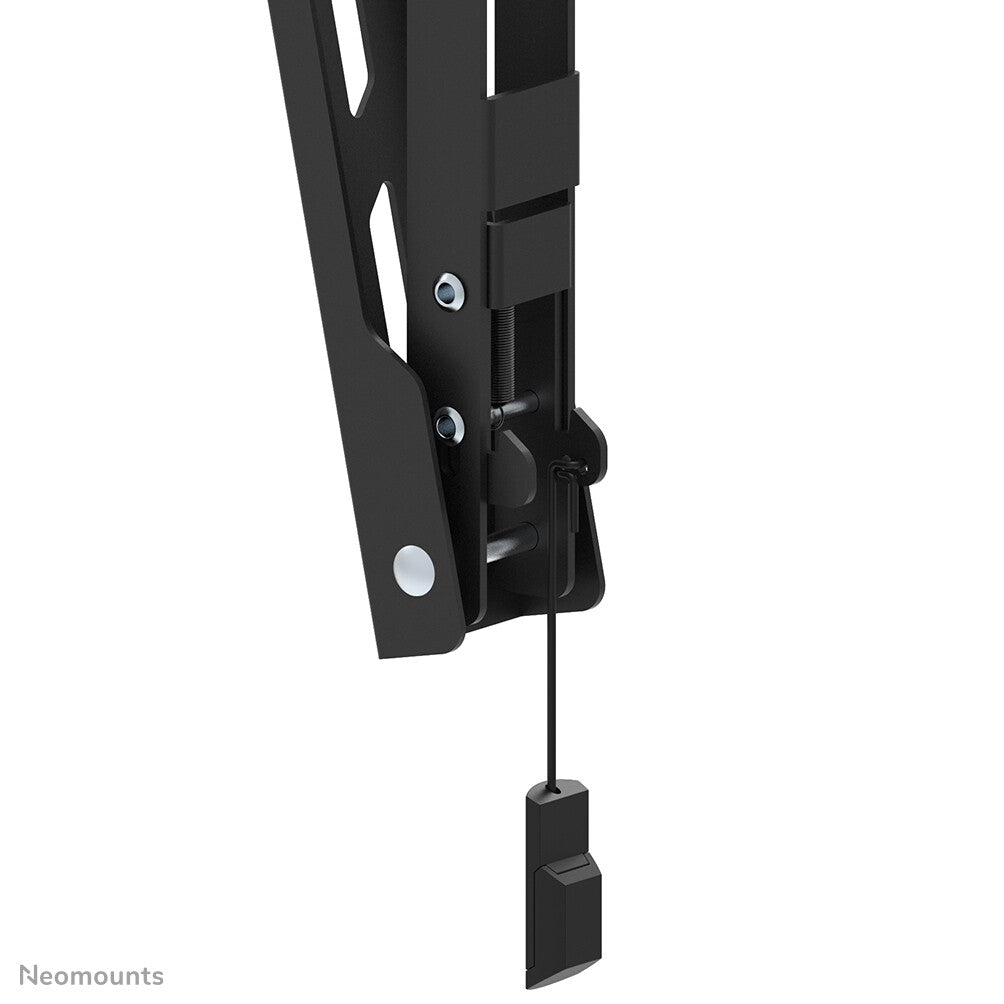

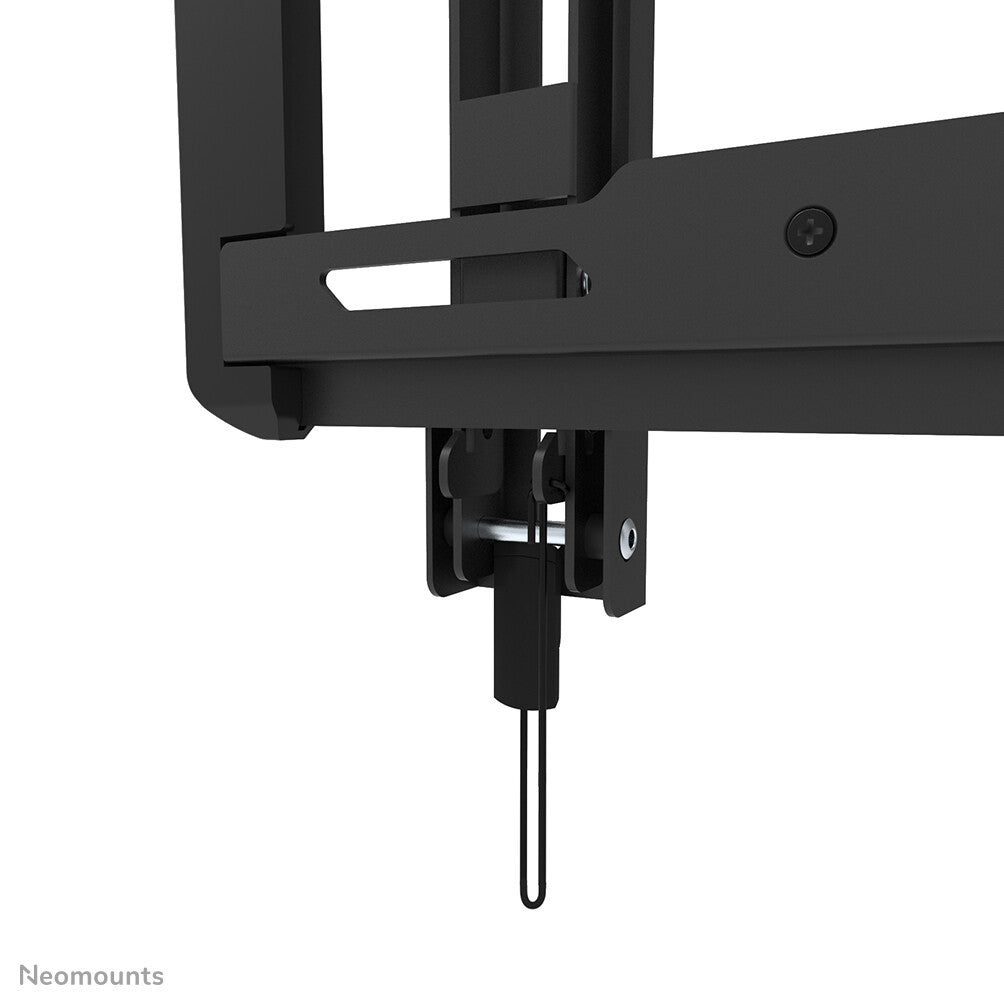

The WL30-550BL14 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
100 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
190.5 cm (75") |
| Minimum screen size |
81.3 cm (32") |
| Maximum weight capacity |
50 kg |
| Ergonomics |
|---|
| Distance to the wall (max) |
2.3 cm |
| Type |
Fixed |
| Height adjustment |
No |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Technical details |
|---|
| Lockable |
Not lockable |
| Package net weight |
2.2 kg |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Height |
460 mm |
| Depth |
23 mm |
| Width |
535 mm |
| Packaging data |
|---|
| Package weight |
2.2 kg |
| Package height |
32 mm |
| Package depth |
210 mm |
| Package width |
558 mm |
| Logistics data |
|---|
| Products per pallet (EU) |
280 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
8 pc(s) |
| Master (outer) case net weight |
12.1 kg |
| Master (outer) case gross weight |
18.2 kg |
| Master (outer) case height |
230 mm |
| Master (outer) case length |
280 mm |
| Master (outer) case width |
573 mm |
