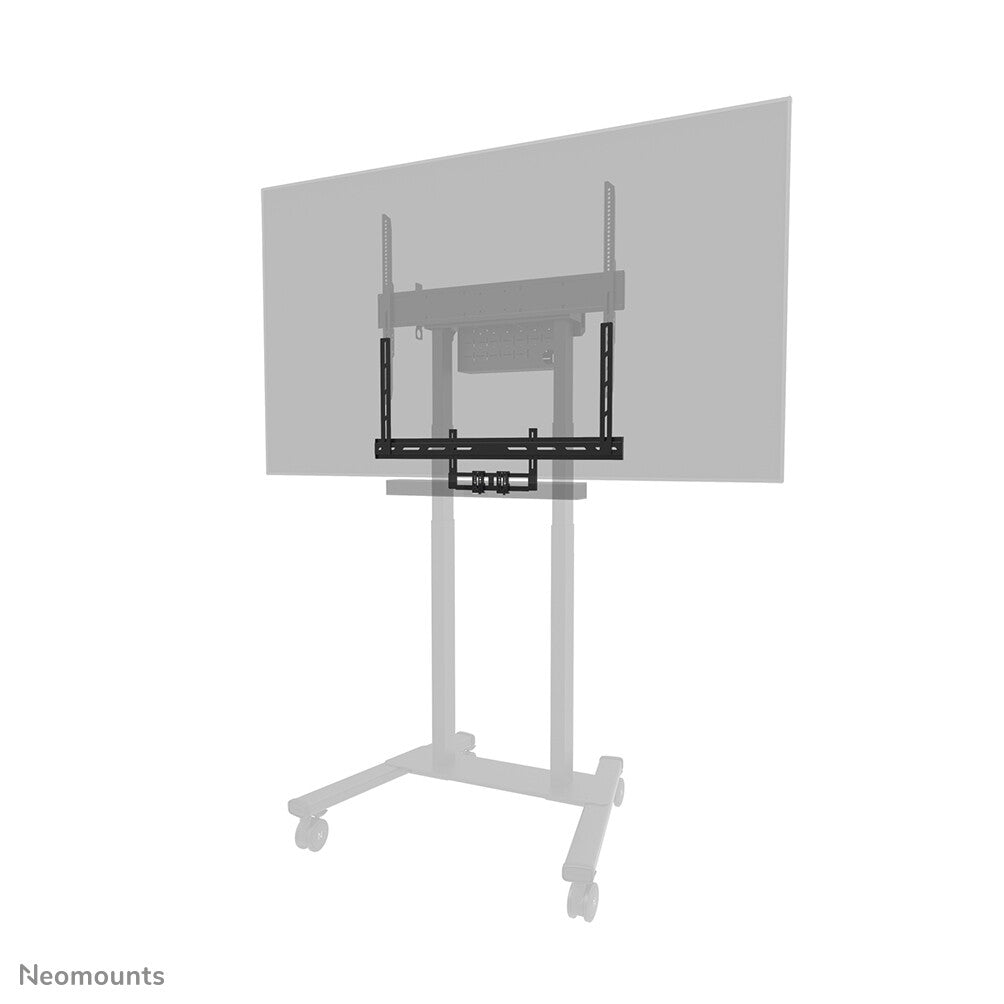

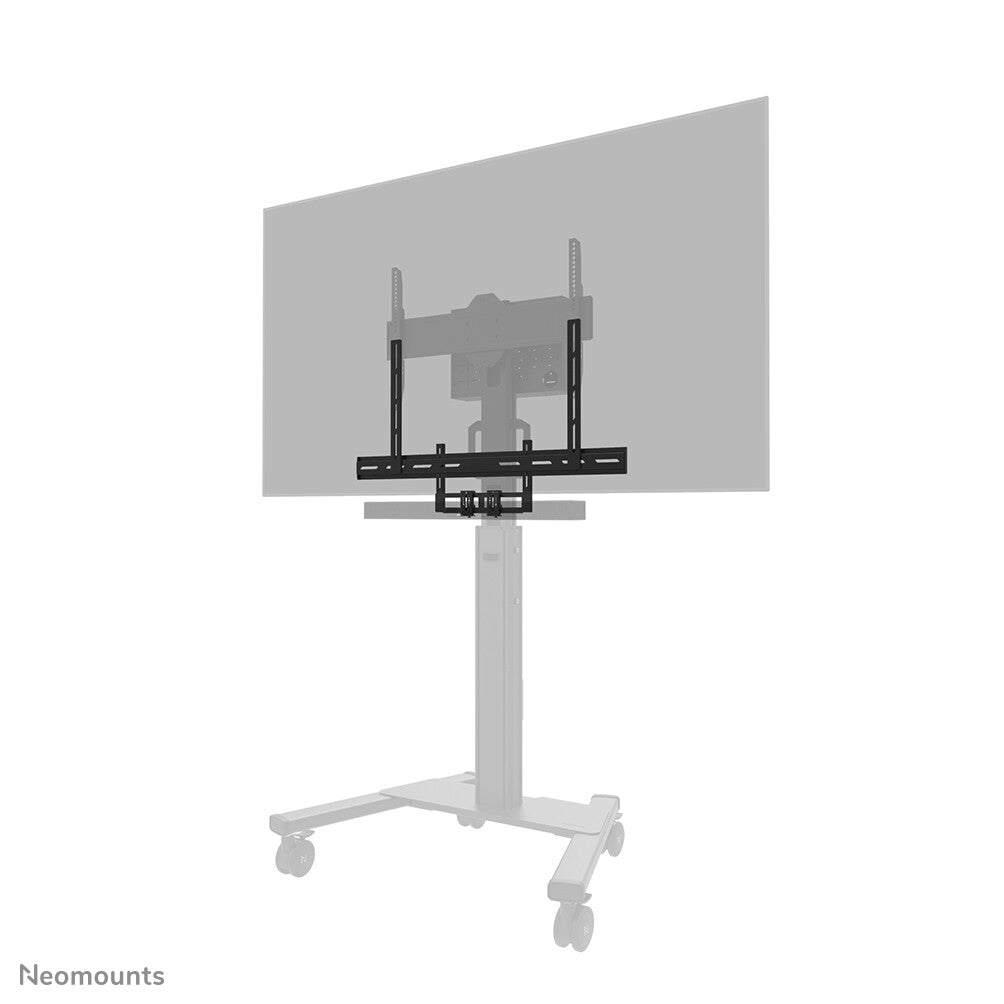

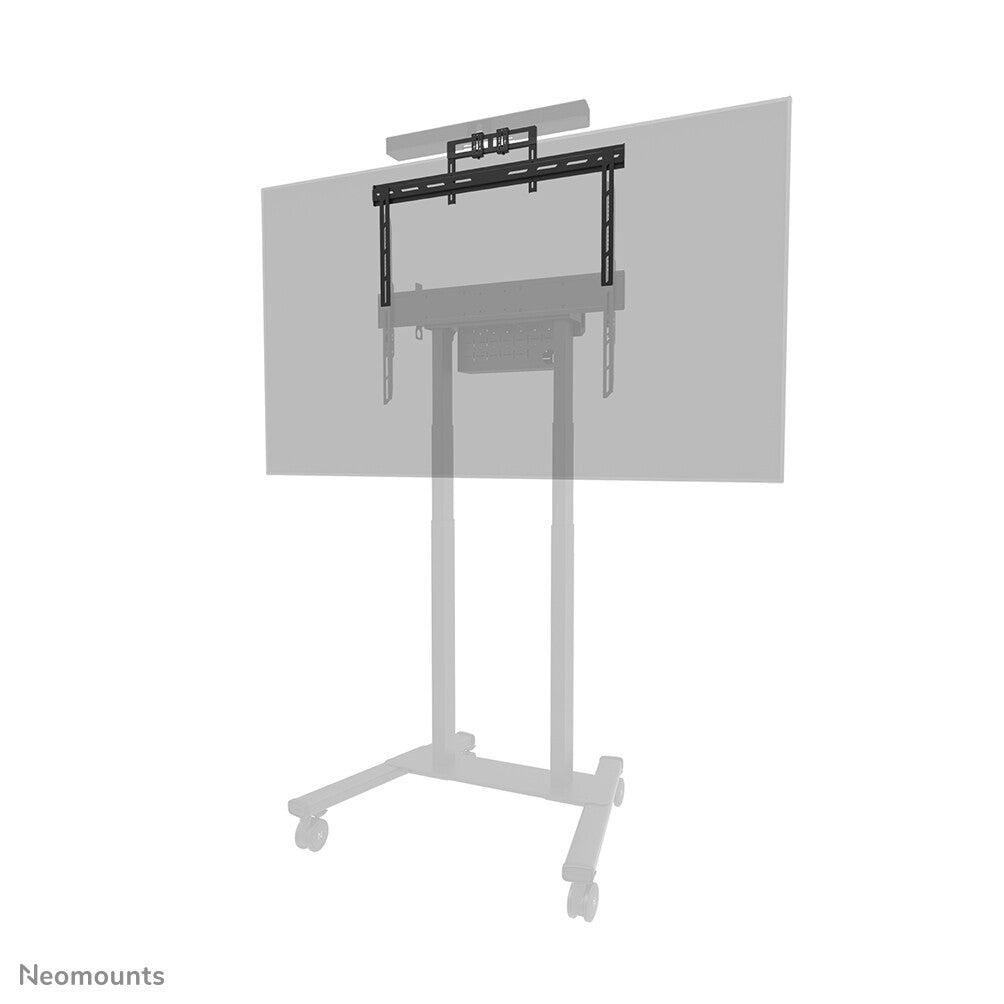

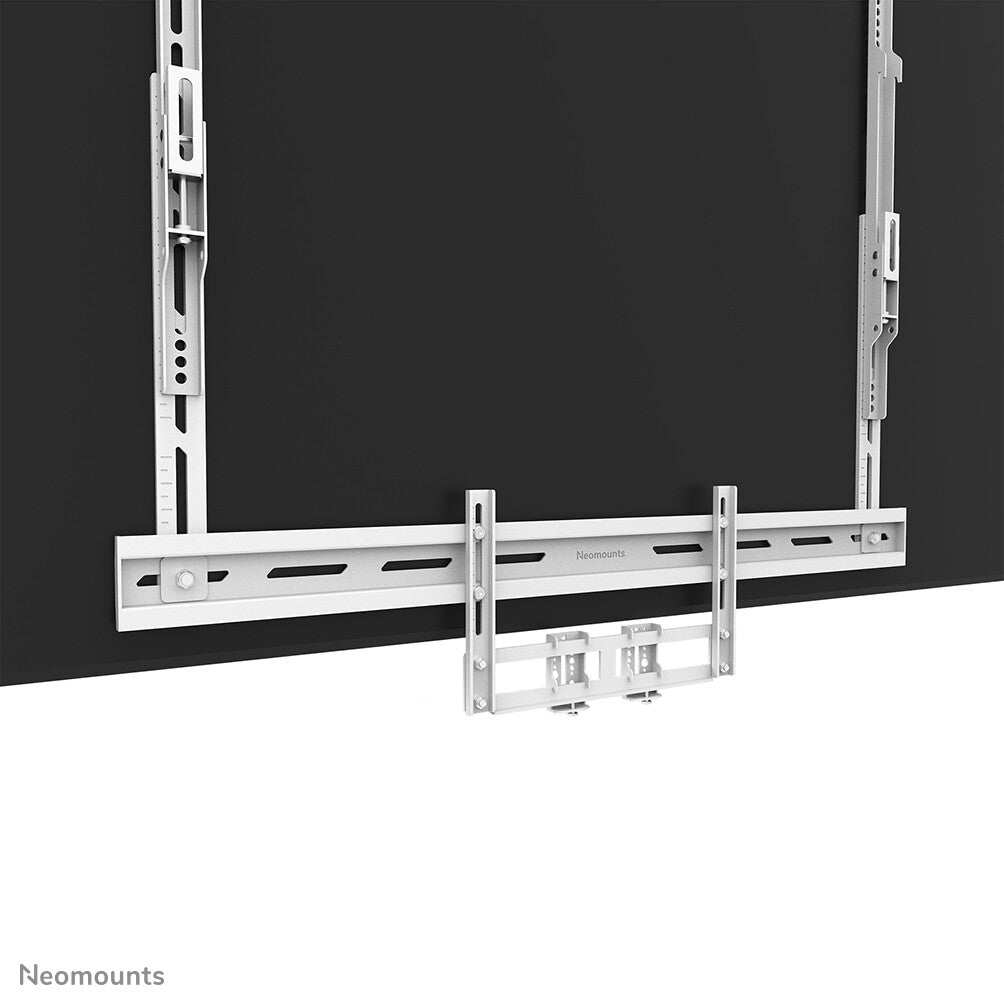

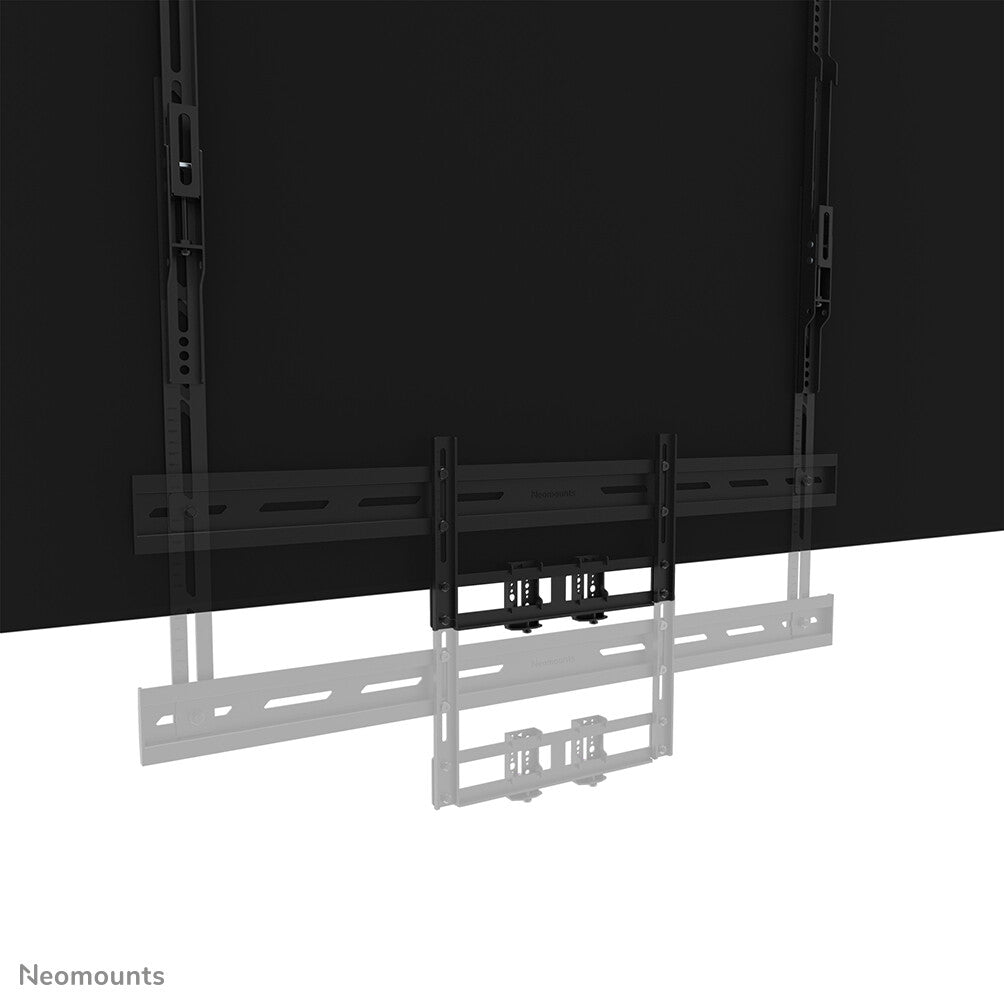

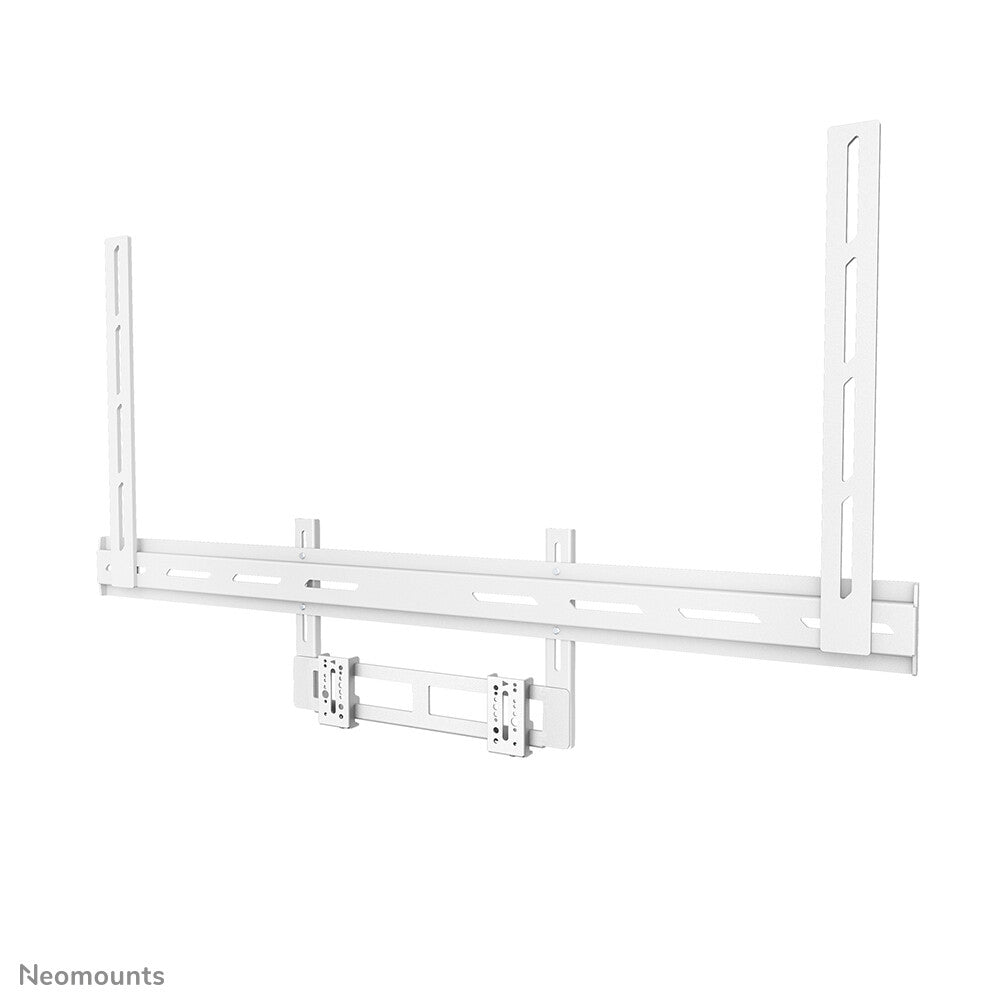

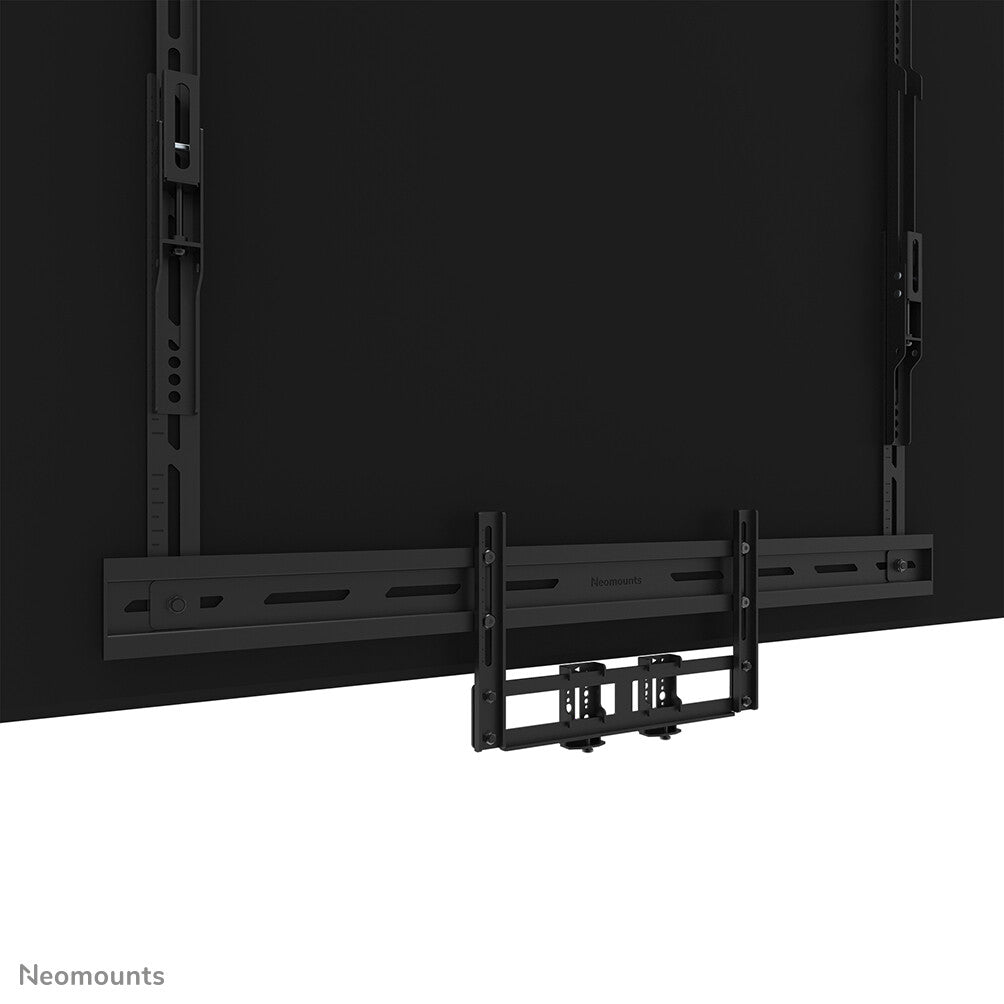

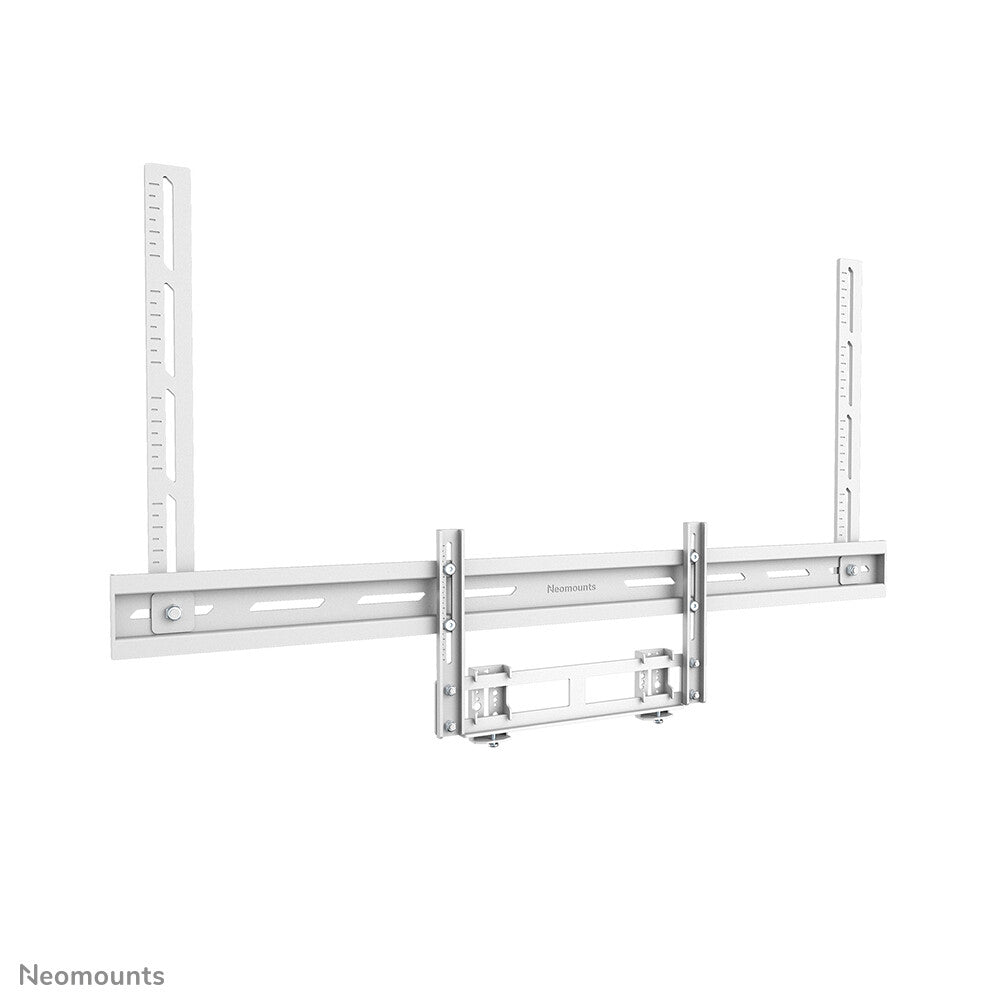

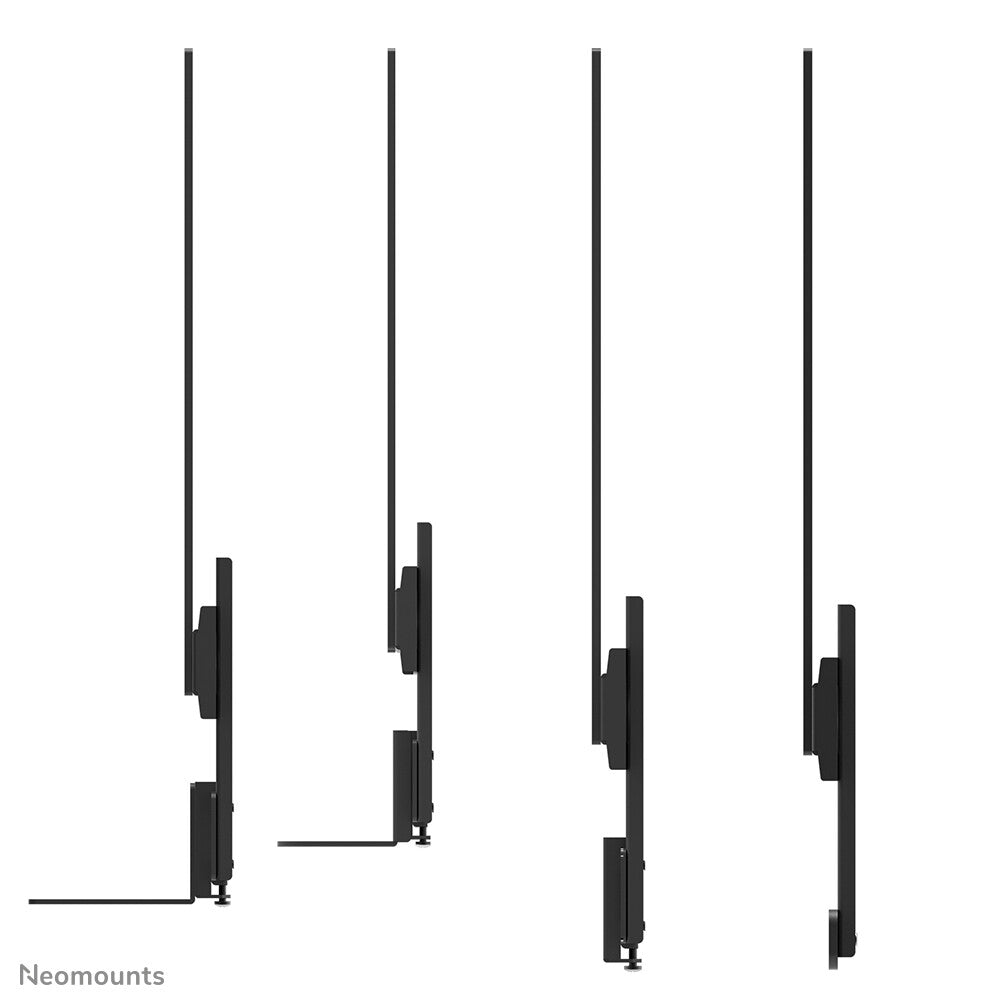

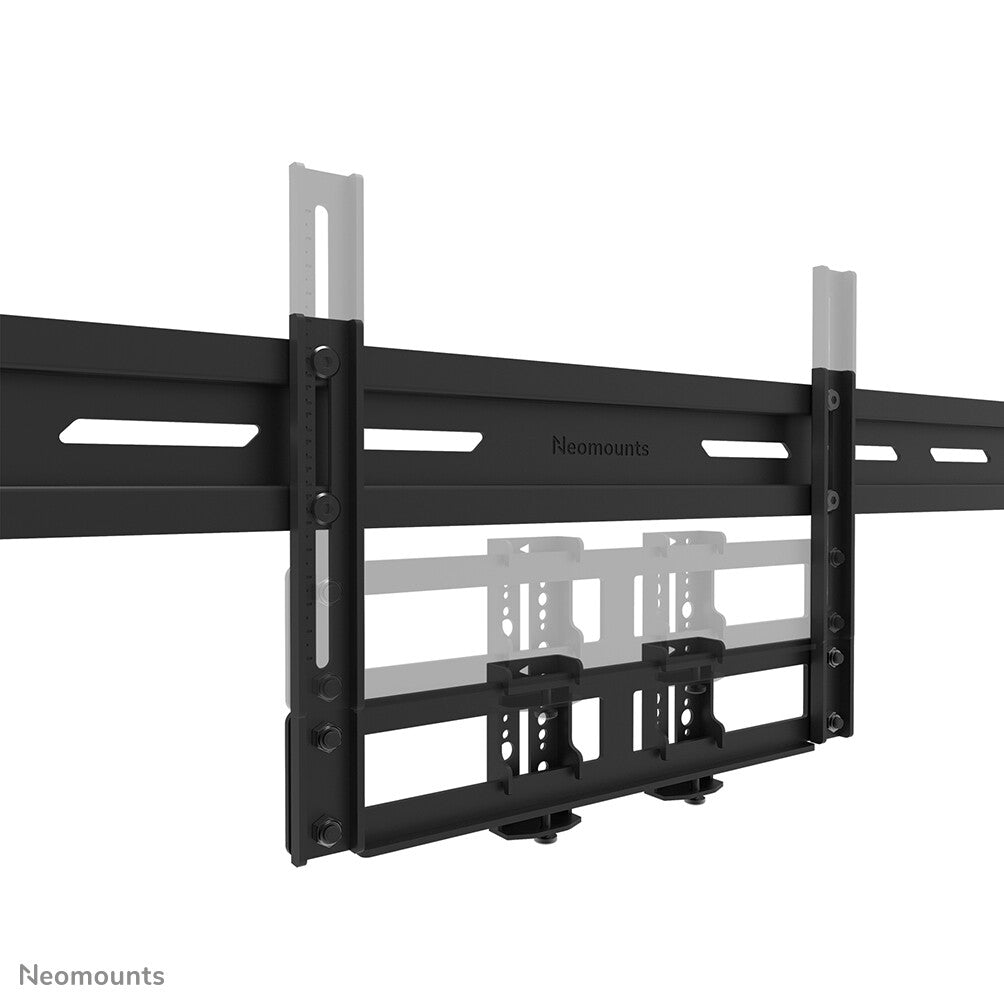

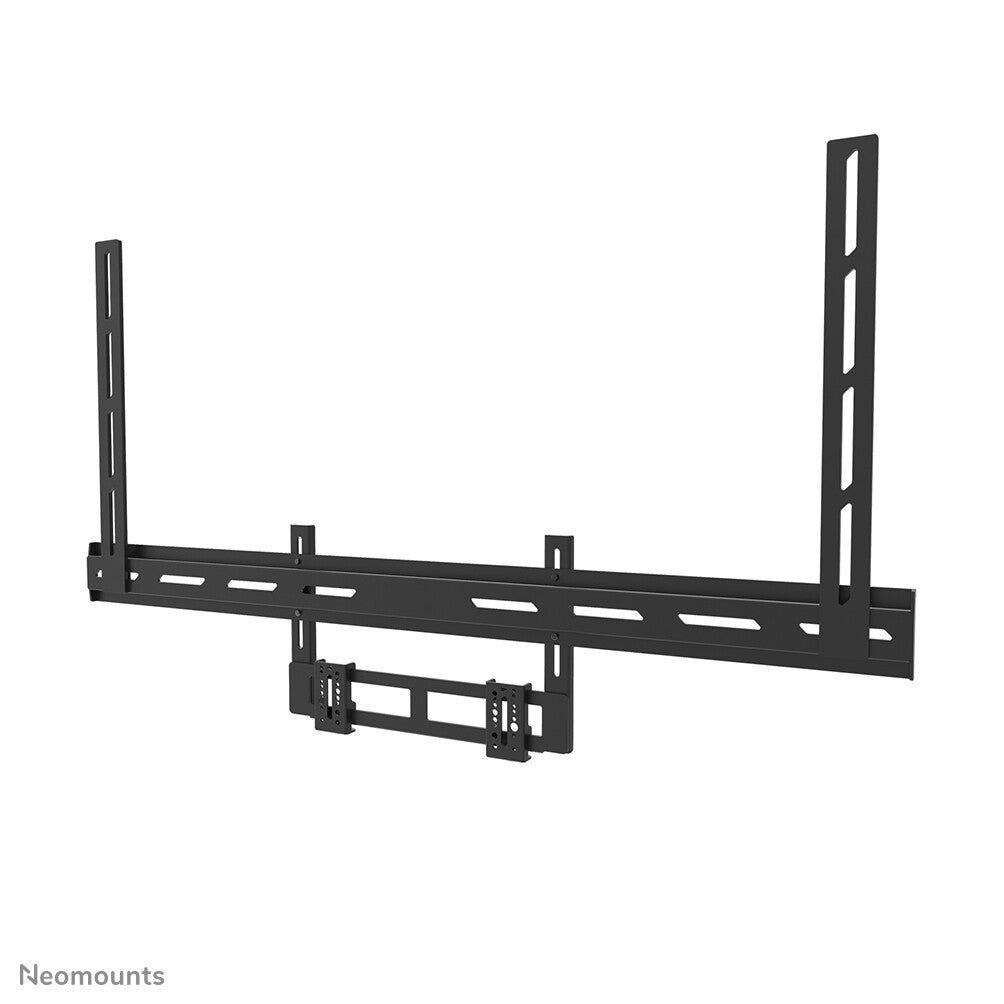

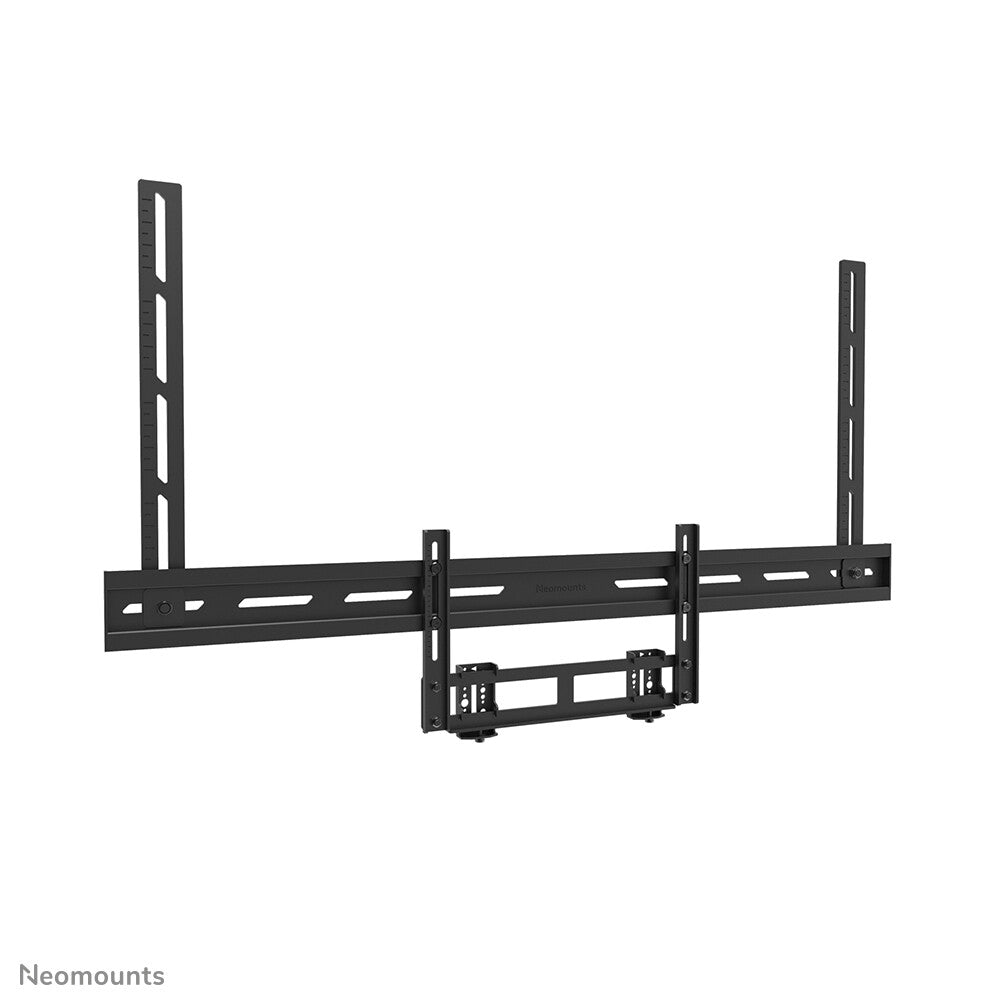

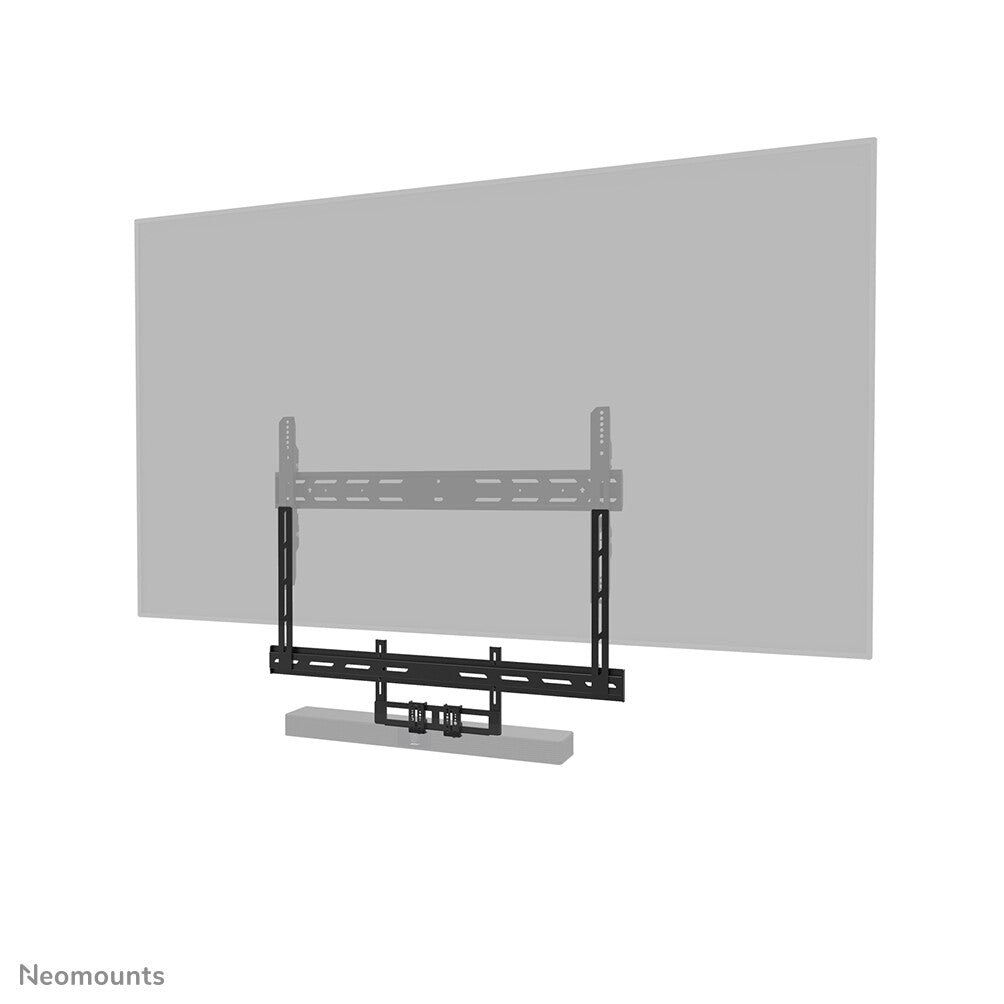

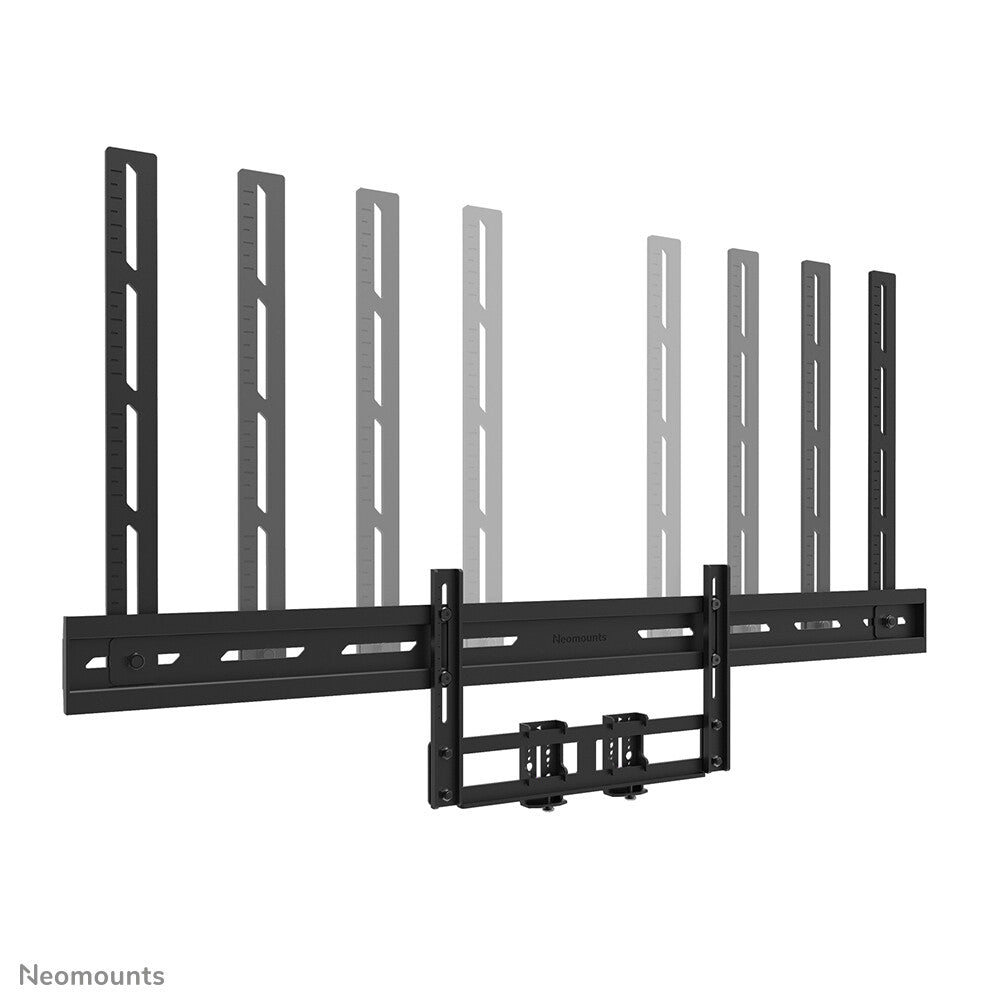

The Neomounts AV2-500BL is a universal videobar kit for screens with a minimal size of 43" and VESA hole pattern ranging from 200x200 to 800x600 mm. The very sturdy, stable and versatile kit has a maximum weight capacity of 10 kg and can be installed either above or below the screen. For maximum adaptability, both the videobar support and the backplate brackets can be independently adjusted in height.

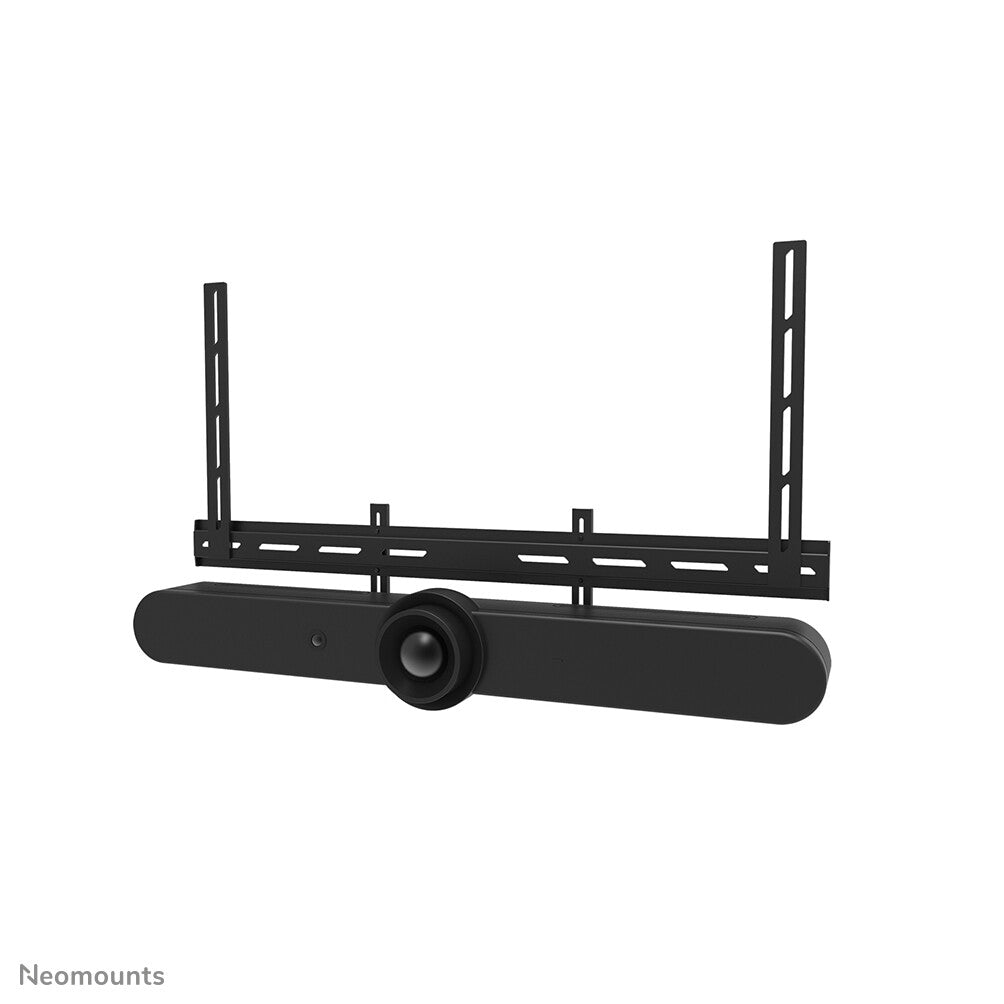

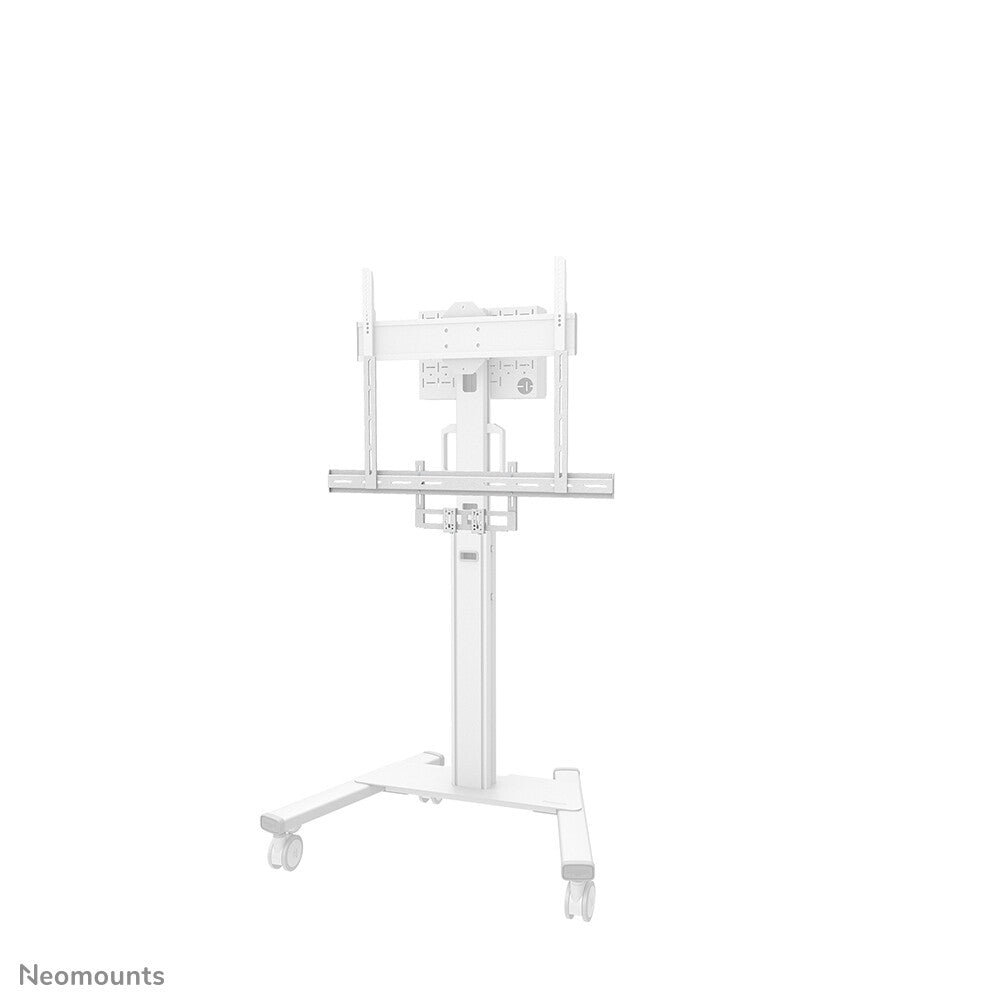

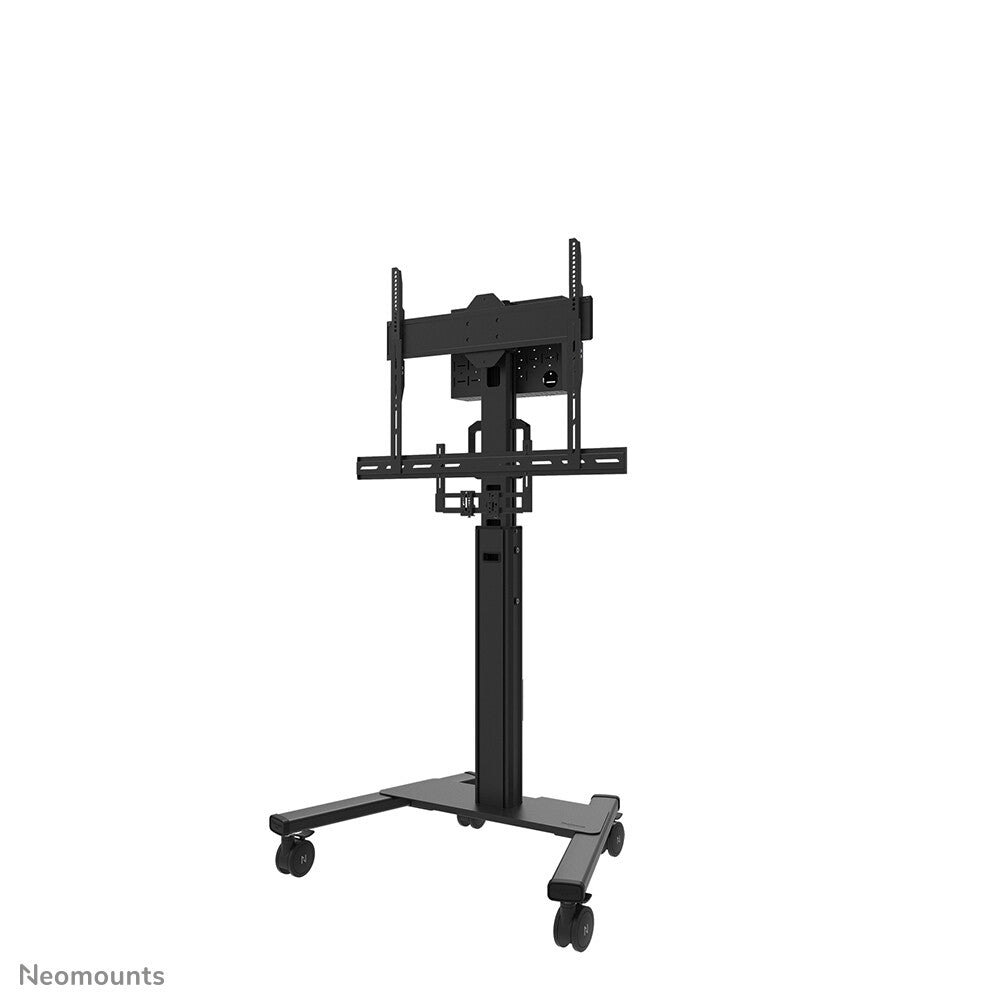

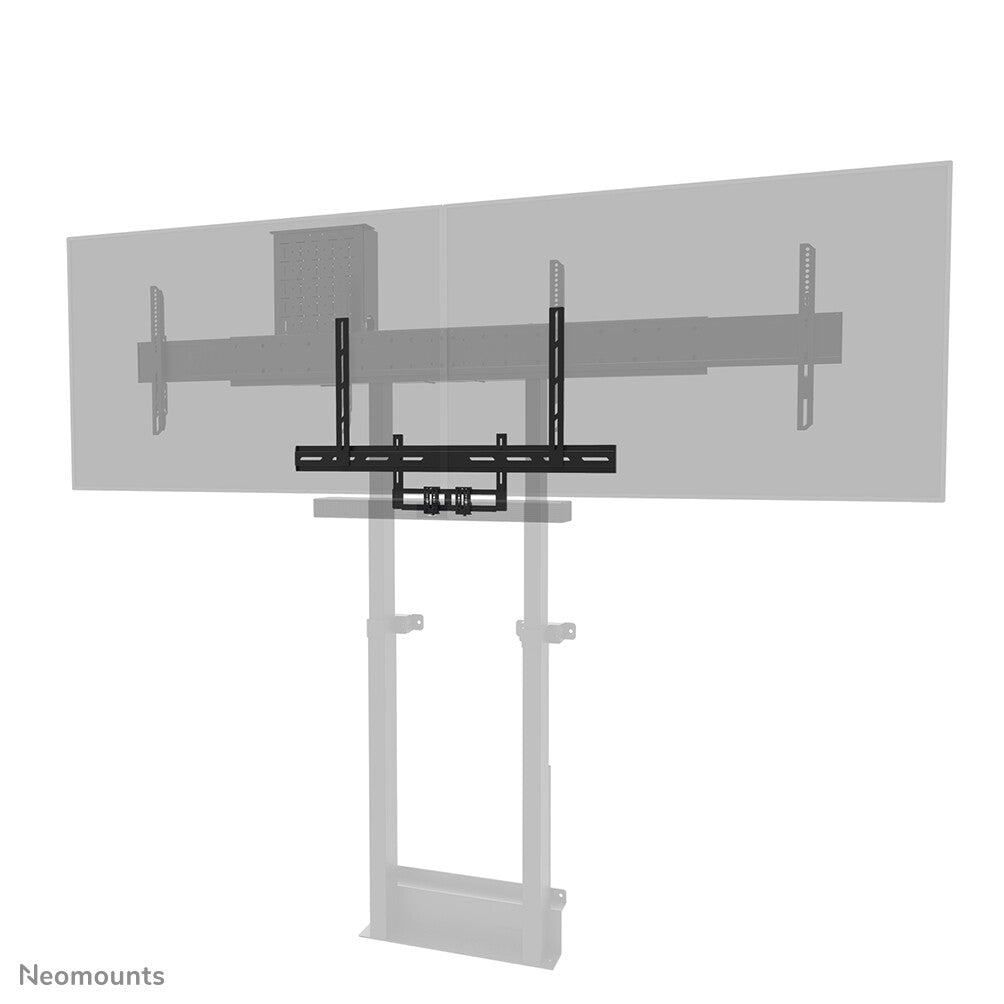

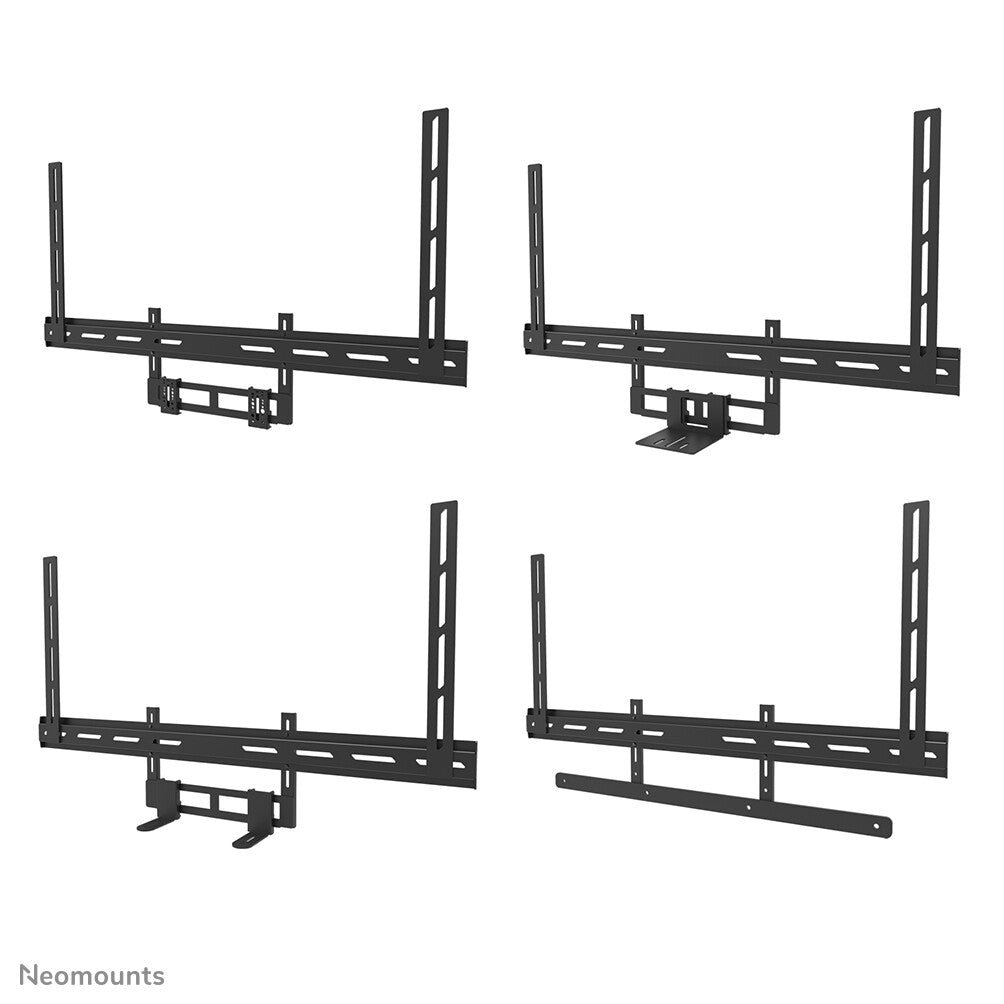

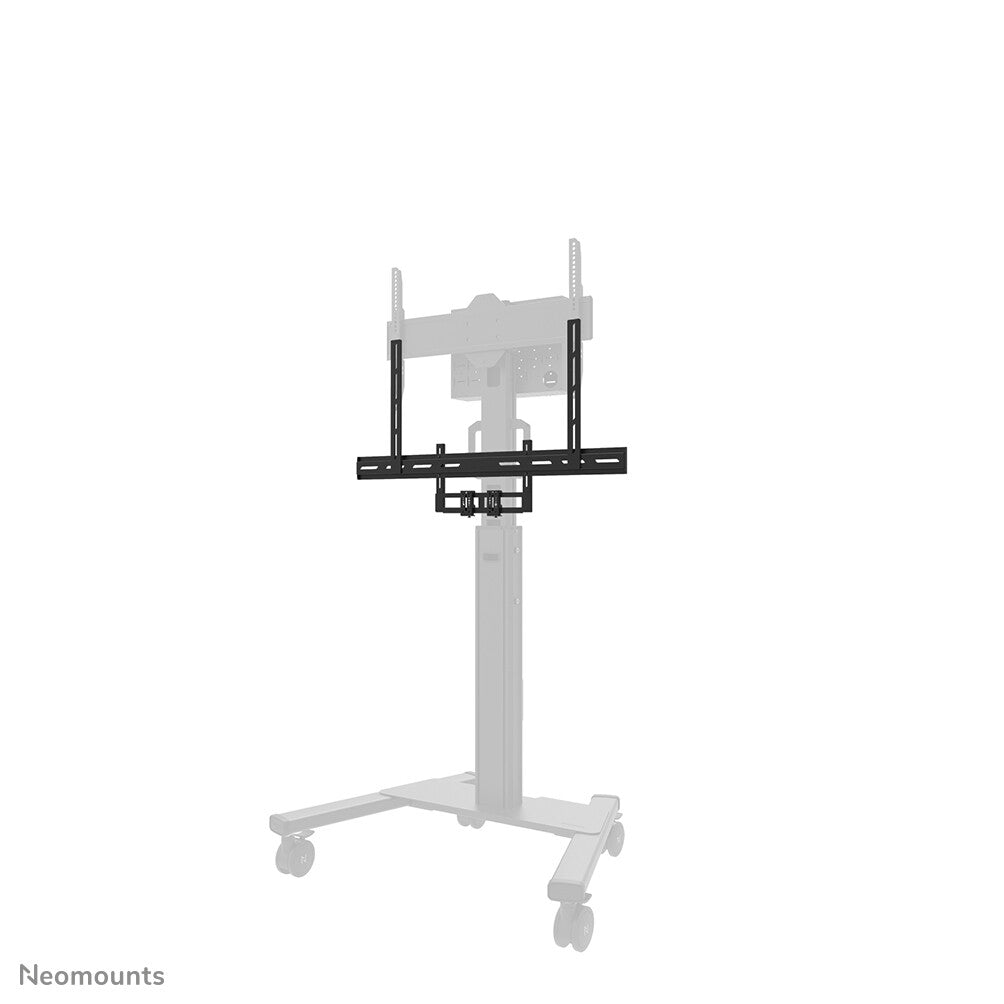

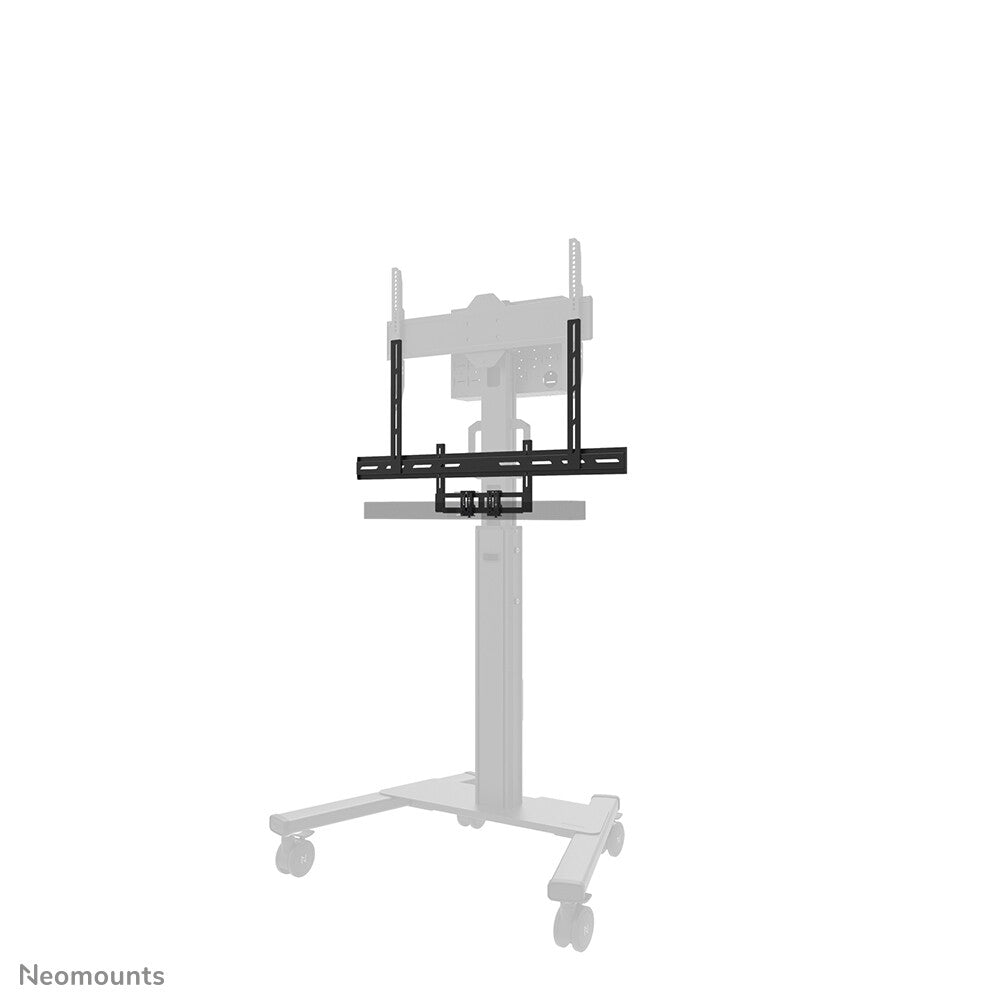

The AV2-500BL videobar kit is compatible with most videobars*, PTZ cams and soundbars, including Logitech Rally Plus speakers. To ensure a wide mounting applicability, the mounting holes can vary in width and height. The VESA frame can be adjusted both in height and width (200/400/600/800) and can be installed on wall, floor and even desk or ceiling mounts. Despite the numerous choices, installation is easy, aided by ruler-guided alignment for a seamless screen installation.
\t

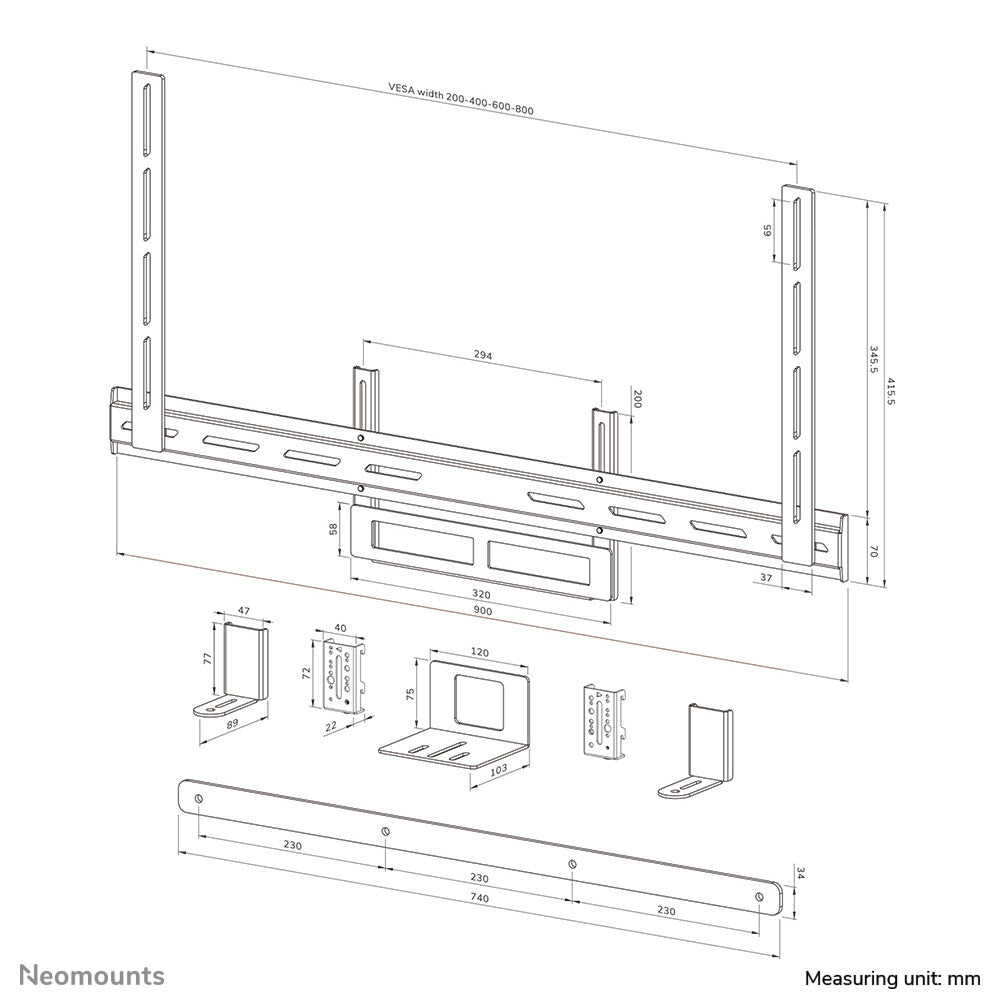

* The Neomounts AV2-500BL videobar kit is universal and suitable for any type of videobar, regardless of make or model, within the range of the mounting bracket (see line drawing). In addition, the AV2-500BL is optimised for the following specific videobars:
- Bose Professional VB1 and VB-S
- Neat Bar and Bar Pro
- Poly Studio, Studio X70 and Studio X30
- Jabra Panacast 50
- Logitech Meetup, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30, MeetingEye 400 and MeetingEye 600
Refer to the online manual for specific model or mounting size compatibility.
| Features |
|---|
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
800 x 600 mm |
| Housing material |
Steel |
| Product colour |
Black |
| Maximum weight capacity |
10 kg |
| Maximum screen size |
2.79 m (110") |
| Minimum screen size |
109.2 cm (43") |
| Panel mounting interface |
200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,800 x 200,800 x 400,800 x 500,800 x 600 |
| Product type |
Videobar mount |
| Technical details |
|---|
| Warranty period |
5 year(s) |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Height |
416 mm |
| Depth |
31 mm |
| Width |
900 mm |
| Packaging data |
|---|
| Package weight |
7.2 kg |
| Package height |
926 mm |
| Package depth |
84 mm |
| Package width |
220 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case gross weight |
21.5 kg |
| Master (outer) case height |
944 mm |
| Master (outer) case length |
238 mm |
| Master (outer) case width |
263 mm |
| Products per pallet (EU) |
45 pc(s) |
| Master (outer) case net weight |
21 kg |
