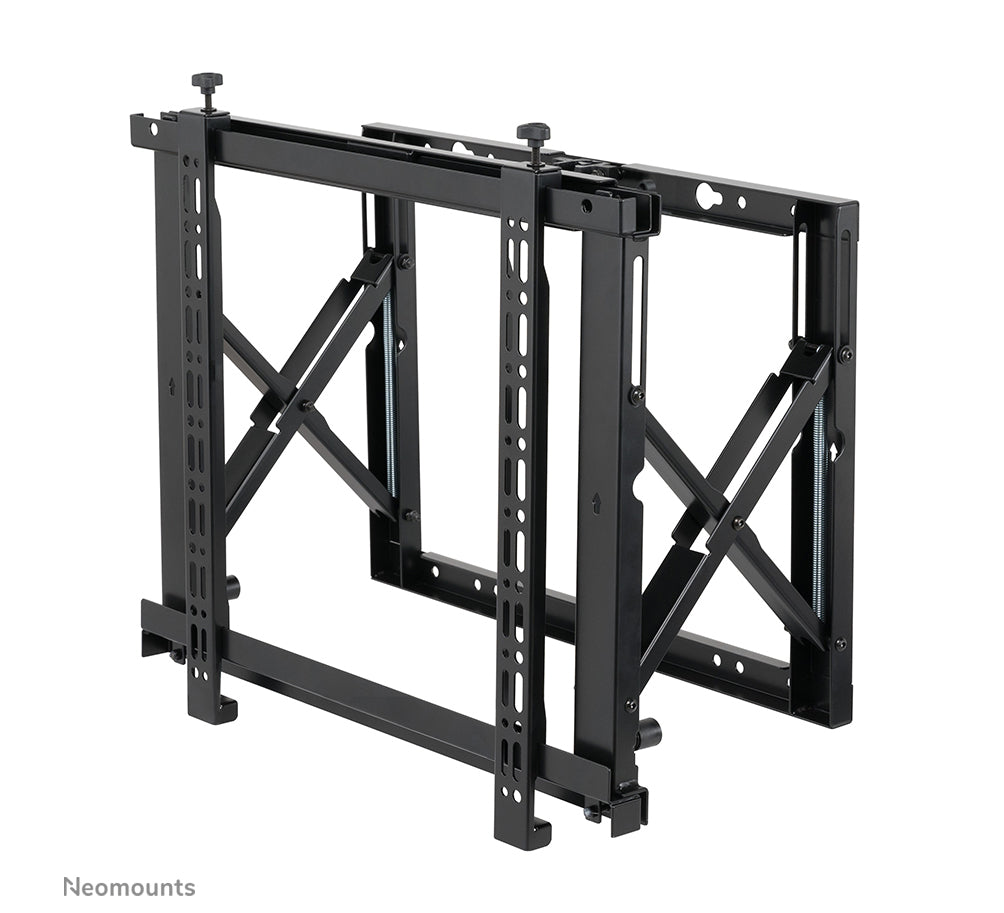

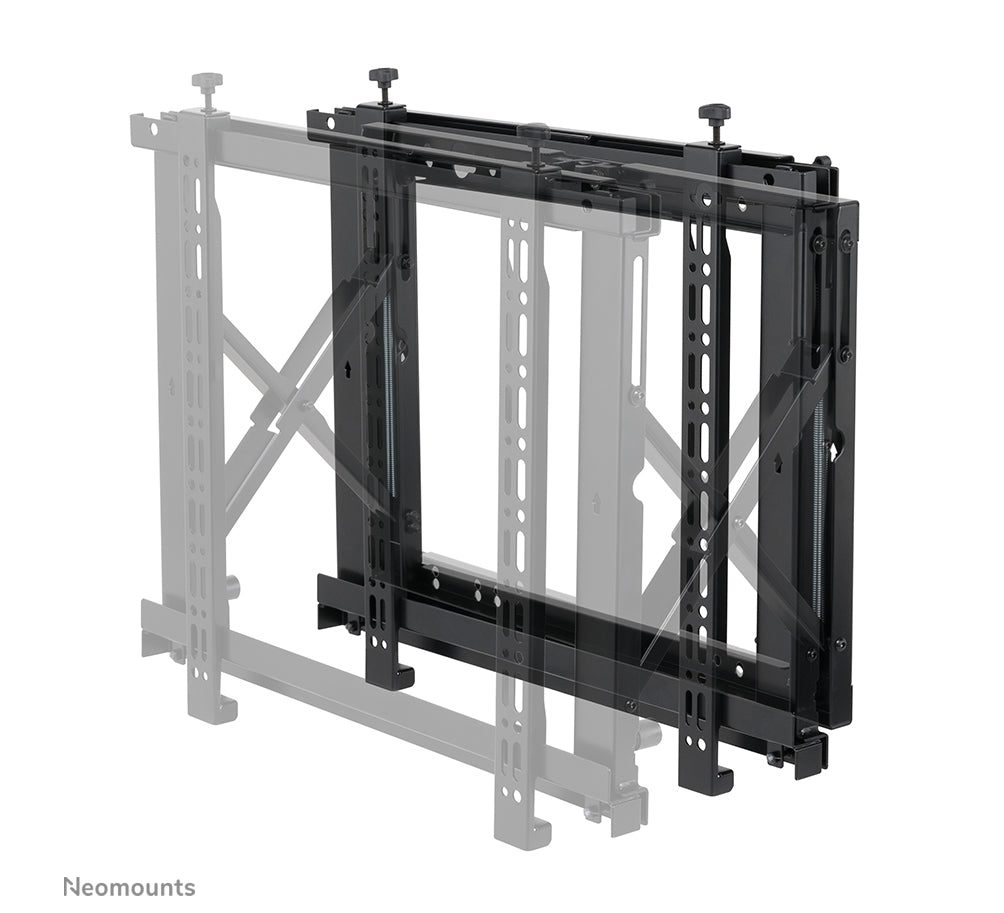

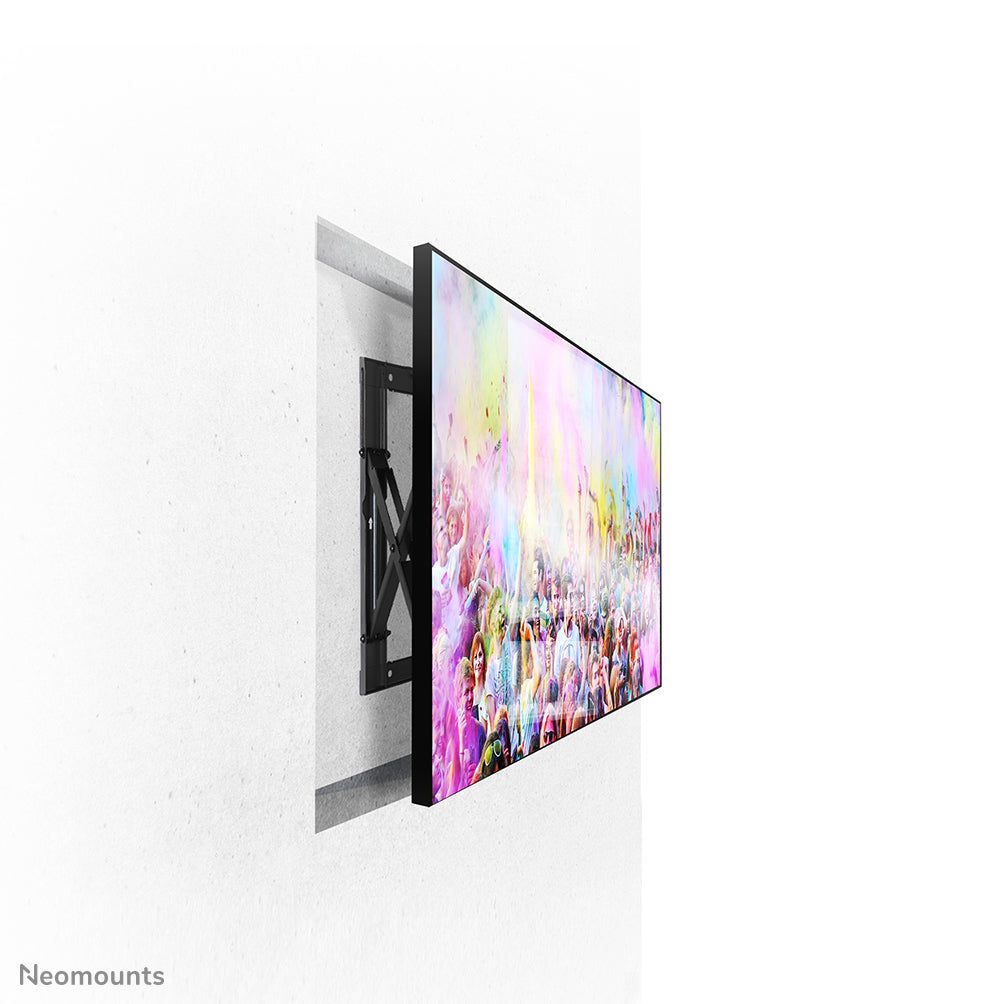

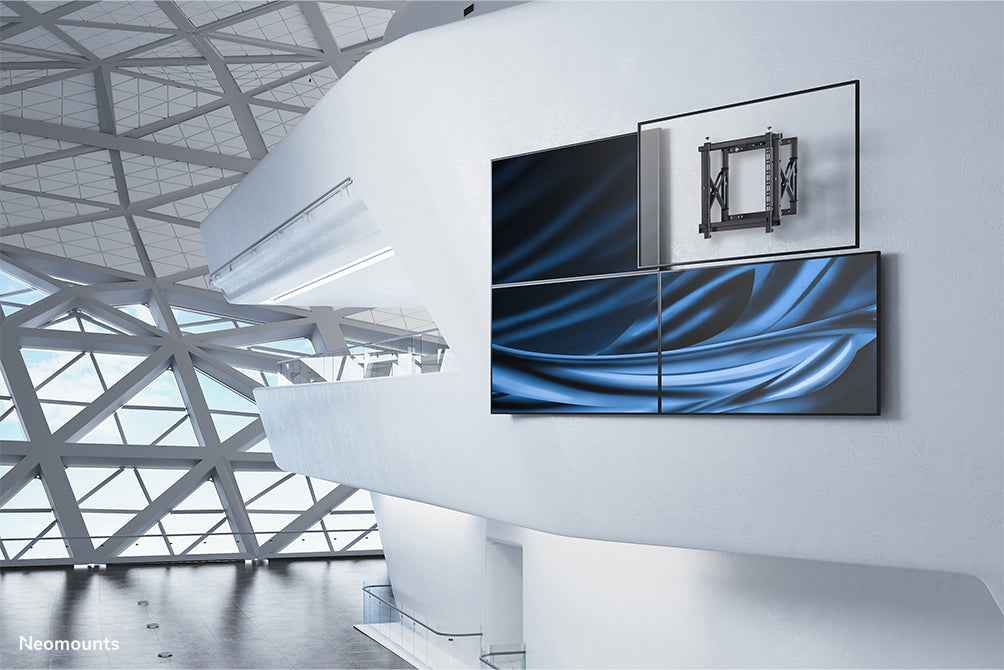

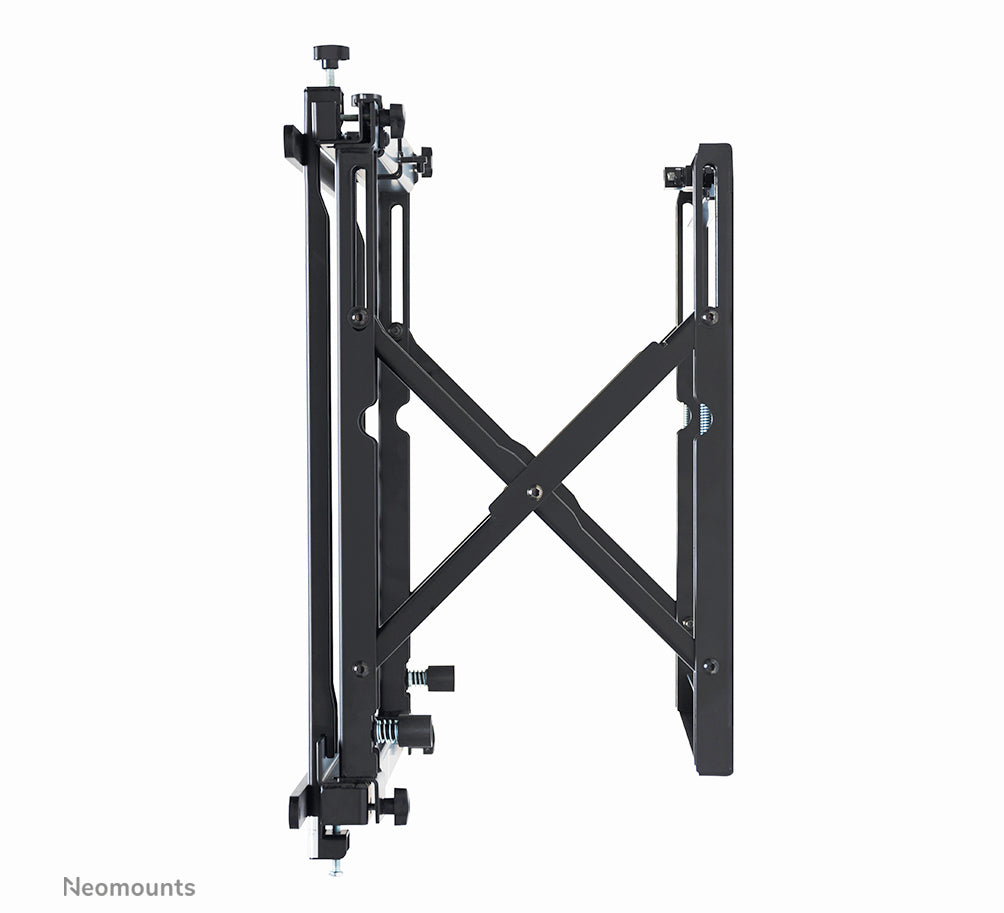

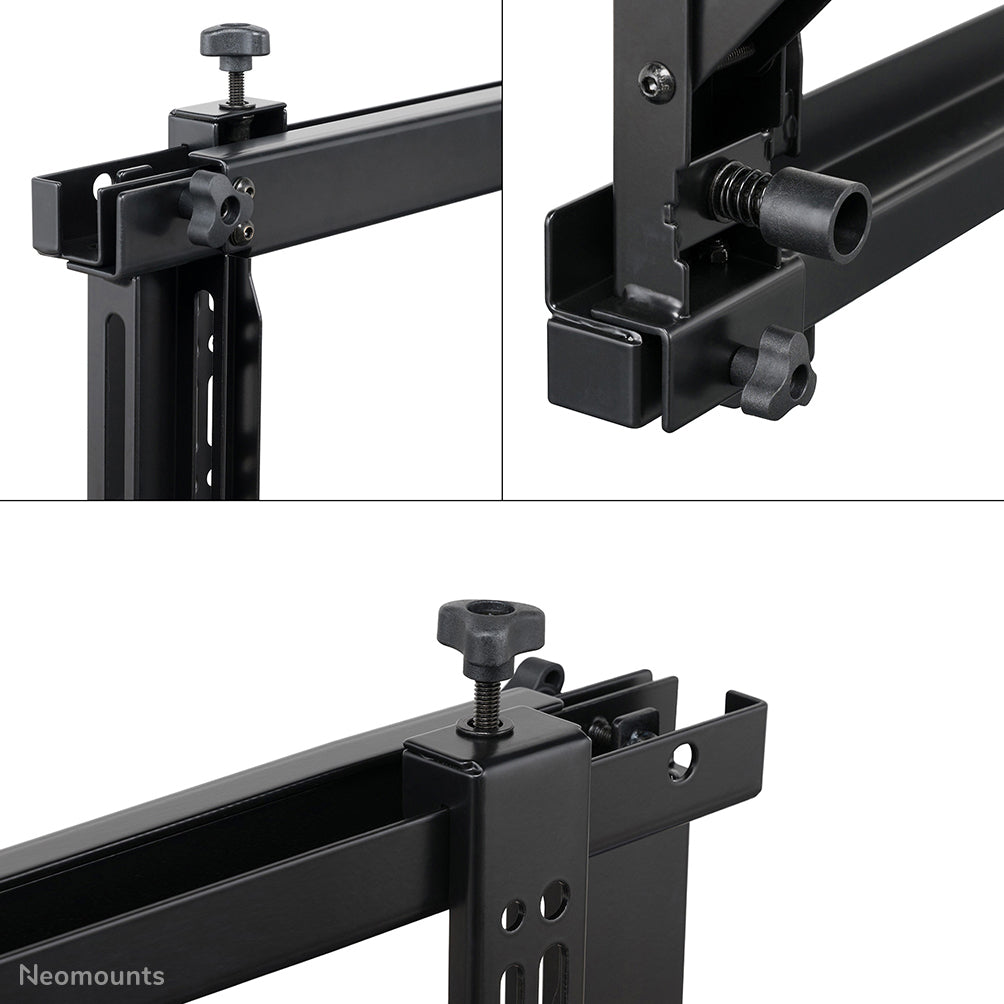

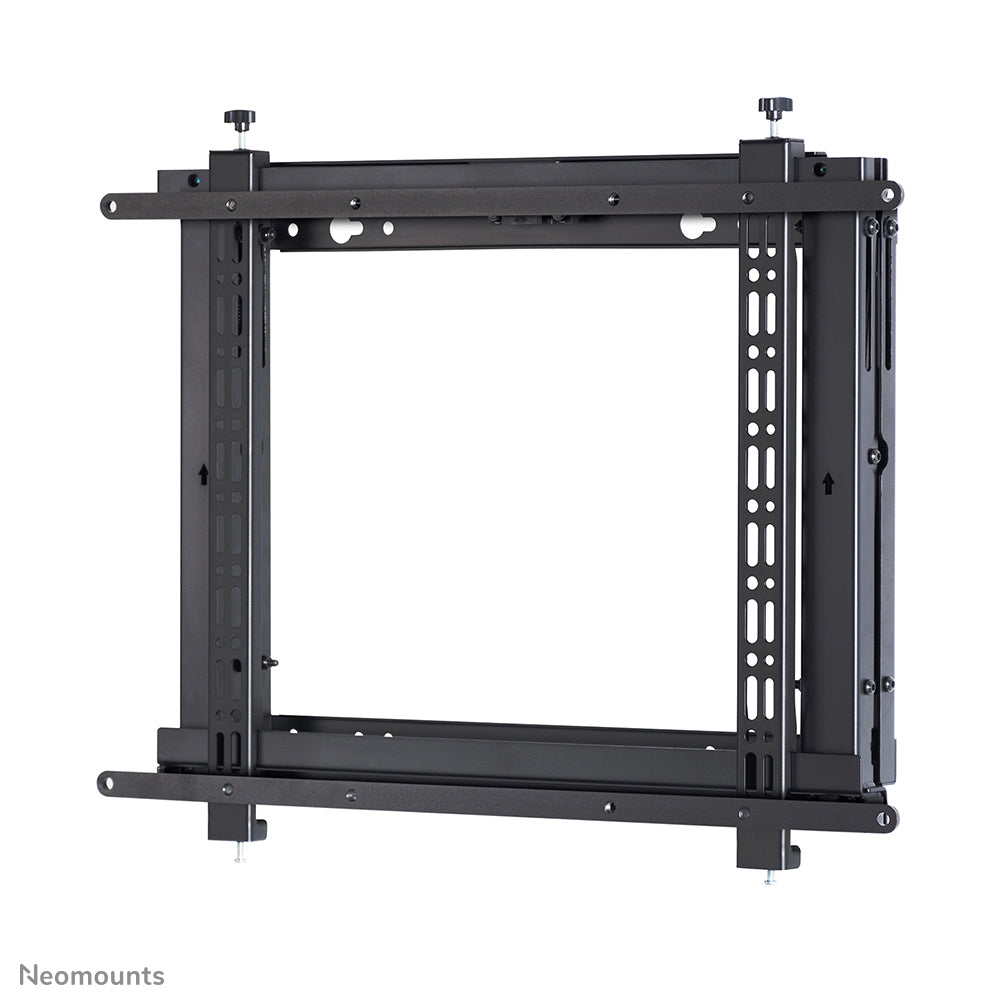

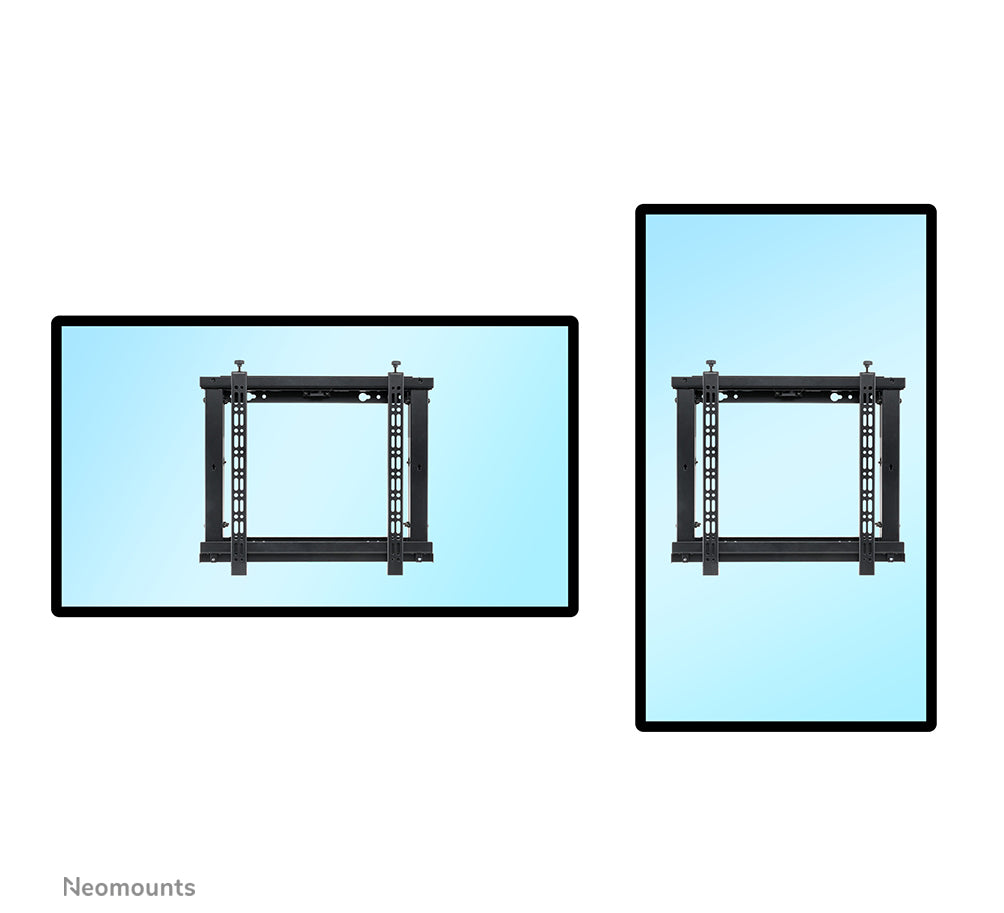

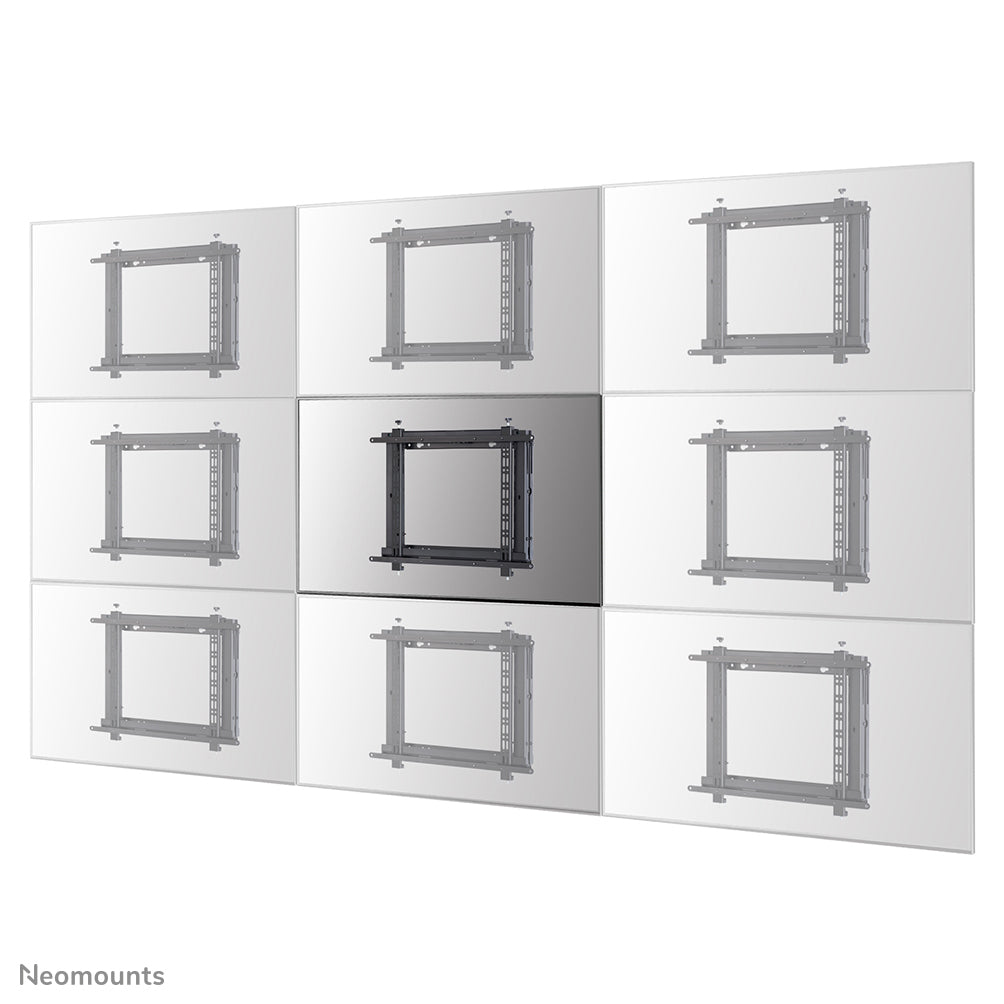

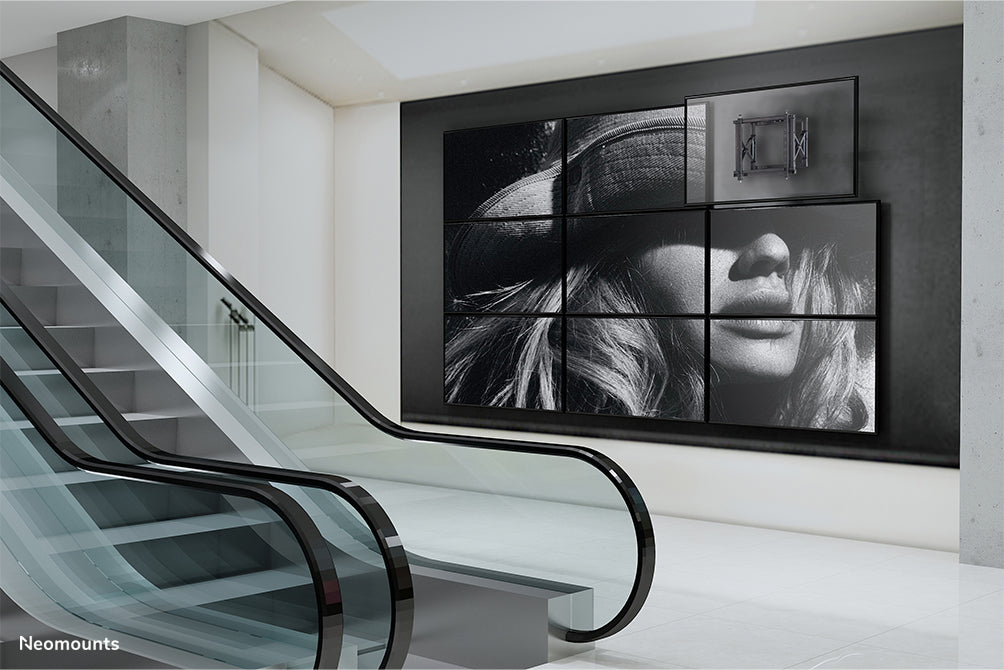

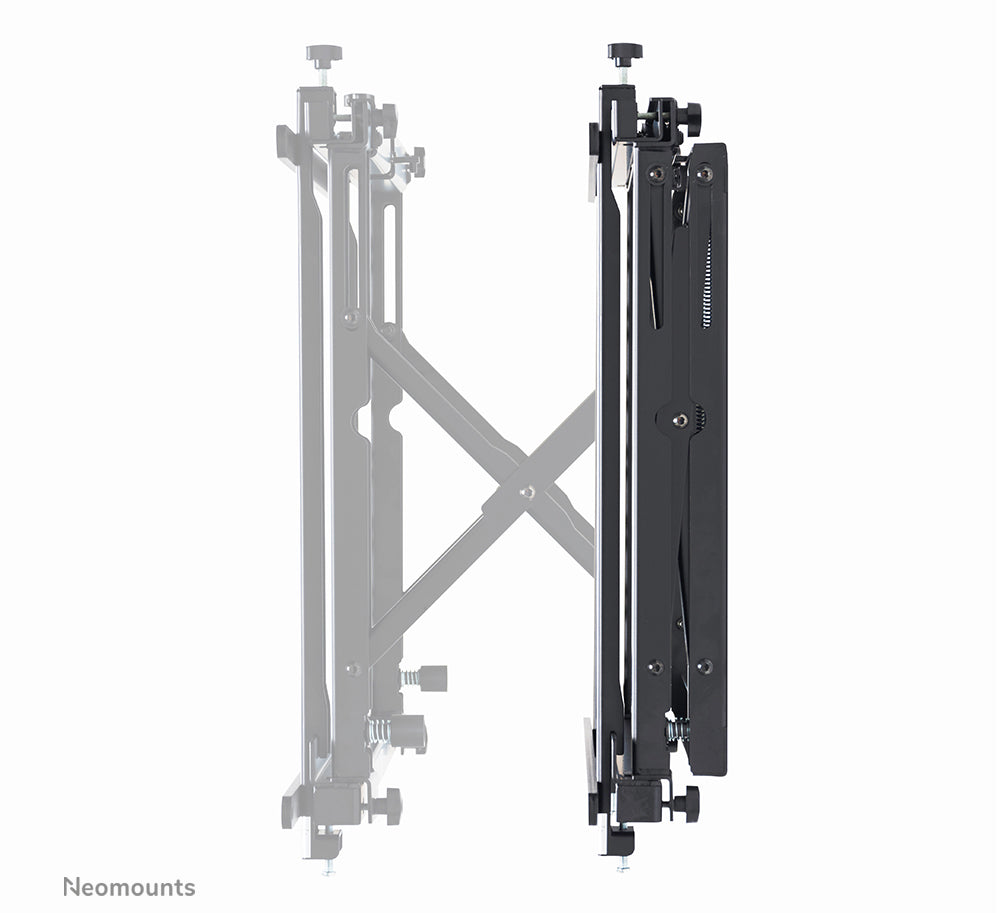

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.

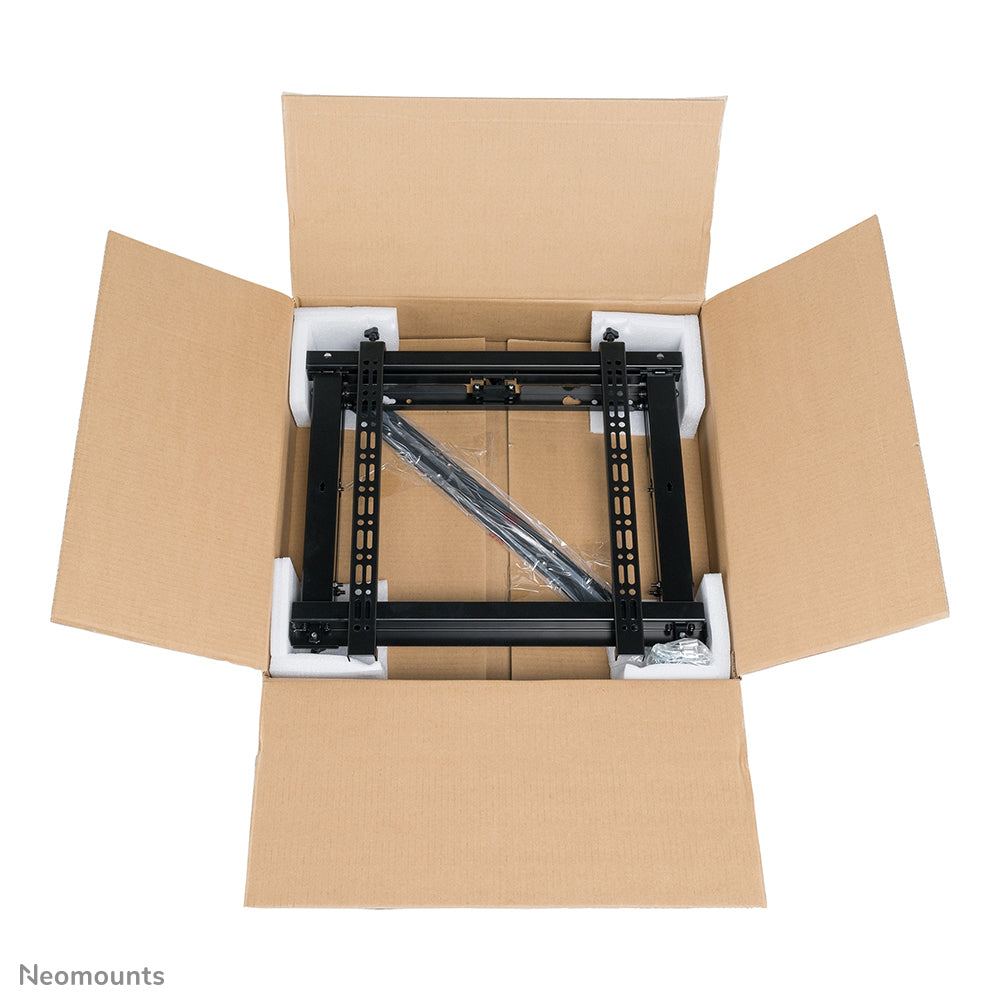

The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,300 x 100,350 x 350,400 x 200 |
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
200 x 200 mm |
| Mounting type |
Wall |
| Maximum screen size |
177.8 cm (70") |
| Minimum screen size |
106.7 cm (42") |
| Maximum weight capacity |
35 kg |
| Ergonomics |
|---|

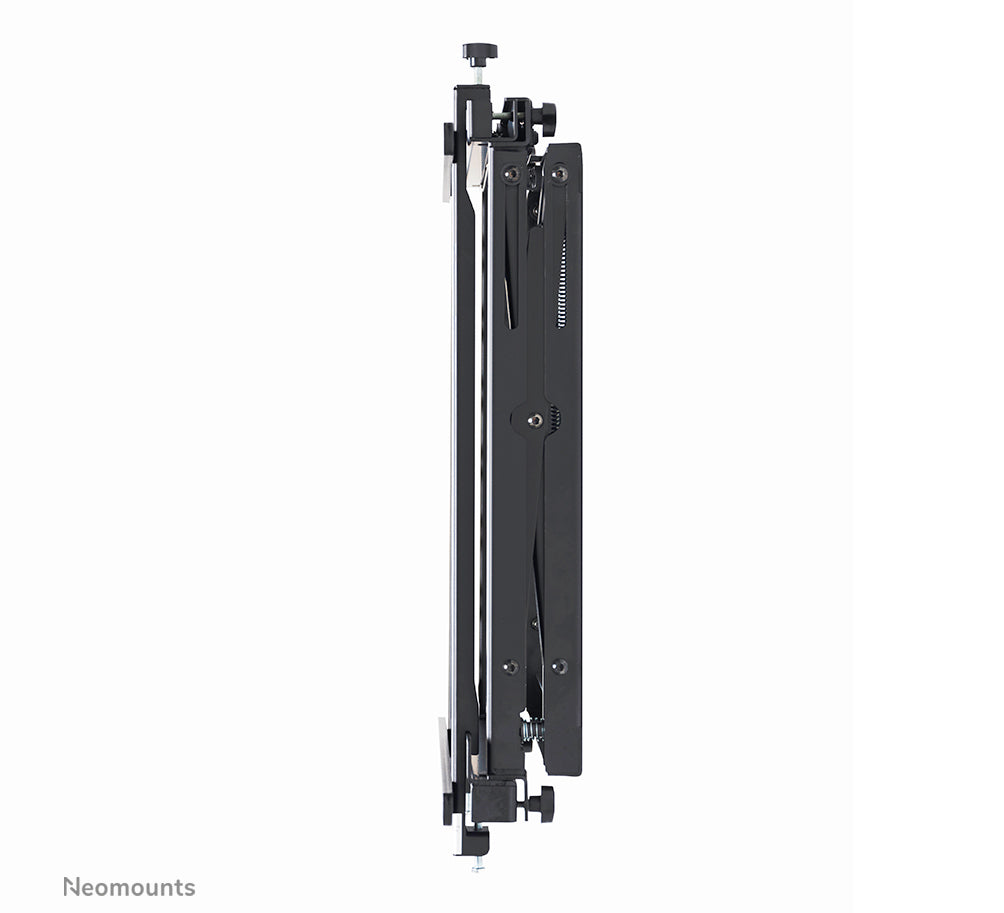

| Distance to the wall (max) |
17.2 cm |
| Distance to the wall (min) |
7.8 cm |
| Tilt adjustment |
Yes |
| Width adjustment |
4 cm |
| Cable management |
No |
| Depth adjustment |
4 mm |
| Swivelling |
Yes |
| Height adjustment type |
Manual |
| Height adjustment |
Yes |
| Design |
|---|
| Accepts padlock |
No |
| Housing material |
Steel |
| Product colour |
Black |

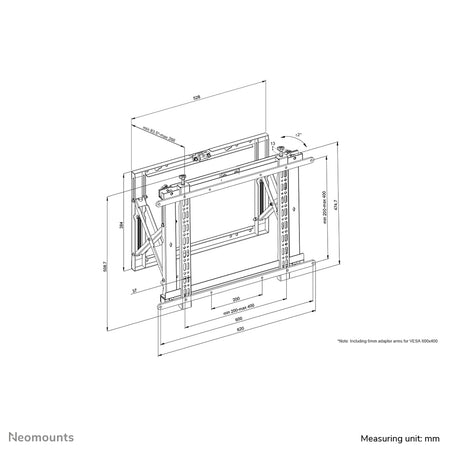

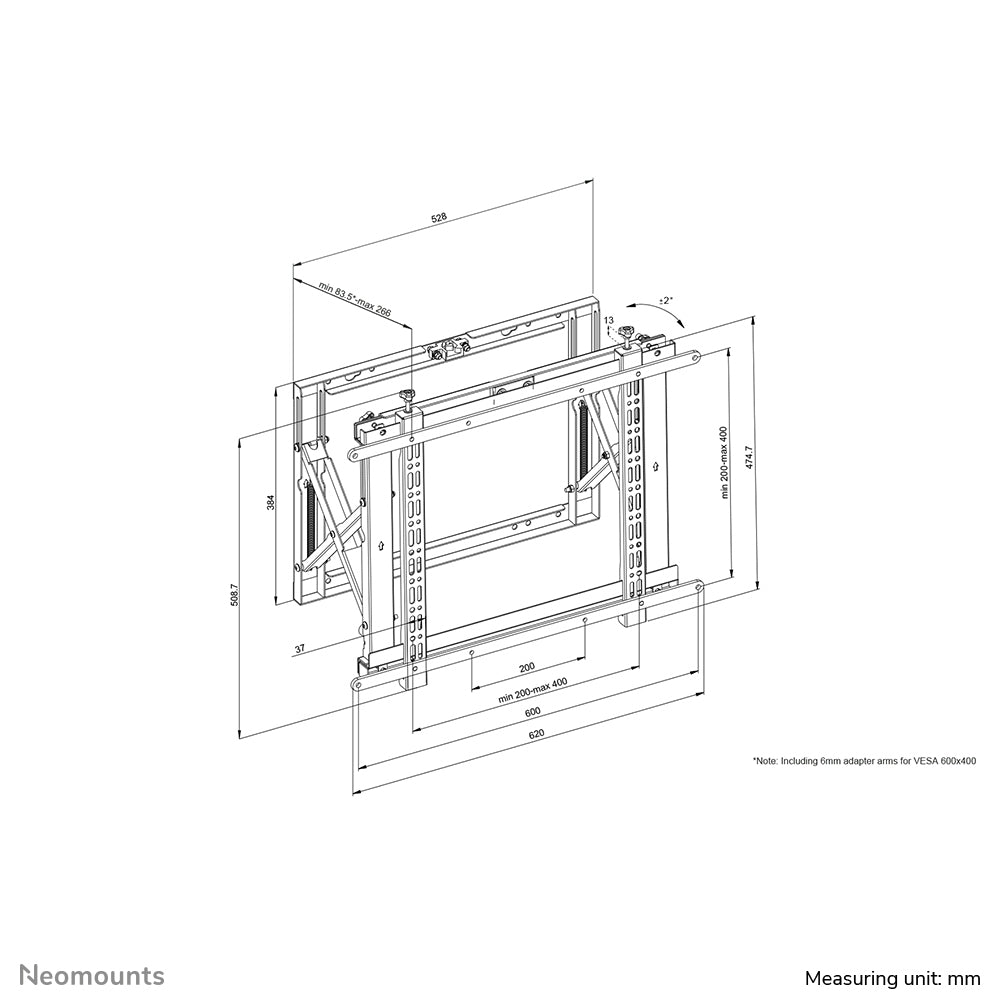

| Weight & dimensions |
|---|
| Height |
510 mm |
| Depth |
84 mm |
| Width |
620 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
9.8 kg |
| Package height |
620 mm |
| Package depth |
110 mm |
| Package width |
570 mm |
| Technical details |
|---|
| Package net weight |
9.8 kg |
| Orientation |
Landscape/Portrait |
| Easy to install |
Yes |
| Warranty period |
5 year(s) |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
9.8 kg |
| Master (outer) case height |
620 mm |
| Master (outer) case length |
110 mm |
| Master (outer) case width |
570 mm |
| Harmonized System (HS) code |
7326909890 |
| Master (outer) case net weight |
8.5 kg |
| Products per pallet (EU) |
24 pc(s) |
| Quantity per master (outer) case |
1 pc(s) |
