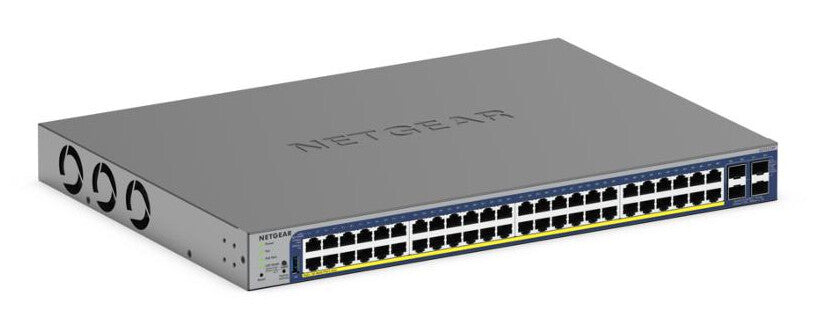

48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP+ Ports (380W)
Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.
| Management features |
|---|
| Switch layer |
L2/L3/L4 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|---|
| Virtual LAN features |
Voice VLAN |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
16 MB |
| Number of static routes |
32 |
| Static route |
Yes |
| Latency (10 Gbps) |
4.107 µs |
| MAC address table |
16000 entries |
| Security |
|---|
| SSH/SSL support |
Yes |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Design |
|---|
| Product colour |
Black |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
1296949 h |
| Noise level |
36.6 dB |
| Flash memory |
64 MB |
| Built-in processor |
Yes |
| Power |
|---|
| Power consumption (max) |
51 W |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
380 W |
| Power over Ethernet plus (PoE+) ports quantity |
48 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Heat dissipation |
2944.6 BTU/h |
| Non-operating altitude |
0 - 3000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
5.54 kg |
| Height |
43 mm |
| Depth |
345 mm |
| Width |
440 mm |
