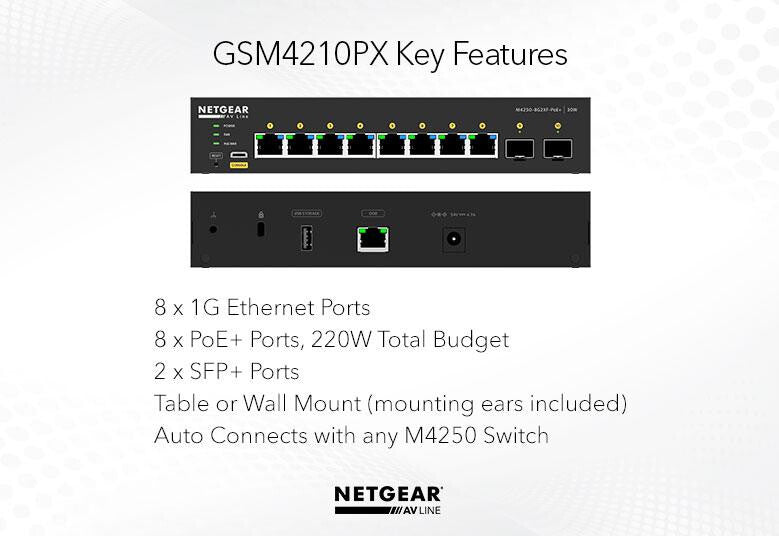

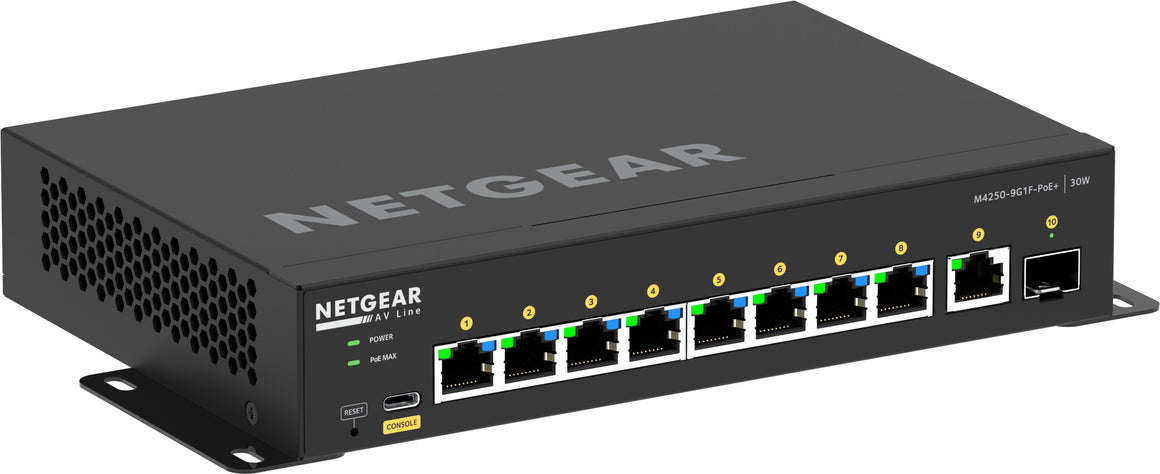

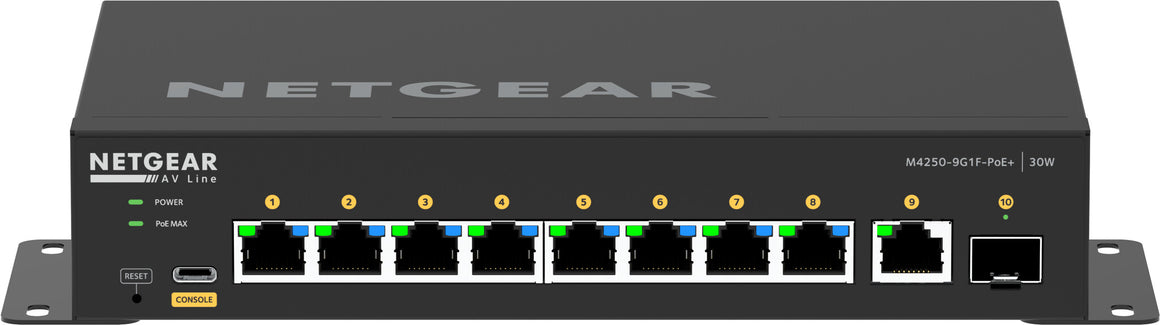

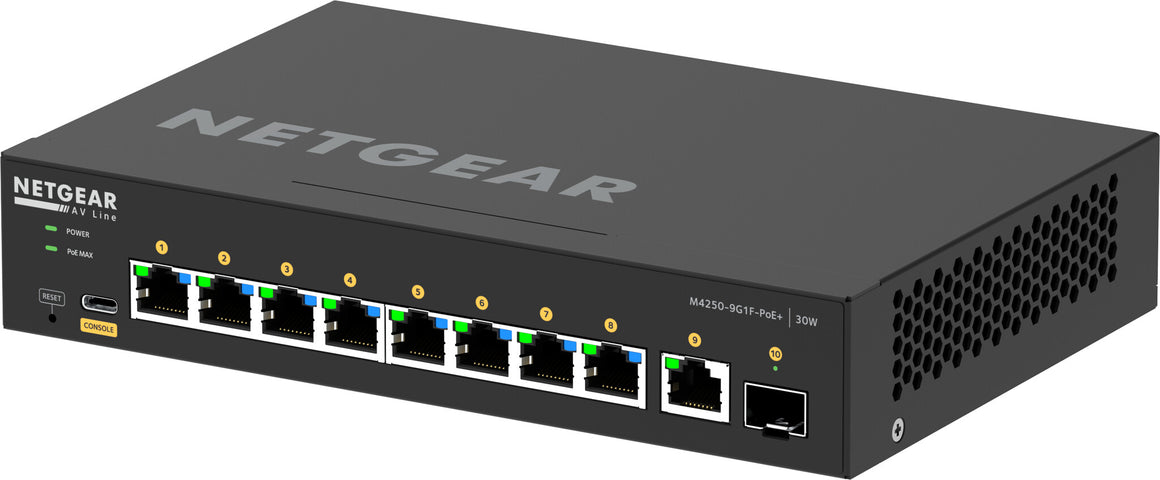

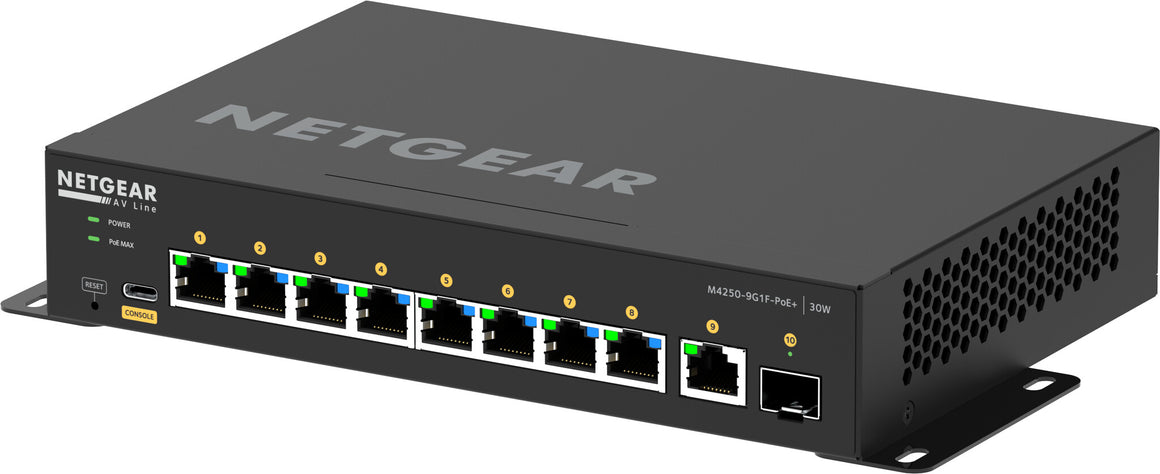

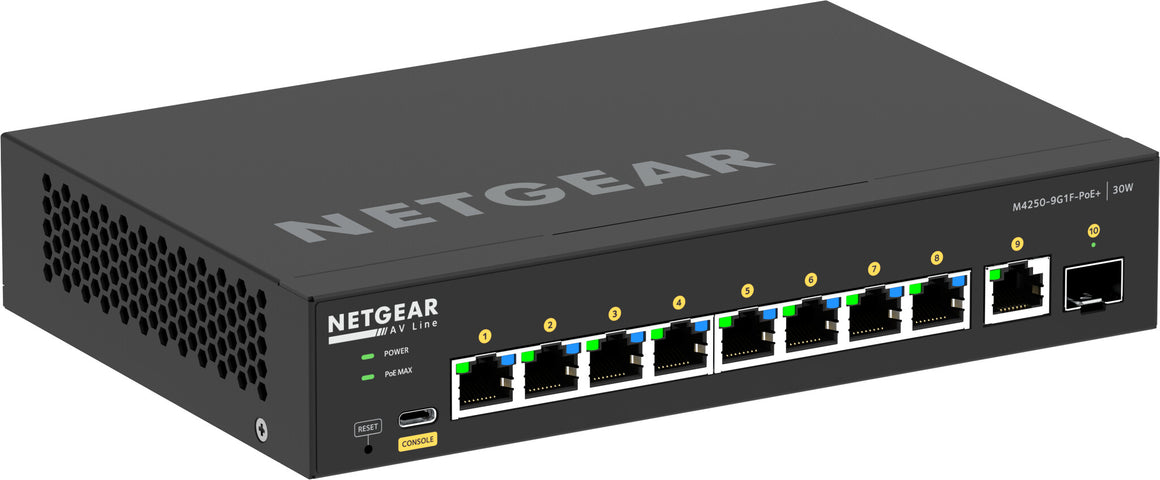

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster

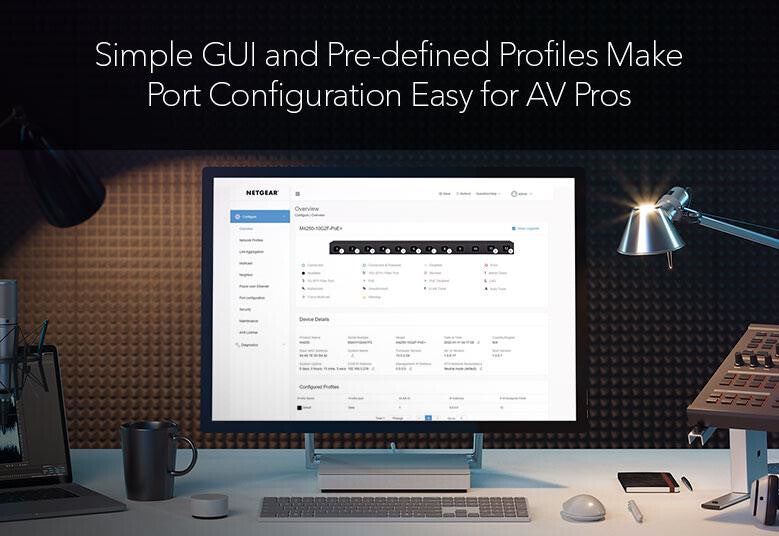

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |

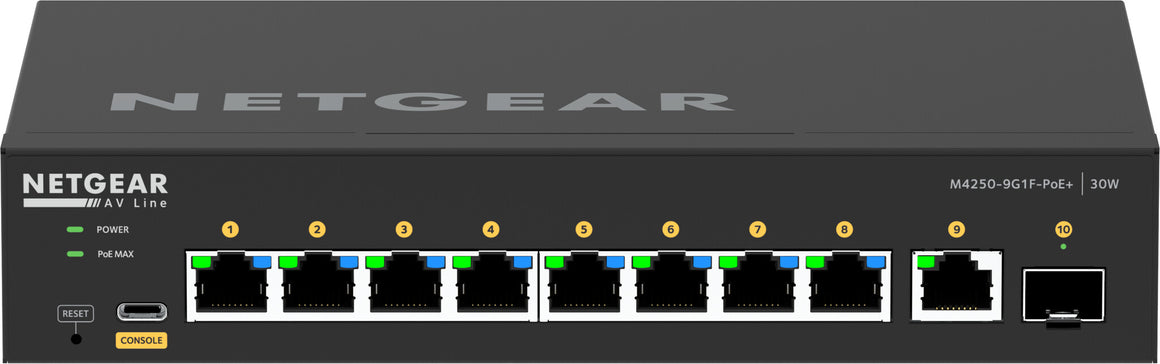

| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Rate limiting |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Data transmission |
|---|
| Store-and-forward |
Yes |
| Switching capacity |
24 Gbit/s |
| MAC address table |
16000 entries |
| Security |
|---|
| Authentication type |
RADIUS |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
MAC-based authentication |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Multicast features |
|---|
| IPv4 multicast entries |
2000 |
| Multicast support |
Yes |
| Design |
|---|
| LED indicators |
PoE, Power, Status |
| Product colour |
Black |
| Rack mounting |
Yes |
| Performance |
|---|
| Noise level |
30.06 dB |
| Internal memory |
2048 MB |
| Processor frequency |
1250 MHz |
| Processor model |
ARM Cortex-A9 |
| Built-in processor |
Yes |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
220 - 240 V |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
110 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Heat dissipation |
559.555 BTU/h |
| Non-operating altitude |
0 - 3000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
967 g |
| Height |
40 mm |
| Depth |
140 mm |
| Width |
210 mm |
| Packaging content |
|---|
| Manual |
Yes |
| User guide |
Yes |
