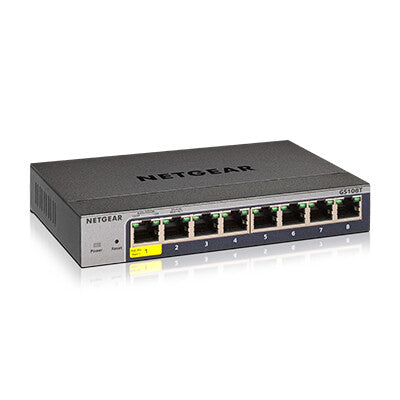

The NETGEAR GS108Tv3 8-Port Gigabit Smart Managed Pro Switch with Cloud Management is fanless, supporting perfectly silent desktop operation or wall mounting. The GS108Tv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and QoS for wireless converged networks and mobility. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing,IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS108Tv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR ProSAFE Limited Lifetime Warranty and 24/7 support including lifetime chat.
Management features |
Cloud-managed |
Yes |
Quality of Service (QoS) support |
Yes |
Switch layer |
L2/L3/L4 |
Switch type |
Managed |
Ports & interfaces |
Power connector |
DC-in jack |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
8 |
Network |
Number of VLANs |
64 |
MAC address auto-learning supported |
Yes |
Rate limiting |
Yes |
Flow control support |
Yes |
Address Resolution Protocol (ARP) entries (max) |
512 |
Fast leave |
Yes |
Link aggregation |
Yes |
Broadcast storm control |
Yes |
Spanning tree protocol |
Yes |
Full duplex |
Yes |
Port mirroring |
Yes |
Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
Networking standards |
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
Data transmission |
Packet buffer memory |
0.5 MB |
Jumbo frames support |
Yes |
Store-and-forward |
Yes |
Switching capacity |
16 Gbit/s |
MAC address table |
8000 entries |
Security |
Security algorithms |
802.1x RADIUS |
IGMP snooping |
Yes |
Access Control List (ACL) IPv6 entries |
100 |
Access Control List (ACL) |
Yes |
DHCP features |
DHCP client |
Multicast features |
Number of multicast groups filtered |
256 |
IPv4 multicast entries |
32 |
Multicast support |
Yes |
Protocols |
GARP VLAN Registration Protocol (GVRP) |
Yes |
Supported network protocols |
HTTP, HTTPS |
Data link protocols |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Management protocols |
SNMP |
Design |
LED indicators |
Activity, Link, Power, Speed |
Product colour |
Grey |
Rack mounting |
No |
Performance |
Mean time between failures (MTBF) |
2388657 h |
Firmware upgradeable |
Yes |
Flash memory |
32 MB |
Internal memory |
128 MB |
Memory type |
RAM |
Processor frequency |
500 MHz |
Built-in processor |
Yes |
Power |
Input current |
1 A |
DC input voltage |
12 V |
AC input frequency |
50 - 60 Hz |
AC input voltage |
100 - 240 V |
Power supply included |
Yes |
Power over Ethernet (PoE) |
Power over Ethernet (PoE) |
No |
Operational conditions |
Heat dissipation |
18.66 BTU/h |
Non-operating altitude |
0 - 3000 m |
Operating altitude |
0 - 3000 m |
Storage relative humidity (H-H) |
0 - 95% |
Operating relative humidity (H-H) |
0 - 95% |
Storage temperature (T-T) |
-20 - 70 °C |
Operating temperature (T-T) |
0 - 40 °C |
Weight & dimensions |
Weight |
4.3 kg |
Height |
27 mm |
Depth |
101 mm |
Width |
158 mm |
Packaging content |
Rack mount kit |
Yes |
Quick start guide |
Yes |
Cables included |
AC |
Packaging data |
Package type |
Box |
Logistics data |
Harmonized System (HS) code |
85176990 |
