Expanding Wired Connectivity for SOHO Networks
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|

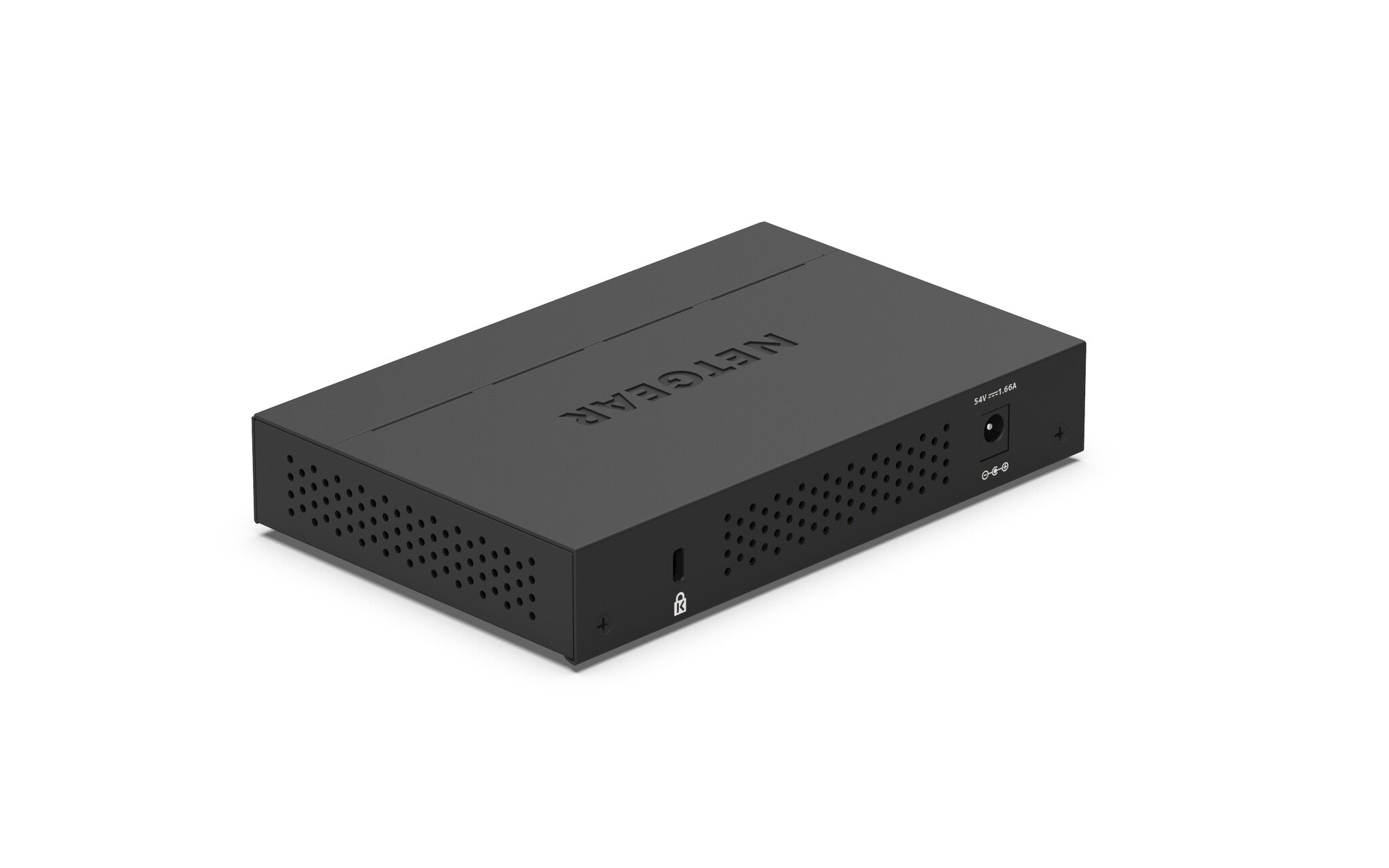

| Power connector |
DC-in jack |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Network |
|---|
| Cable length detection |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
128 MB |
| Packet forwarding rate (1 Gbps) |
1448000 pps |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Latency (1 Gbps) |
2.4 µs |
| Switching capacity |
10 Gbit/s |
| MAC address table |
2000 entries |
| Design |
|---|
| Wall mountable |
Yes |

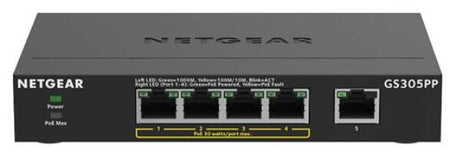

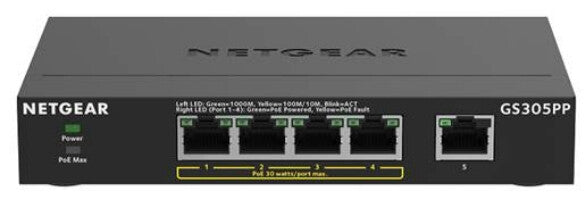

| LED indicators |
Activity, Link, PoE, Power |
| Reset button |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
No |
| Power |
|---|
| Power consumption (max) |
88.89 W |
| Power consumption (typical) |
2.89 W |
| Input current |
1.66 A |
| DC input voltage |
54 V |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
83 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Heat dissipation |
304 BTU/h |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
410 g |
| Height |
29 mm |
| Depth |
101 mm |
| Width |
158 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package weight |
1.27 kg |
| Package height |
73 mm |
| Package depth |
269 mm |
| Package width |
215 mm |
| Technical details |
|---|
| Shipping (inner) case height |
30.6 cm |
| Shipping (inner) case width |
46.9 cm |
| Shipping (inner) case length |
23.7 cm |
| Shipping (inner) case net weight |
8.34 kg |
| Products per shipping (inner) case |
6 pc(s) |
| Master (outer) cases per pallet layer |
10 pc(s) |
| Layers per pallet (air) |
4 pc(s) |
| Layers per pallet (sea) |
6 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case gross weight |
8.31 kg |
| Master (outer) case height |
306 mm |
| Harmonized System (HS) code |
85176990 |
| Master (outer) case length |
469 mm |
| Master (outer) case width |
237 mm |
