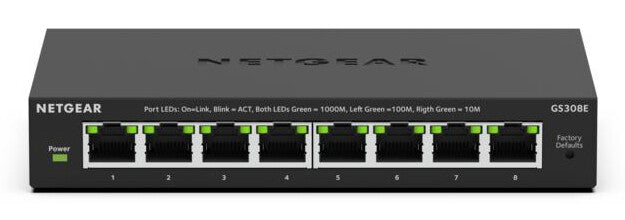

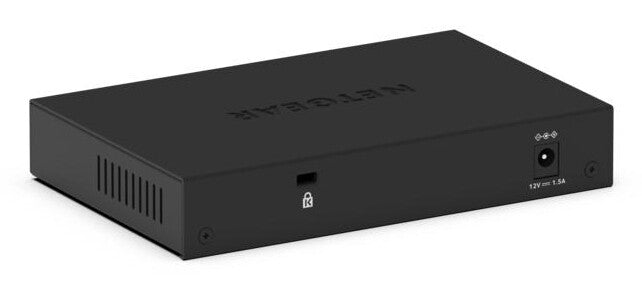

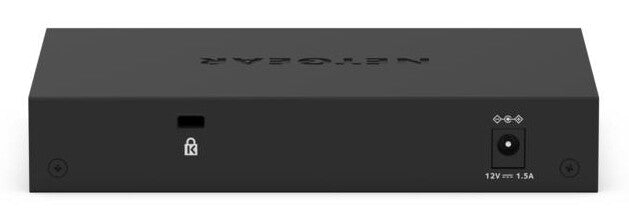

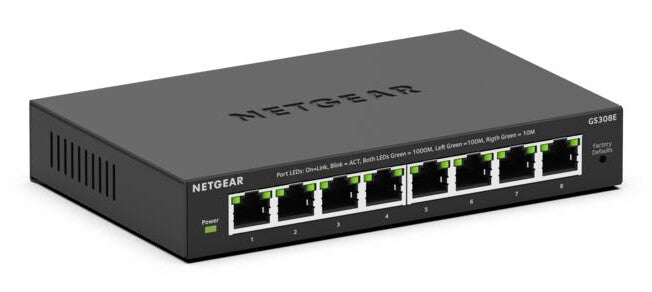

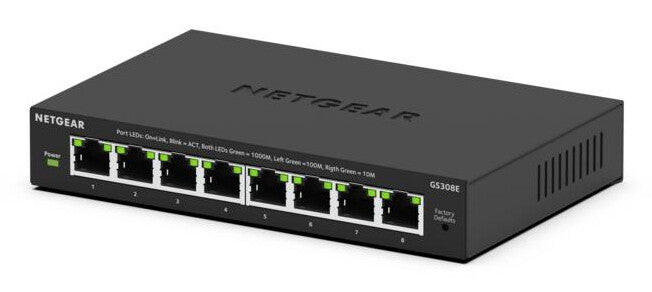

8-Port Gigabit Ethernet Plus Switch
The NETGEAR 8-Port Gigabit Ethernet Plus Switch provides exceptional value to businesses looking to increase network visibility and control while enjoying plug-and-play connectivity.
Gigabit Ethernet
8 ports provide gigabit Ethernet connectivity to your devices
Energy-Efficient
This switch is designed to optimize power usage, lowering cost of operation as a result
No Crossover Cables
Auto-MDI/MDIX eliminates the need for crossover cables
Auto-Negotiation
Automatic connection at the highest common speed between the switch and an end device
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box
| Management features |
|---|
| MIB support |
Y |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| VLAN support |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af |
| Data transmission |
|---|
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Switching capacity |
16 Gbit/s |
| MAC address table |
4000 entries |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Power |
|---|
| Input voltage |
12 V |
| Input current |
1.5 A |
| DC input voltage |
12 V |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
500 g |
| Height |
29 mm |
| Depth |
101 mm |
| Width |
158 mm |
| Packaging content |
|---|
| Cables included |
AC |
