SKU: GS324P-100EUS

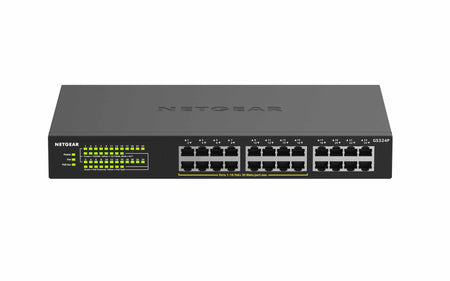

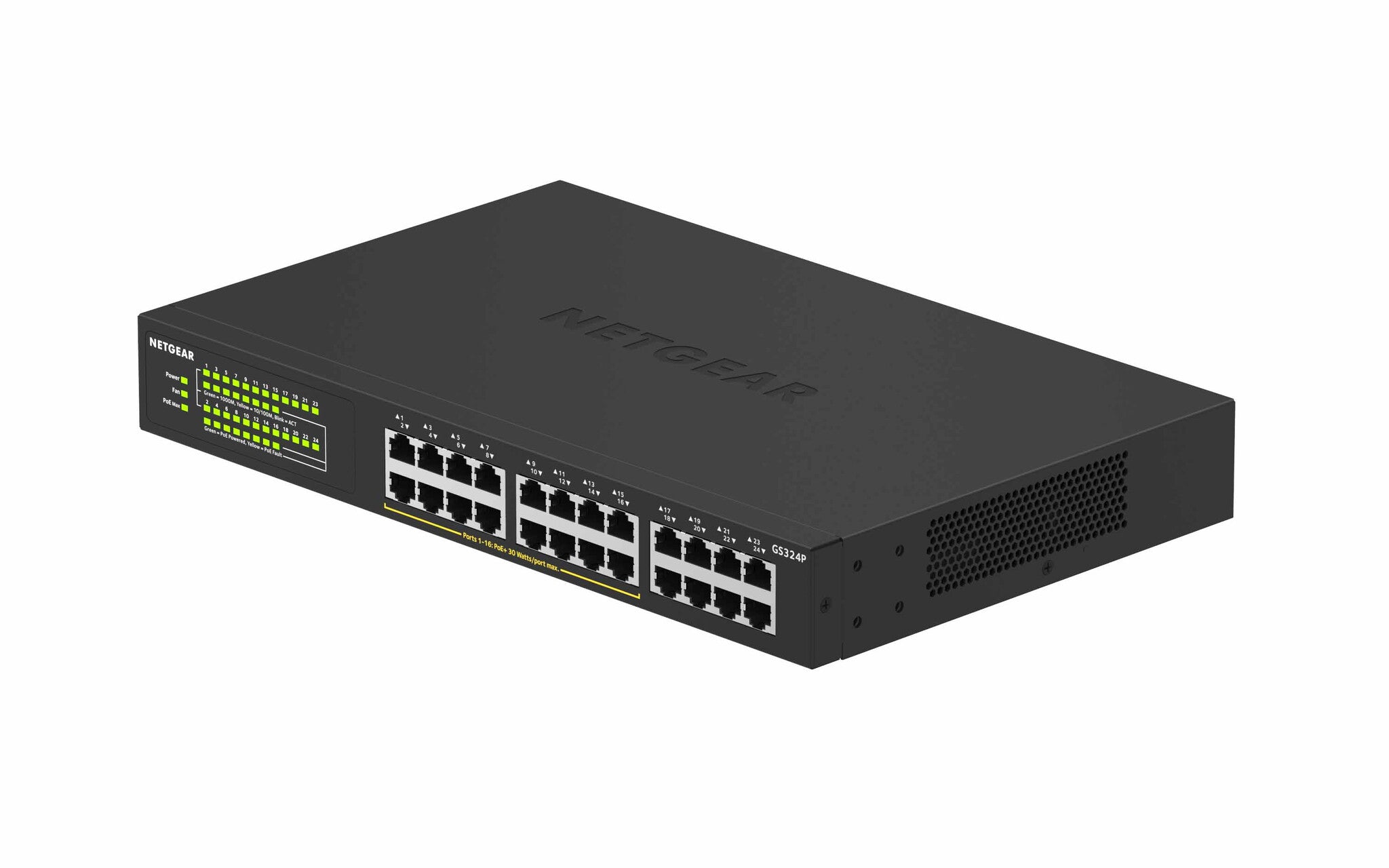

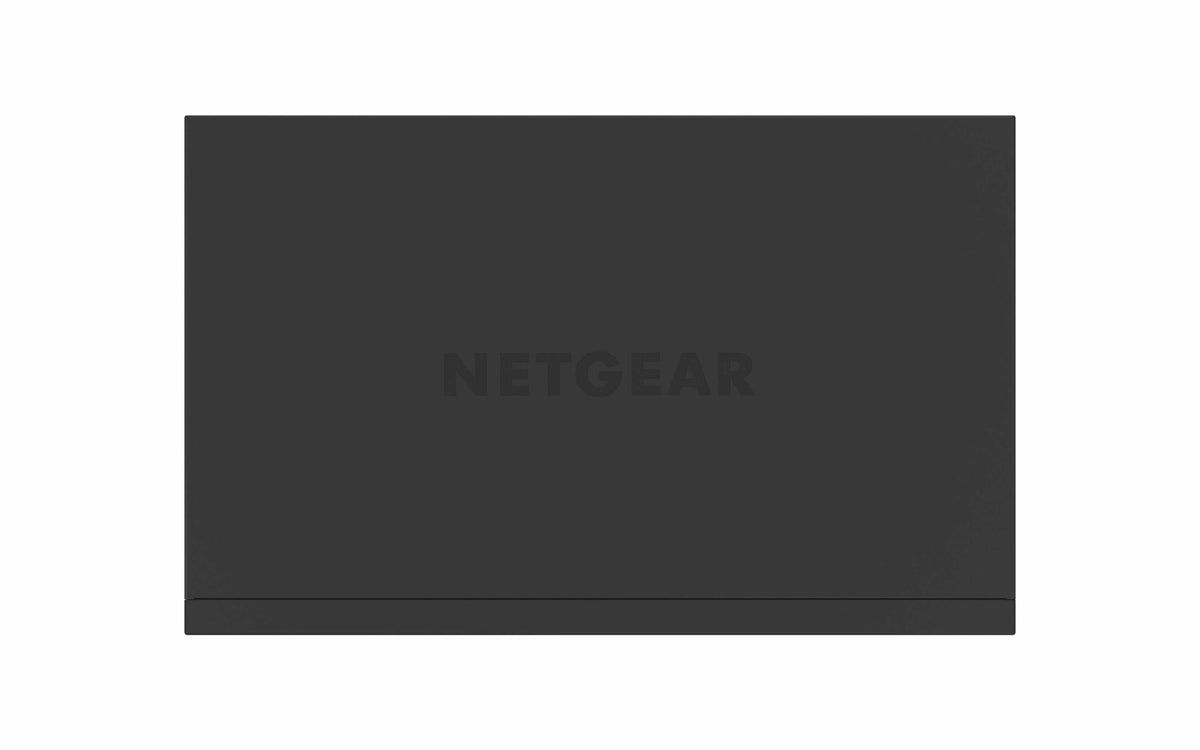

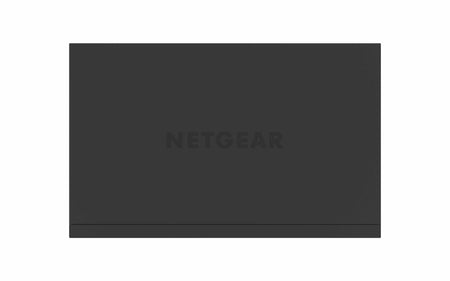

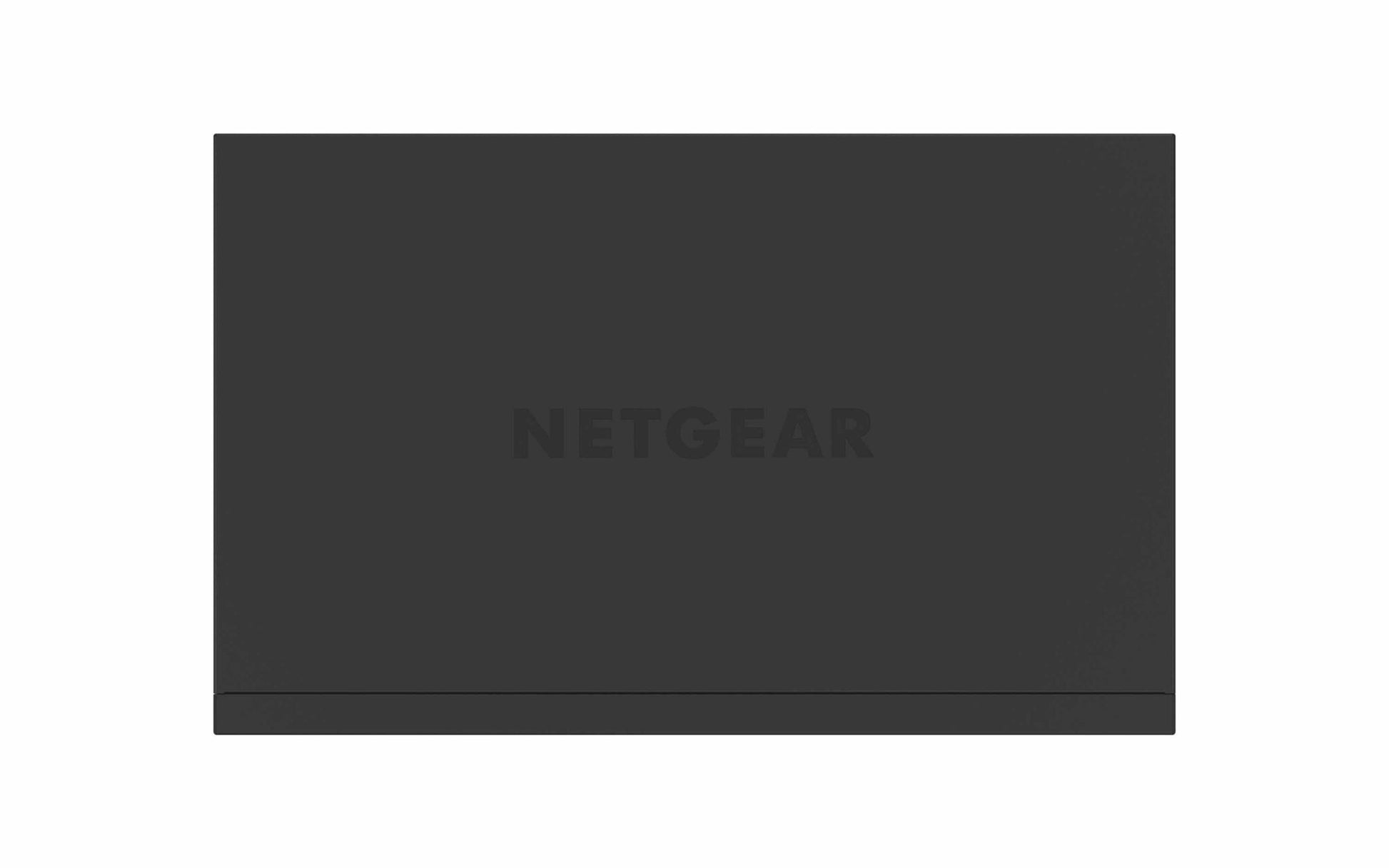

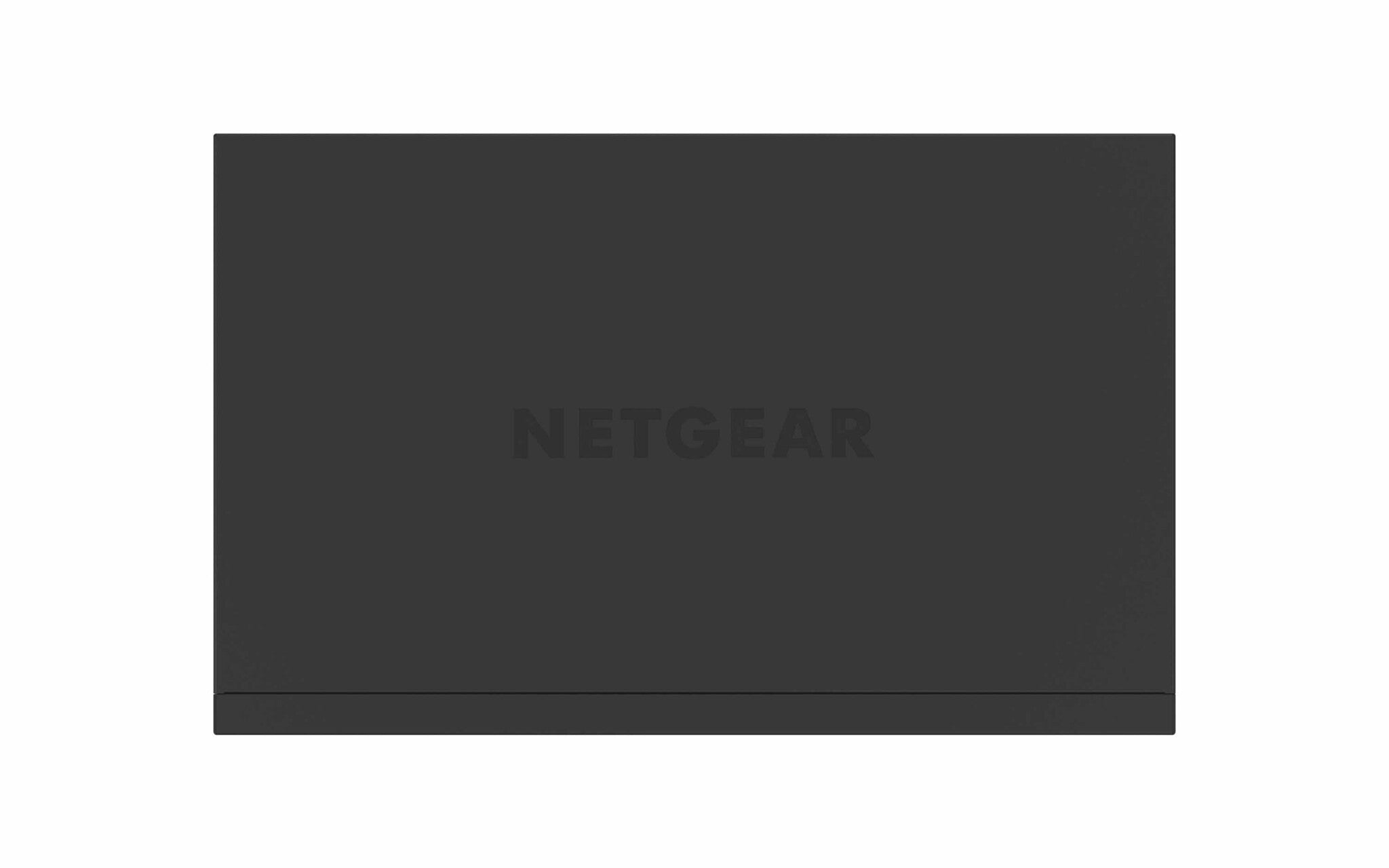

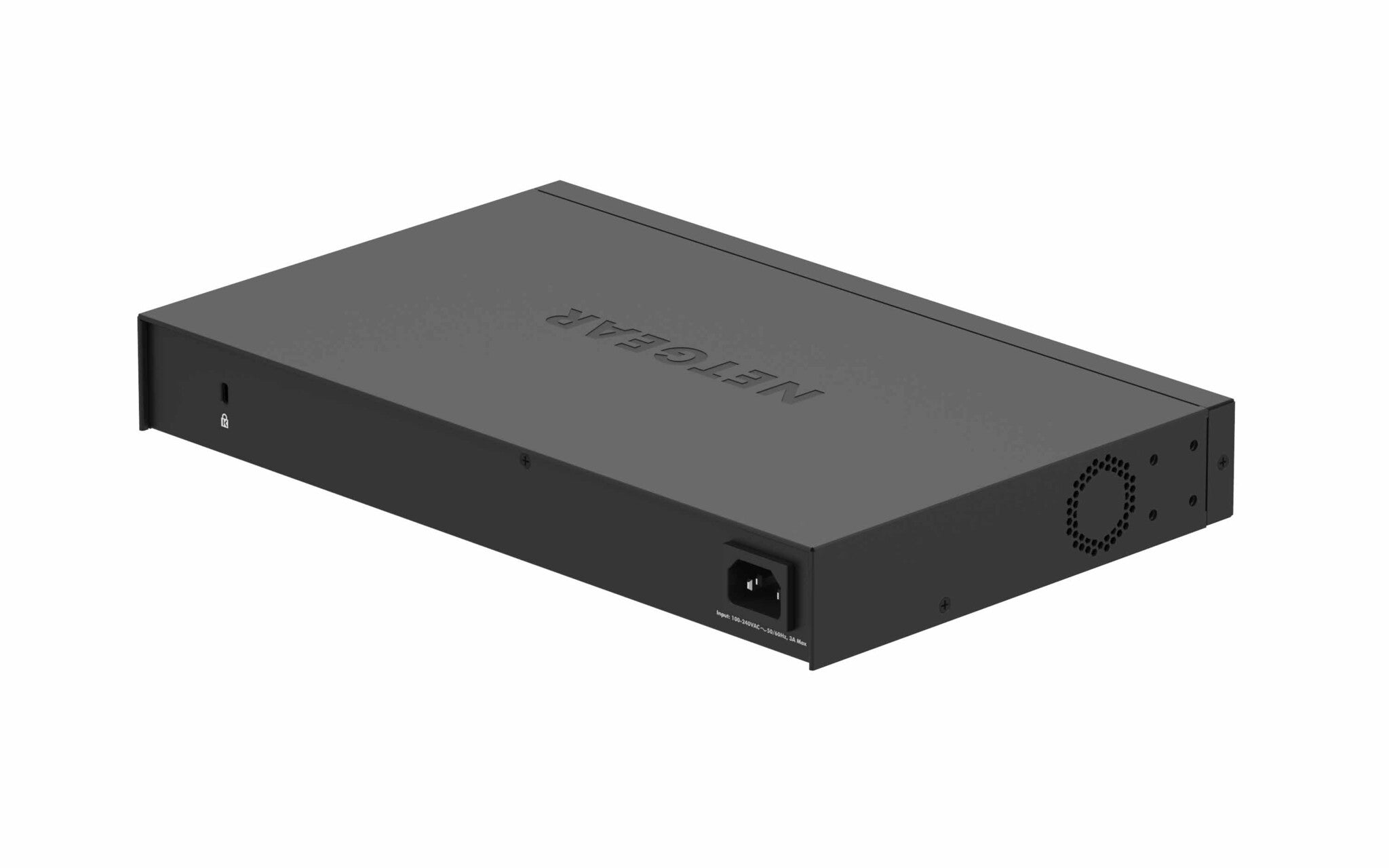

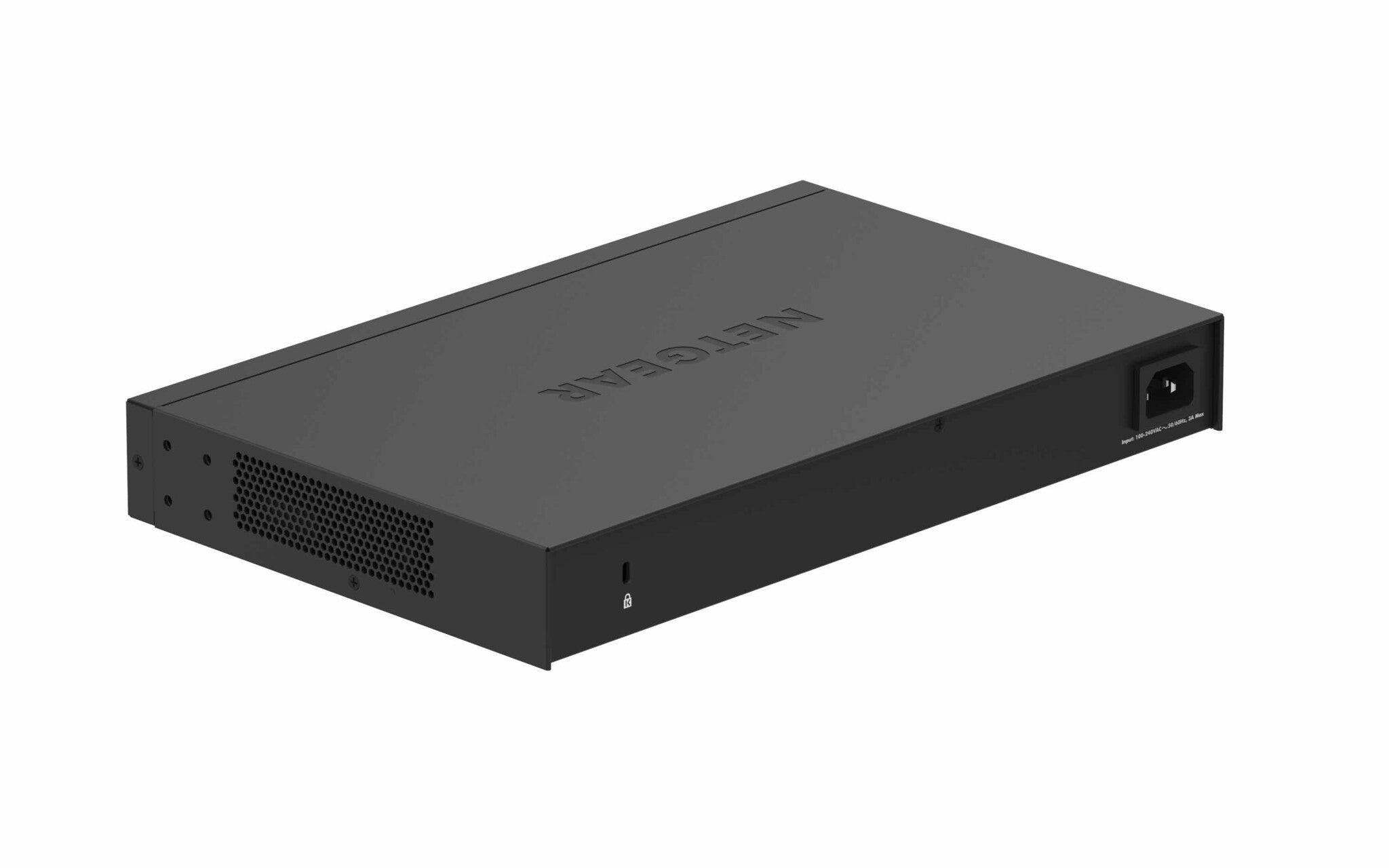

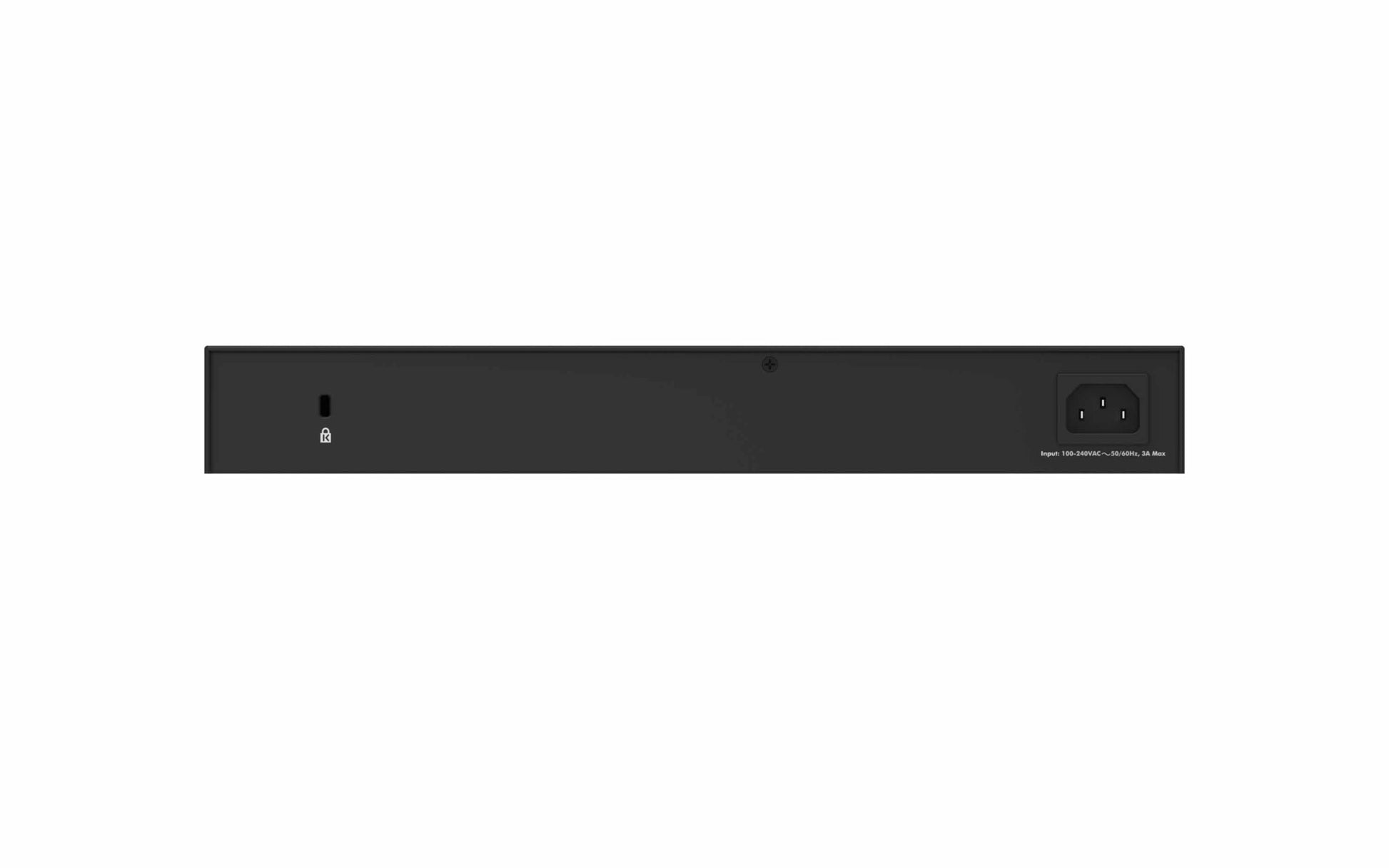

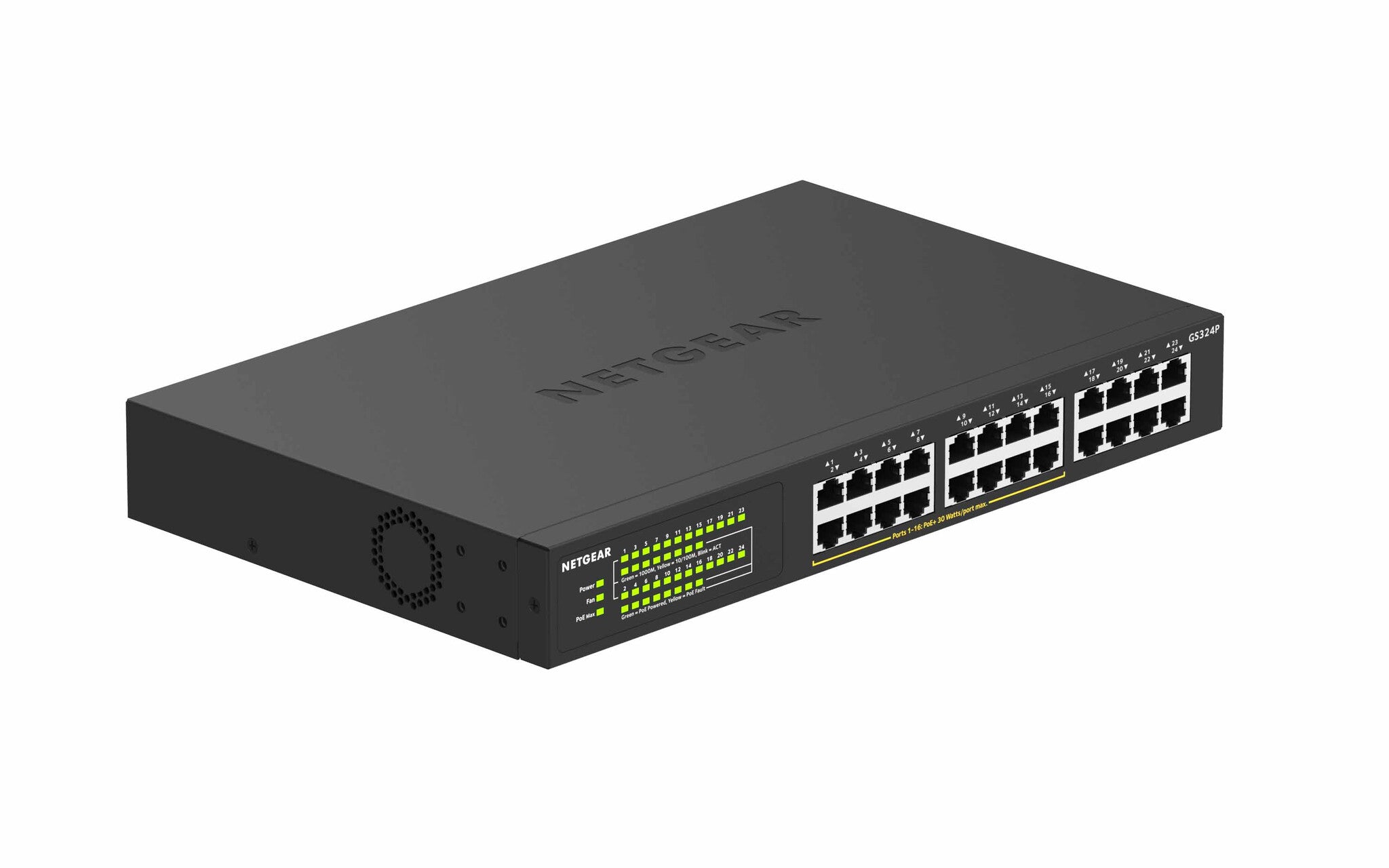

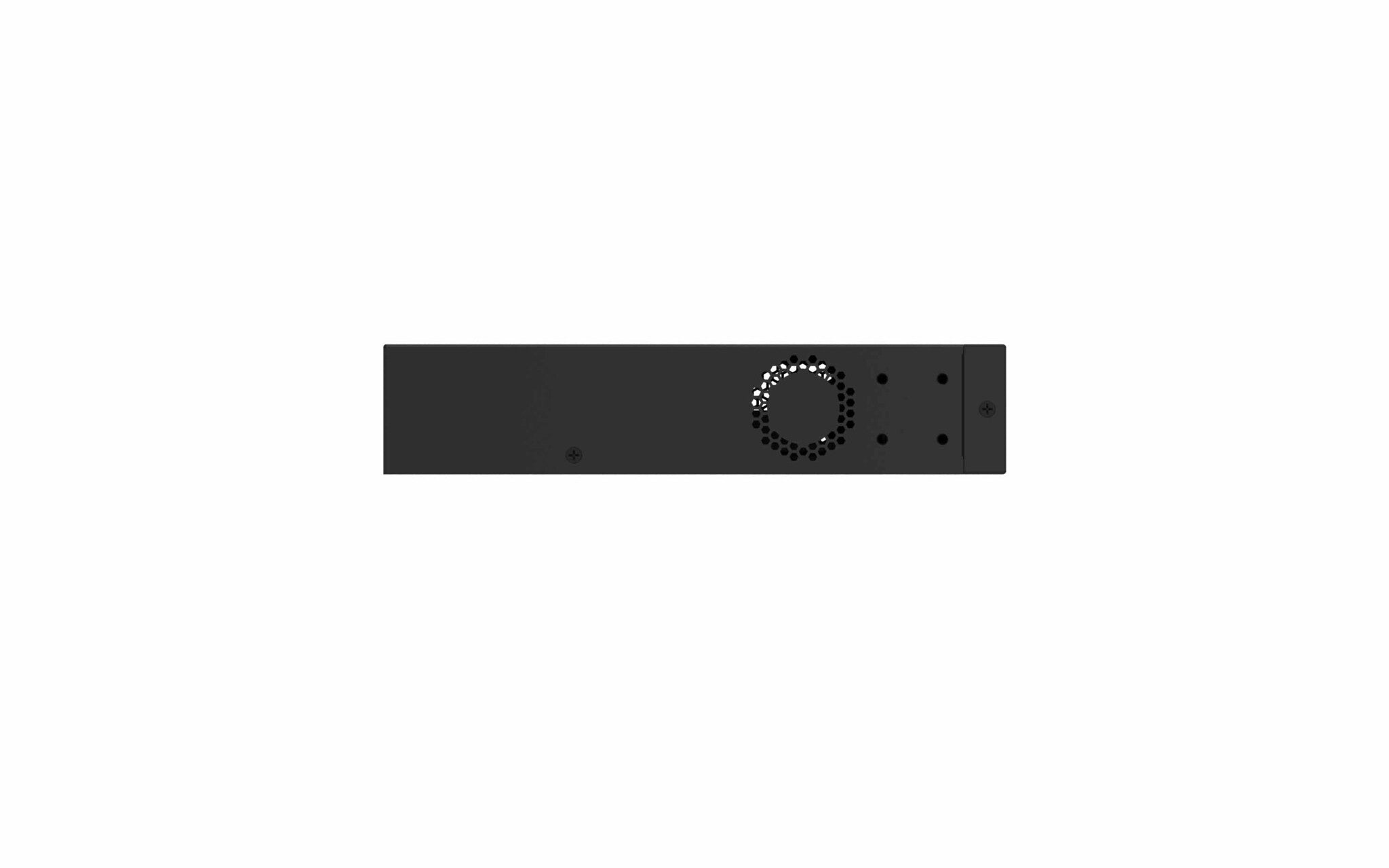

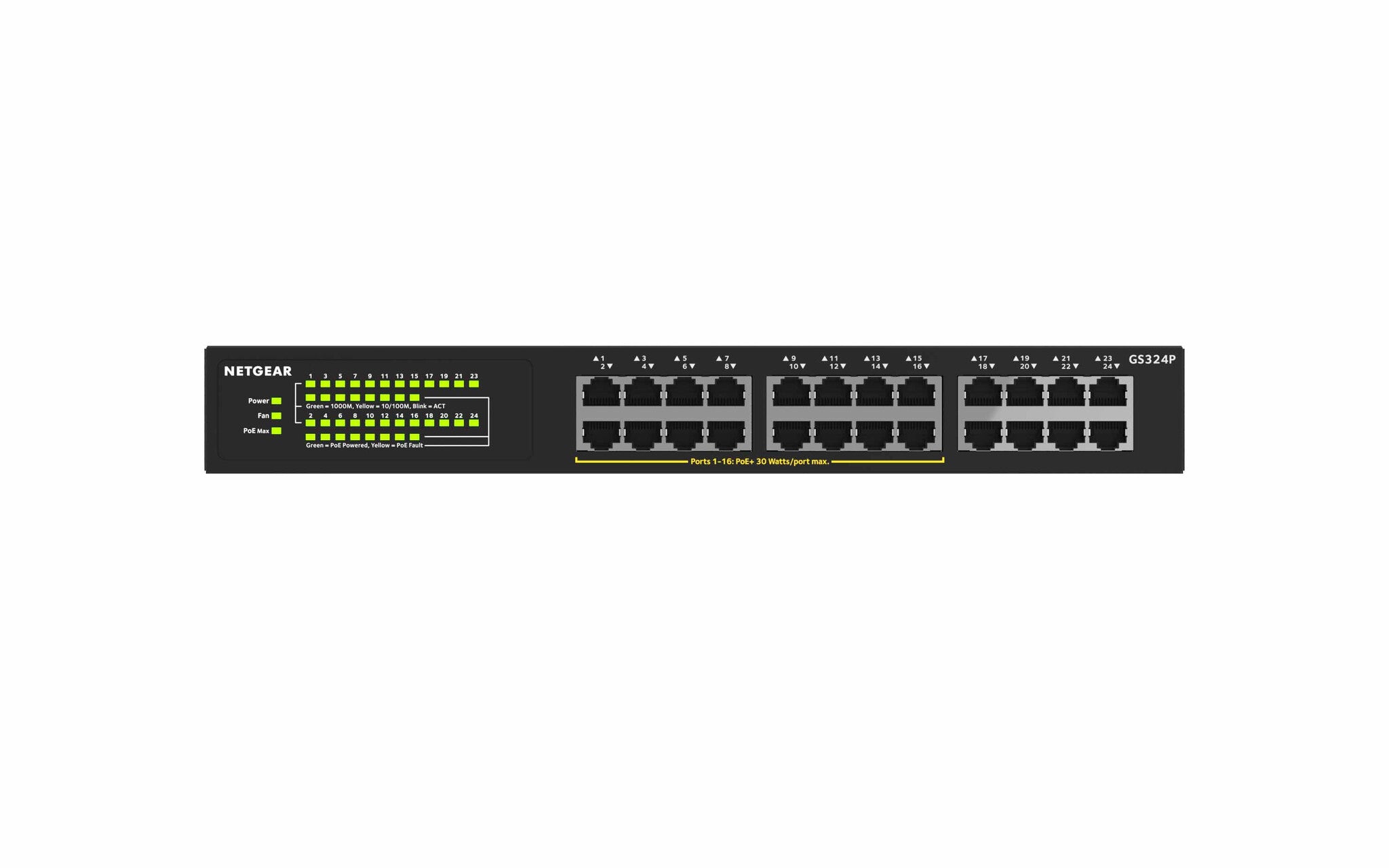

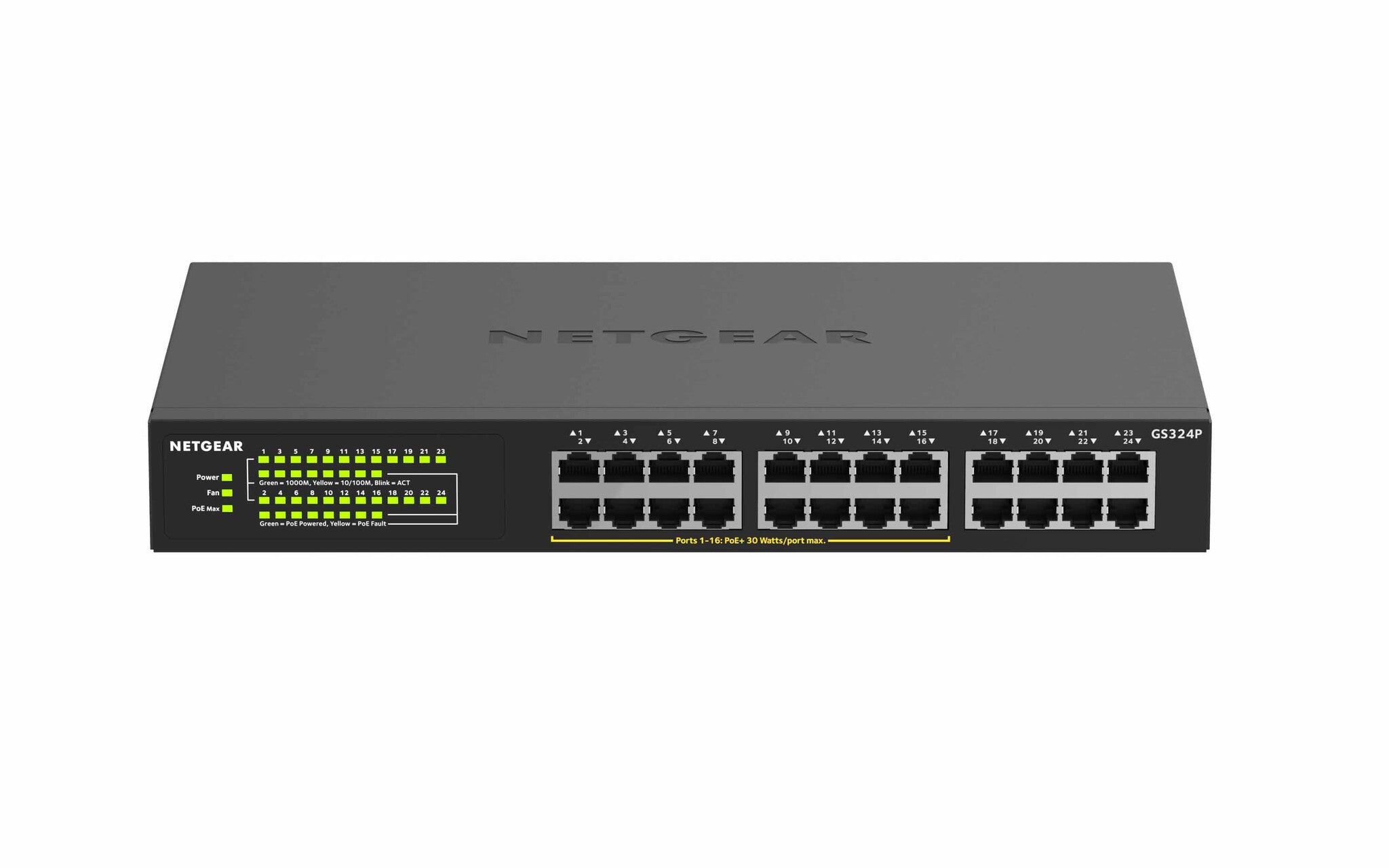

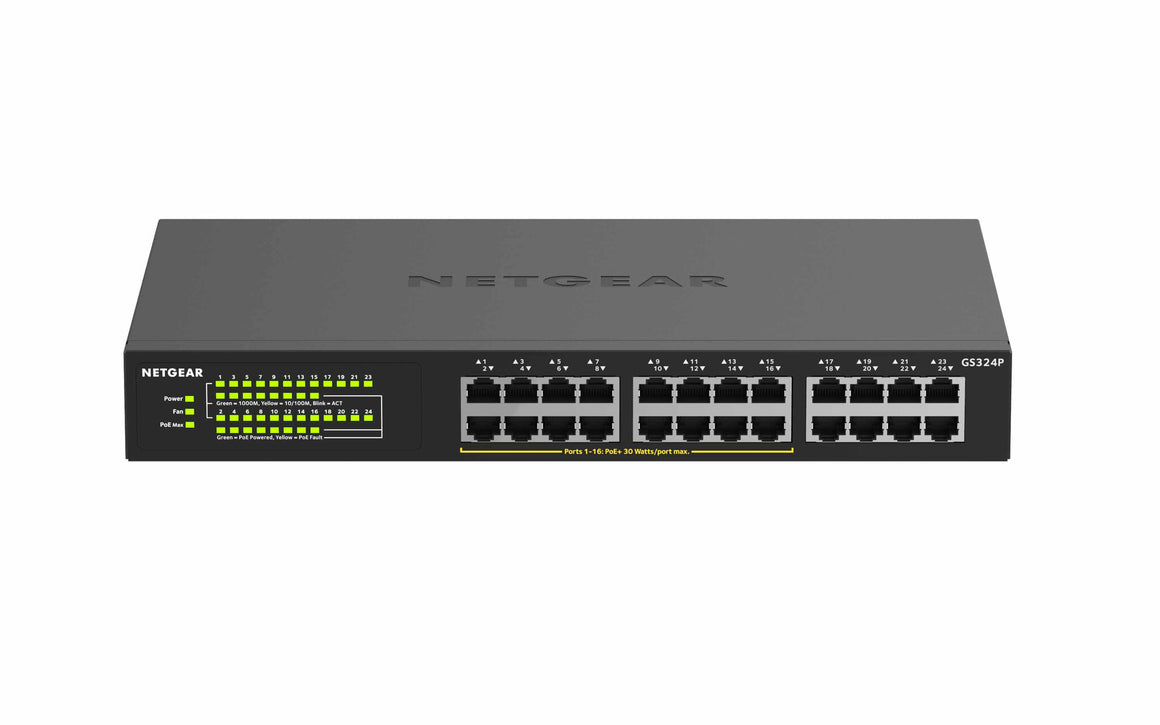

NETGEAR GS324P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Netgear
£257.03
  • ETHERNET PORT CONFIGURATION: 24 Gigabit ports
  • POWER-OVER-ETHERNET: 16 PoE+ ports with 190W total power budget to power wireless AP, IP Cameras, IP Phones and much more
  • PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
  • VERSATILE MOUNTING OPTIONS: Supports desktop, or rackmount placement, and includes all the necessary mounting hardware in the box
  • PoE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
  • QUIET OPERATION: Ideal for noise-sensitive environments
  • ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Compliant with IEEE802.3az Energy Efficient Ethernet mode
  • BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Management features
Quality of Service (QoS) support Yes
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Full duplex Yes
10G support No
Networking standards IEEE 802.1p, IEEE 802.3at
Data transmission
Packet buffer memory 0.192 MB
Packet forwarding rate (1 Gbps) 1448000 pps
Jumbo frames 10000
Jumbo frames support Yes
Latency (1 Gbps) 4 µs
Switching capacity 48 Gbit/s
MAC address table 8000 entries
Security
Queue scheduling algorithms Weighted Round Robin (WRR)
Design
Electromagnetic compatibility CE, FCC 15 A, IC A, RCM, VCCI, KC

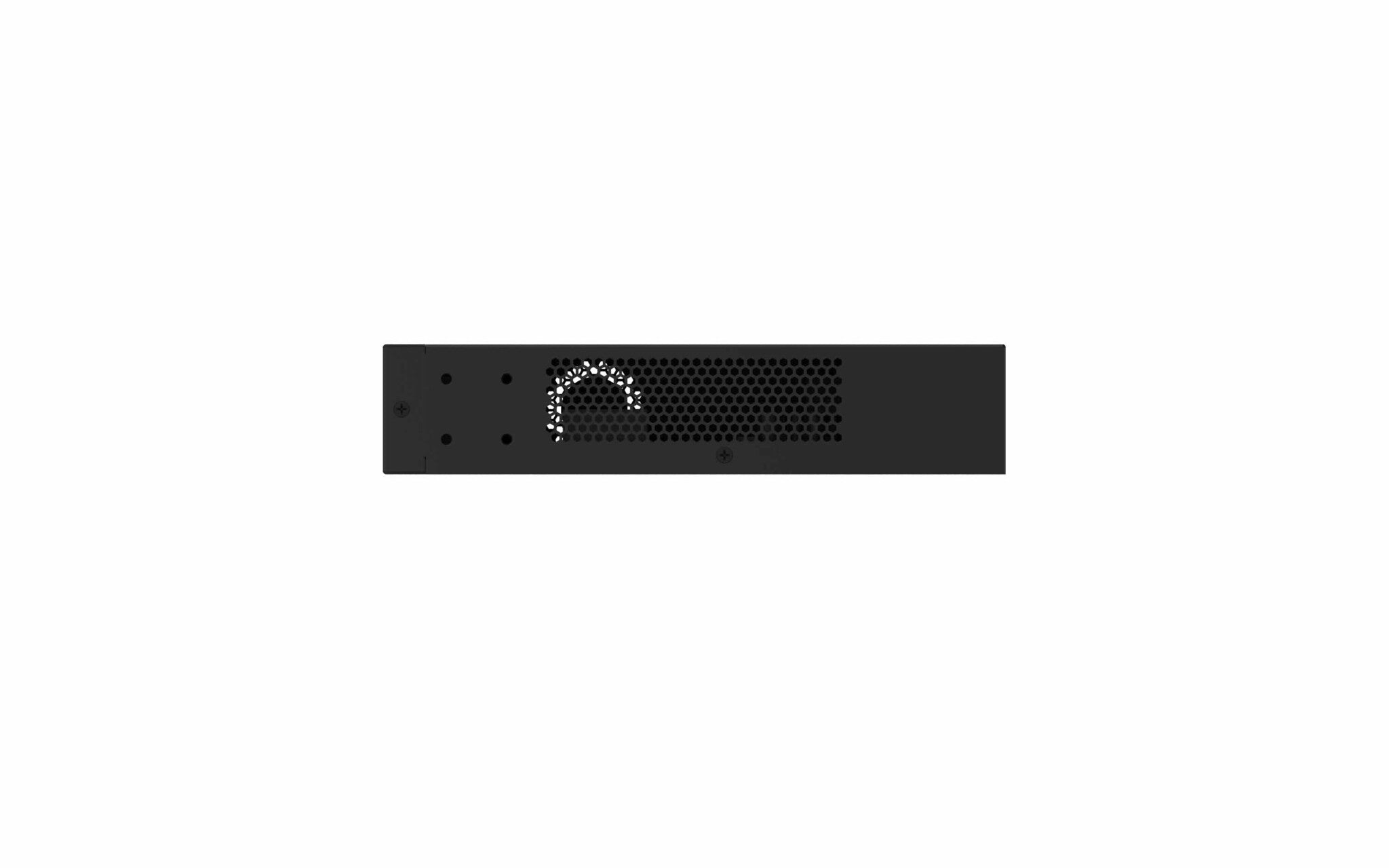

Number of fans 1 fan(s)
LED indicators Activity, Link, PoE, Power, Speed
Housing material Metal
Product colour Black
Form factor 1U
Rack mounting Yes
Performance
Mean time between failures (MTBF) 1193574 h
Power
Power consumption (max) 210 W
Input current 3 A
AC input frequency 50 - 60 Hz

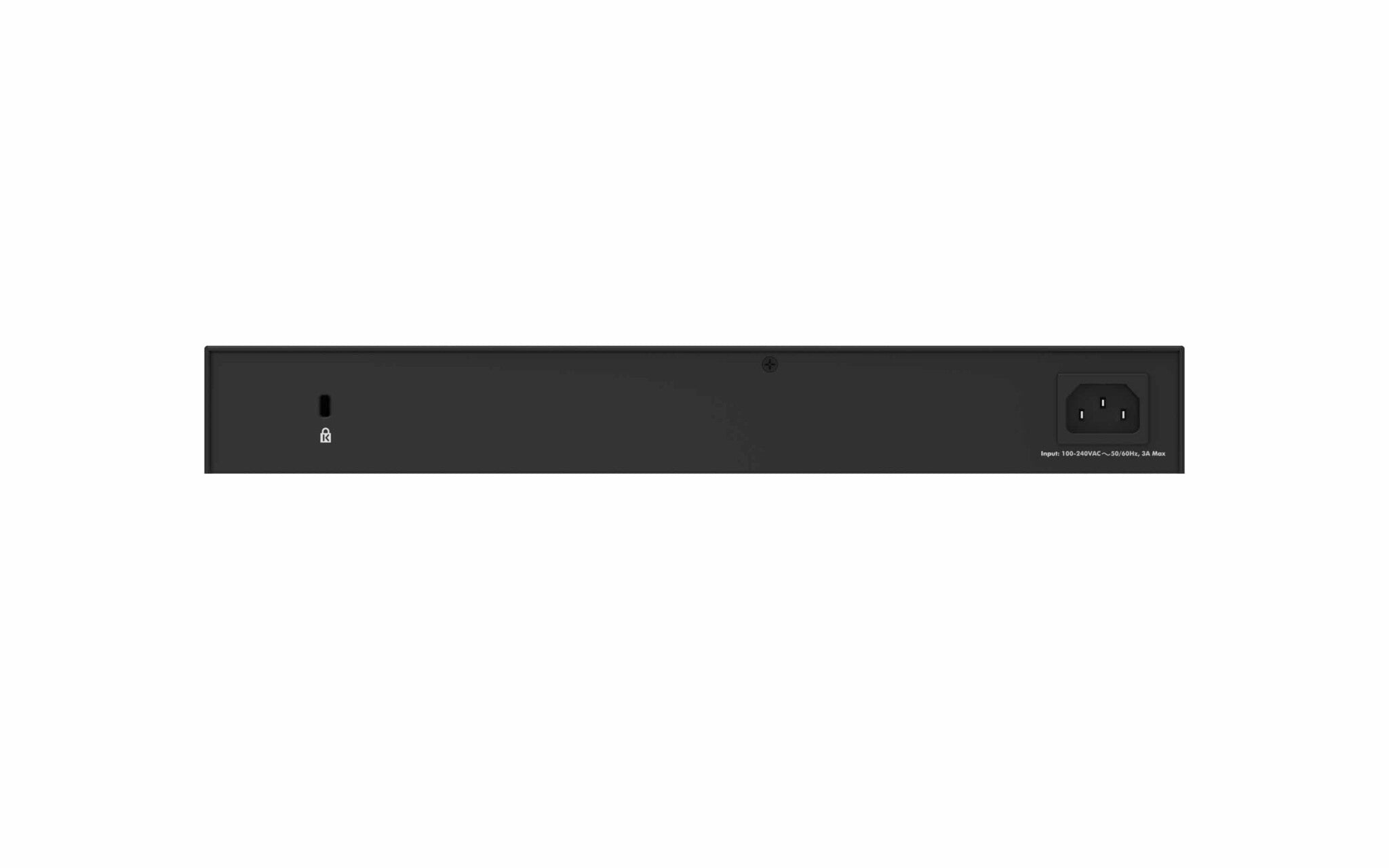

AC input voltage 100 - 240 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 190 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 16
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 718.2 BTU/h
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 2.44 kg
Height 43 mm
Depth 206 mm
Width 330 mm
Certificates
Certification CB, CE LVD, UL
Logistics data
Harmonized System (HS) code 85176990
