SKU: GSM4328-100NES

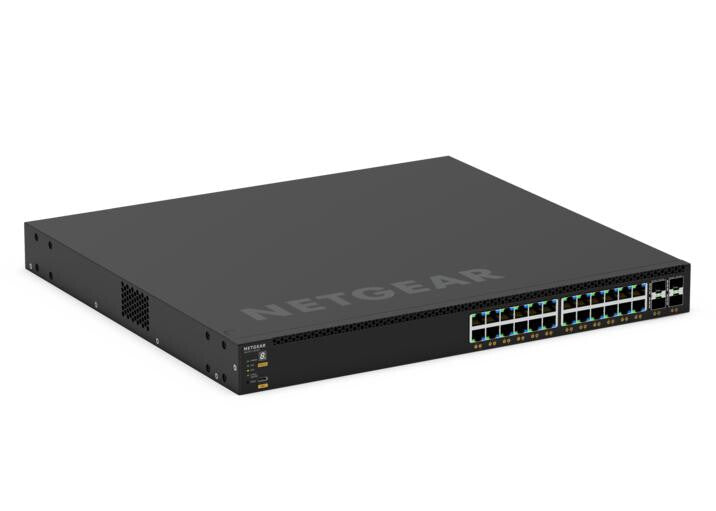

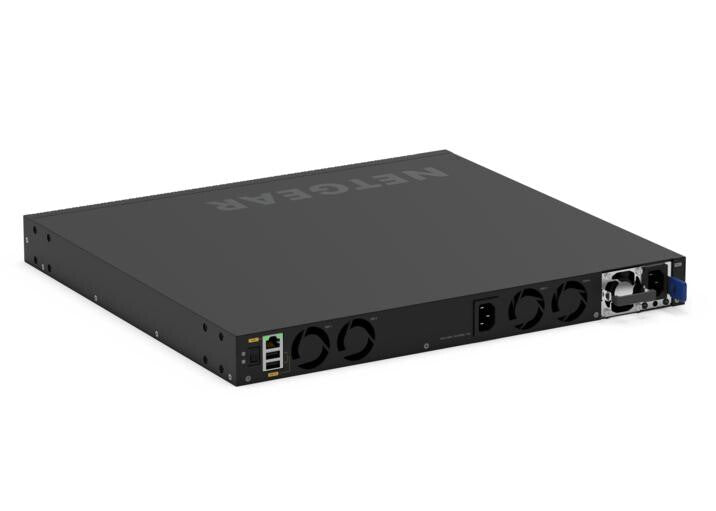

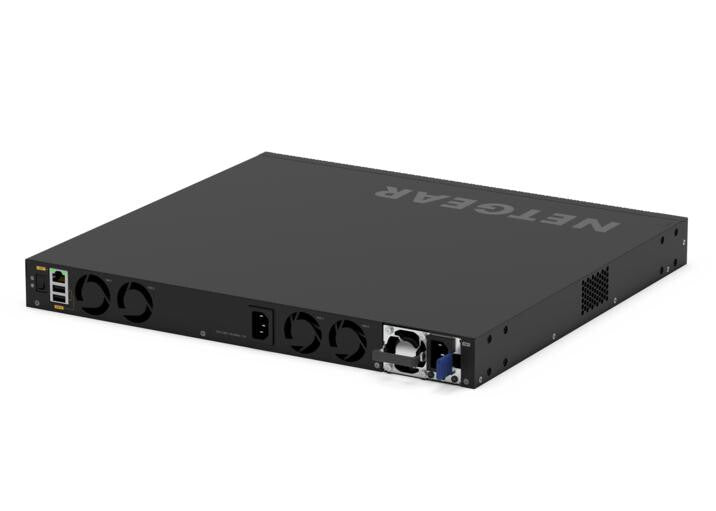

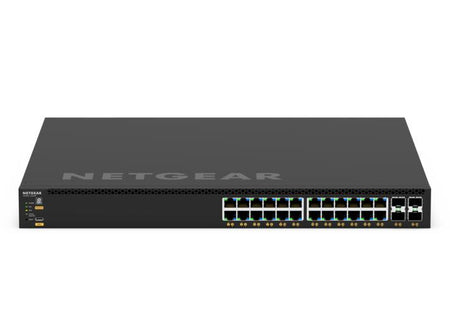

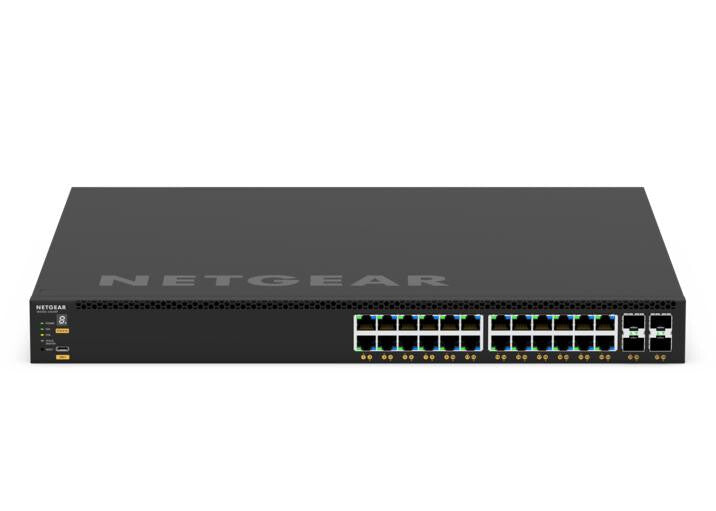

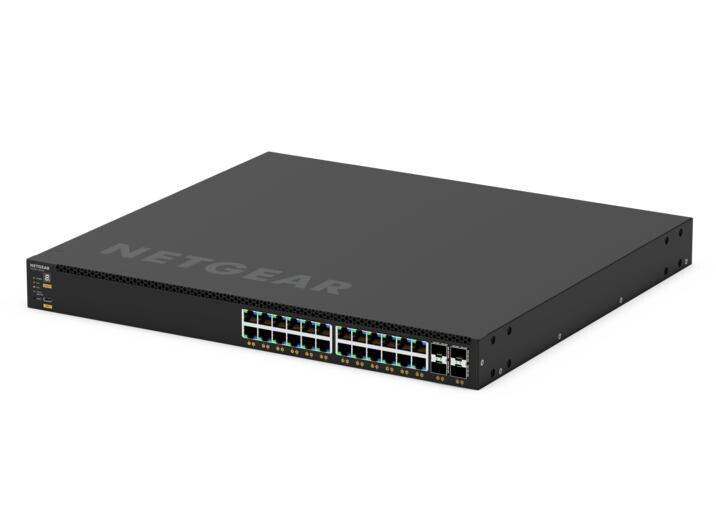

NETGEAR GSM4328-100AJS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Netgear
£2,362.87
  • 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
  • 880W internal power supply providing 648W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • The PoE budget can reach 720W, when the redundant PoE budget remains 648W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  • Lifetime Next Business Day Hardware Replacement

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Management features
Traffic shaping Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
Installed SFP+ modules quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 4093
VLAN support Yes
10G support Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory 16 MB
Throughput 95.23 Mpps
Switching capacity 128 Gbit/s
MAC address table 16000 entries
Security
DHCP features DHCP server, DHCP snooping, DHCPv6 snooping
Design
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Noise level 52 dB
Power
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 648 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 6.41 kg
Height 43.2 mm
Depth 400 mm
Width 440 mm
