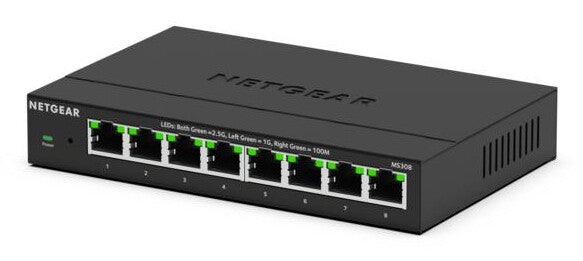

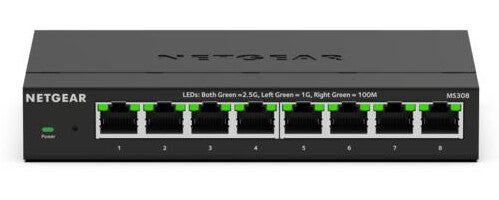

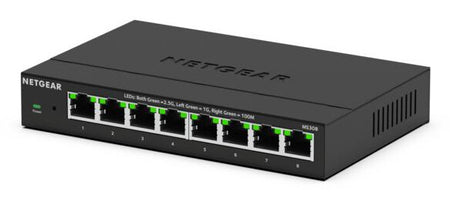

NETGEAR 8-port 2.5G Multi-Gigabit Ethernet Plus Switch
MULTI-GIGABIT ETHERNET
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Cable length detection |
Yes |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Head-of-line (HOL) blocking |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
1 MB |
| Jumbo frames |
12288 |
| Jumbo frames support |
Yes |
| Latency (1 Gbps) |
4.9 µs |
| Forwarding rate |
3.72 Mpps |
| Switching capacity |
40 Gbit/s |
| MAC address table |
16000 entries |
| Design |
|---|
| Number of fans |
0 fan(s) |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
No |
| Performance |
|---|
| Mean time between failures (MTBF) |
3309911 h |
| Fanless |
Yes |
| Noise level |
0 dB |
| Power |
|---|
| Power consumption (max) |
8.1 W |
| Input voltage |
12 V |
| Input current |
1 A |
| DC input voltage |
12 V |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Other features |
|---|
| Warranty period |
5 year(s) |
| Operational conditions |
|---|
| Heat dissipation |
8.27 BTU/h |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
430 g |
| Height |
27 mm |
| Depth |
101 mm |
| Width |
158 mm |
| Certificates |
|---|
| Compliance certificates |
CCC, Low Voltage Directive (LVD) |
