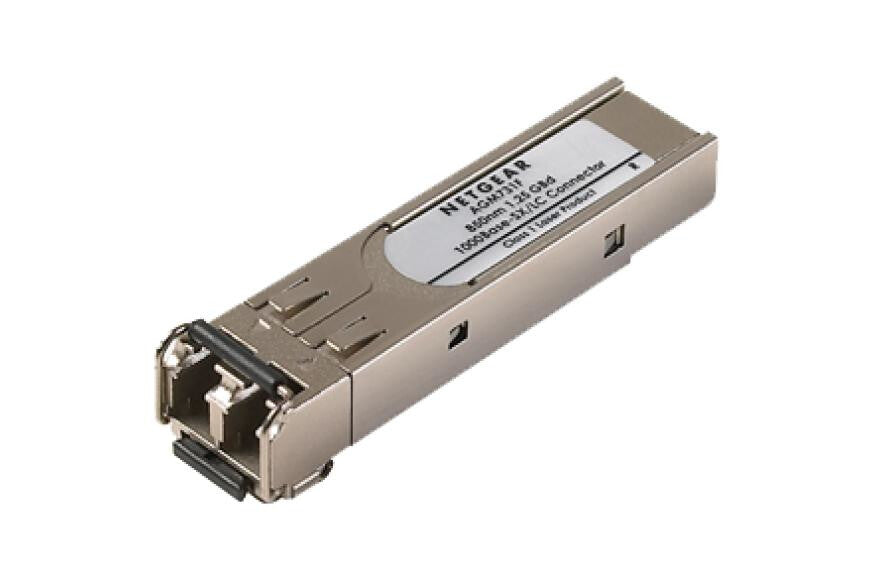

The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.
| Performance |
|---|
| Duplex system |
Full |
| Fiber ethernet cabling technology |
1000BASE |
| Networking standards |
IEEE 802.3z |
| Ethernet LAN |
Yes |
| Wavelength |
850 nm |
| Maximum transfer distance |
1000 m |
| SFP transceiver standard |
SX |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Fiber optic connector |
LC |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Mean time between failures (MTBF) |
87658 h |
| Housing material |
Metal |
| Product colour |
Silver |
| Power |
|---|
| Power consumption (typical) |
0.5 W |
| Input voltage |
3.3 V |
| Certificates |
|---|
| Safety |
UL 1950, CSA 22.2 No.60 950 |
| Compliance certificates |
CE, RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
8.5 mm |
| Depth |
13.8 mm |
| Width |
57 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
