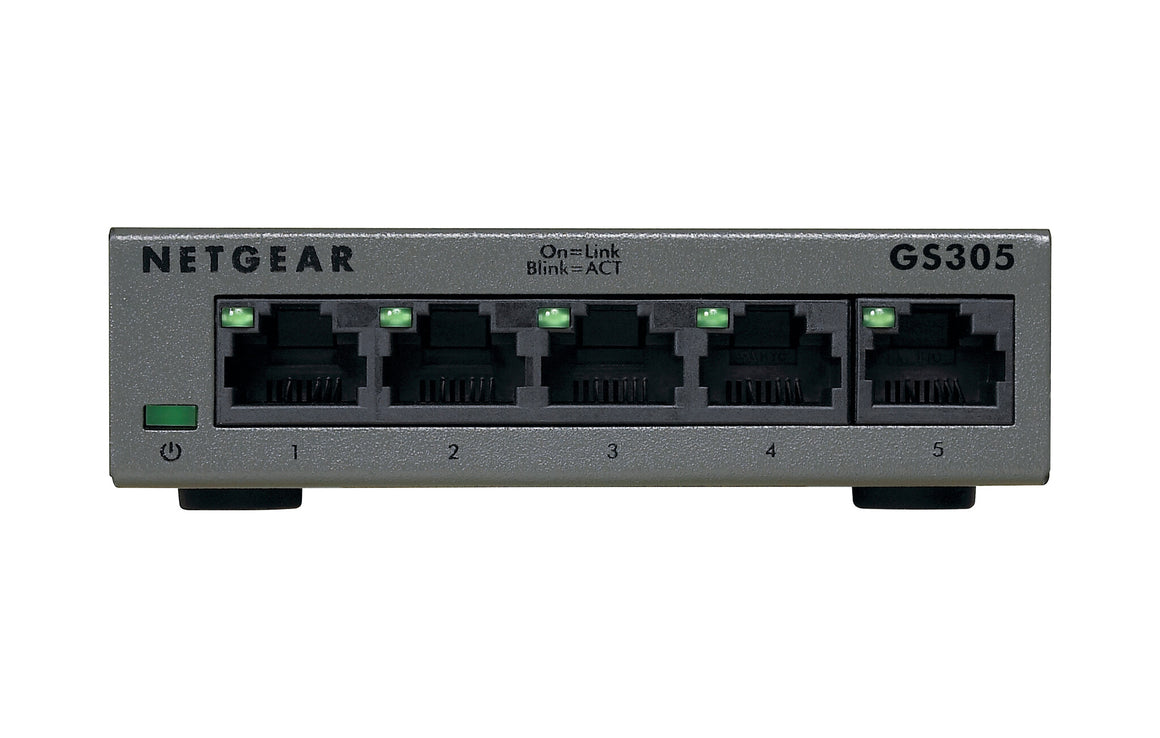

NETGEAR SOHO Unmanaged Gigabit Ethernet (10/100/1000) Black

SKU: GS305-300UKS
£24.61 inc. VAT
  • Choice of Fast Ethernet and Gigabit Ethernet connectivity
  • Energy-efficient technology for power savings
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
  • Fanless design for silent operation
  • Desktop, wall-mountable or rack-mountable (GS324, GS348)

SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Management features
Quality of Service (QoS) support Yes
Switch type Unmanaged
Ports & interfaces
Gigabit Ethernet (copper) ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Auto MDI/MDI-X Yes
Full duplex Yes
10G support Yes
Networking standards IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory 0.128 MB
Packet forwarding rate (1 Gbps) 1448000 pps
Jumbo frames 9216
Jumbo frames support Yes
Latency (1 Gbps) 2.6 µs
Switching capacity 10 Gbit/s
MAC address table 2000 entries
Security
Queue scheduling algorithms Weighted Round Robin (WRR)
Design
Wall mountable Yes
LED indicators Activity, Link, Power
Housing material Metal
Product colour Black
Stackable No
Rack mounting No
Performance
Mean time between failures (MTBF) 3831422 h
Fanless Yes
Power
Power consumption (max) 2.15 W
Input current 0.7 A
DC input voltage 5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Heat dissipation 7.35 BTU/h
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 250 g
Height 29 mm
Depth 94 mm
Width 101 mm
Packaging data
Package weight 484 g
Package height 64 mm
Package depth 238 mm
Package width 142 mm
Certificates
Certification CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD
Logistics data
Harmonized System (HS) code 85176990
