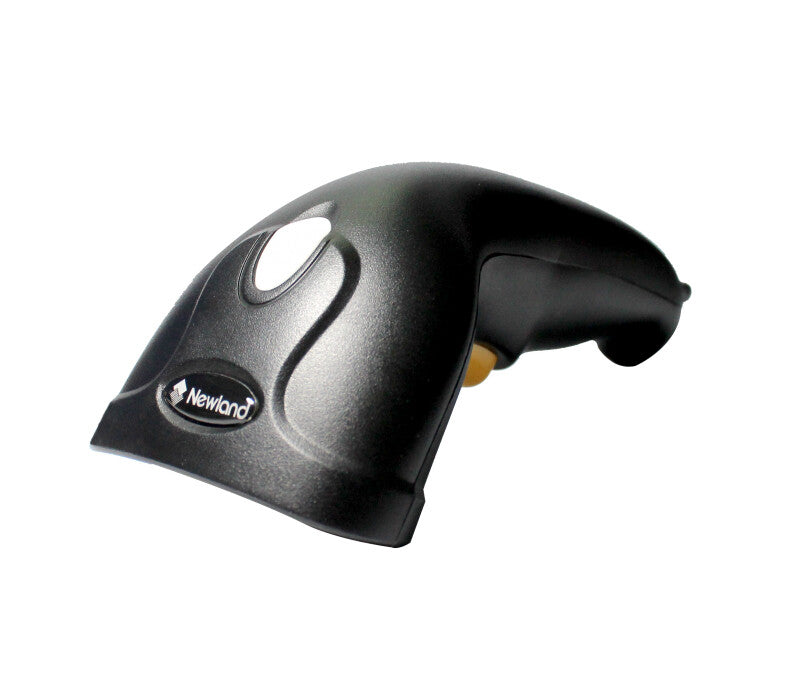

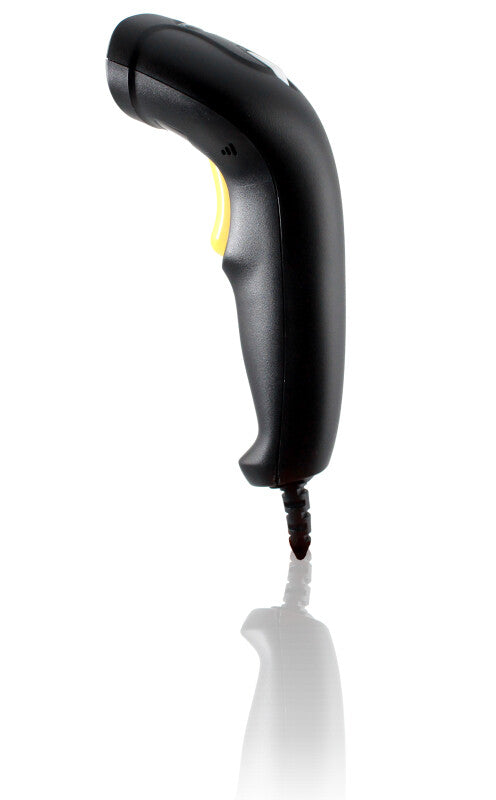

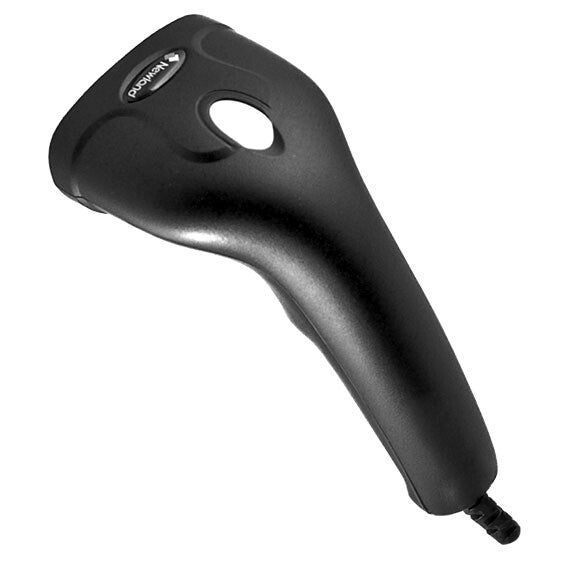

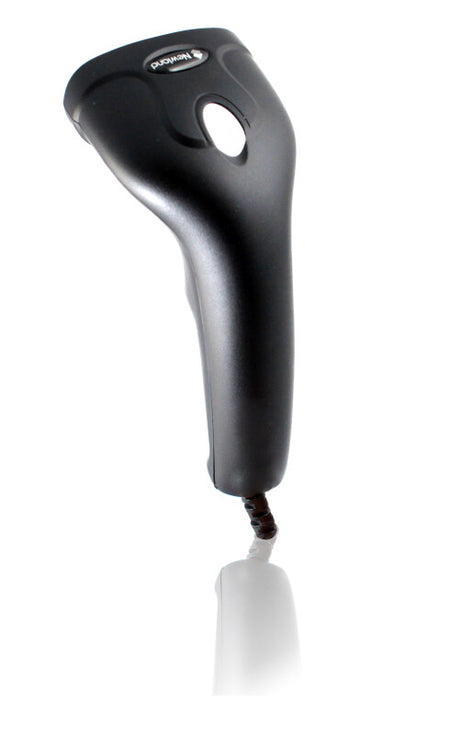

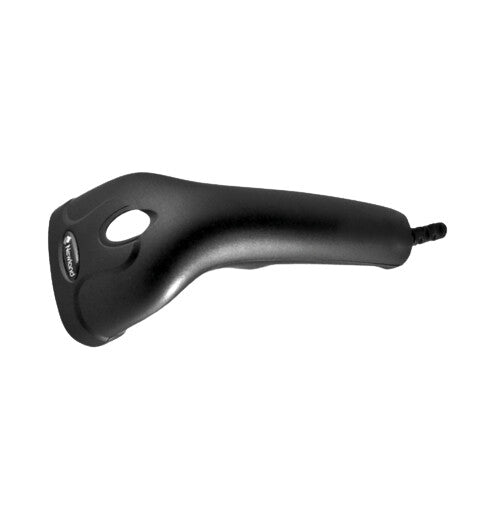

The HR12 Anchoa handheld scanner is a practical & user friendly entry level scanner at an extremely competitive price. The Anchoa incorporates Newland's 1D chip technology for excellent 1D barcode scanning performance at exceptionally low power consumption.
The HR12 Anchoa can perform up to 300 scans per second, which translates into very fast and accurate barcode capturing. In addition, its compact size, ergonomic and solid state design makes a smart solution for extensive use in varied environments.
| Scanning |
|---|
| Yaw reading angle |
-30 - 30° |
| Pitch reading angle |
-60 - 60° |
| Tilt reading angle |
-60 - 60° |
| Wavelength |
640 nm |
| Read rate (max) |
300 reads/s |
| Sensor type |
CCD |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF-14, MSI |
| 2D (matrix & stacked) barcodes supported |
Not supported |
| Scanner type |
1D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Cable length |
2 m |
| Standard interfaces |
USB |
| Connectivity technology |
Wired |
| Performance |
|---|
| Certification |
FCC Part15 Class B, CE EMC Class B |
| Built-in processor |
Yes |
| LED indicators |
Yes |
| Protection features |
Electrostatic Discharge (ESD) protection |
| International Protection (IP) code |
IP41 |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Product colour |
Black |
| Power |
|---|
| Power consumption |
120 mA |
| Power source type |
DC |
| Weight & dimensions |
|---|
| Weight |
130 g |
| Height |
58.5 mm |
| Depth |
163 mm |
| Width |
68.4 mm |
| Packaging data |
|---|
| Cables included |
USB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Warranty period |
5 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
