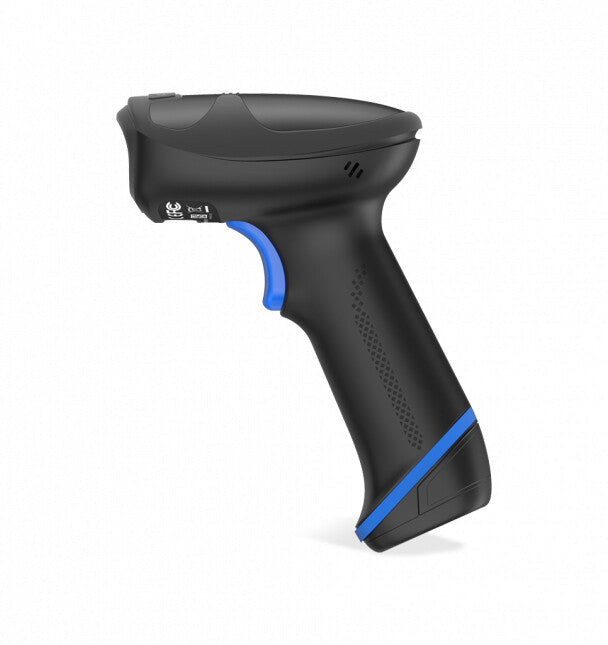

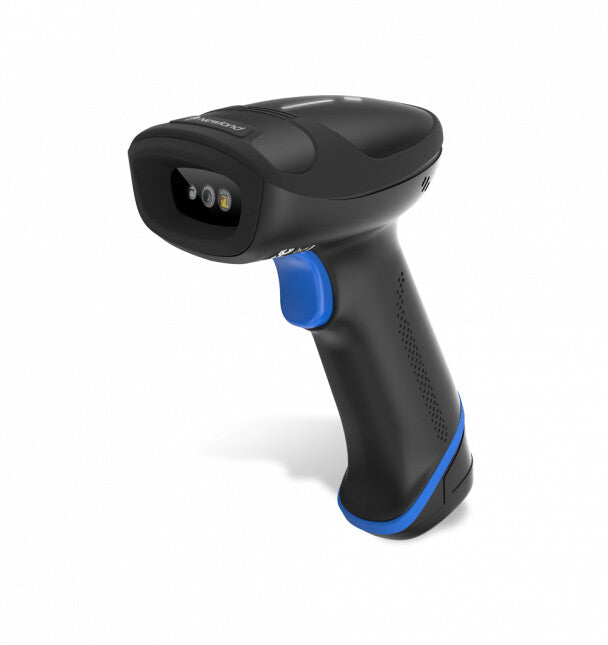

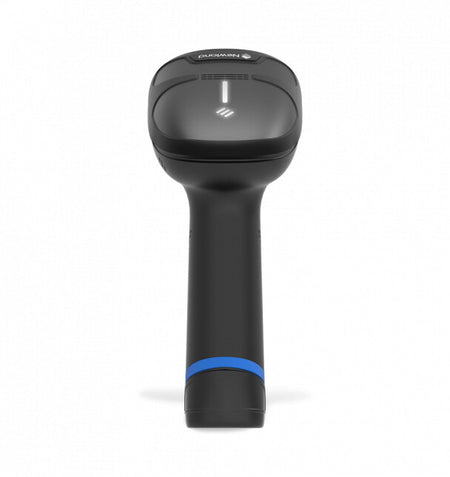

The legacy continues with the latest HR33 Marlin Bluetooth, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best wireless handheld 2D barcode reader so far. The HR33 Marlin Bluetooth, with its easily replaceable battery, is the ideal choice for uninterrupted barcode scanning.
Easily replaceable battery

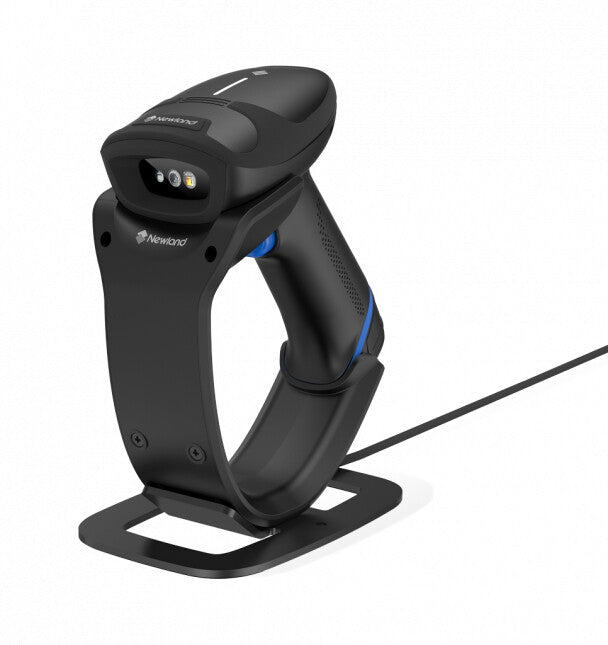

The HR33 Marlin Bluetooth provides more than 12 hours of continuous use on a single charge. If the battery runs out, the compartment features a latch-release opening design to replace it easily without interrupting your tasks. Additionally, the low battery indicator comes in two different colors, providing a quick visual cue for when the battery needs to be changed. The new magnetic contact on the stand allows for easy connection and high reliability.
High Connectivity
The HR33 Marlin Bluetooth scanner features 5.0 Bluetooth connectivity and can scan items within a 100m range in open space. Whether you use the communication and charging stand directly with a device’s Bluetooth or via a dongle, the HR33 Marlin BT provides a reliable wireless connection.
High Performance

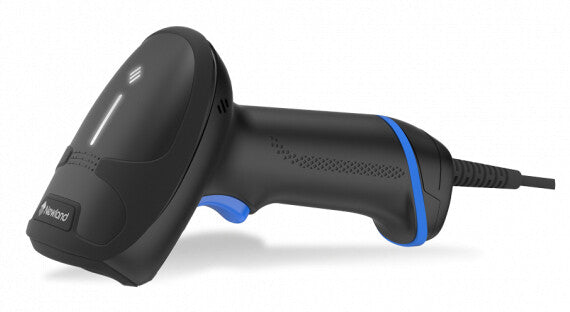

The HR33 Marlin Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads.
Personalized Configuration
The HR33 Marlin is the first Bluetooth handheld in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin series the best in class.
Be confident with Newland
The confidence in the new HR33 BT Marlin’s IP52 and 1.5m drop specification means becoming the first to receive a 5-year warranty from Newland EMEA. Select the HR33 BT Marlin with confidence that Newland has created a scanner that’s up for the job no matter the environment.
Scan & send or collect & send
The HR33 BT Marlin has configurable modes that allow the user to select a real-time scan and send via a wireless connection or a choice of two types of offline storage and batch sending of the data. The scanner’s memory allows for thousands of codes to be stored if needed.
| Scanning |
|---|
| Pitch reading angle |
0 - 60° |
| Tilt reading angle |
0 - 360° |
| Vertical field of view |
30° |
| Horizontal field of view |
48° |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Laser guide |
Yes |
| OCR types supported |
China Travel Permit OCR, Chinese ID Card, Passport OCR |
| Sensor type |
CMOS |
| Linear (1D) barcodes supported |
AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E, ISBT 128 |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Chinese Sensible Code, GM Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Bluetooth version |
5.0 |
| Wireless range |
100 m |
| USB 2.0 ports quantity |
1 |
| Standard interfaces |
Bluetooth |
| Connectivity technology |
Wireless |
| Performance |
|---|
| Certification |
IEC62471, IEC60825 |
| Vibration function |
Yes |
| Print contrast |
15% |
| Buzzer |
Yes |
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
|---|
| Input voltage |
5 V |
| Charging time |
6 h |
| Battery life |
15 h |
| Battery capacity |
2600 mAh |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
|---|
| Presentation base weight |
340 g |
| Presentation base dimensions (WxDxH) |
140 x 144.5 x 90 mm |
| Weight |
210 g |
| Height |
144 mm |
| Depth |
87.5 mm |
| Width |
117.5 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Drop resistance |
1.5 m |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
