- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡

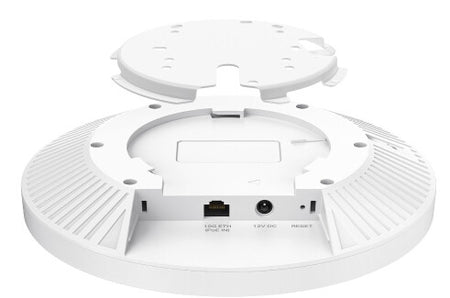

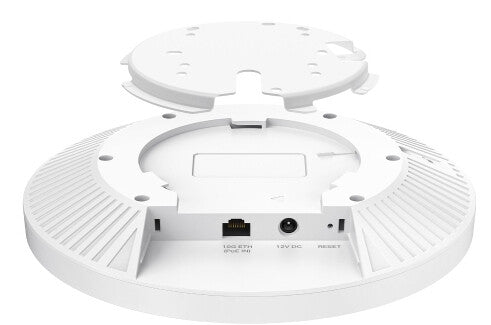

- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 1750 ft² (160 m²)* for reliable and extensive wireless connectivity
Dedicated Spectral Analyzer Radio for Higher Efficiency in O&M
Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
| Features |
|---|
| BeamForming |
Yes |
| Quality of Service (QoS) support |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Automatic channel scanning |
Yes |
| Automatic channel selection |
Yes |
| Bluetooth |
Yes |
| Number of users |
510 user(s) |
| Coverage area |
1750 m² |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Frequency band |
2.4 - 6 GHz |
| Maximum data transfer rate (6 GHz) |
5765 Mbit/s |
| Maximum data transfer rate (5 GHz) |
8648 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Access Control List (ACL) |
Yes |
| Security algorithms |
WPA, WPA2, WPA3 |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Power |
|---|
| Input current |
2.5 A |
| DC voltage range |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
White |
| Placement |

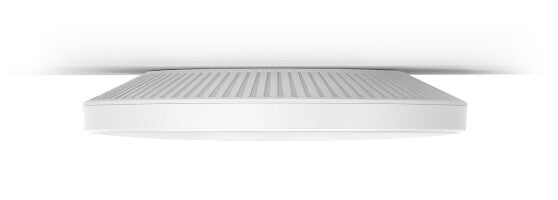

Ceiling, Wall |
| Antenna |
|---|
| Antenna type |
Internal |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS, IC |
| Weight & dimensions |
|---|
| Height |
38.8 mm |
| Depth |
220 mm |
| Width |
220 mm |
| Packaging data |
|---|
| Package type |
Box |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
