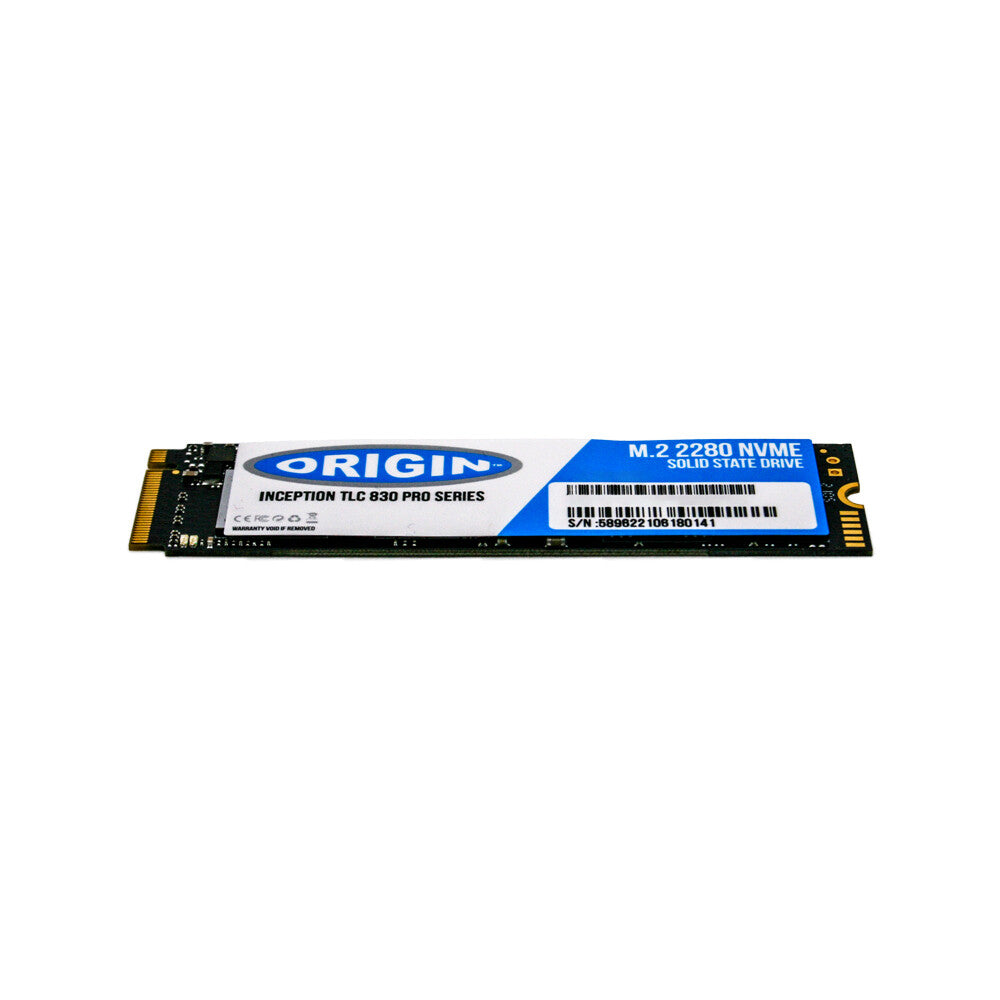

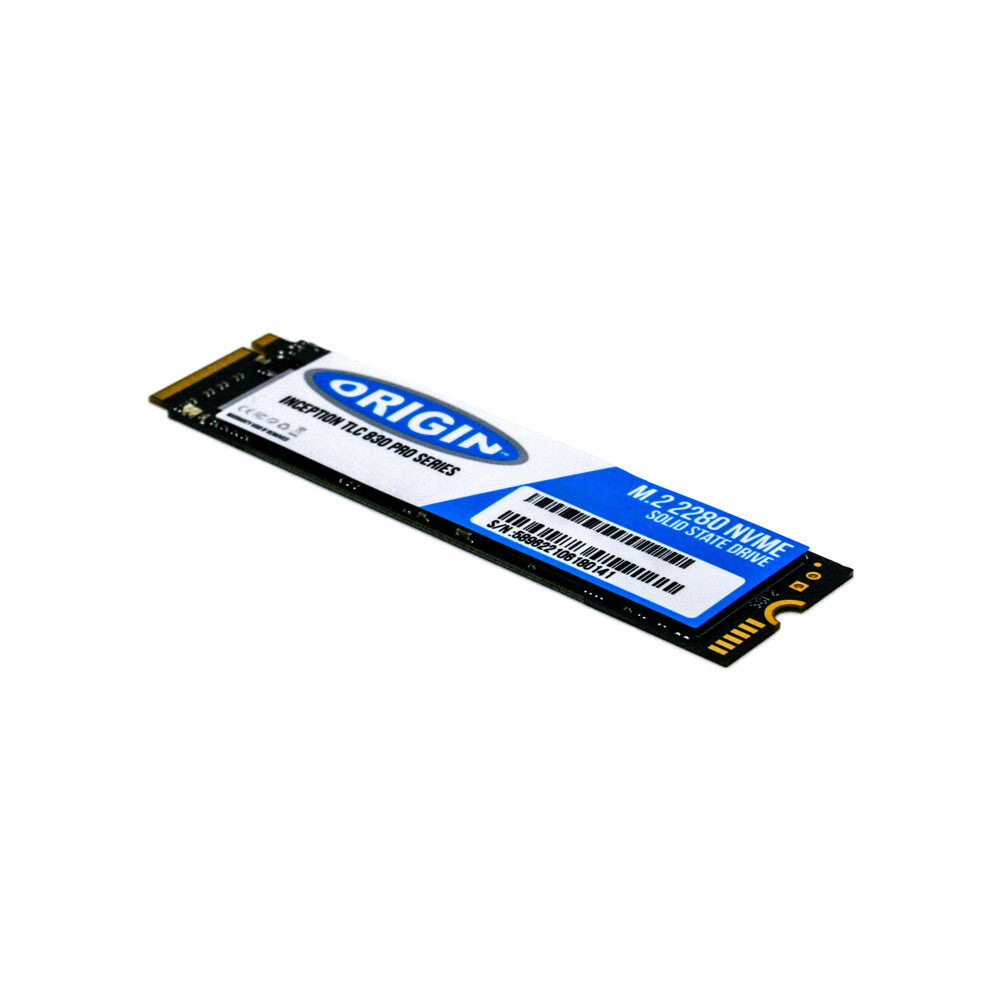

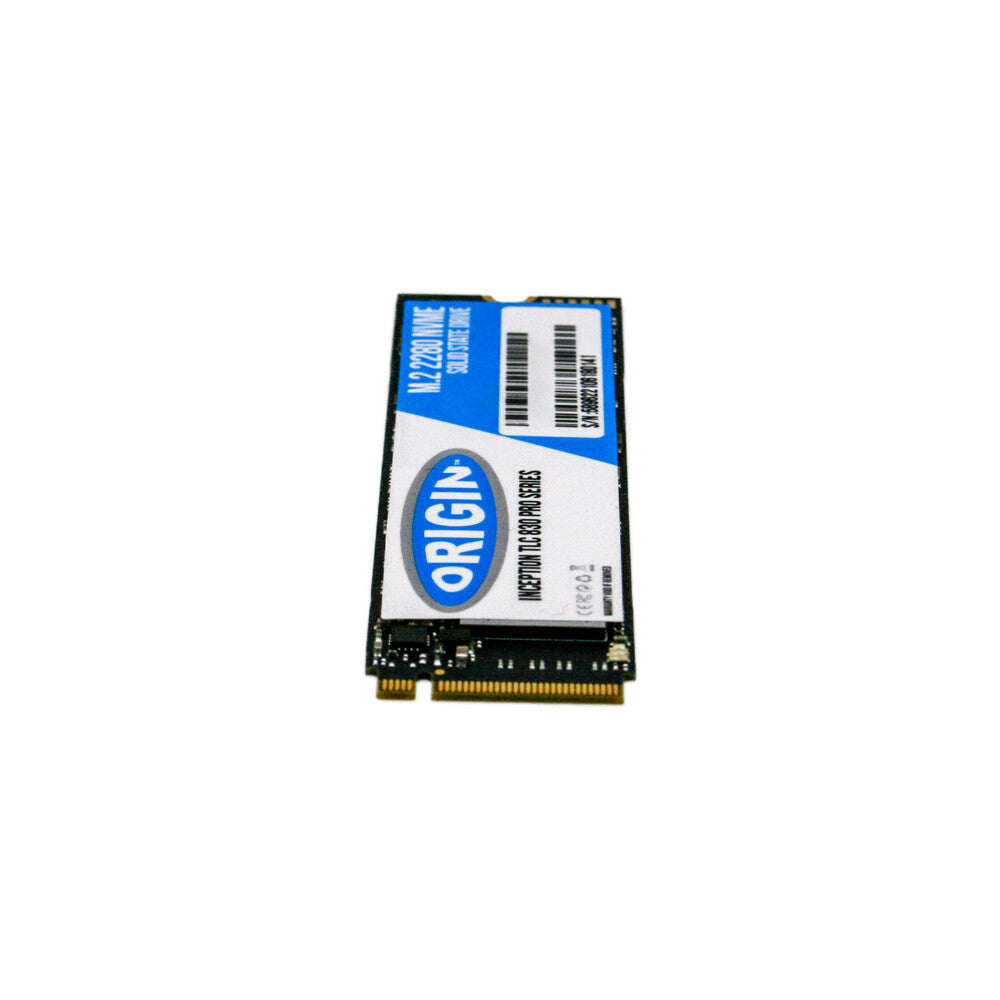

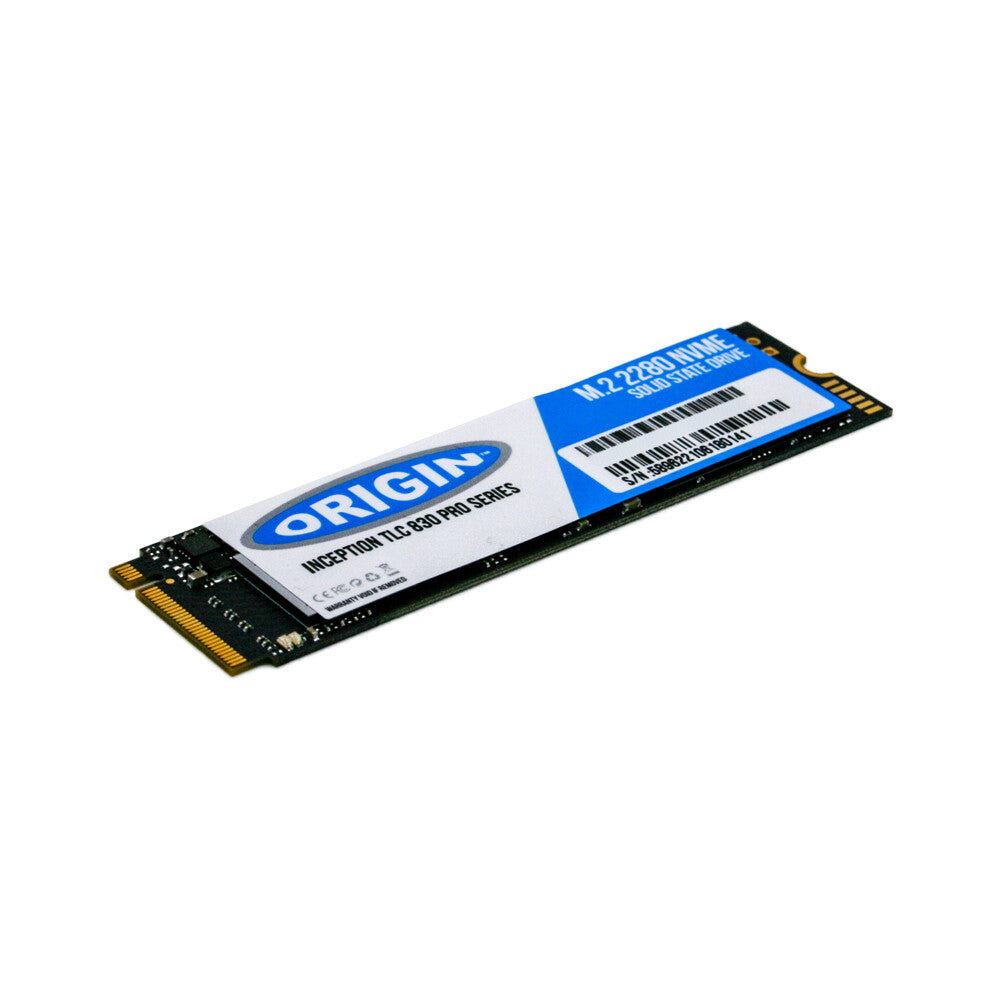

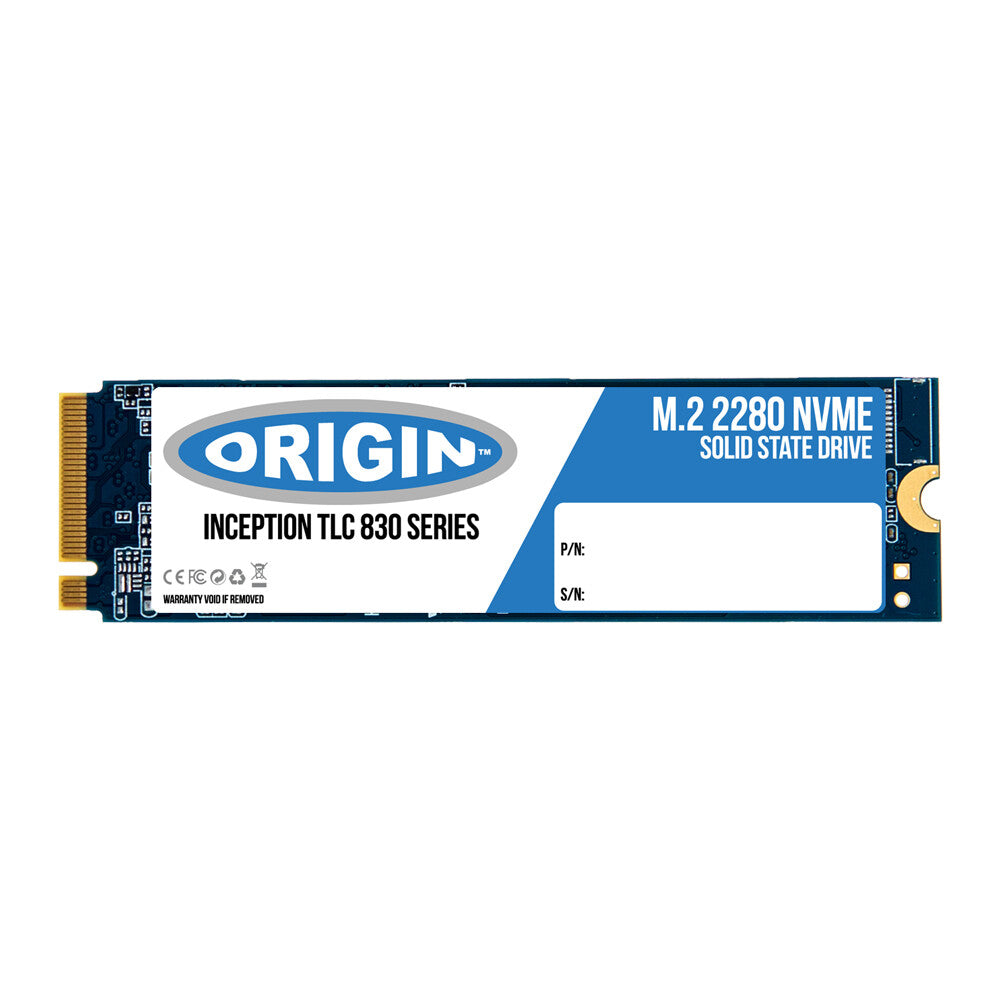

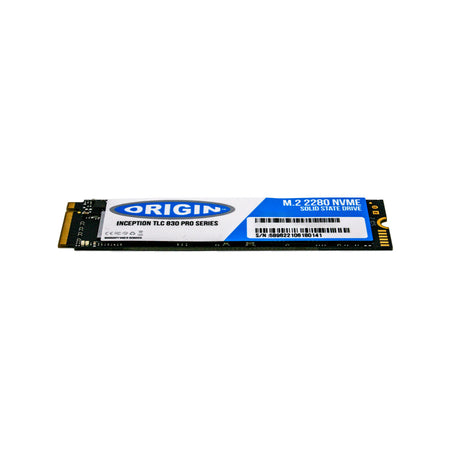

The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
| Features |
|---|
| TBW rating |
200 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mean time between failures (MTBF) |
1000000 h |
| Low-density parity-check (LDPC) |
Yes |
| Hot-swap |
No |
| ECC |
Yes |
| S.M.A.R.T. support |
Yes |
| PCI Express interface data lanes |
x4 |
| Seek time |
0 ms |
| Access time |
0.2 ms |
| Random write (4KB) |
179200 IOPS |
| Random read (4KB) |
102400 IOPS |
| Write speed |
1900 MB/s |
| Read speed |
2100 MB/s |
| Data transfer rate |
8 Gbit/s |
| Hardware encryption |
No |
| Component for |
PC/Laptop |
| Memory type |
3D TLC |
| NVMe |
Yes |
| Interface |
PCI Express 3.0 |
| SSD form factor |
M.2 |
| SSD capacity |
512 GB |
| Power |
|---|
| Power consumption (idle) |
0.49 W |
| Power consumption (write) |
2.97 W |
| Power consumption (read) |
2.89 W |
| Operating voltage |
3.3 V |
| Packaging data |
|---|
| Package type |
Blister |
| Screws included |
No |
| Storage drive adapter included |
No |
| Operational conditions |
|---|
| Maximum operating altitude |
120000 m |
| Operating shock |
1500 G |
| Operating vibration |
16 G |
| Storage relative humidity (H-H) |
5 - 98% |
| Operating relative humidity (H-H) |
5 - 98% |
| Storage temperature (T-T) |
-45 - 105 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Other features |
|---|
| Compatible products |
Universal |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717070 |
