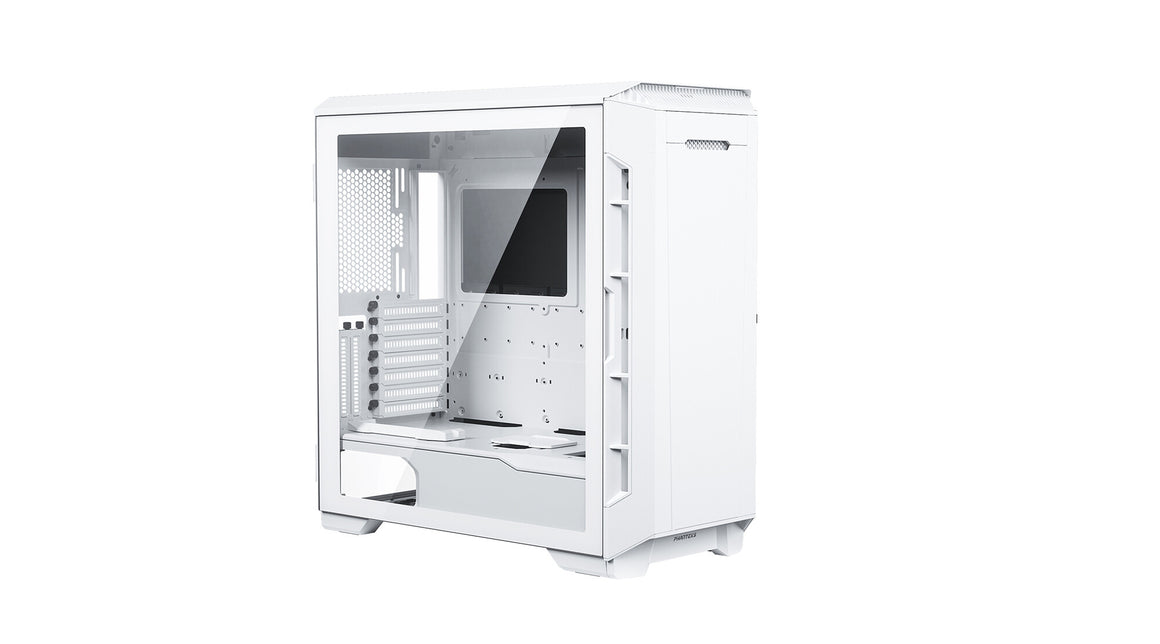

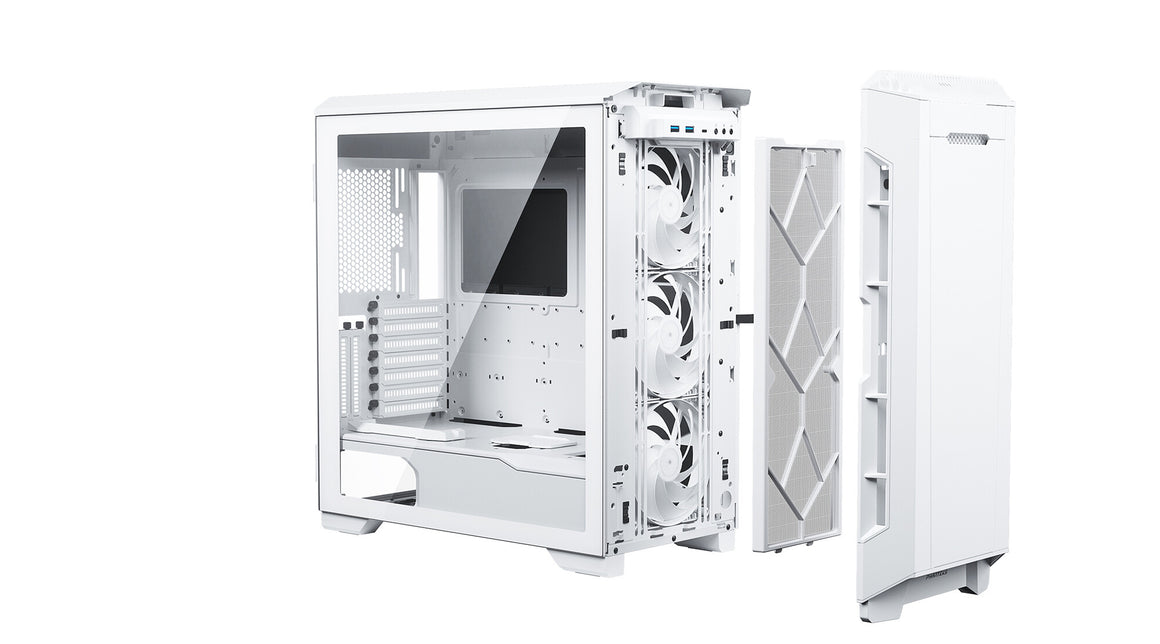

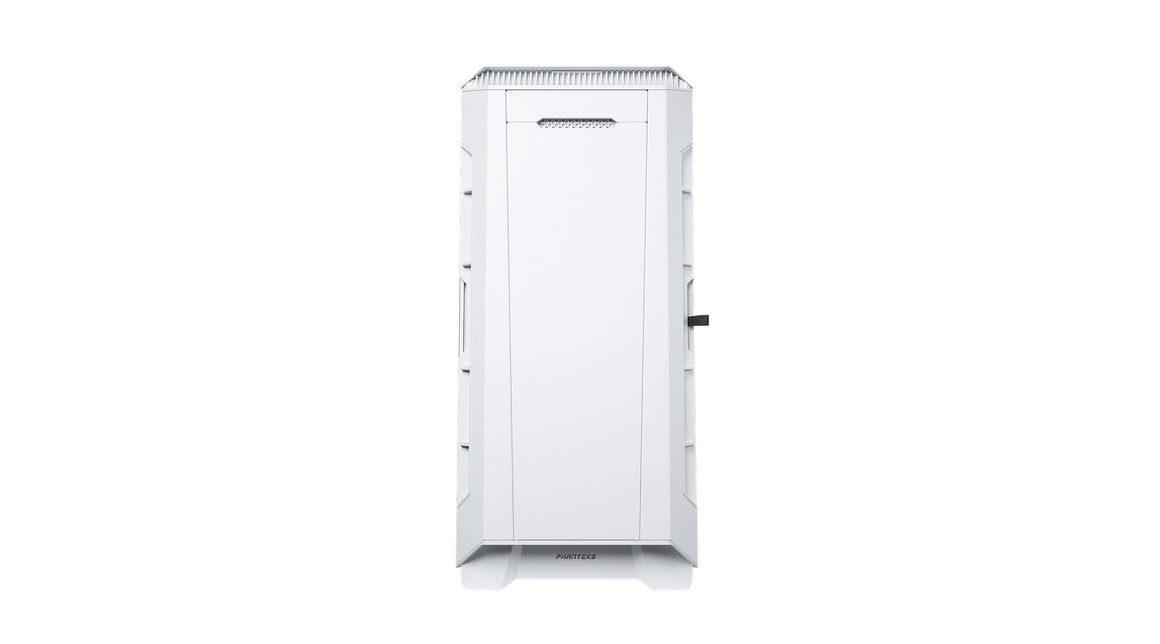

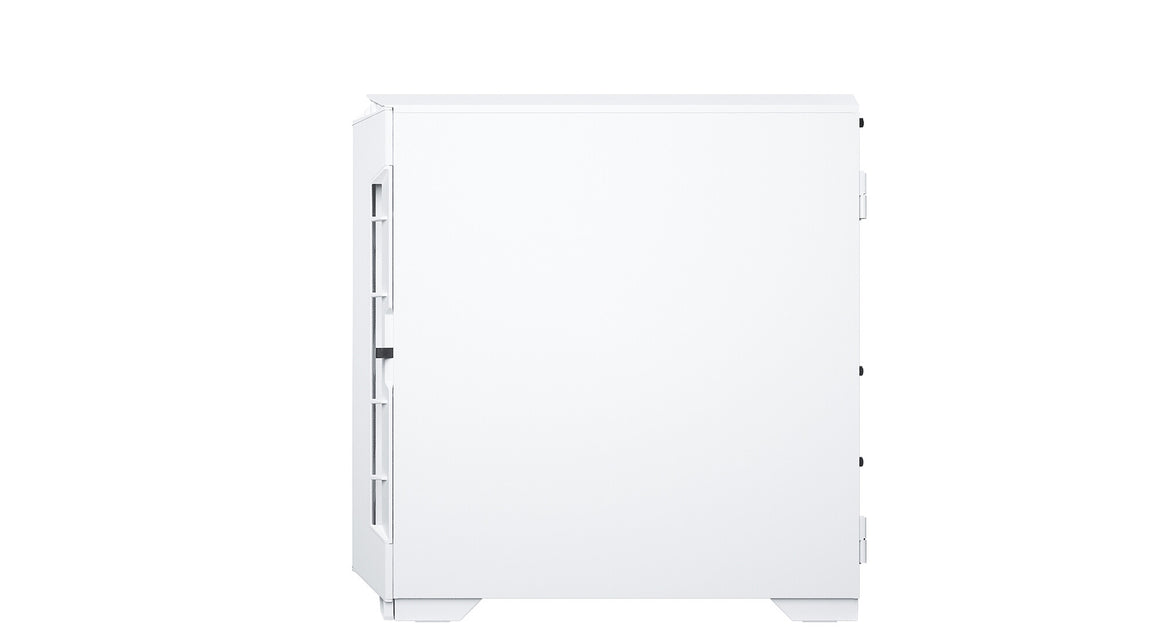

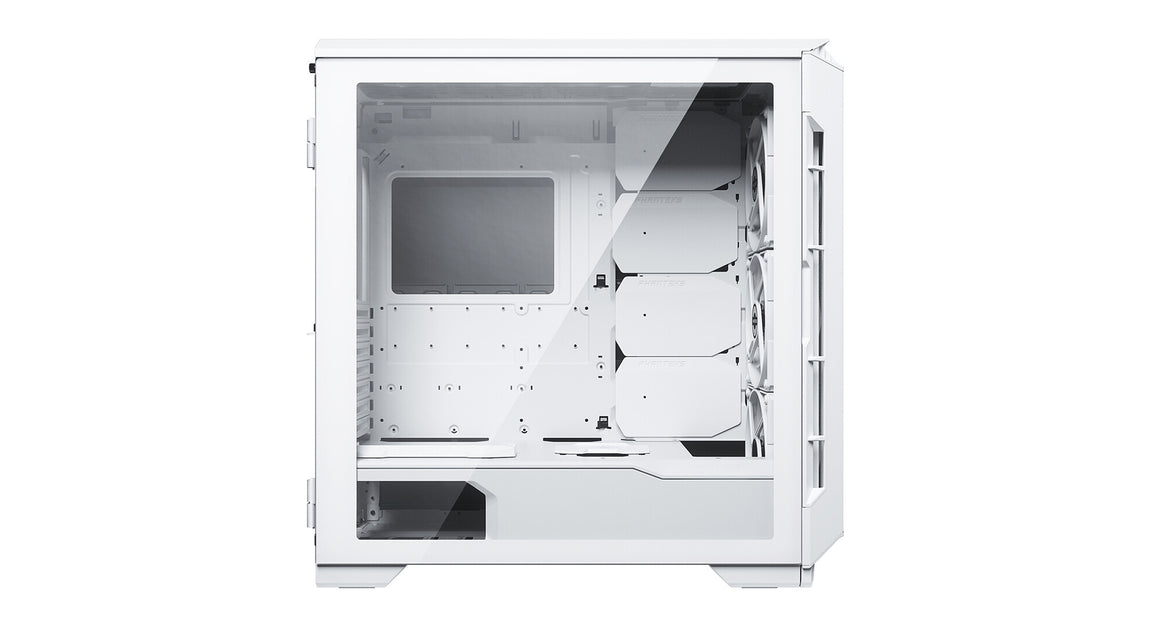

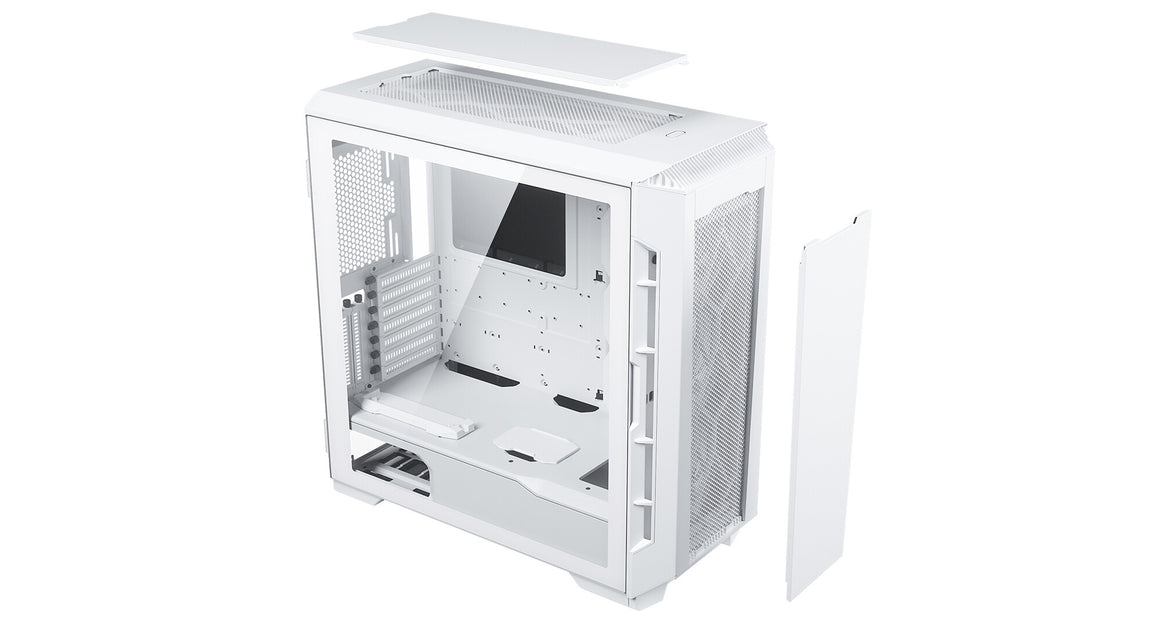

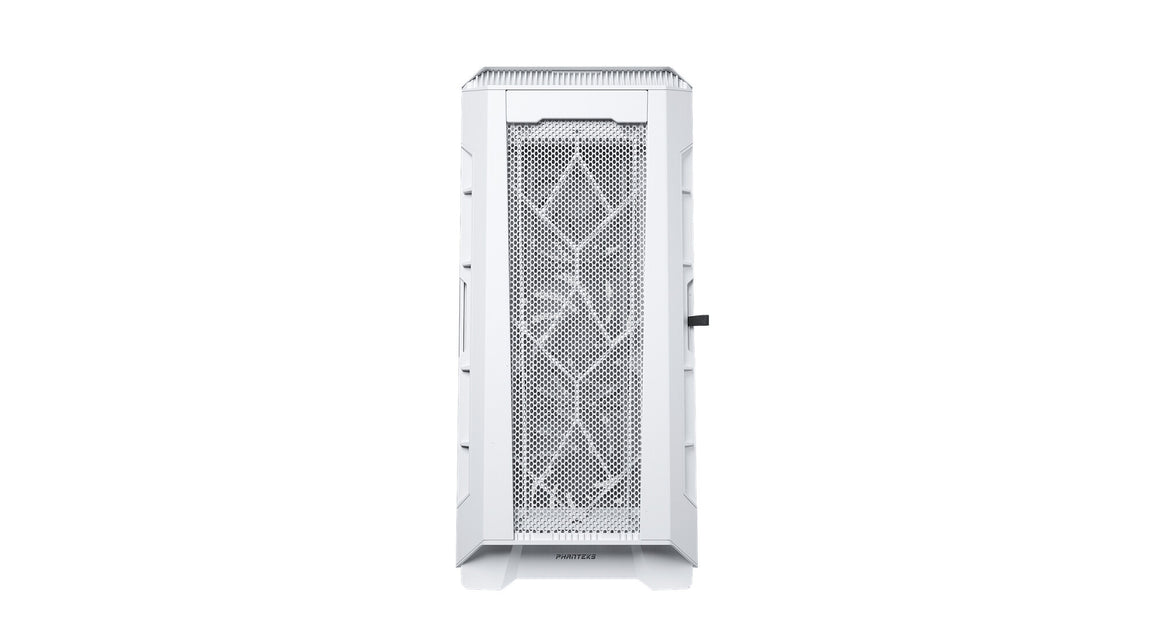

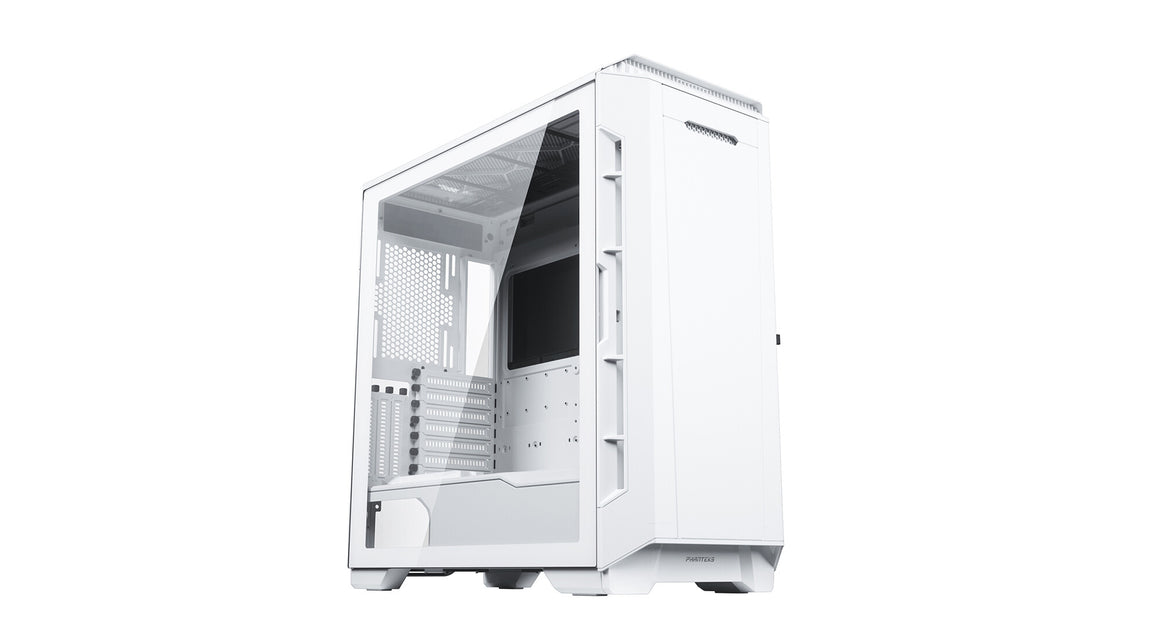

The Eclipse P600S is designed to bring you the best of two worlds. A hybrid forged between silent and high-performance chassis. Find the optimal configuration in any situation by switching between quiet or performance mode. Designed with effective soundproofing panels and Phanteks’ new high airflow fabric, the Eclipse P600S offers the full potential of two opposites, minimum noise and maximum airflow.
| Design |
|---|
| Maximum PSU length |
28 cm |
| Maximum graphics card length |
43.5 cm |
| Maximum CPU cooler height |
19 cm |
| On/off button |
Yes |
| Reset button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Heat sink included |
No |
| Tempered glass panel(s) |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
7 |

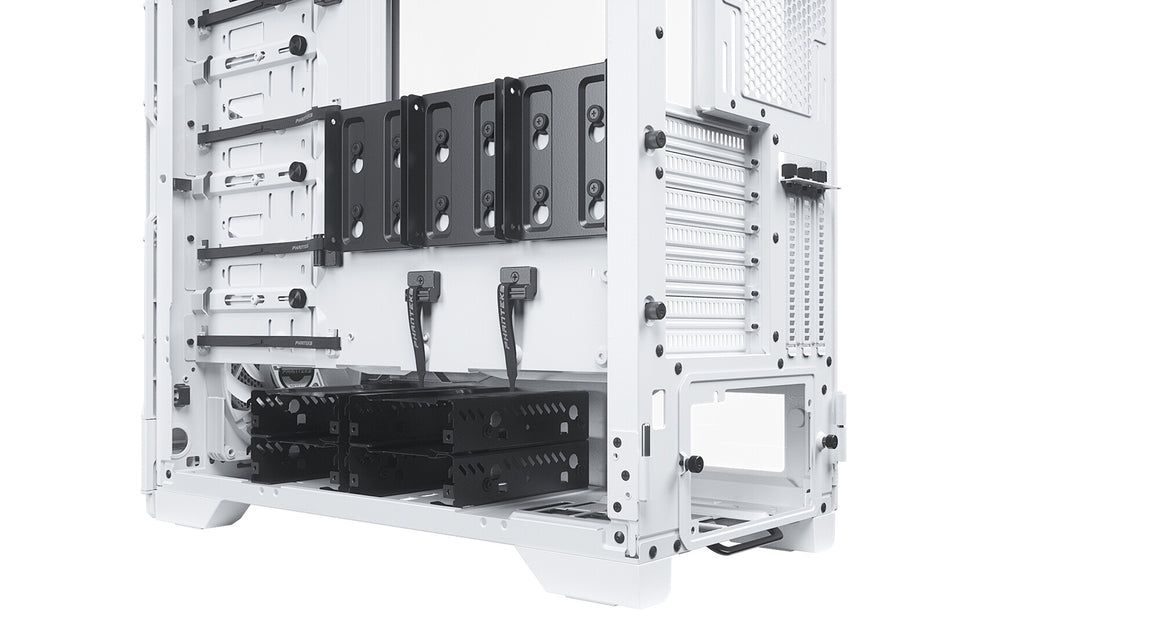

| Number of 2.5" bays |
3 |
| Number of 3.5" bays |
10 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ITX |
| Product colour |
White |
| Material |
Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Number of power supply units |
1 |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Cooling |
|---|
| Top radiator sizes supported |
280,360 mm |
| Front radiator sizes supported |
360,420 mm |
| Liquid cooling capability |
Yes |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
|---|
| SSD form factor |
2.5" |
| Supported HDD sizes |
3.5" |
| Technical details |
|---|
| Warranty period |
5 year(s) |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Height |
520 mm |
| Depth |
510 mm |
| Width |
240 mm |
