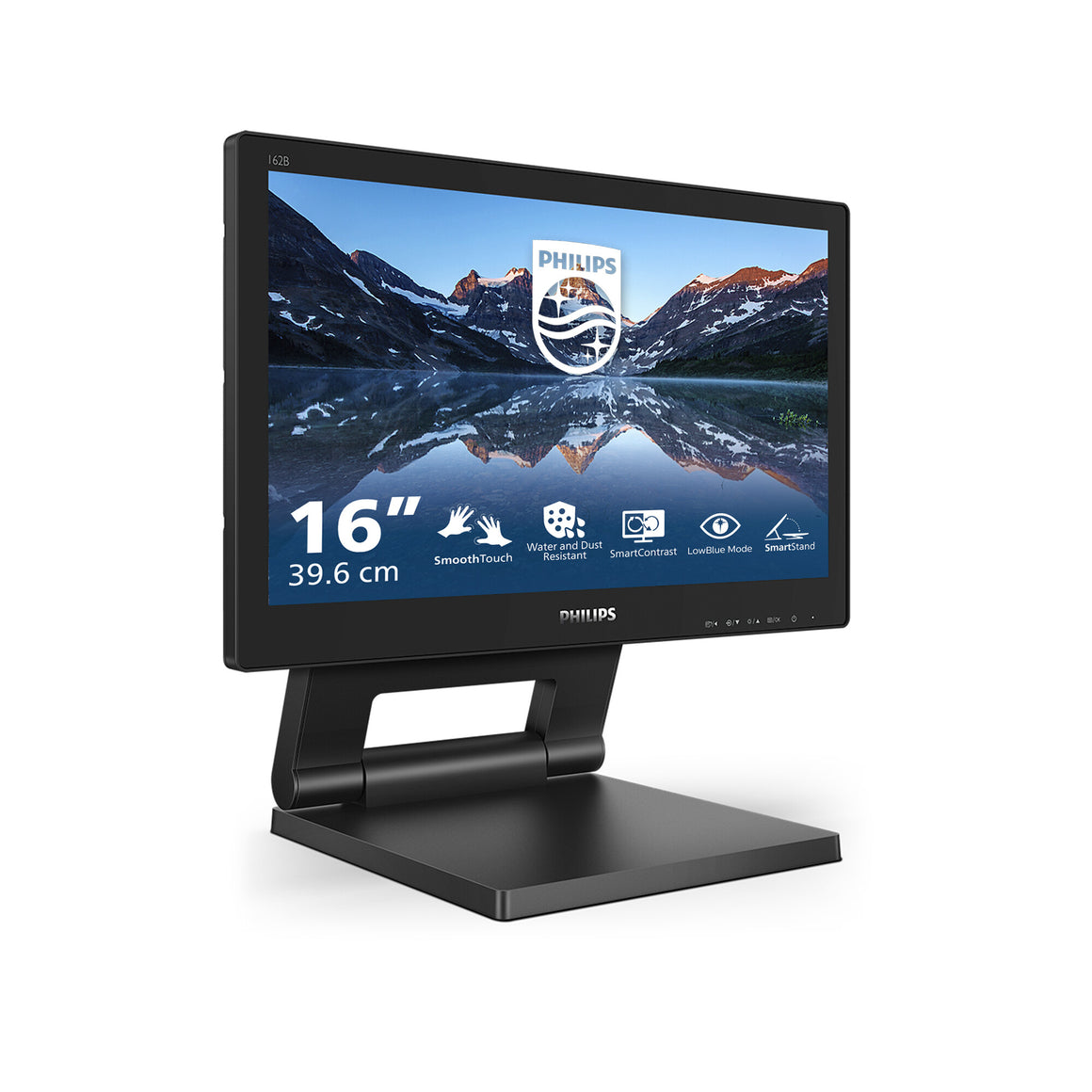

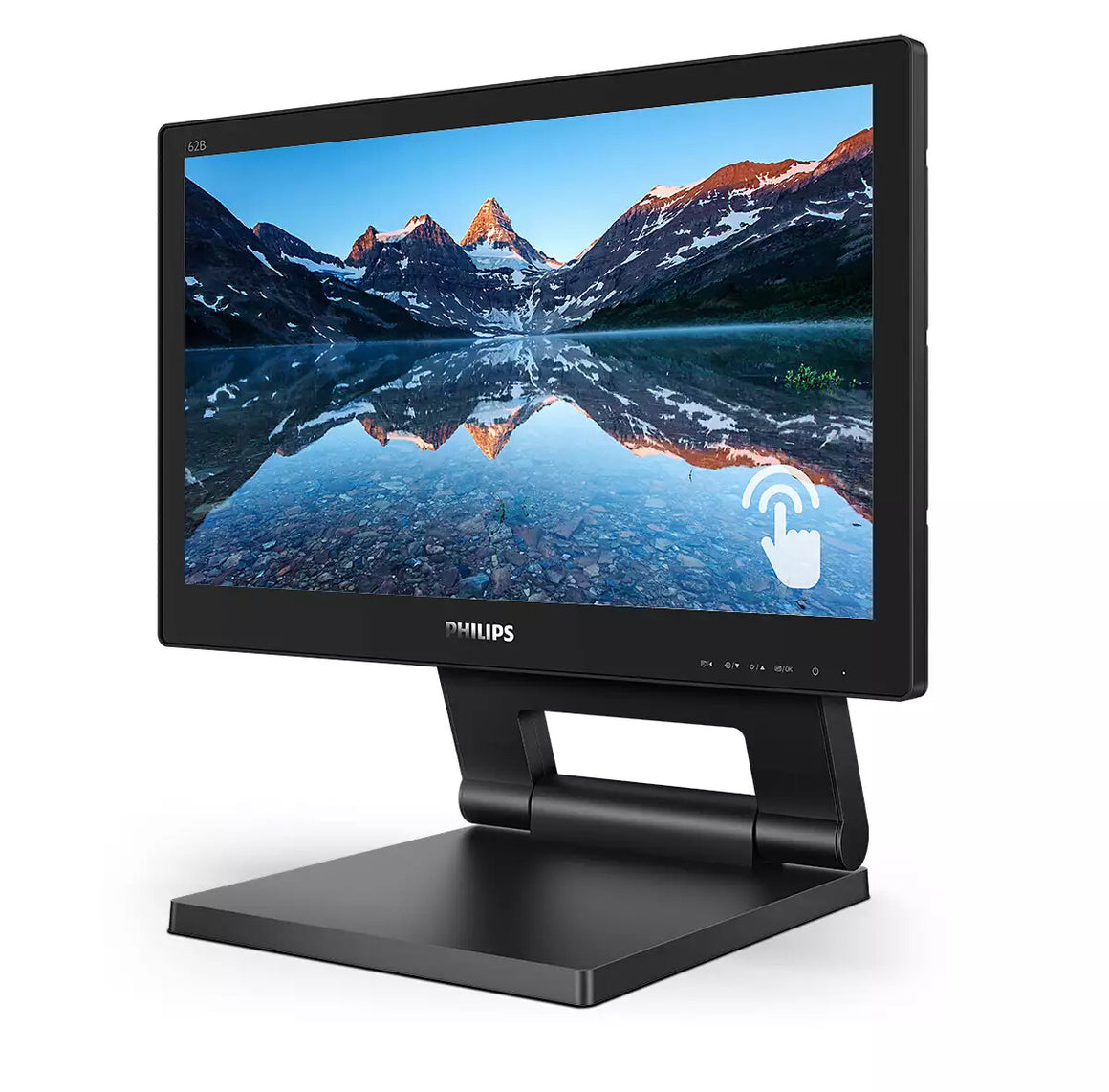

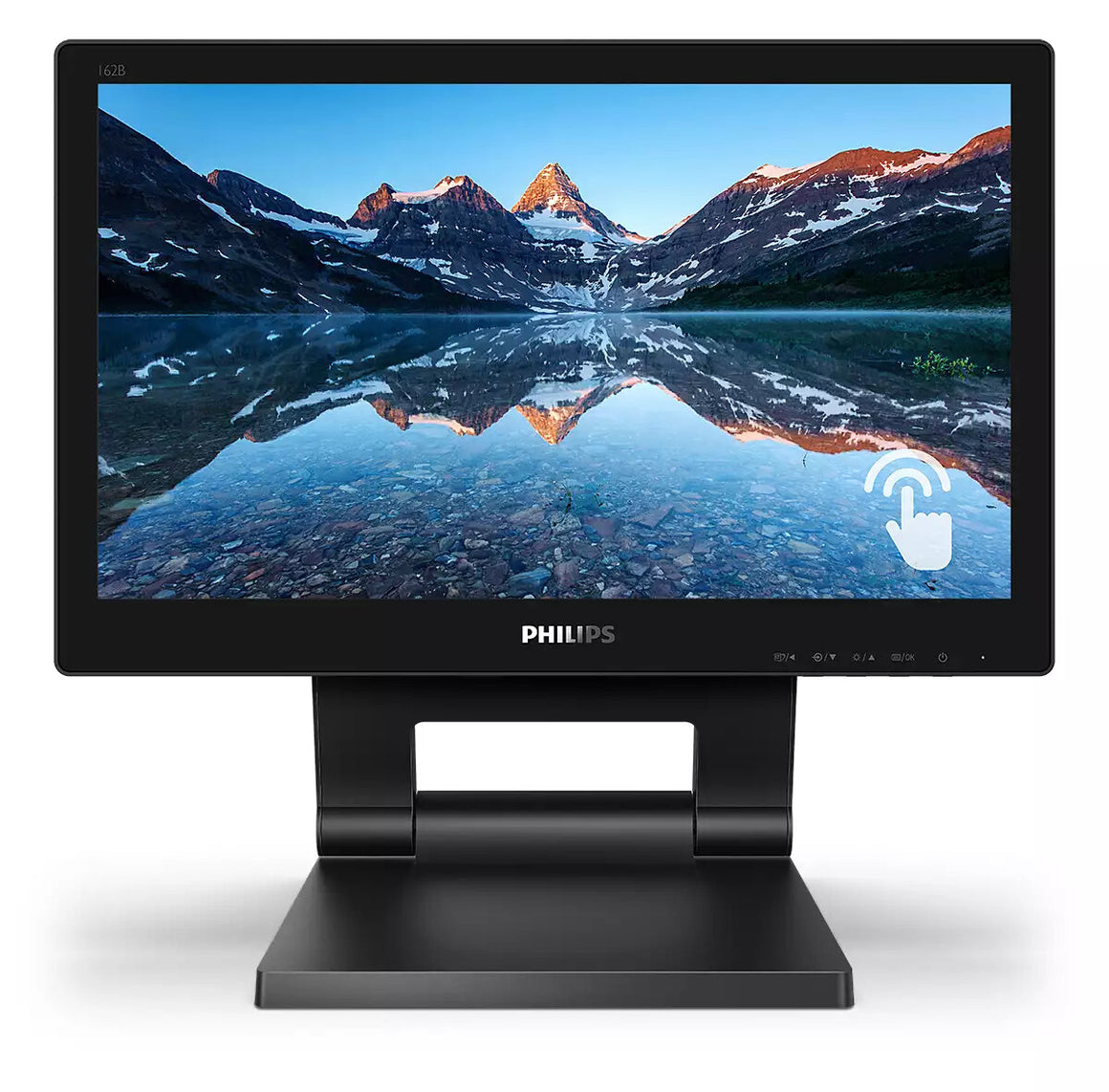

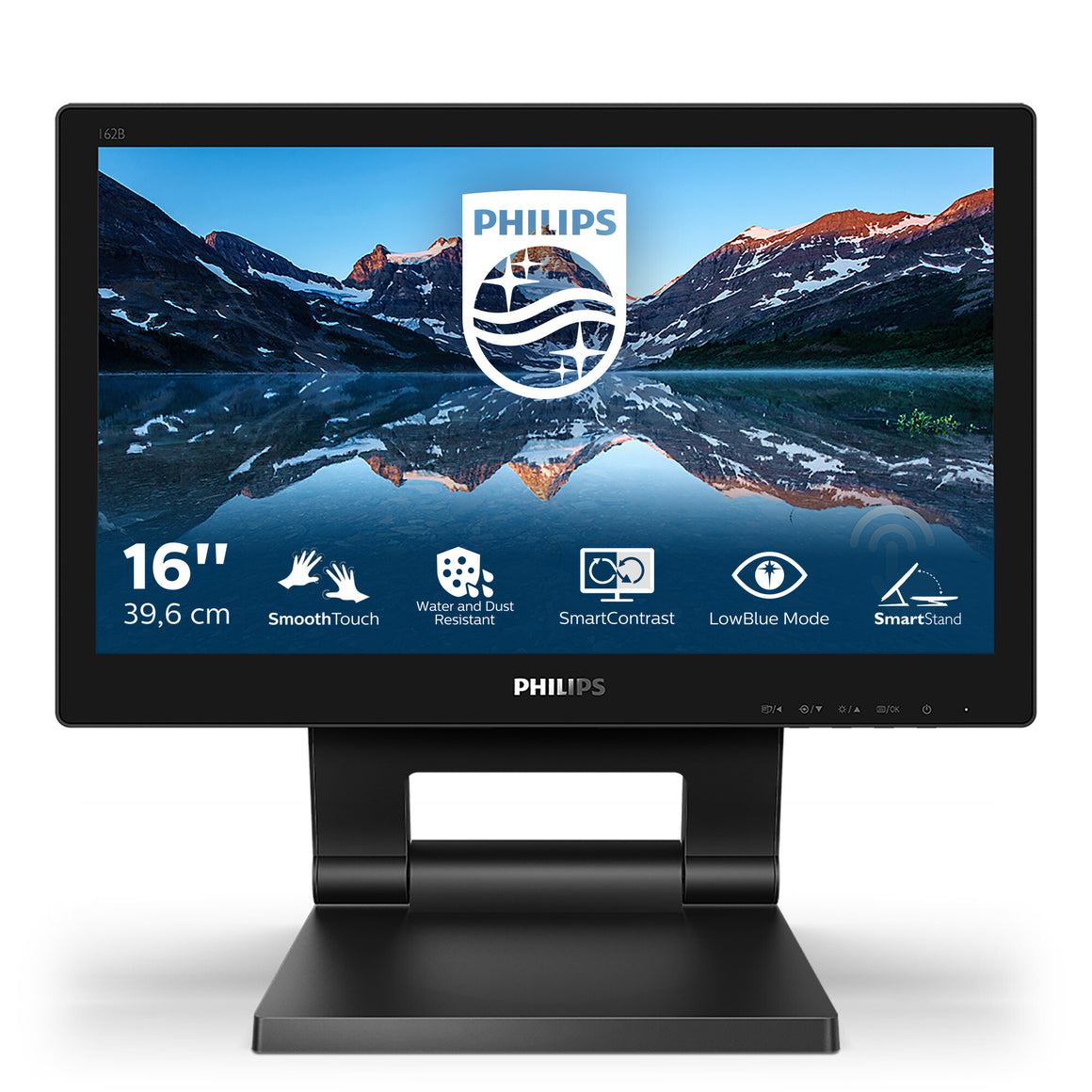

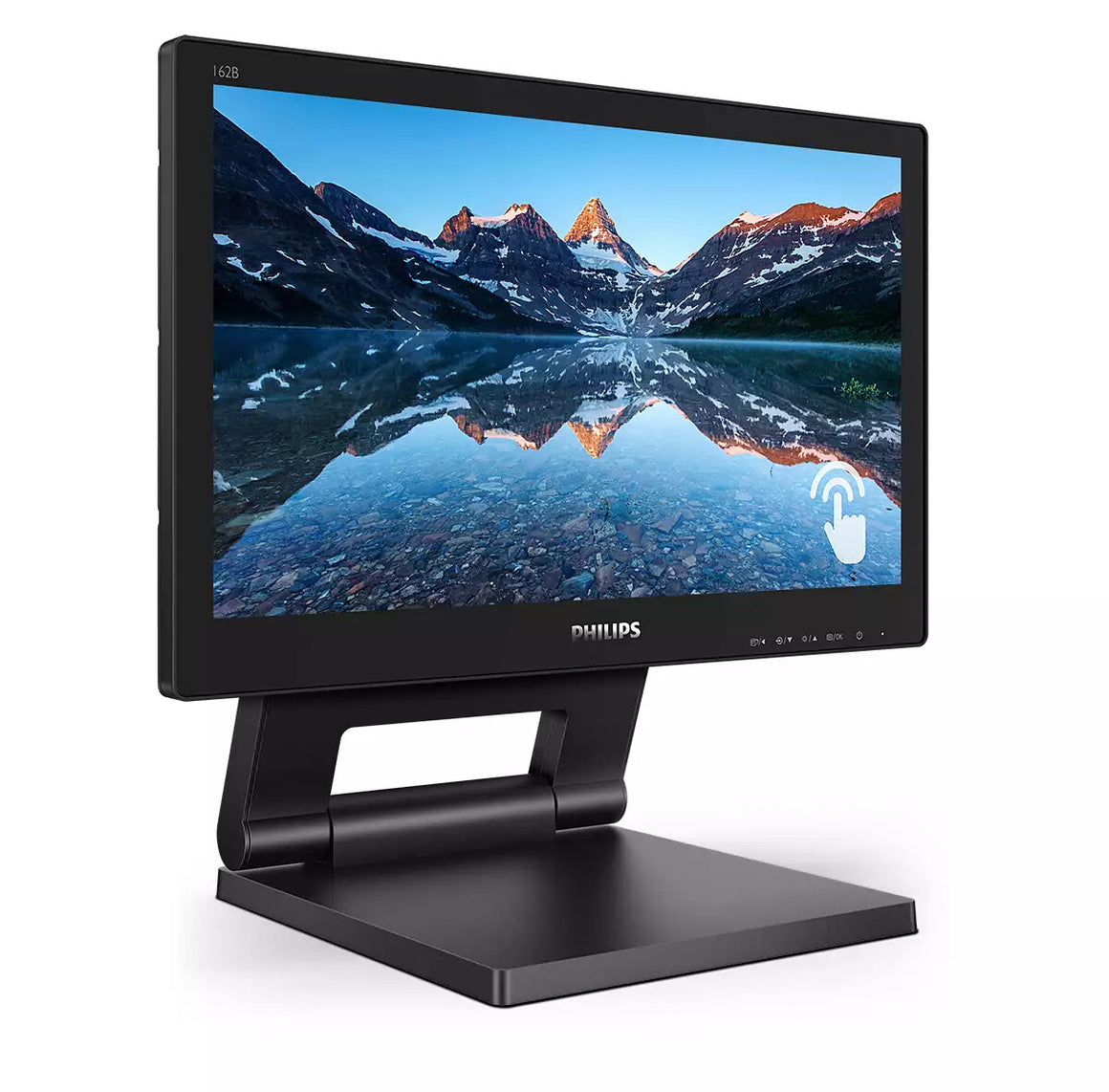

A sturdy, water and dust resistant touch screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts up productivity.
| Display |
|---|
| Display sRGB |
Yes |
| Separate H/V sync |
Yes |
| sRGB coverage (typical) |
100% |
| Colour gamut |
86% |
| Colour gamut standard |
sRGB |
| Surface hardness |
7H |
| DDC/CI |
Yes |
| Display diagonal (metric) |
39.6 cm |
| Sync-on-green (SOG) |
Yes |
| Digital vertical frequency |
50 - 75 Hz |
| Digital horizontal frequency |
30 - 60 kHz |
| Viewable size, vertical |
19.4 cm |
| Viewable size, horizontal |
34.4 cm |
| Vertical scan range |
50 - 75 Hz |
| Horizontal scan range |
30 - 60 kHz |
| Pixel density |
100 ppi |
| Pixel pitch |
0.252 x 0.252 mm |
| Display number of colours |
262144 colours |
| Viewing angle, vertical |
60° |
| Viewing angle, horizontal |
90° |
| Maximum refresh rate |
60 Hz |
| Dynamic contrast ratio marketing name |
SmartContrast |
| Contrast ratio (dynamic) |
20000000:1 |
| Contrast ratio (typical) |
500:1 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat |
| Display surface |
Gloss |
| Response time |
4 ms |
| Display brightness |
220 cd/m² |
| Display brightness (typical) |
220 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Backlight type |
W-LED |
| LED backlight |
Yes |
| Panel type |
TN |
| HD type |
HD |
| Touchscreen |
Yes |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1366 x 768 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Performance |
|---|
| Palm rejection |
Yes |
| Stylus pen hover function |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Operating system installed |
Windows 10 |
| Low Blue Light technology |
Yes |
| Component video sync |
Separate sync, Sync-on-green (SOG) |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Feet colour |
Black |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Home |

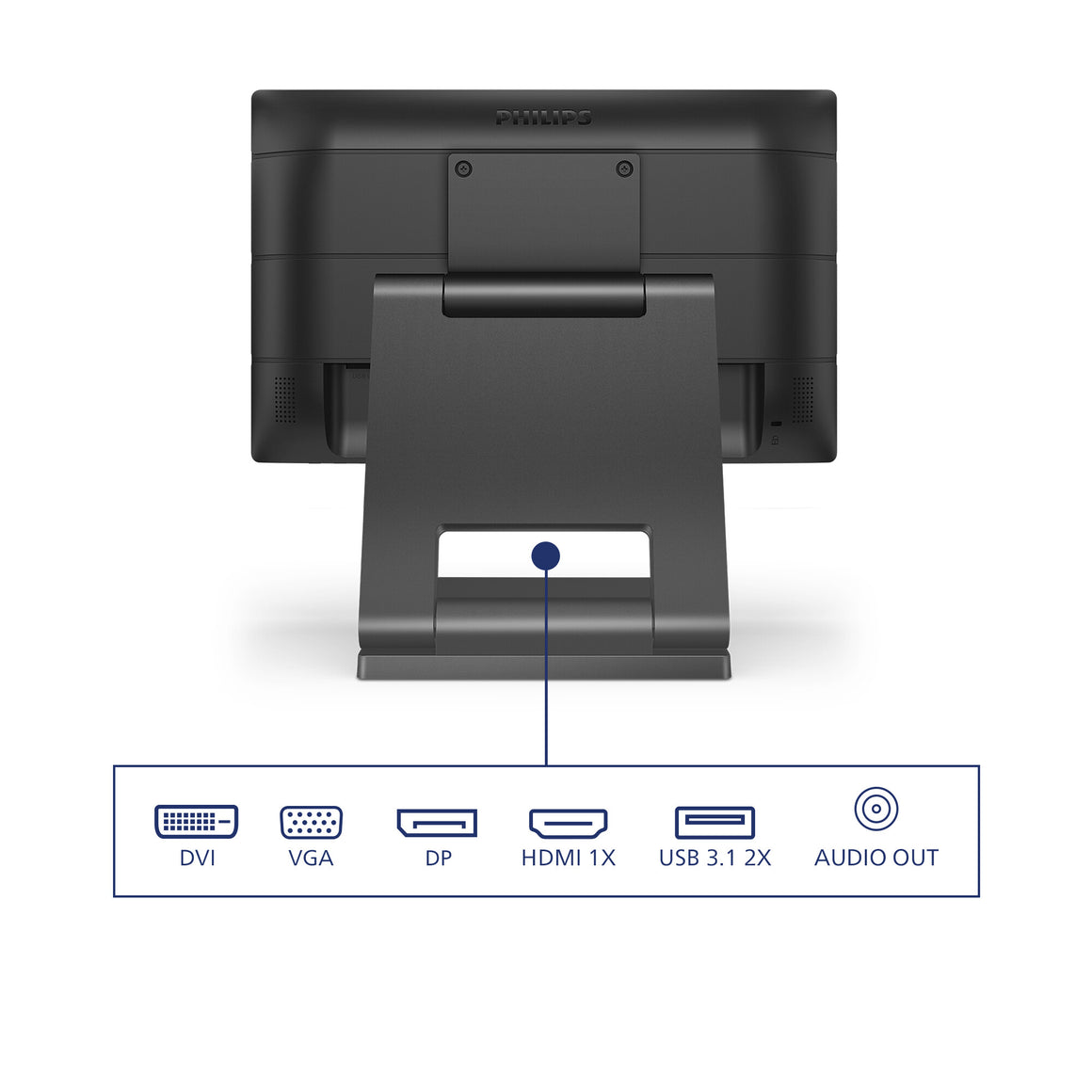

| Ports & interfaces |
|---|
| HDCP version |
1.4 |
| HDCP |
Yes |
| PC Audio in |
Yes |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1.2 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1.4 |
| HDMI |
Yes |
| DVI-D ports quantity |
1 |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| USB Type-A downstream ports quantity |
2 |
| Ergonomics |
|---|
| LED indicators |
Operation, Stand-by |
| Plug and Play |
Yes |
| Palm rejection area |
25 x 25 mm |
| Number of OSD languages |
21 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |

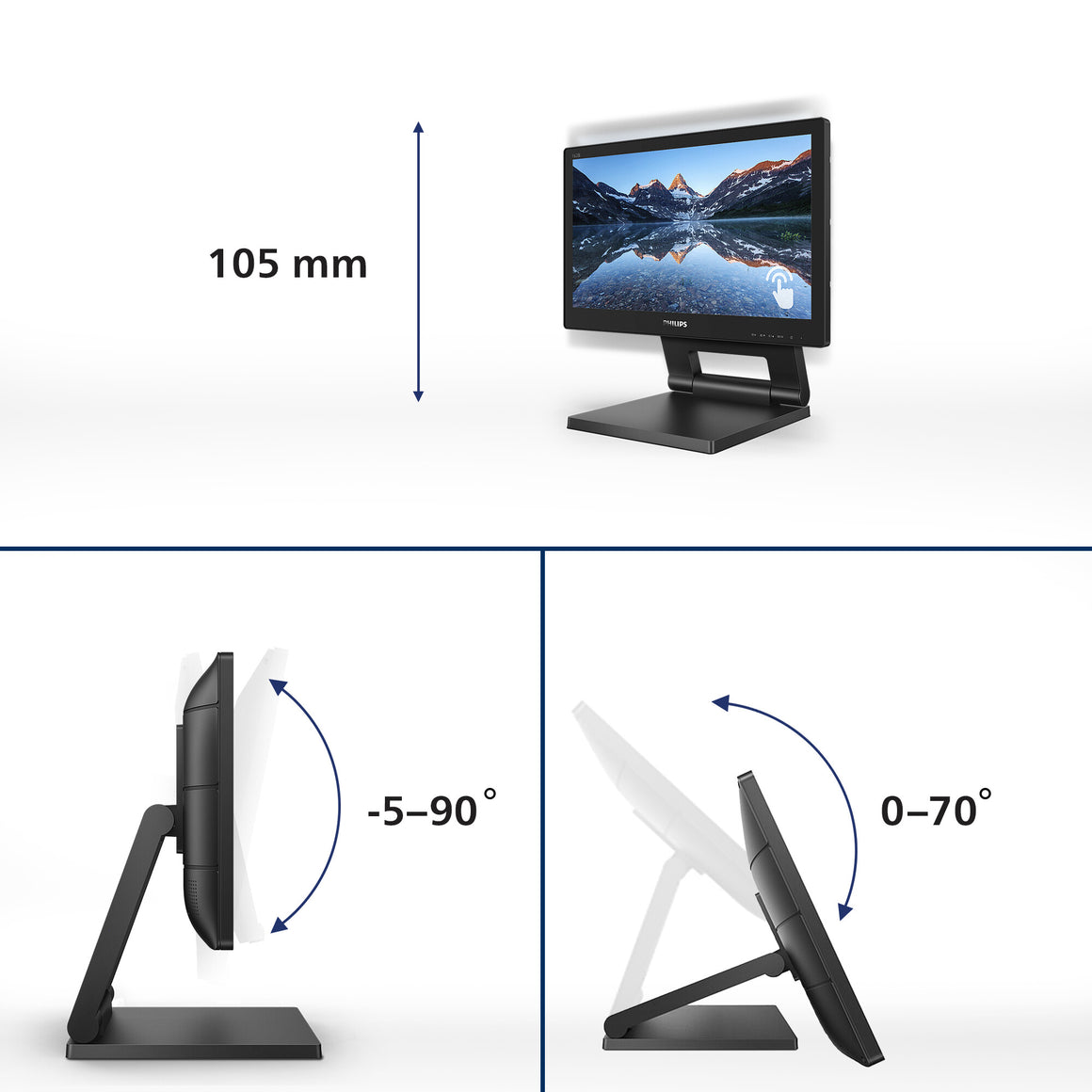

| Tilt angle range |
-5 - 90° |
| Adjustable height (max) |
10.5 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
388111 |
| Power supply type |
External |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (PowerSave) |
5.6 W |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
7.1 W |
| Energy consumption (SDR) per 1000 hours |
10 kWh |
| Energy efficiency class (SDR) |
E |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 12192 m |
| Operating altitude |
0 - 3658 m |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
2.01 kg |
| Height (without stand) |
241 mm |
| Depth (without stand) |
42 mm |
| Width (without stand) |
378 mm |
| Weight (with stand) |
5 kg |
| Height (with stand) |
347 mm |
| Depth (with stand) |
227 mm |
| Width (with stand) |
378 mm |
| Packaging data |
|---|
| Package weight |
6.31 kg |
| Package height |
388 mm |
| Package depth |
159 mm |
| Package width |
445 mm |
| Packaging content |
|---|
| Bundled software |
SmartControl |
| Manual |
Yes |
| Quick start guide |
Yes |
| Stylus included |
Yes |
| Cables included |
VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Stand included |
Yes |
| Sustainability |
|---|
| Doesn't contain |
PVC/BFR, Mercury |
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Recommended resolution |
1366 x 768 @ 60 Hz |
| Touch method |
Stylus, Finger, Glove |
| Picture enhancement |
SmartImage |
| Regulatory Approvals |
CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
| Energy efficiency class (old) |
A |
| Certification |
CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Mean time between failures (MTBF) |
70000 h |
| Heavy metals free |
Hg (mercury) |
| Height adjustment (vertical mode) |
10.5 cm |
| Height adjustment (horizontal mode) |
18.4 cm |
| Folding angle |
70° |
| Mobile operating systems supported |
Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Recyclable packaging material |
100% |
| EasyRead mode |
Yes |
| Compliance certificates |
RoHS, WEEE |
| Display viewable area (HxV) |
344.2 x 193.5 mm |
| Dimensions (W x D x H) with stand |
378 x 347 x 227 mm |
| International Protection (IP) code |
IP65 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
