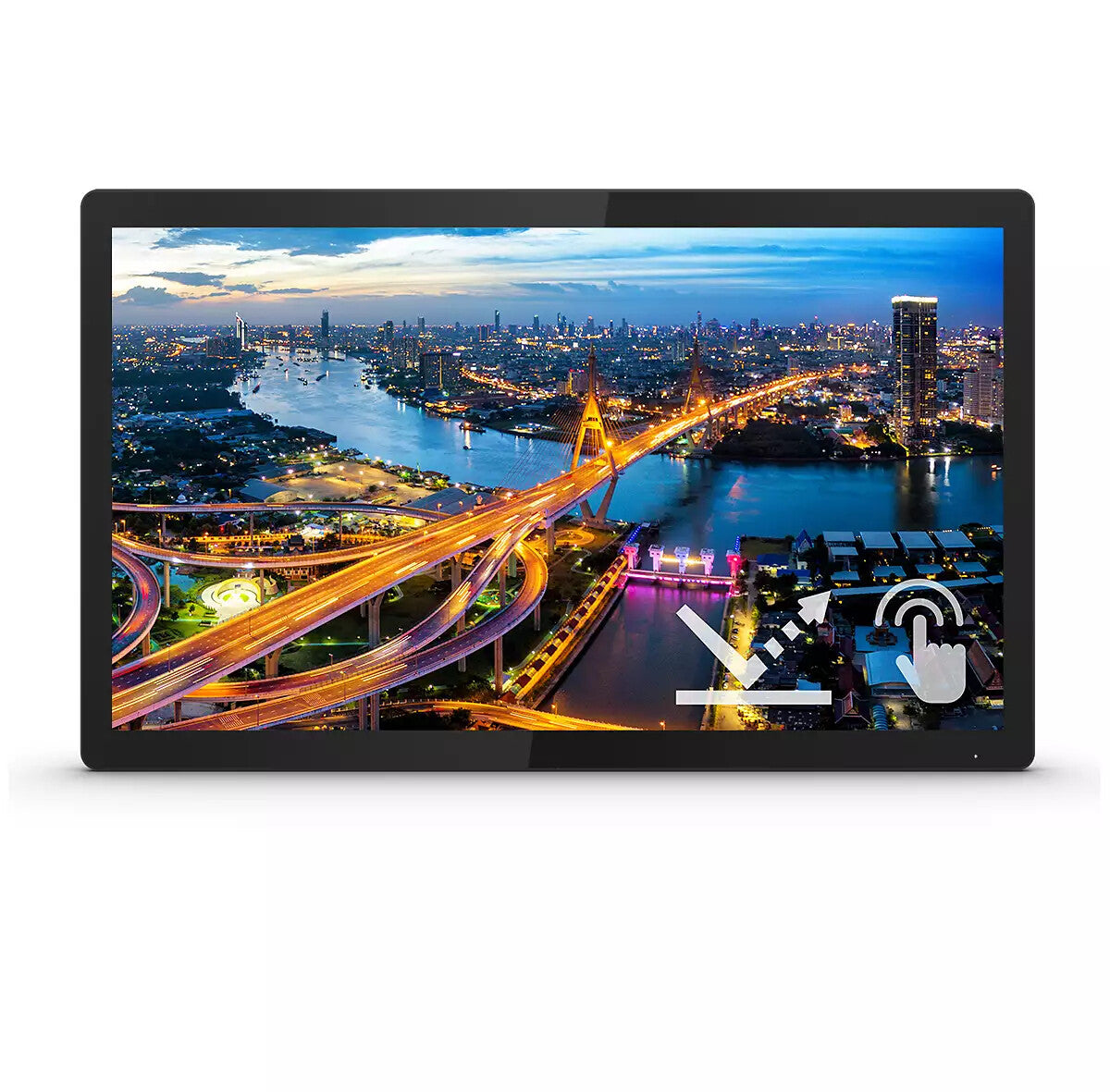

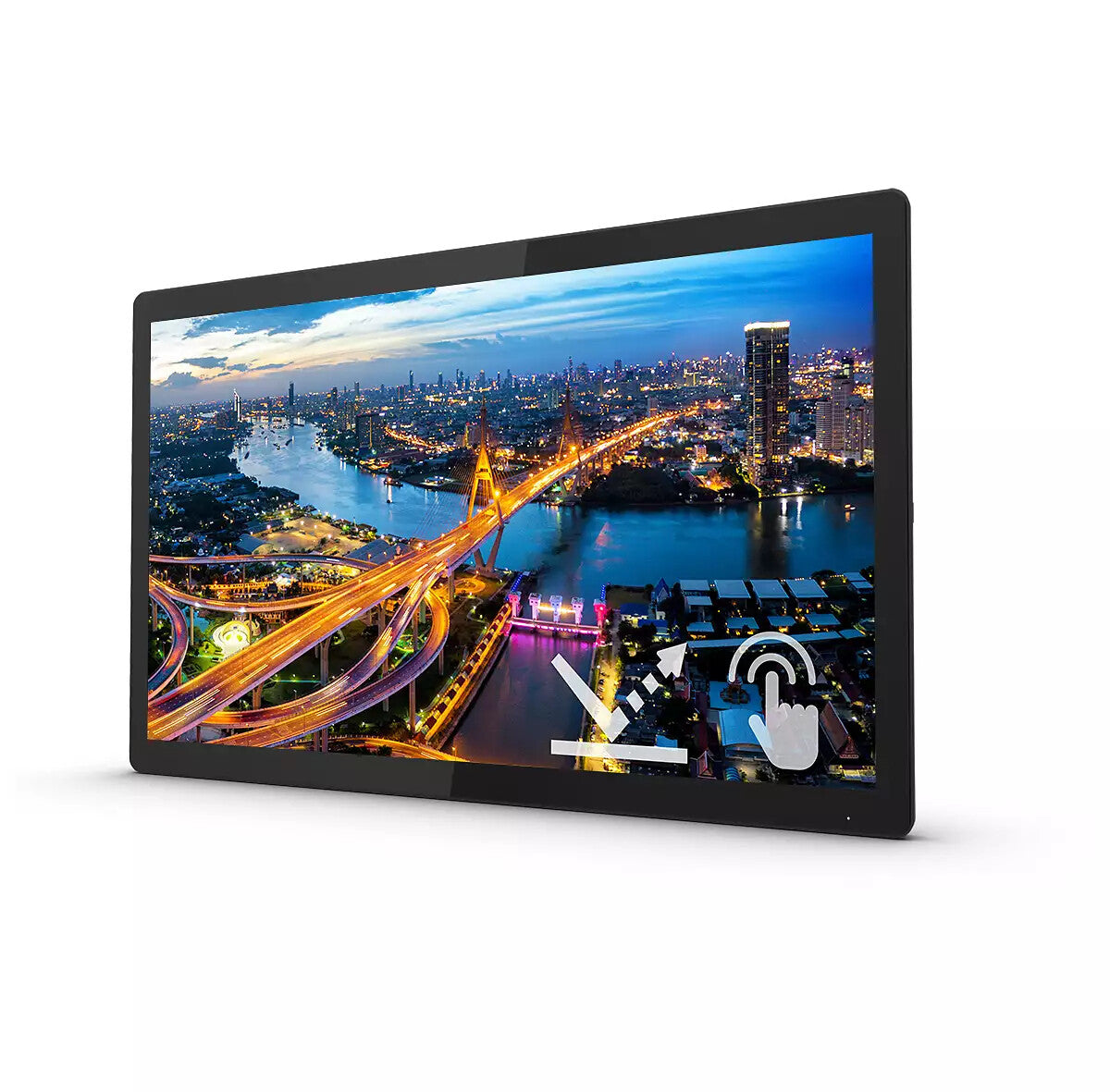

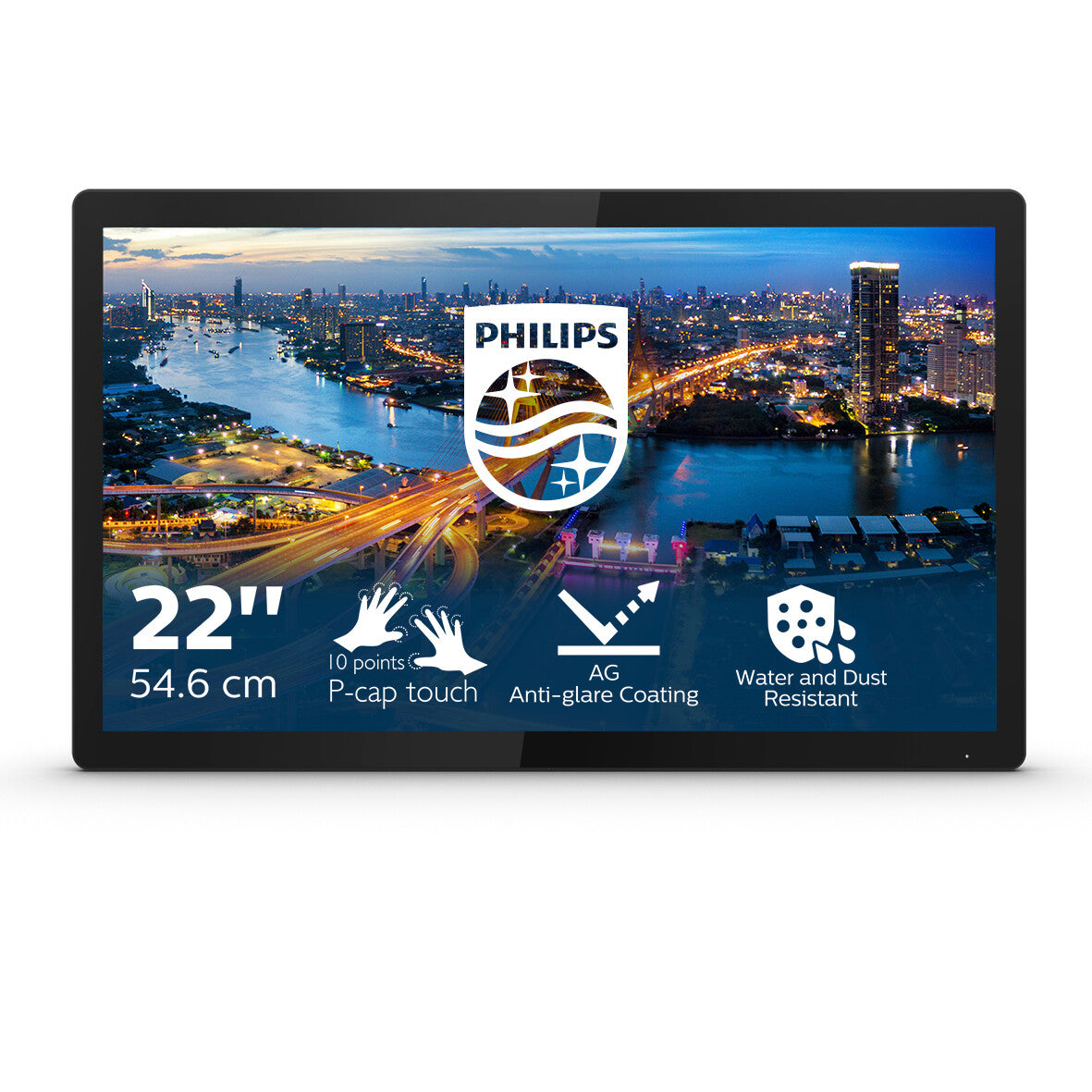

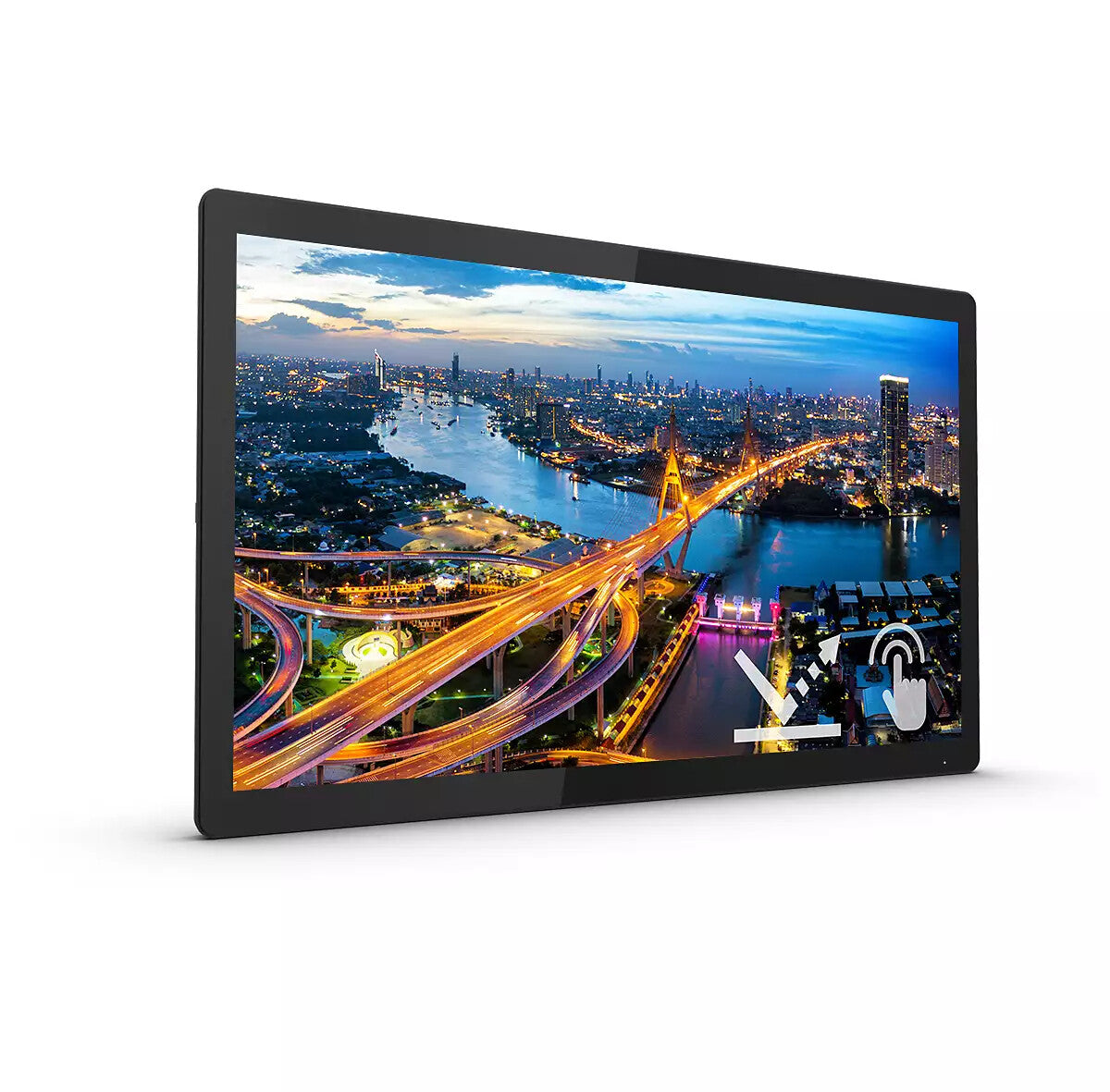

Philips open-frame touch monitor provides optimal flexibility for mounting. A sturdy, water and dust resistant, edge-to-edge design fit your needs. Great brightness performance and anti-glare display creates an outstanding picture clarity.
| Display |
|---|
| Display sRGB |
Yes |
| Surface hardness |
7H |
| Haze rate |
5% |
| DDC/CI |
Yes |
| Display diagonal (metric) |
54.6 cm |
| Viewable size, vertical |
26.8 cm |
| Viewable size, horizontal |
47.6 cm |
| Vertical scan range |
48 - 75 Hz |
| Horizontal scan range |
30 - 85 kHz |
| Pixel density |
102 ppi |
| Pixel pitch |
0.24795 x 0.24795 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
75 Hz |
| Dynamic contrast ratio marketing name |
SmartContrast |
| Contrast ratio (dynamic) |
50000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat |
| Response time |
4 ms |
| Display brightness |
400 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Backlight type |
W-LED |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Performance |
|---|
| Other operating systems supported |
Android |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Component video sync |
Separate sync, Sync-on-green (SOG) |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in camera |
No |
| Design |
|---|
| Front bezel colour |
Black |
| Product colour |
Black |

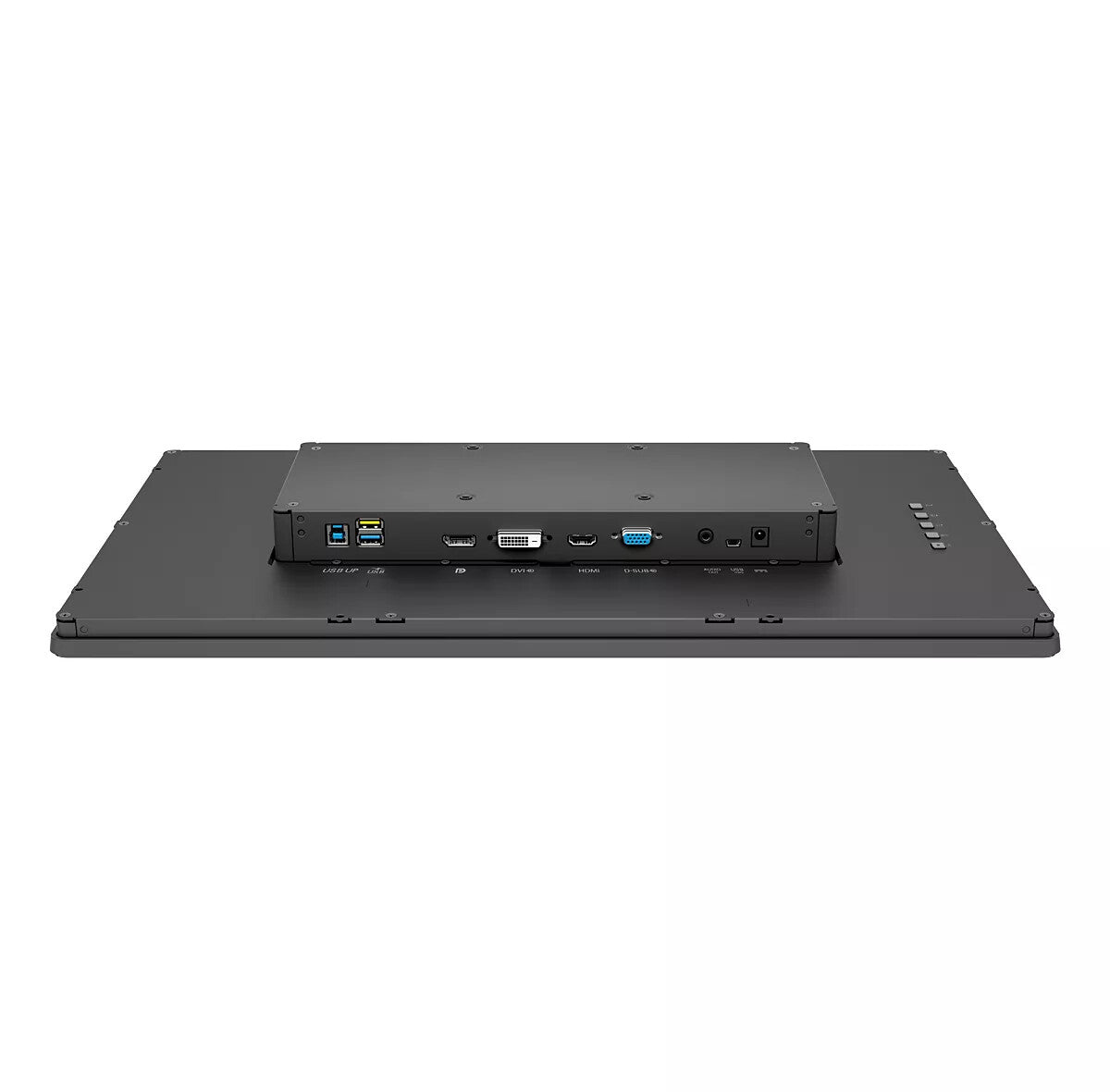

| Ports & interfaces |
|---|
| Audio output |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI-D ports quantity |
1 |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| USB Type-A downstream ports quantity |
2 |
| Number of upstream ports |
1 |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| LED indicators |
Operation, Stand-by |
| Plug and Play |
Yes |
| Palm rejection area |
30 x 30 mm |
| Number of OSD languages |
21 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| On Screen Display (OSD) |
Yes |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |

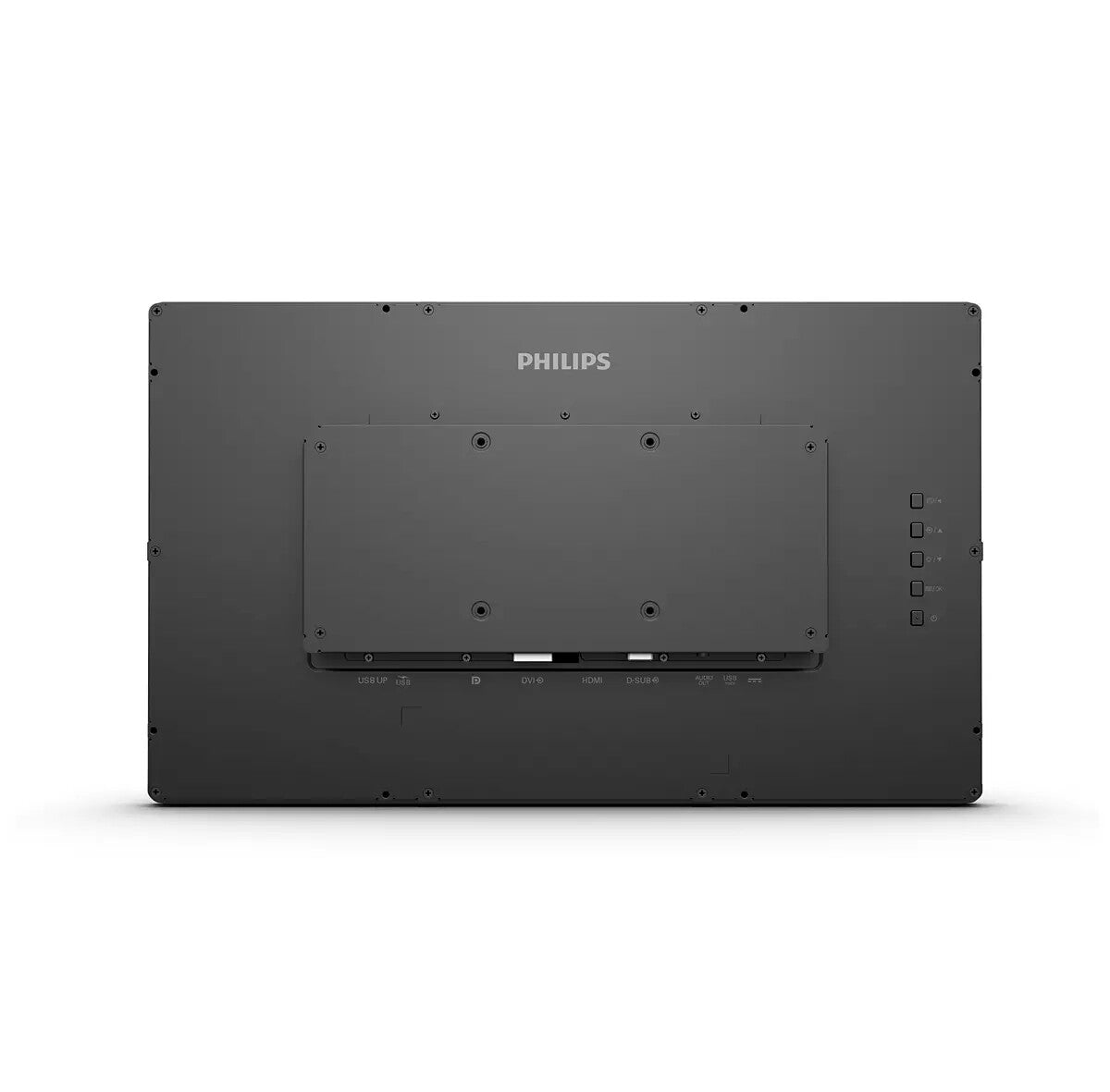

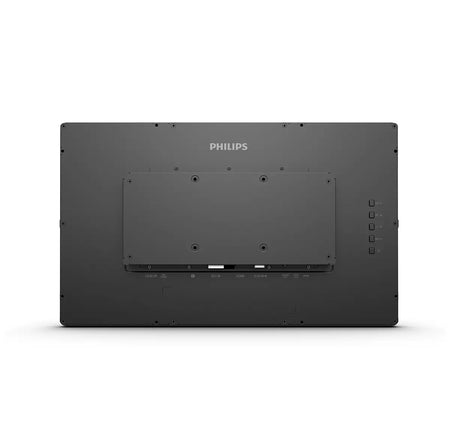

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
424363 |
| Power supply type |
External |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (PowerSave) |
11.2 W |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
20.1 W |
| Energy efficiency class (SDR) |
E |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 12192 m |
| Operating altitude |
0 - 3658 m |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
4.91 kg |
| Height (without stand) |
315 mm |
| Depth (without stand) |
49 mm |
| Width (without stand) |
522 mm |
| Packaging data |
|---|
| Package weight |
7.54 kg |
| Package height |
390 mm |
| Package depth |
121 mm |
| Package width |
595 mm |
| Packaging content |
|---|
| Bundled software |
SmartControl |
| Manual |
Yes |
| Cables included |
HDMI, DisplayPort, USB Type-A to USB Type-B, AC |
| Sustainability |
|---|
| Doesn't contain |
PVC/BFR, Mercury |
| General |
|---|
| Product family |
B Line |
| Other features |
|---|
| Touch method |
Stylus, Finger, Glove |
| Picture enhancement |
SmartImage |
| Regulatory Approvals |
CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified |
| Energy efficiency class (old) |
E |
| Certification |
CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified |
| Mean time between failures (MTBF) |
70000 h |
| Heavy metals free |
Hg (mercury) |
| Recyclable packaging material |
100% |
| EasyRead mode |
Yes |
| Compliance certificates |
RoHS |
| Display viewable area (HxV) |
476.064 x 267.786 mm |
| International Protection (IP) code |
IP65 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
