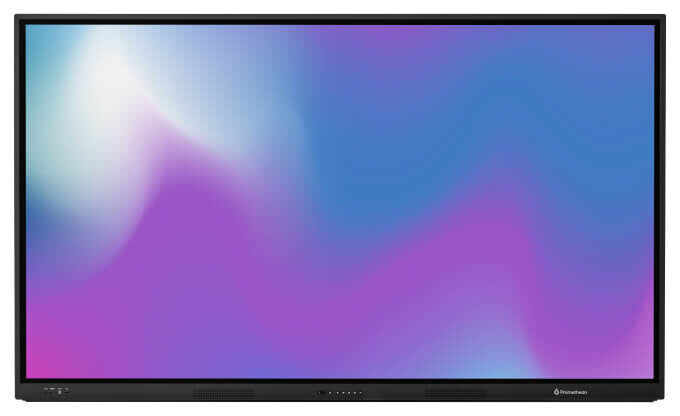

Promethean ActivPanel LX 75" interactive whiteboard 190.5 cm (75") 3840 x 2160 pixels Touchscreen Black
Regular price
£1,405.78
iFrame
- Touchscreen 190.5 cm (75") TFT Black
- Working area: 1652 x 930 mm
- 4K Ultra HD 3840 x 2160 pixels 16:9
- 350 cd/m² 1200:1 8 ms 60 Hz
- Built-in speaker(s) 10 W
- Ethernet LAN
- VESA mounting 800 x 400 mm
| Display | |
|---|---|
| Accuracy touch | 1 mm |
| Palm rejection | Yes |
| Pen & touch differentiation | Yes |
| Palm erase | Yes |
| Low Blue Light technology | Yes |
| Surface material | Tempered glass |
| Screen glass thickness | 3.2 mm |
| Working area | 1652 x 930 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Brand specific technologies | Promethean Vellum Touch Technology |
| Touch system response time | 10 ms |
| Touch resolution | 32768 x 32768 pixels |
| Number of simultaneous touchpoints | 20 |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Maximum refresh rate | 60 Hz |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-LED |
| Panel type | TFT |
| LED backlight | Yes |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 1.07 billion colours |
| Display brightness | 350 cd/m² |
| Display diagonal | 190.5 cm (75") |
| Audio | |
|---|---|
| Speaker power | 10 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Projector | |
|---|---|
| Built-in projector | No |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Headphone connectivity | 3.5 mm |
| Audio output | 1 |
| Microphone connectivity | 3.5 mm |
| OPS slot | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 3 |
| USB Type-C ports quantity | 1 |
| USB connector type | USB Type-A |
| USB 2.0 Type-B Touch ports quantity | 2 |
| USB 2.0 ports quantity | 3 |
| Ergonomics | |
|---|---|
| Certification | FCC, IC, UL, CUL, CB, RCM |
| Power cable length | 3 m |
| Fanless | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Ambient light sensor | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 132 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 50 kg |
| Height | 1033 mm |
| Depth | 110 mm |
| Width | 1716 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 61.6 kg |
| Package height | 1130 mm |
| Package depth | 185 mm |
| Package width | 1860 mm |
| Packaging content | |
|---|---|
| Stylus tip diameter | 3 mm |
| Number of stylus pens | 2 |
| Quick start guide | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B, USB Type-C |
| Pen tray included | Yes |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Sustainability certificates | ENERGY STAR |
