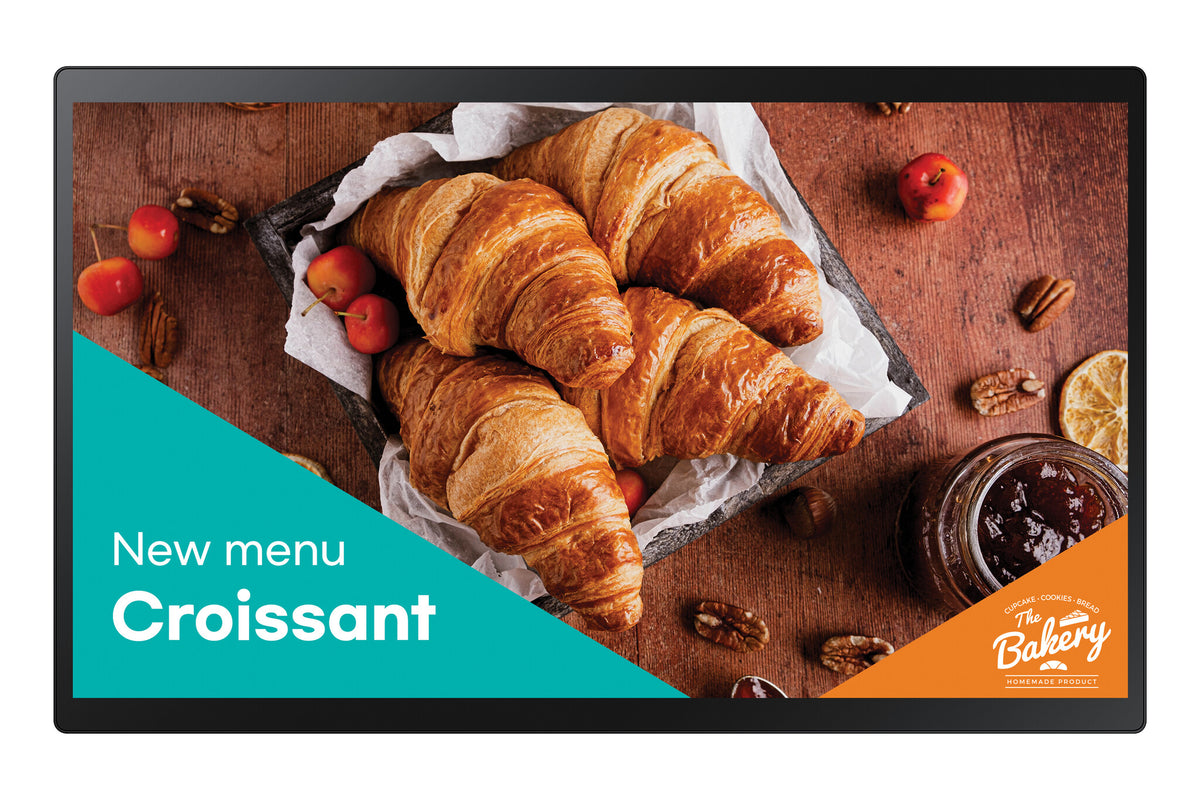

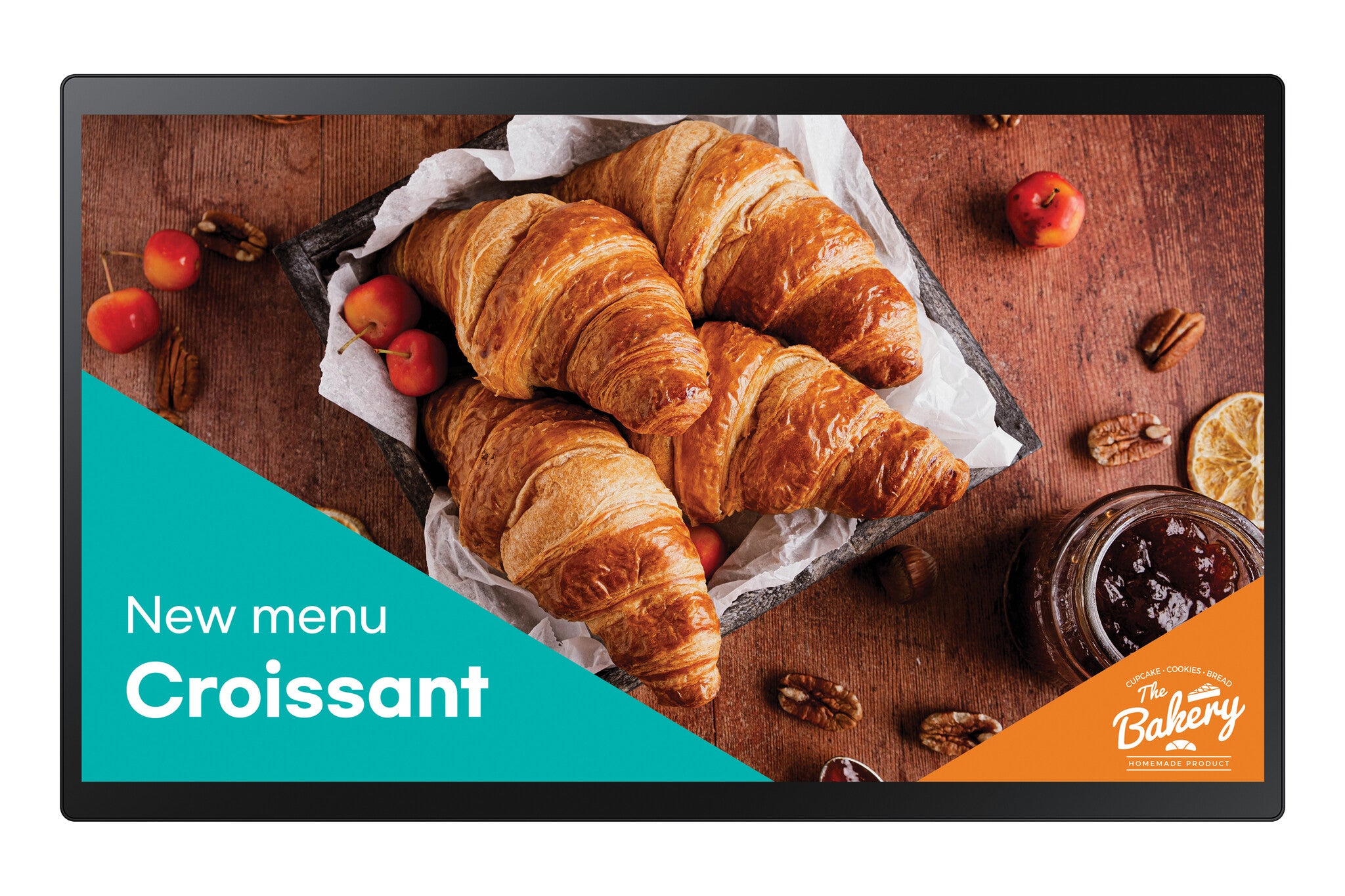

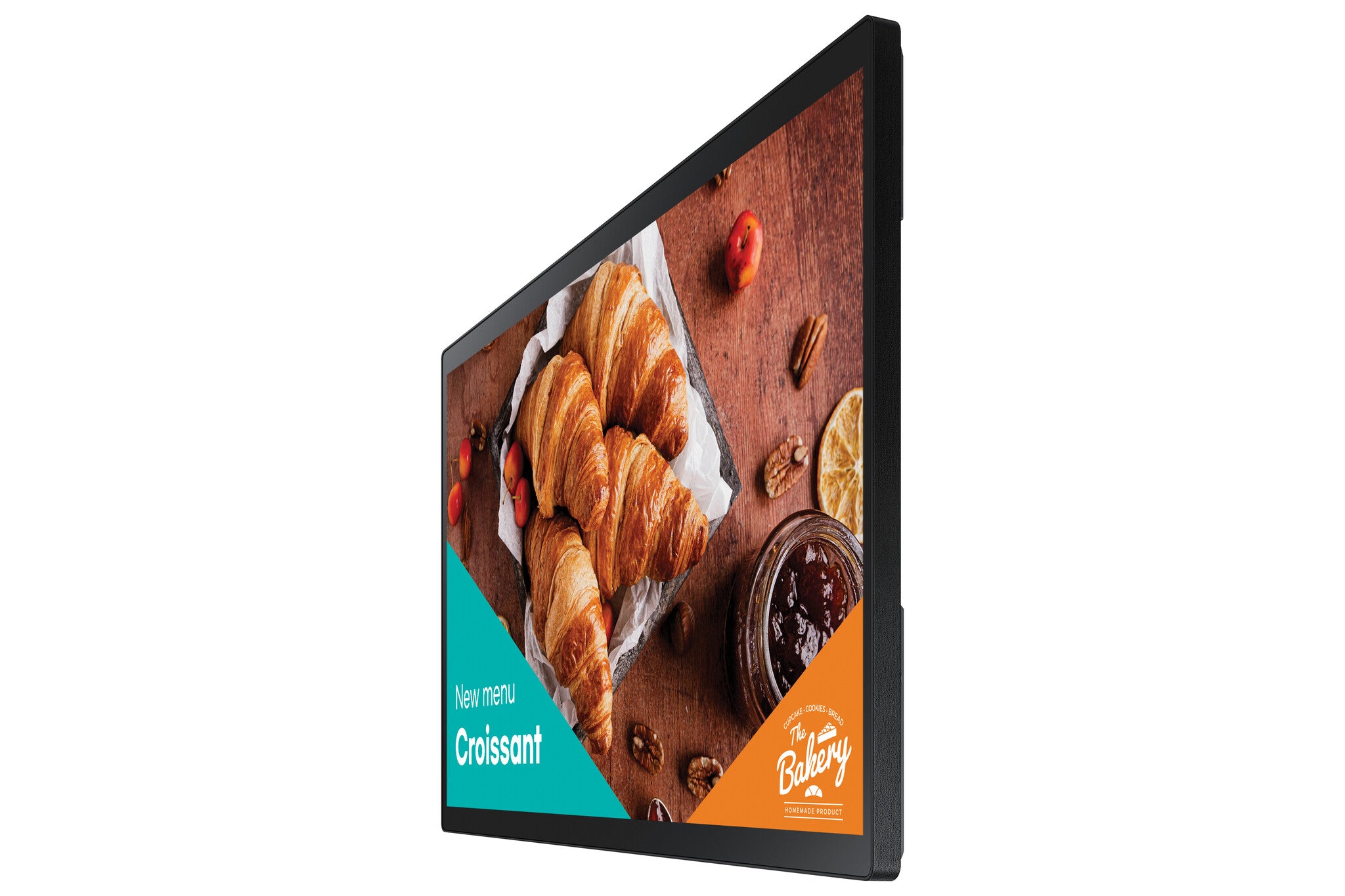

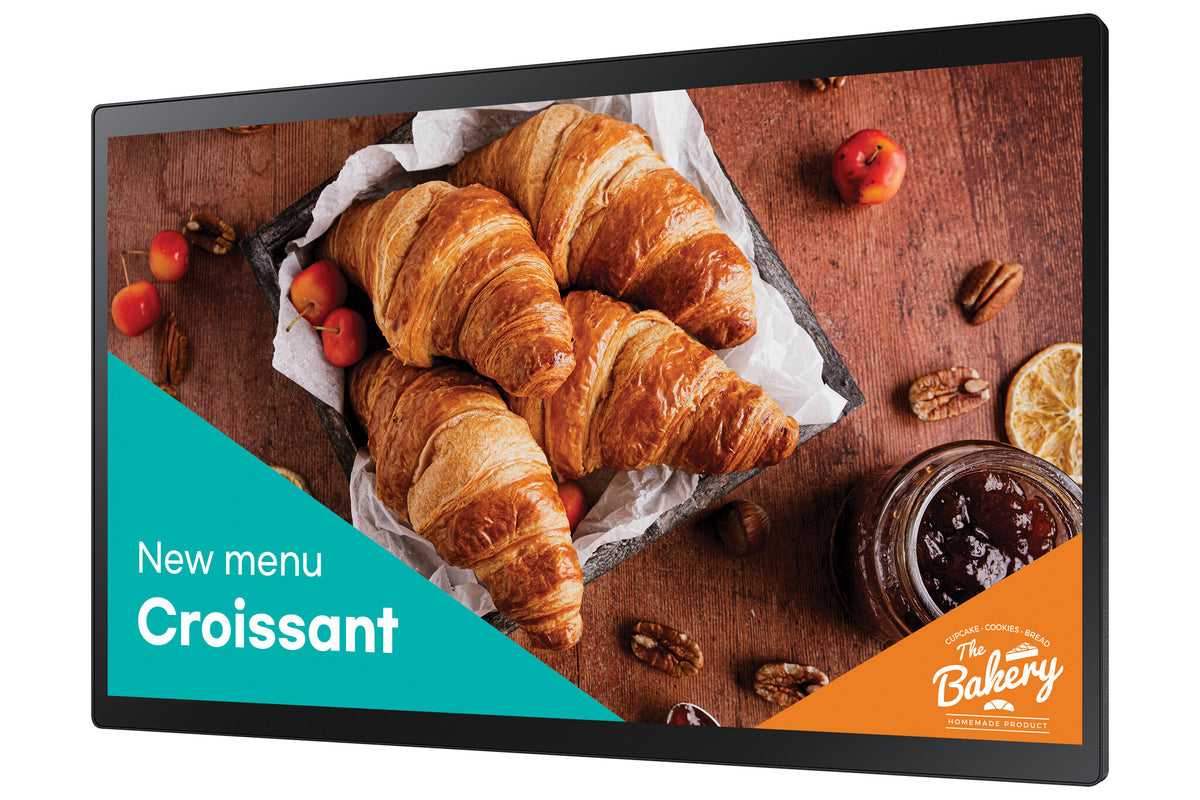

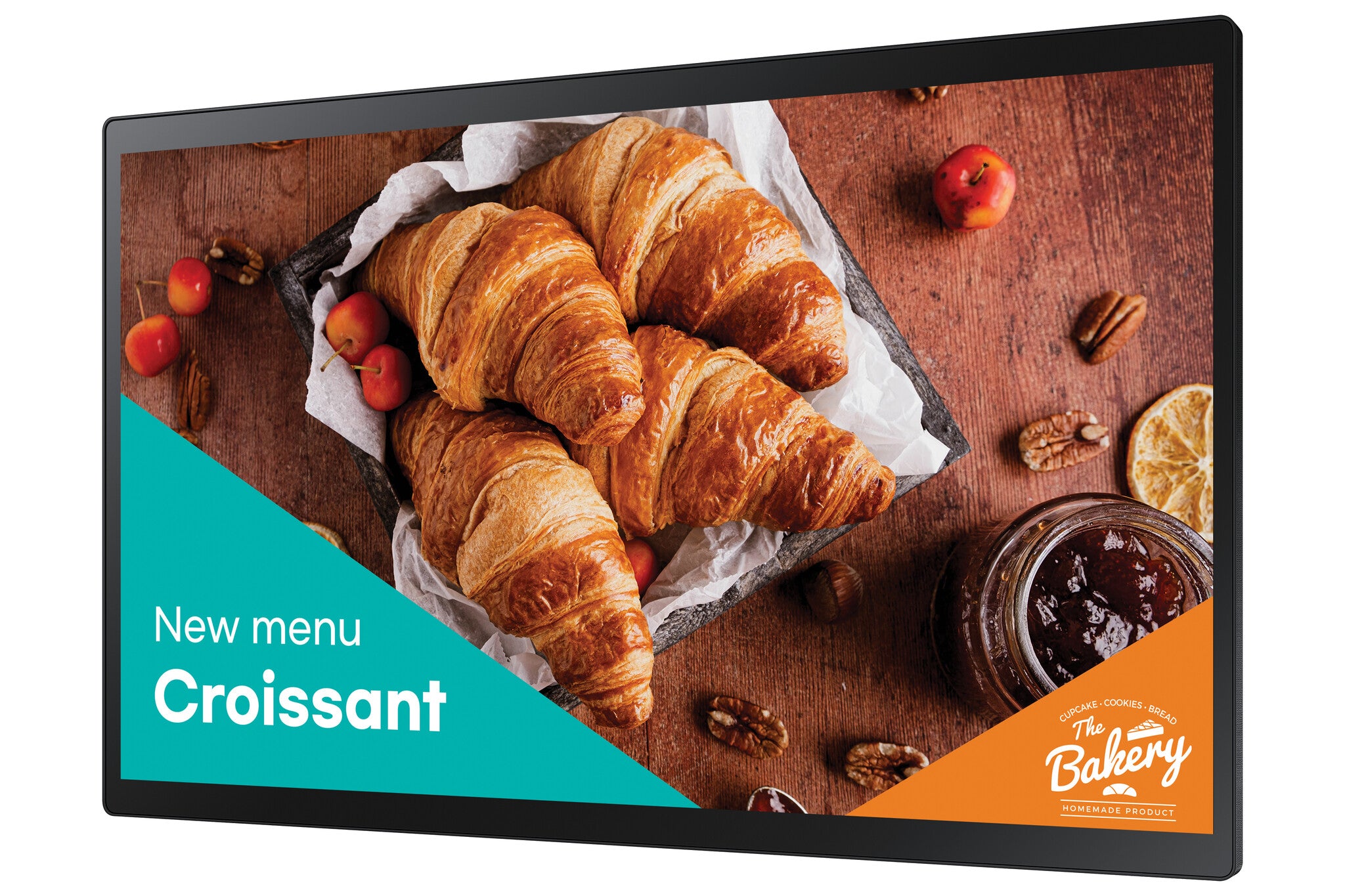

Expand commercial space with compact display
Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.
Fast, effective touch capabilities
10 point multi-touch
The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.
Connect with convenience
Home UI
QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class B
QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
| Display |
|---|
| Colour gamut |
72% |
| RGB colour space |
NTSC |
| Horizontal scan range |
56 - 84.5 kHz |
| Vertical scan range |
48 - 75 Hz |
| Haze rate |
25% |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Contrast ratio (typical) |
1000:1 |
| Response time |
14 ms |
| Multi-touch |
Yes |
| Touchscreen technology |
Capacitive |
| Touchscreen |
Yes |
| HD type |
Full HD |
| Display brightness |
250 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Panel type |
ADS |
| Display technology |
LED |
| Display diagonal |
61 cm (24") |

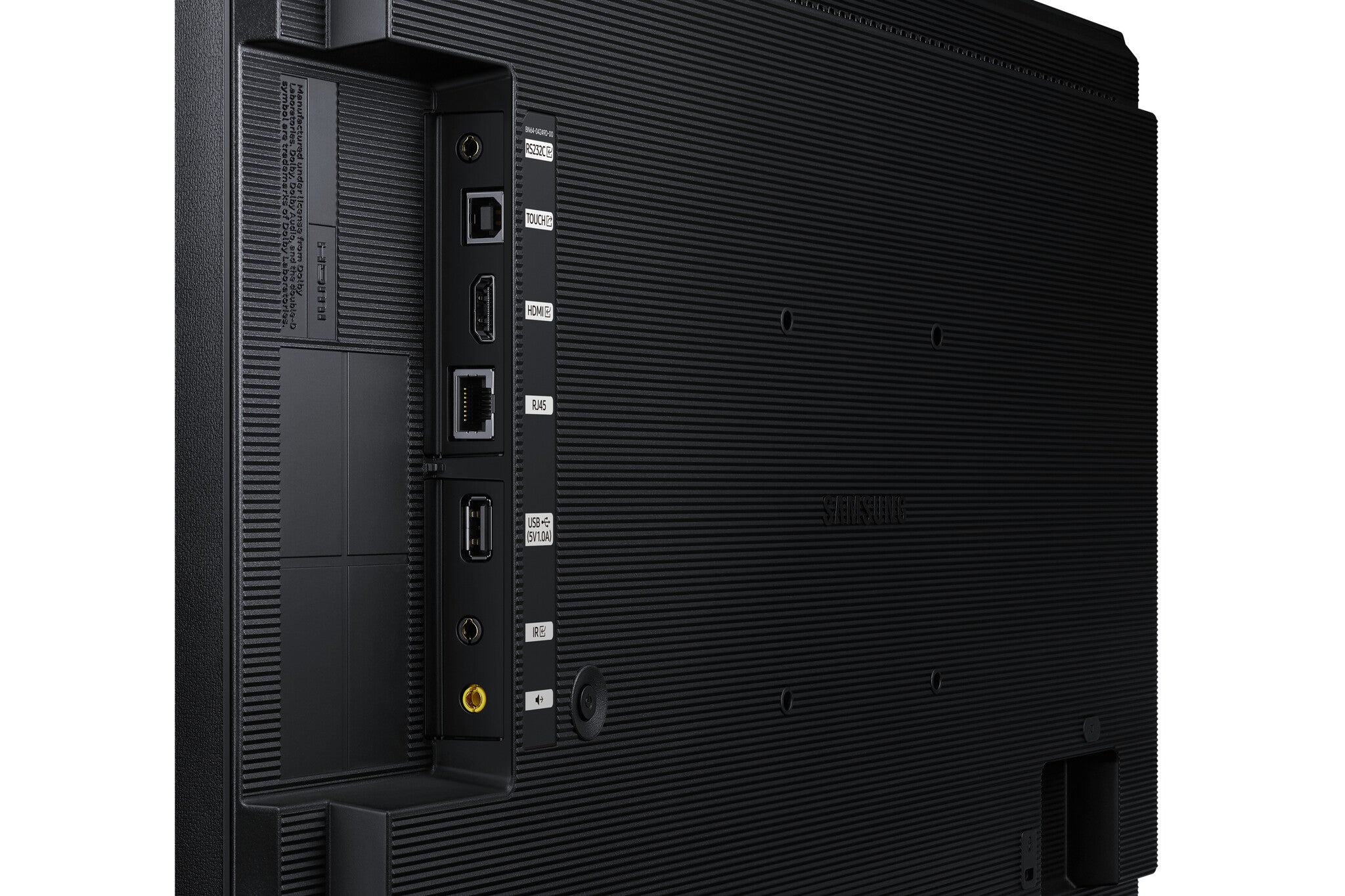

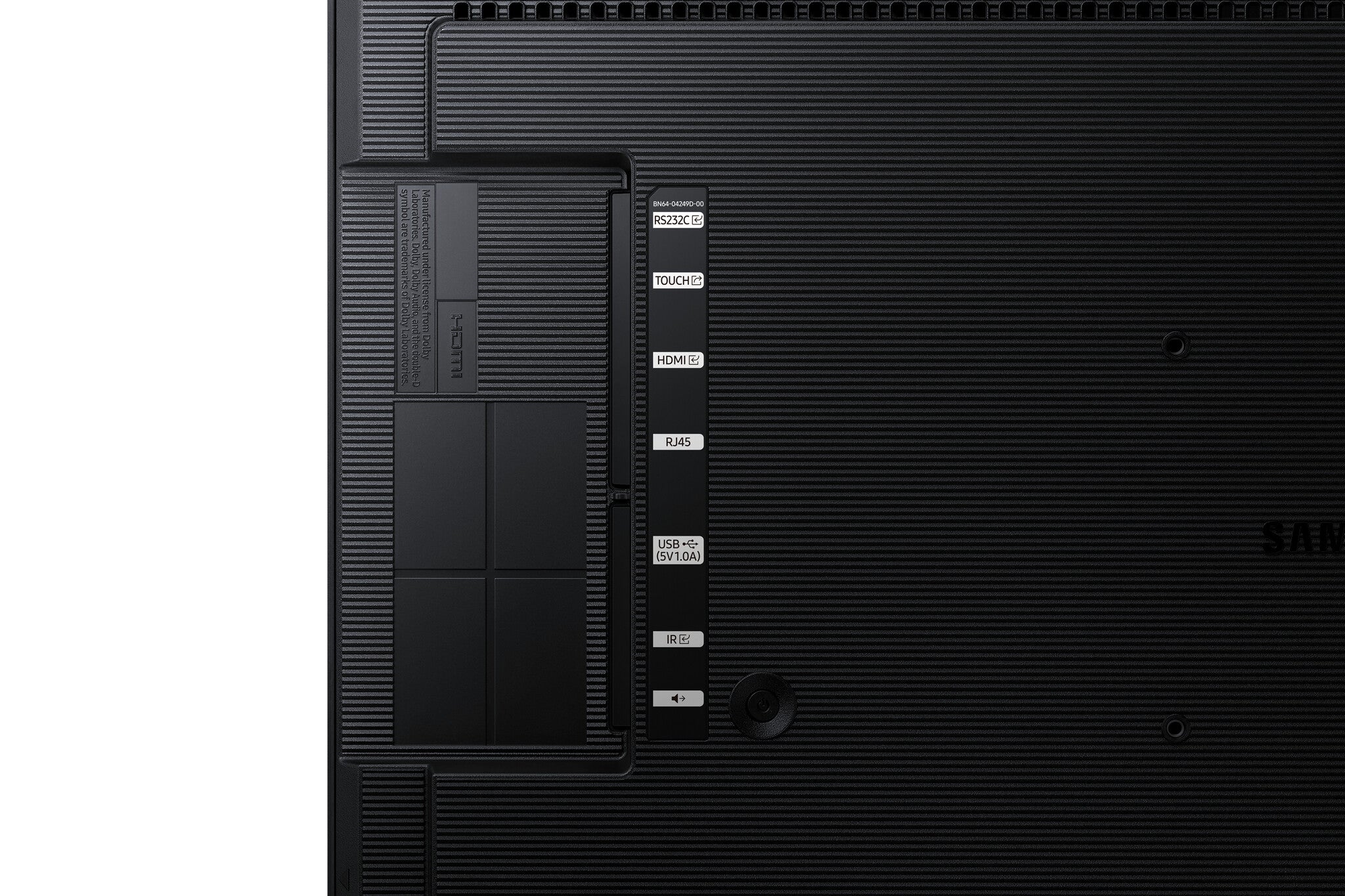

| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| Infrared data port |
Yes |
| RS-232 interface |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB ports quantity |
1 |
| USB port |
Yes |
| DVI port |
No |
| HDMI input ports quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| Design |
|---|
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
16/7 |
| Purpose |
Universal |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (sleep) |
0.5 W |
| Power consumption (typical) |
38.5 W |
| Computer system |
|---|
| Operating system installed |
Tizen 7.0 |
| Built-in processor |
Yes |
| Computer system type |
System on Chip (SoC) |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
4 kg |
| Display height |
334.4 mm |
| Display depth |
34.6 mm |
| Display width |
547.9 mm |
| Packaging data |
|---|
| Package volume |
5200 cm³ |
| Package height |
419 mm |
| Package depth |
122 mm |
| Package width |
620 mm |
| Packaging content |
|---|
| Cables included |
Power |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| General |
|---|
| Product family |
QBC-T |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Audio out (mini jack) |
1 |
| Sustainability certificates |
EPEAT Bronze |
| Compliance certificates |
CE, China Compulsory Certification (CCC), Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KCC, RoHS, VCCI |
| Other features |
|---|
| Bluetooth |
Yes |
| Flash memory |
8000 MB |
| RS-232 input ports |
1 |
| RJ-45 input ports |
1 |
