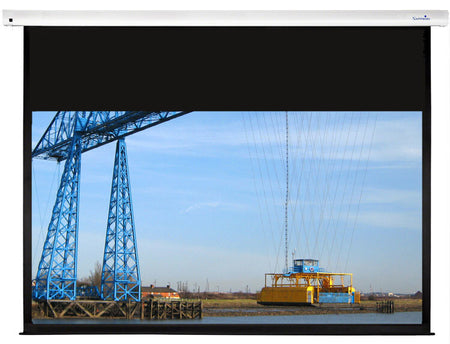

Made with such care and attention it is shame to hide it in the ceiling!. When fitted you will hardly notice the screen other than a very smart ribbed aluminium profile edged by a stylish curved end panel at each side of the screen. As it is all white it will blend in with most ceilings.
Fabric specifications:
Sapphire's matt white fabric is composed of triple ply fibreglass laminate which helps prevent wrinkles and waves. The screen fabric consists of a special material that helps prevent the loss of light, making it compatible with non short throw projectors. Our screen fabrics are designed to be fire, water, and mould resistant and can be cleaned if necessary. The top layer of the fabric has microdots that are made with PVC technology that helps create the best possible reflection.
The 1.1 gain reflects the same amount of light back that the projector produces achieving a true cinema experience.
The back of the fabric is completely black enabling you to put this in front of a window.
| Performance |
|---|
| Viewable screen width (W) |
3.05 m |
| Viewable screen height (H) |
190.5 cm |
| Native aspect ratio |
16:10 |
| Design |
|---|
| Material |
Aluminium |
| Case colour |
White |
| Product colour |
White |
| Easy to install |
Yes |
| Black drop |
46.1 cm |
| Borders |
Yes |
| Black backing |
Yes |
| Mounting type |
Ceiling |
| Power |
|---|
| Input current |
0.45 A |
| Input voltage |
230 V |
| Power |
103.5 W |
| Weight & dimensions |
|---|
| Dimensions folded (WxDxH) |
3338 x 135 x 122 mm |
| Weight |
19 kg |
| Height |
122 mm |
| Depth |
135 mm |
| Width |
3338 mm |
| Packaging data |
|---|
| Package weight |
21.9 kg |
| Package height |
200 mm |
| Package depth |
200 mm |
| Package width |
3418 mm |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| UN number |
WW/BA0104WV |
| Battery |
|---|
| Number of battery cells |
2 |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Logistics data |
|---|
| Products per shipping (inner) case |
1 pc(s) |
| Shipping (inner) case gross weight |
21.9 kg |
| Shipping (inner) case height |
20 cm |
| Shipping (inner) case length |
3.42 m |
| Shipping (inner) case width |
20 cm |
| Harmonized System (HS) code |
90106000 |
| Master (outer) case gross weight |
21.9 kg |
| Master (outer) case length |
3418 mm |
| Master (outer) case width |
200 mm |
| Master (outer) case height |
200 mm |
| Products per pallet |
15 pc(s) |
| Pallet gross weight |
328.4 kg |
| Pallet gross length |
3.42 m |
| Pallet gross width |
100 cm |
| Pallet gross height |
60 cm |
| Minimum order quantity |
1 pc(s) |
| Products per master (outer) case |
1 pc(s) |
| Products per pallet layer |
5 pc(s) |
| Products per pallet layer (UK) |
3 pc(s) |
| Products per pallet (UK) |
15 pc(s) |
| Pallet weight (UK) |
328.4 kg |
| Pallet length (UK) |
3.42 m |
| Pallet width (UK) |
100 cm |
| Pallet height (UK) |
60 cm |
