ScreenBeam 1100 Plus platform with ScreenBeam Conference experience adds wireless connectivity to room cameras, microphones, and speakers with support for all major video conferencing services. This versatile experience is delivered wholly with the 1100 Plus, the industry’s most flexible turnkey collaboration platform.
App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.
Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.
Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.
ScreenBeam Conference
Connects the room camera, microphone and soundbar and enable the users’ laptops for bring-your-own-meeting (BYOM) wireless video conferencing. Users can participate in a scheduled or ad-hoc meeting using the UC service of choice and take full advantage of the room peripherals.
Learn More
Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network. VLAN tagging option is also available on the wired network connection for additional subnets support.
Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.
Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.
Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.
HDMI Input
Combines wireless display and HDMI® switching in a single device for a fully functional for wired and wireless connections.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
MultiBeam
Enables content mirroring (video or wireless presentation) across wired, wireless or a combination of both networks, for up to 8 remote displays.
Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.
| Design |
|---|
| Certification |
FCC, UL, CE, RoHS, C-Tick |
| Product colour |
Black |
| Form factor |
Desktop |
| Features |
|---|
| Miracast |
Yes |
| Supported graphics resolutions |
3840 x 2160 |
| Network |
|---|
| Security algorithms |
EAP-TLS, PEAP, WPA-PSK, WPA2-PSK |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |

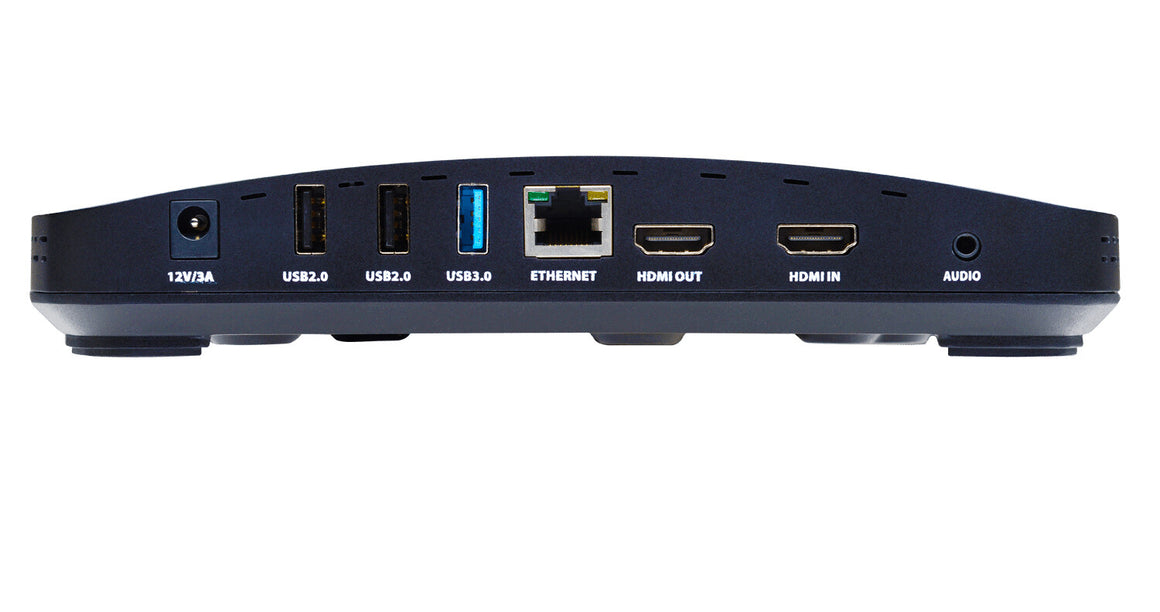

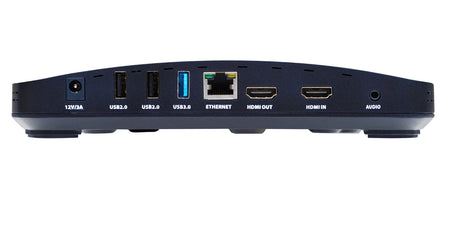

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| 3.5 mm (1/8-inch) out |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Number of HDMI outputs |
1 |
| HDMI input ports quantity |
1 |
| Interface |
HDMI + USB Type-A |
| Power |
|---|
| Power consumption (typical) |
8.4 W |
| Power consumption (max) |
36 W |
| Input current |
3 A |
| Input voltage |
12 DC |
| Power source type |
DC |
| System requirements |
|---|
| Mobile operating systems supported |
Android, iOS |
| Other operating systems supported |
ChromeOS |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
20 - 80 °C |
| Operating relative humidity (H-H) |
-20 - 85% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Package weight |
1.13 kg |
| Package height |
82.5 mm |
| Package depth |
287 mm |
| Package width |
177.8 mm |
| Weight |
453.5 g |
| Height |
37.5 mm |
| Depth |
144 mm |
| Width |
220 mm |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
85176990 |
