Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
| Display |
|---|
| Native refresh rate |
60 Hz |
| Horizontal scan range |
15 - 135 kHz |
| Vertical scan range |
23 - 76 Hz |
| Display diagonal (metric) |
139 cm |
| Active display area (W x H) |
1209.6 x 680.4 mm |
| Pixel pitch |
0.315 x 0.315 mm |
| Display number of colours |
1.073 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
8000:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
550 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlighting type |
Direct-LED |
| LED backlight |
Yes |
| Panel type |
IPS |
| Display technology |
LCD |
| Display diagonal |
139.7 cm (55") |

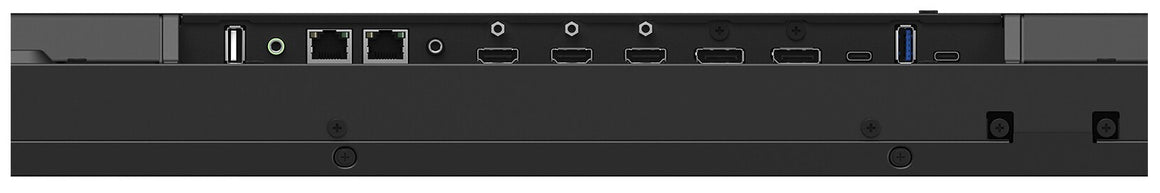

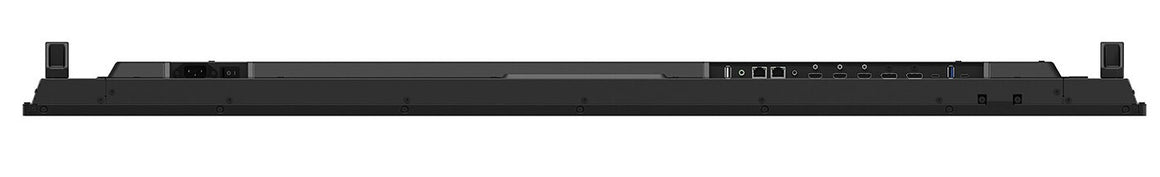

| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| Audio (L/R) out |
1 |
| Wi-Fi |
No |
| Ethernet LAN data rates |
100 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB connector type |
USB Type-A, USB Type-C |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
4 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
2 |
| DVI port |
No |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
2 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Mounting type |
Wall |
| Bezel colour |
Black |
| Bezel width (top) |
1.1 cm |
| Bezel width (side) |
1.1 cm |
| Bezel width (bottom) |
1.39 cm |
| Panel mounting interface |
300 x 300 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |

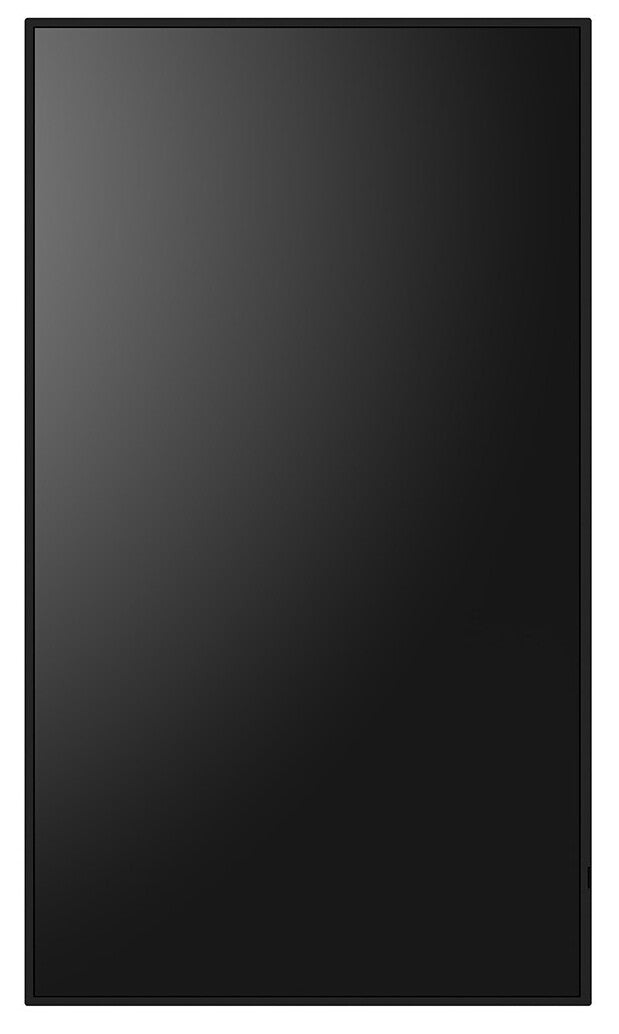

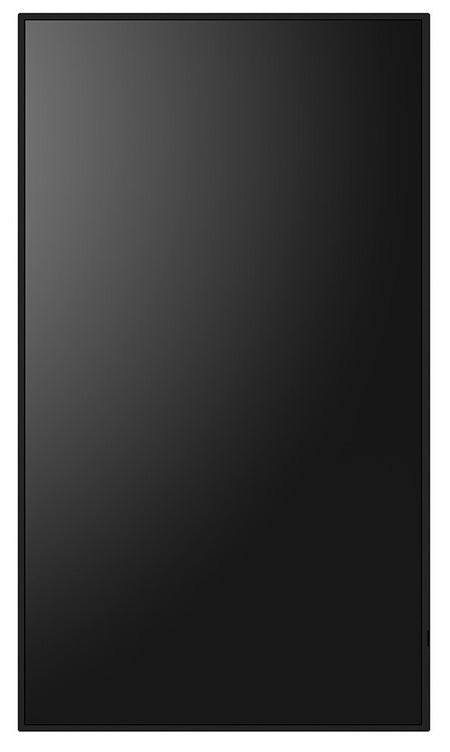

| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| HDCP |
Yes |
| HDCP version |
2.2 |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (HDR) per 1000 hours |
101 kWh |
| Energy consumption (SDR) per 1000 hours |
103 kWh |
| Energy efficiency class (HDR) |
G |
| Energy efficiency class (SDR) |
G |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
105 W |
| Weight & dimensions |
|---|
| Display weight |
20.5 kg |
| Display height |
709.3 mm |
| Display depth |
59.5 mm |
| Display width |
1235.6 mm |
| Packaging data |
|---|
| Package weight |
27 kg |
| Package height |
850 mm |
| Package depth |
160 mm |
| Package width |
1390 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
RoHS, CE, UL/C-UL or CSA, FCC Class B |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, UL, cUL |
| Warranty period |
3 year(s) |
