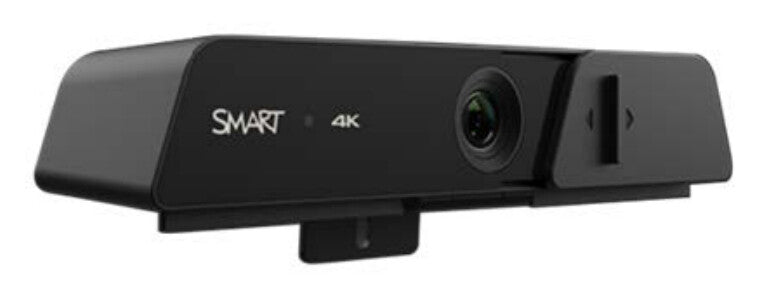

The SMART Ultra HD Camera 120 is a 4K Ultra-HD camera with ePTZ. Easily install the camera on a SMART Board® interactive display. The camera can automatically frame people meeting in a boardroom.
| Camera |
|---|
| Auto exposure |
Yes |
| White balance |
Auto, Manual |
| F-number (relative aperture) |
2 |
| Signal-to-Noise Ratio (SNR) |
50 dB |
| Vertical field of view |
68° |
| Horizontal field of view |
120° |
| Field of view (FOV) angle |
138° |
| Focal length range |
1.89 mm |
| Digital zoom |
10x |
| Zoom capability |
Yes |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Camera type |
Single camera |
| Megapixel (approx.) |
8.28 MP |
| Video |
|---|
| Maximum frame rate |
30 fps |
| Maximum video resolution |
3840 x 2160 pixels |
| Design |
|---|
| Product colour |
Black |
| Power |
|---|
| Operating voltage |
5 V |
| Operating current |
0.9 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
20 - 90% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
-10 - 50 °C |
| System requirements |
|---|
| Minimum processor speed |
2.4 GHz |
| Minimum processor family |
Core 2 Duo |
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android 11.0 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite |
| Windows operating systems supported |
Windows 10 |
| Certificates |
|---|
| Compliance certificates |
REACH, RoHS, UKCA, WEEE |
| Performance |
|---|
| Auto framing |
Yes |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Weight |
230 g |
| Height |
38 mm |
| Depth |
44 mm |
| Width |
195 mm |
| Packaging data |
|---|
| Package weight |
550 g |
| Package height |
95 mm |
| Package depth |
130 mm |
| Package width |
260 mm |
