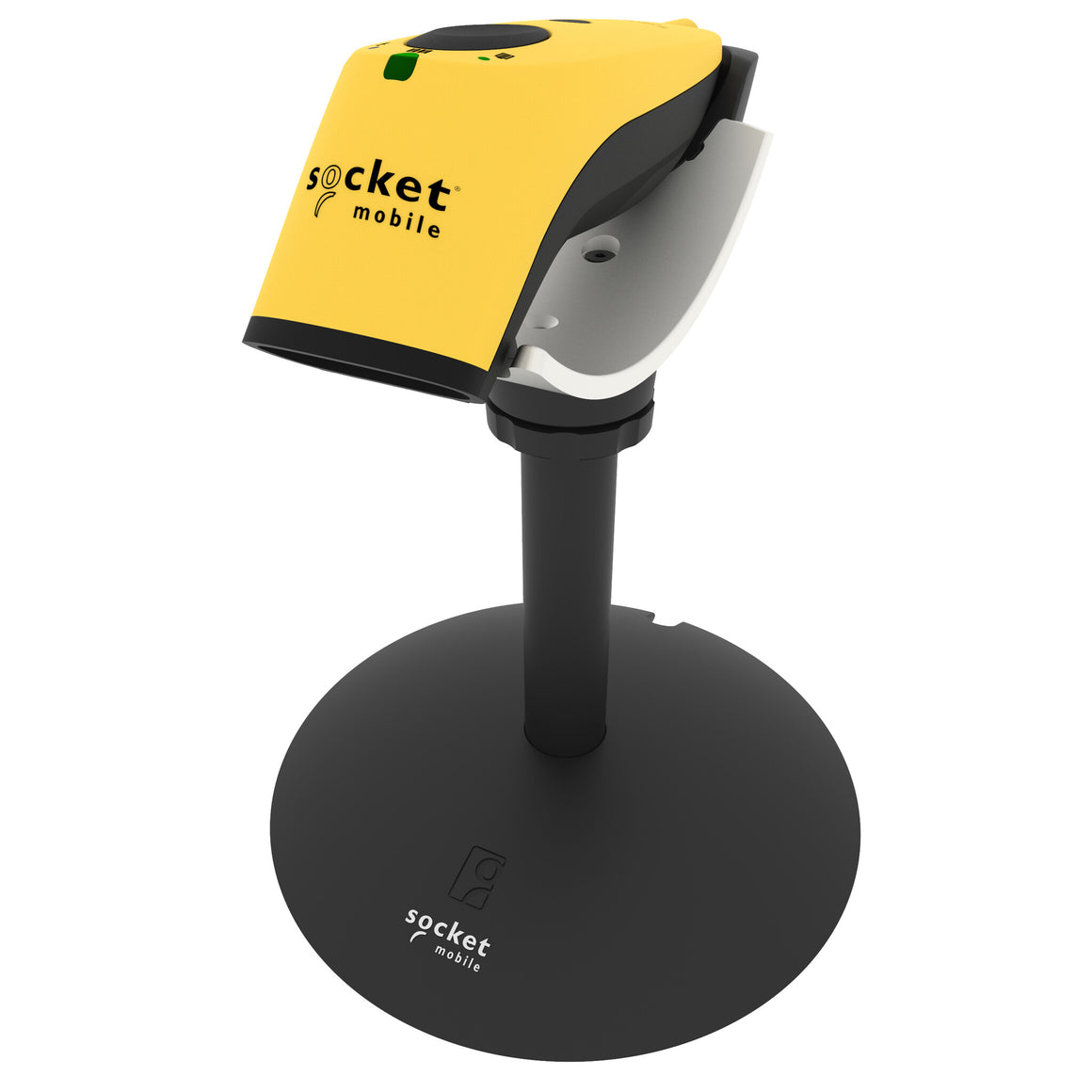

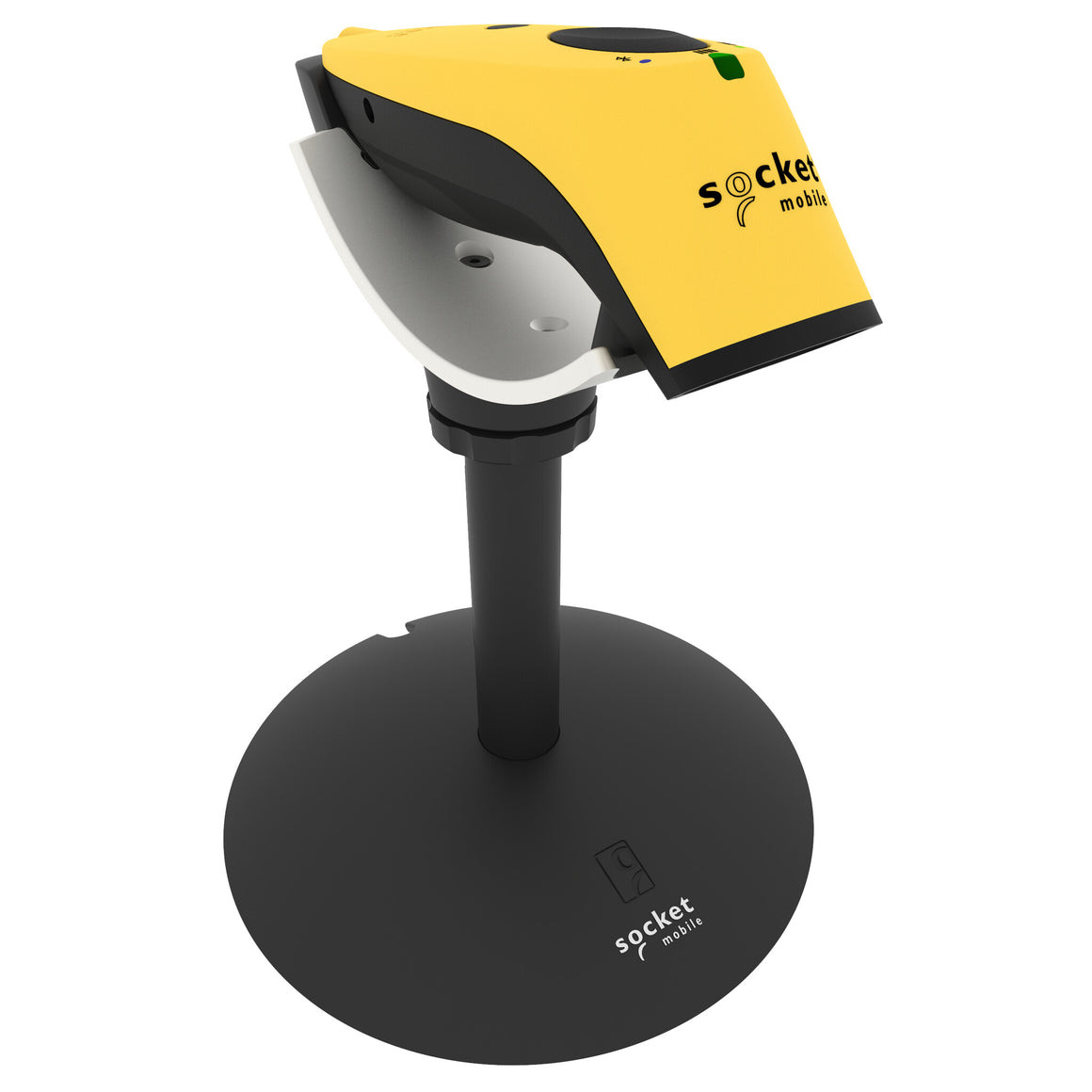

The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It’s lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
| Scanning |
|---|
| Light levels (direct sunlight) |
0 - 100000 lx |
| Working distance |
38 cm |
| Optical sensor resolution (W x H) |
1280 x 960 pixels |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Cable length |
1.2 m |
| Bluetooth version |
2.1+EDR |
| Wireless range |
10 m |
| USB 2.0 ports quantity |
1 |
| USB version |
2.0 |
| Standard interfaces |
Bluetooth |
| Connectivity technology |
Wireless |
| Performance |
|---|
| Certification |
EC 60950-1, UL 60950-1, CAN/CSA C22.2RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024, TELEC |
| Vibration function |
Yes |
| Built-in display |
No |
| Buzzer |
Yes |
| LED indicators |
Power, Status |
| Product colour |
Yellow |
| Power |
|---|
| Charging time |
6 h |
| Battery life |
16 h |
| Number of reads per charge |
70000 |
| Battery voltage |
2.4 V |
| Battery capacity |
2000 mAh |
| Number of batteries supported |
2 |
| Battery type |
AA |
| Battery technology |
Nickel-Metal Hydride (NiMH) |
| Power source type |
Battery |
| Weight & dimensions |
|---|
| Weight |
117 g |
| Height |
132.2 mm |
| Depth |
40.1 mm |
| Width |
37.1 mm |
| Packaging data |
|---|
| Cables included |
USB |
| Charging base |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Battery |
|---|
| Battery weight |
54.5 g |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
C-TICK, CE, Federal Communications Commission (FCC), RoHS |
| Other features |
|---|
| Light source |
LED |
| Compatible operating systems |
Windows 10, Android, iOS, Mac OS |
