In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.

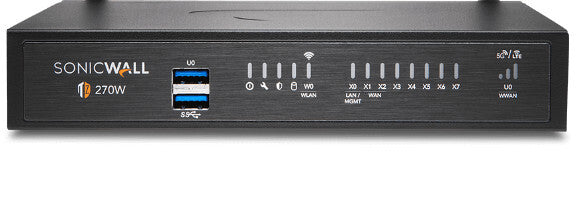

The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.
With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMI™). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.
Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management — or the next threat.
Data transmission |
Load balancing |
Yes |
VoIP |
Yes |
Maximum firewall connections per second |
6000 |
Maximum connections (SPI) |
750000 |
Maximum connections (DPI) |
150000 |
IPS/IDS throughput |
1000 Mbit/s |
VPN throughput |
0.75 Gbit/s |
Firewall throughput |
2 Gbit/s |
Network |
DHCP server |
Yes |
Quality of Service (QoS) support |
Yes |
Static route |
Yes |
VPN tunnels quantity |
50 |
Security |
Firewall security |
Y |
Stateful Packet Inspection (SPI) |
Yes |
Deep Packet Inspection (DPI) |
Yes |
DDoS protection |
Yes |
Protocols |
Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |
Management features |
URL filtering |
Yes |
LED indicators |
Yes |
Ports & interfaces |
Number of console ports |
1 |
Ethernet LAN data rates |
1000 Mbit/s |
Ethernet LAN (RJ-45) ports |
8 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
Connectivity technology |
Wired |
Power |
Input current |
3 A |
AC input frequency |
50 - 60 Hz |
Operational conditions |
Operating relative humidity (H-H) |
5 - 95% |
Operating temperature (T-T) |
0 - 40 °C |
Weight & dimensions |
Height |
190 mm |
Depth |
135 mm |
Width |
35 mm |
Other features |
Firewall throughput |
2000 Mbit/s |
VPN throughput |
750 Mbit/s |
Logistics data |
Harmonized System (HS) code |
85176990 |
