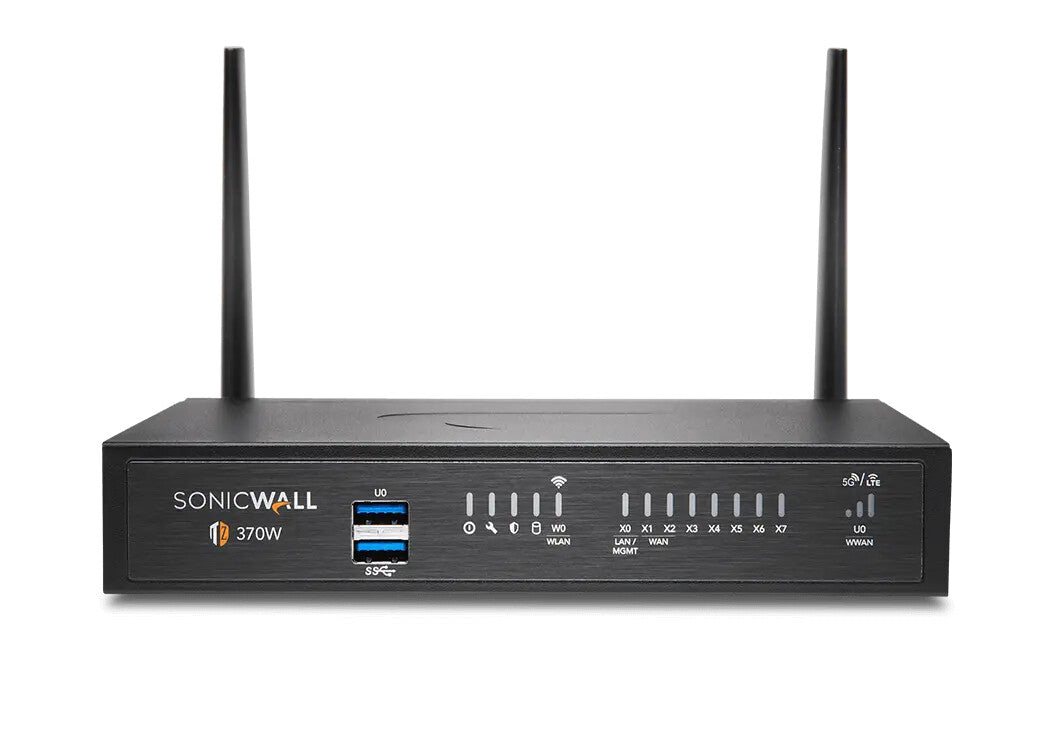

TZ SERIES
NEXT-GENERATION FIREWALL (NGFW)
Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.
‘Single-pane-of-glass’ Management & Reporting
Manage everything from one location with Network Security Manager, a unified firewall management system that scales for any environment.
SD-WAN and Zero-Touch Deployment Capabilities
SonicWall Secure SD-WAN integrates with TZ firewalls without requiring an additional license, and scales quickly with Zero-Touch Deployment capability.
Deep Memory Inspection
Block even the most advanced attacks with Real-Time Deep Memory Inspection (RTDMI™) and Capture Advanced Threat Protection (ATP).
SSL/TLS Decryption and Inspection
Leverage industry-leading decryption and inspection of TLS/SSL-encrypted traffic in real time, along with TLS 1.3 support.
Superior Performance and Features
Get advanced threat protection at lightning speeds without compromising on performance. The latest generation of TZ firewalls offer expandable storage, redundant power, SonicExpress App onboarding, and more.
Integrated Security Solution
Choose optional PoE and Wi-Fi options with deep integration of SonicOS operating system to deliver an integrated gateway security solution.
| Data transmission |
|---|
| Maximum firewall connections |
9000 |
| Maximum firewall connections per second |
9000 |
| Threat protection throughput |
1000 Mbit/s |
| IPS/IDS throughput |
1500 Mbit/s |
| VPN throughput |
3 Gbit/s |
| Firewall throughput |
3 Gbit/s |
| Performance |
|---|
| Heat dissipation |
57.42 BTU/h |
| Network |
|---|
| Local user database |
250 |
| VPN tunnels quantity |
100 |
| Ports & interfaces |
|---|
| Number of console ports |
1 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Console port |
RJ-45 |
| Ethernet LAN (RJ-45) ports |
8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Connectivity technology |
Wired |
| Storage |
|---|
| Supported HDD capacity (max) |
256 GB |
| Design |
|---|
| Form factor |
Desktop |
| Power |
|---|
| DC input voltage |
12 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
820 g |
| Height |
190 mm |
| Depth |
135 mm |
| Width |
350 mm |
| Packaging data |
|---|
| Package weight |
1.41 kg |
