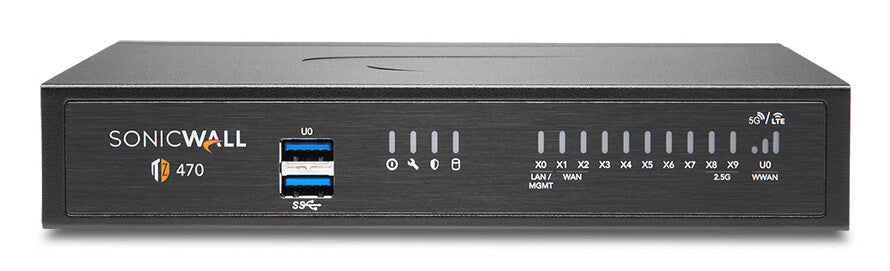

TZ SERIES
NEXT-GENERATION FIREWALL (NGFW)
Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.
‘Single-pane-of-glass’ Management & Reporting
Manage everything from one location with Network Security Manager, a unified firewall management system that scales for any environment.
SD-WAN and Zero-Touch Deployment Capabilities
SonicWall Secure SD-WAN integrates with TZ firewalls without requiring an additional license, and scales quickly with Zero-Touch Deployment capability.
Deep Memory Inspection
Block even the most advanced attacks with Real-Time Deep Memory Inspection (RTDMI™) and Capture Advanced Threat Protection (ATP).
SSL/TLS Decryption and Inspection
Leverage industry-leading decryption and inspection of TLS/SSL-encrypted traffic in real time, along with TLS 1.3 support.
Superior Performance and Features
Get advanced threat protection at lightning speeds without compromising on performance. The latest generation of TZ firewalls offer expandable storage, redundant power, SonicExpress App onboarding, and more.
Integrated Security Solution
Choose optional PoE and Wi-Fi options with deep integration of SonicOS operating system to deliver an integrated gateway security solution.
| Data transmission |
|---|
| Maximum firewall connections |
1000000 |
| Maximum firewall connections per second |
12000 |
| SSL inspection throughput |
600 Mbit/s |
| Threat protection throughput |
1500 Mbit/s |
| IPS/IDS throughput |
2000 Mbit/s |
| IPSec VPN throughput |
1.5 Gbit/s |
| Firewall throughput |
3.5 Gbit/s |
| Performance |
|---|
| Heat dissipation |
68.03 BTU/h |
| Network |
|---|
| DHCP server |
Yes |
| Quality of Service (QoS) support |
Yes |
| Local user database |
250 |
| VPN tunnels quantity |
150 |
| Security |
|---|
| DDoS protection |
Yes |
| Protocols |
|---|
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |
| Management features |
|---|
| URL filtering |
Yes |
| Management platform |
SonicOS 7.0 |
| LED indicators |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| WAN connection |
Ethernet (RJ-45) |
| Number of console ports |
1 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Console port |
RJ-45 |
| Ethernet LAN (RJ-45) ports |
8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Connectivity technology |
Wired |
| Design |
|---|
| Form factor |
Desktop |
| Power |
|---|
| Power supply |
36 W |
| Power consumption (max) |
19.95 W |
| Input current |
3 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100-240 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
830 g |
| Height |
190 mm |
| Depth |
135 mm |
| Width |
35 mm |
| Packaging data |
|---|
| Package weight |
1.43 kg |
