Business-friendly with easy content sharing, control and customization

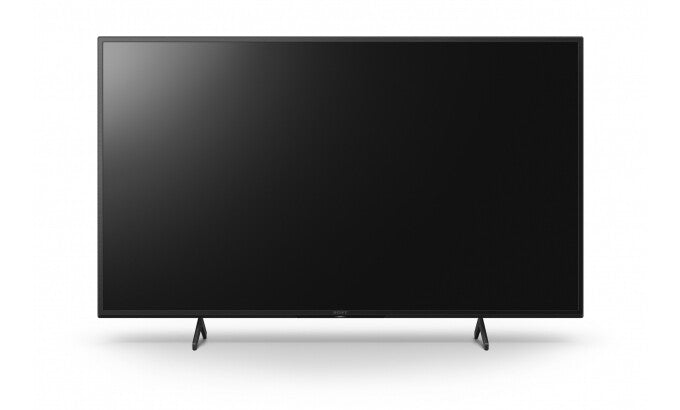

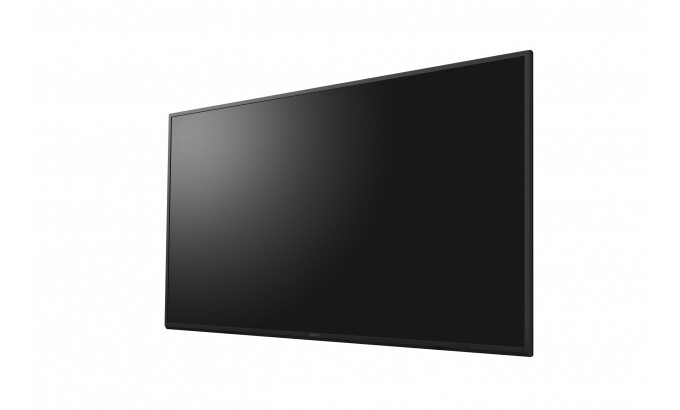

Ideal for digital signage and corporate applications, the slim, easy-to-use FW-43EZ20L Professional Display adds impact to all your visual communications. Very high 4K picture quality with 350 nit screen brightness is complemented by simple setup, content sharing and networked control – ideal for today’s connected AV environments.
Brilliant 4K image quality that’s seen by everyone
Advanced Sony picture processing technologies ensure your content looks its best, while 350 nit panel brightness ensures clear visibility in indoor environments. The display’s wide viewing angle lets everyone in the room enjoy crisp, clear images wherever they’re positioned.
Enjoy finer detail
4K X-Reality PRO upscales pictures closer to true 4K quality. Images are sharpened and refined in real time, revealing extra detail from lower-resolution content.
Vivid, natural color
Live Color technology brings images alive with a brilliant palette of vibrant, natural colors.
Smooth on-screen movement
Motionflow XR ensures smoother, more natural reproduction of rapidly-moving on-screen images.
Great pictures deserve brilliant sound

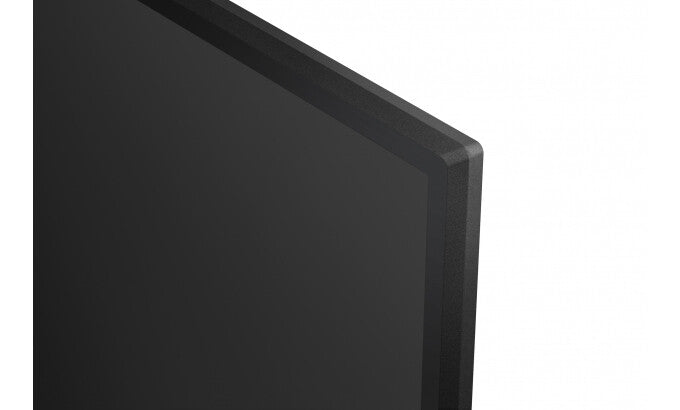

The slim design of FW-43EZ20L incorporates an X-Balanced Speaker™, offering clear voice quality to enhance video conferences and digital signage.
Portrait or landscape installation
Install BRAVIA in portrait or landscape orientation to suit any corporate space.

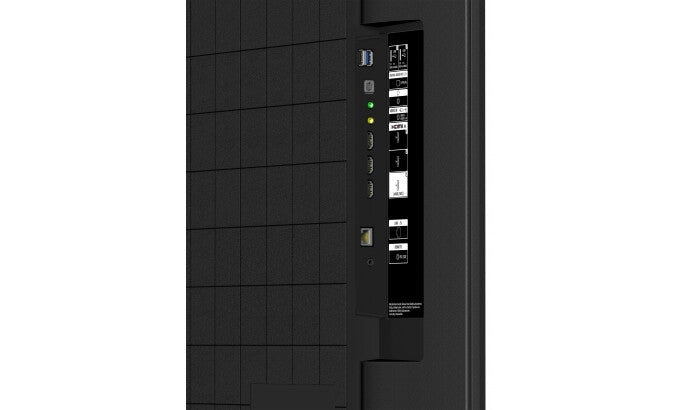

Easy access side-mounted connections
Signal connections, networking and other interfaces are conveniently side mounted for easy installation and access when the display is in portrait position.
Quick, easy setup
Simple Pro Settings allows customization of BRAVIA to suit the demands of any business or retail environment. Schedule power on/off times, select input source on switch on, wake up the display when an input signal’s detected – and more.
Networked control
Remotely control and monitor BRAVIA display functions – like power on/off, input source and volume – over IP networks or using familiar RS-232C protocols.
Signage made simple
Built-in support for HTML5 makes it easy to display interactive signage content on BRAVIA without the need for a dedicated set-top box, media player or PC. The on-board BRAVIA Signage Free (BSF) 2.0 app automatically plays out HTML content, including videos and photos from the display’s internal 16GB storage, or when a USB stick memory is slipped into BRAVIA.
Wireless screen mirroring
Easily mirror content wirelessly from handheld device onto BRAVIA with in-built support for Apple AirPlay and Google Chromecast.
Sustainability in every scene
With growing demand for ever larger display screens, there is also the risk of greater resource and energy use. However, Sony’s sustainability commitments are realizing efficiency gains from product development right through to customers’ viewing screens.
| Display |
|---|
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Haze rate |
1% |
| Motion interpolation technology |
Motionflow XR |
| Display diagonal (metric) |
108 cm |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
400000:1 |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
350 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlighting type |
Direct-LED |
| LED backlight |
Yes |
| Panel type |
IPS |
| Display technology |
LED |
| Display diagonal |
109.2 cm (43") |
| Ports & interfaces |
|---|
| RS-232C |
Yes |
| Audio (L/R) in |
1 |
| Composite video in |
1 |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB ports quantity |
2 |
| USB port |
Yes |
| DVI port |
No |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|

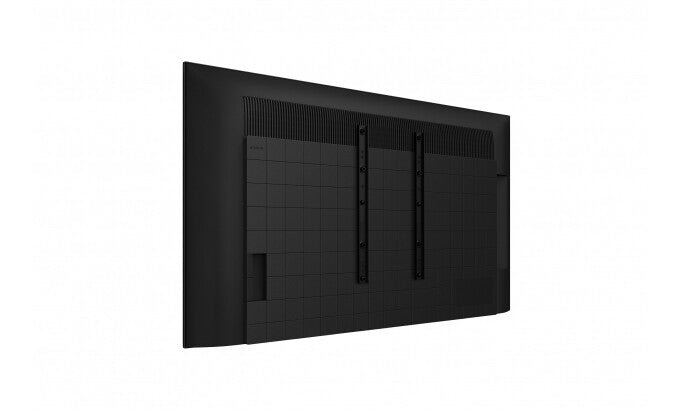

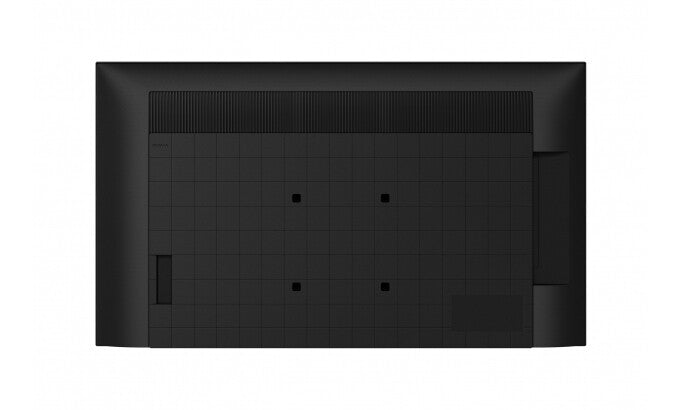

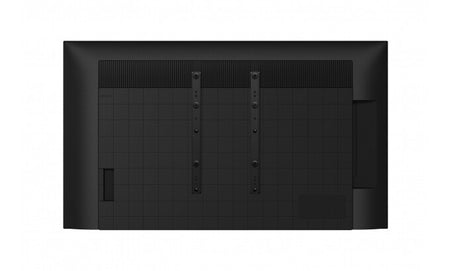

| Panel mounting interface |
200 x 200 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| HDCP |
Yes |
| HDCP version |
2.3 |
| Operating hours (hours/days) |
16/7 |
| Apple AirPlay support |
Yes |
| Purpose |
Commercial |
| Power |
|---|
| Energy efficiency class (SDR) |
G |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
103 W |
| Computer system |
|---|
| Audio formats supported |
AAC, AC4, OGG |
| Video formats supported |
MPEG1, MPEG2-PS, WEBM |
| Operating system installed |
Android |
| Internal storage capacity |
16 GB |
| Computer system |
No |
| Weight & dimensions |
|---|
| Weight (with stand) |
9.8 kg |
| Height (with stand) |
632 mm |
| Depth (with stand) |
286 mm |
| Width (with stand) |
972 mm |
| Display weight |
9.3 kg |
| Display height |
567 mm |
| Display depth |
70 mm |
| Display width |
972 mm |
| Packaging data |
|---|
| Package weight |
12 kg |
| Package height |
695 mm |
| Package depth |
141 mm |
| Package width |
1070 mm |
