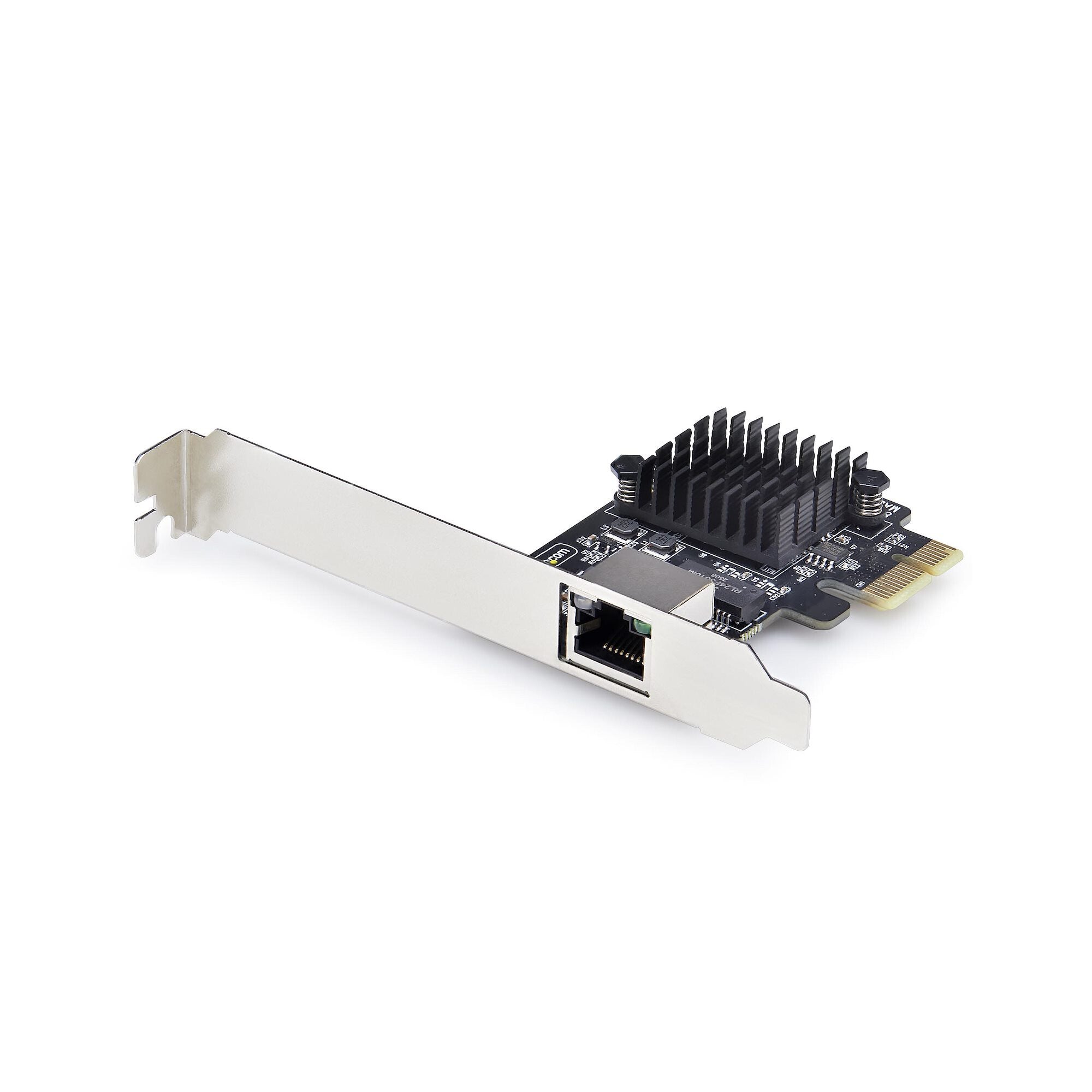

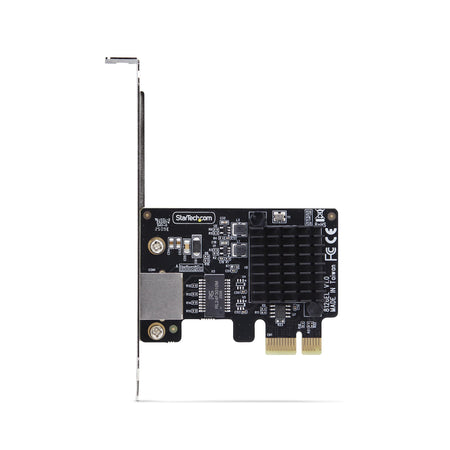

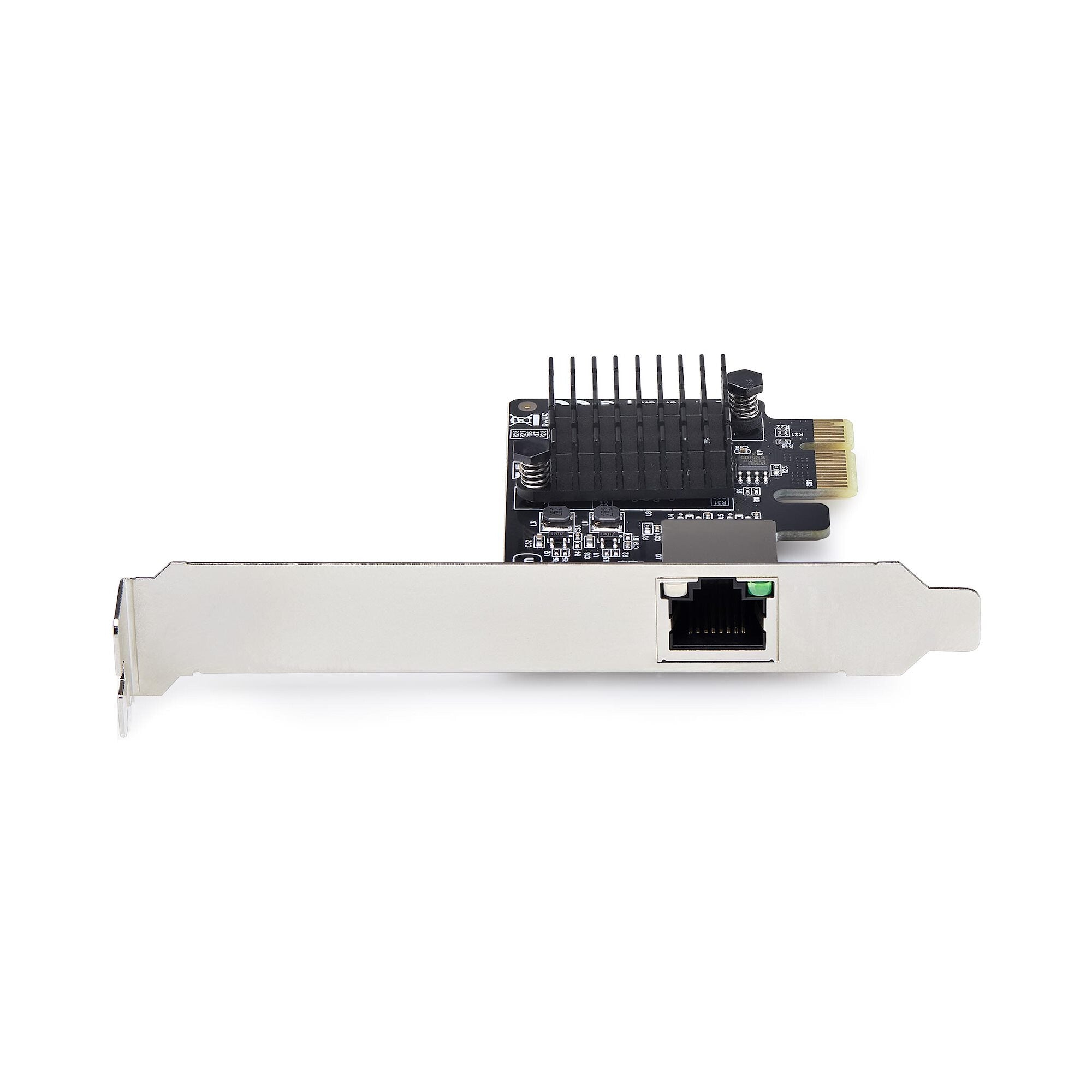

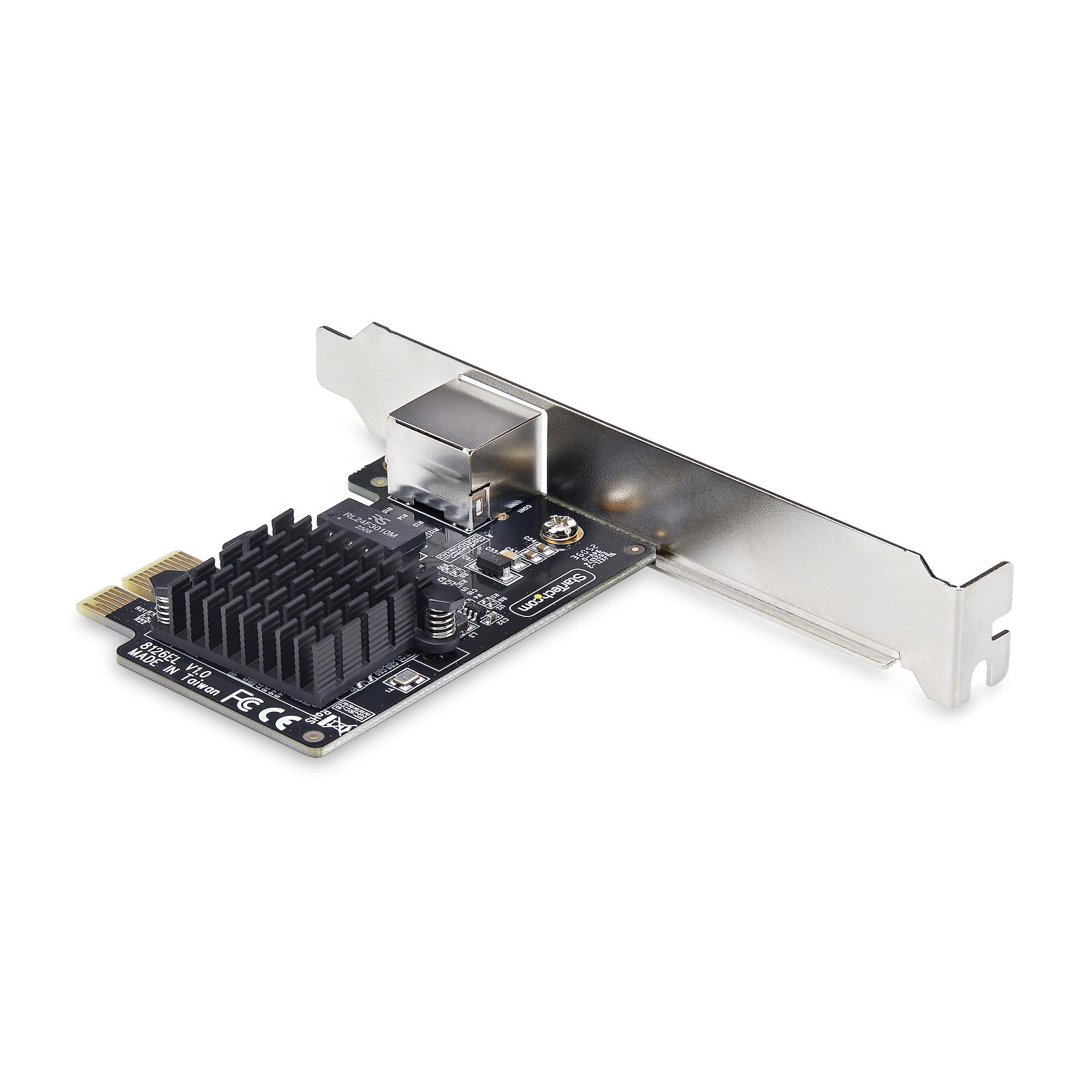

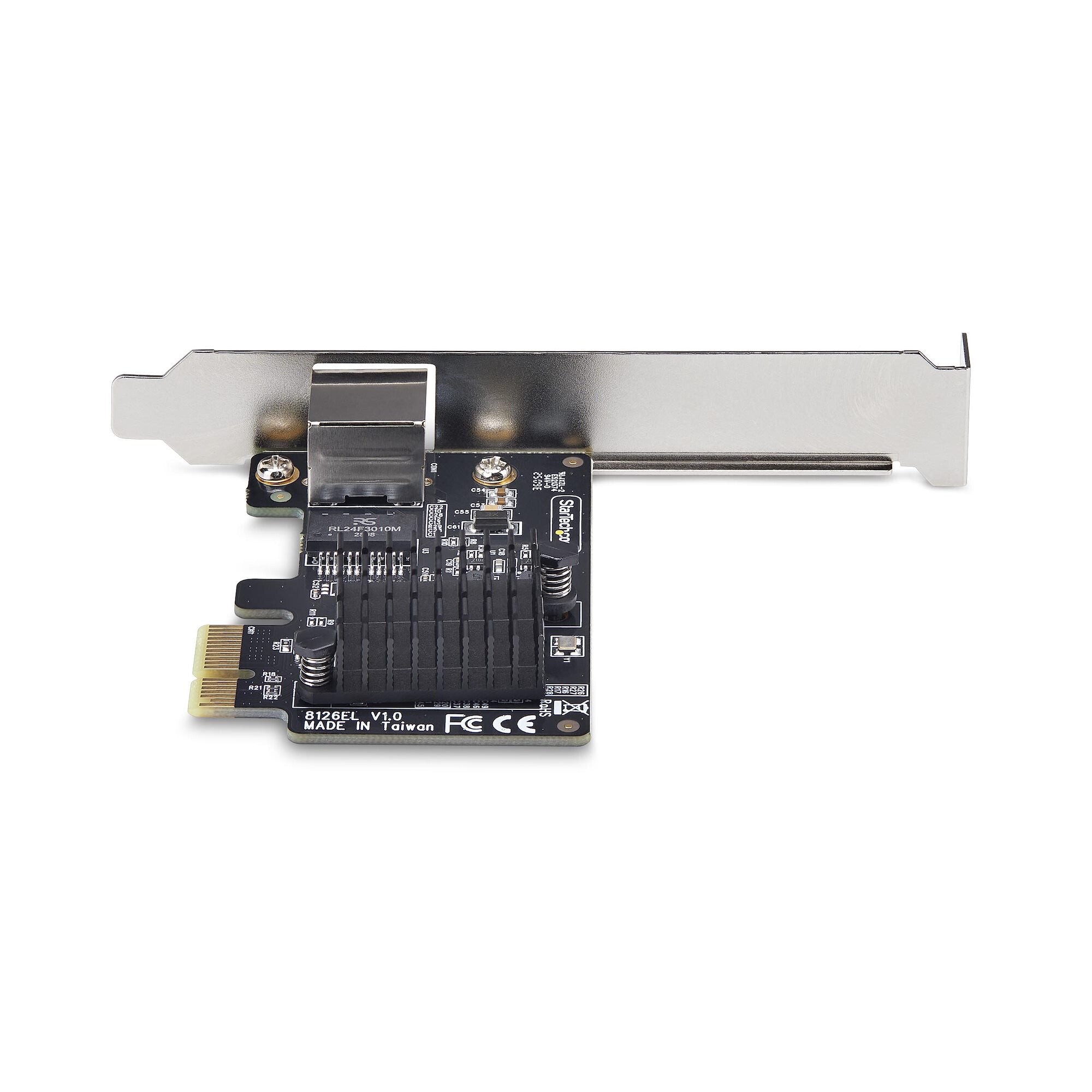

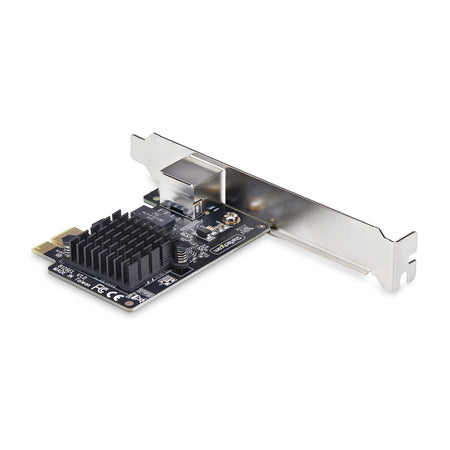

Add a 5 Gbps Ethernet Port to a PCI Express-enabled computer
This TAA-compliant 5G Gigabit Ethernet card with Realtek RTL8126 chip adds a gigabit Ethernet interface to a desktop or server. 2.5G and 5G speeds maximize Cat5e infrastructure, providing multi-Gig performance without cabling upgrades.
Plug And Play Compatible
This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.
Performance and Management
This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.
This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100M/2.5G/5G, and VLANs for streamlined network management. This network card supports virtually any environment, accommodating both the latest and slower legacy network connections. Futureproof your devices by ensuring your system is ready as more devices become 5G compatible.
Universal Fit
The PCI Express NIC includes full-height (pre-installed) and low-profile (accessory in the box) brackets for installation in compact and standard desktops or servers.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Interface |
Ethernet |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Network |
|---|
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Auto MDIX IEEE |
Yes |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500,5000 Mbit/s |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Maximum data transfer rate |
5000 Mbit/s |
| Design |
|---|
| LED indicators |
Speed, Status |
| Chipset |
Realtek RTL8126 |
| Product colour |
Black, Silver |
| Component for |
PC/Server |
| Internal |
Yes |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2019, Windows Server 2022 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-30 - 90 °C |
| Operating temperature (T-T) |
5 - 65 °C |
| Weight & dimensions |
|---|
| Weight |
40.5 g |
| Height |
18 mm |
| Depth |
72 mm |
| Width |
120 mm |
| Packaging data |
|---|
| Package weight |
103.9 g |
| Package height |
30 mm |
| Package depth |
170 mm |
| Package width |
142 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Mounting brackets included |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
75 pc(s) |
| Master (outer) case height |
306 mm |
| Master (outer) case length |
345 mm |
| Master (outer) case width |
685 mm |
