Add an R422/485 serial port to your laptop or desktop computer through USB

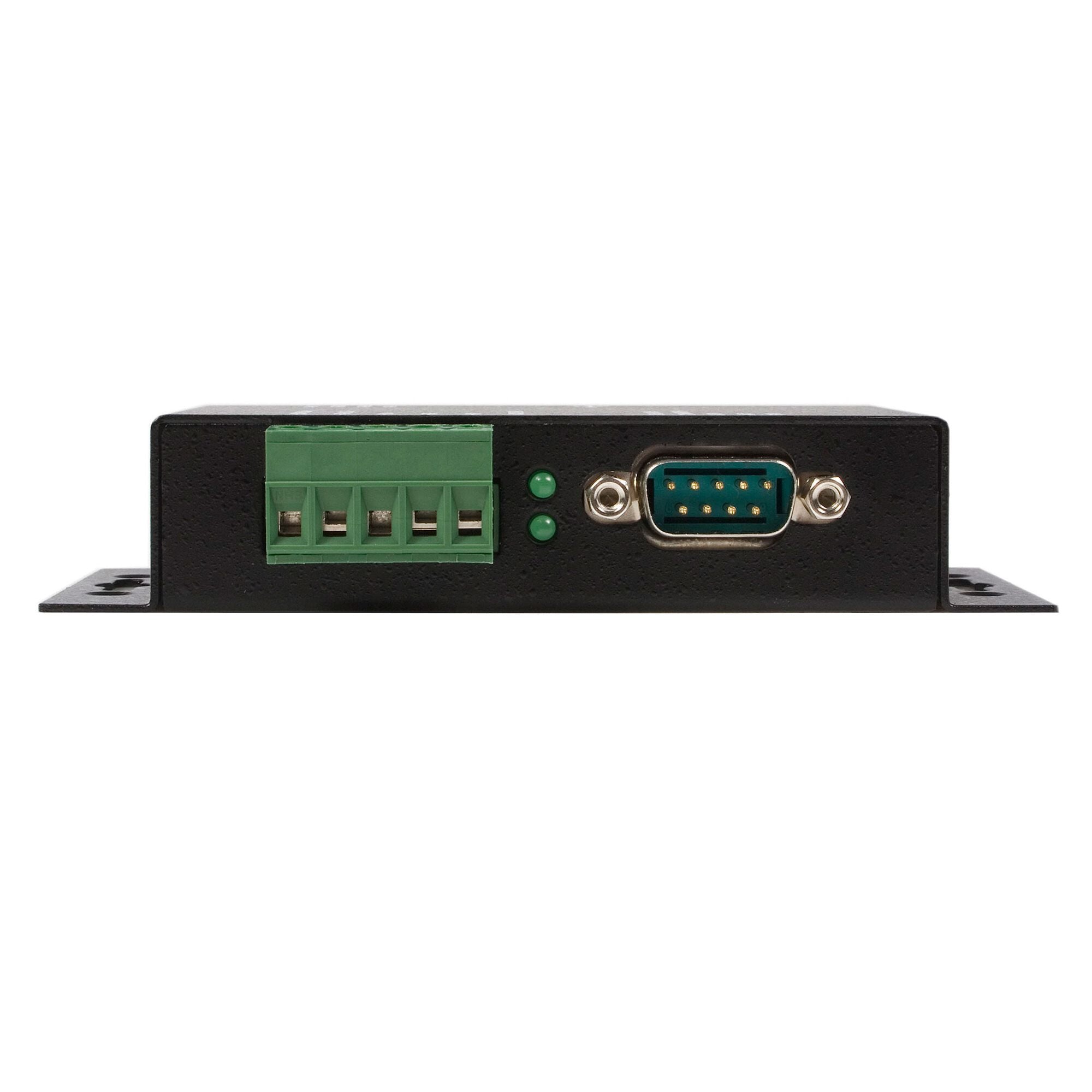

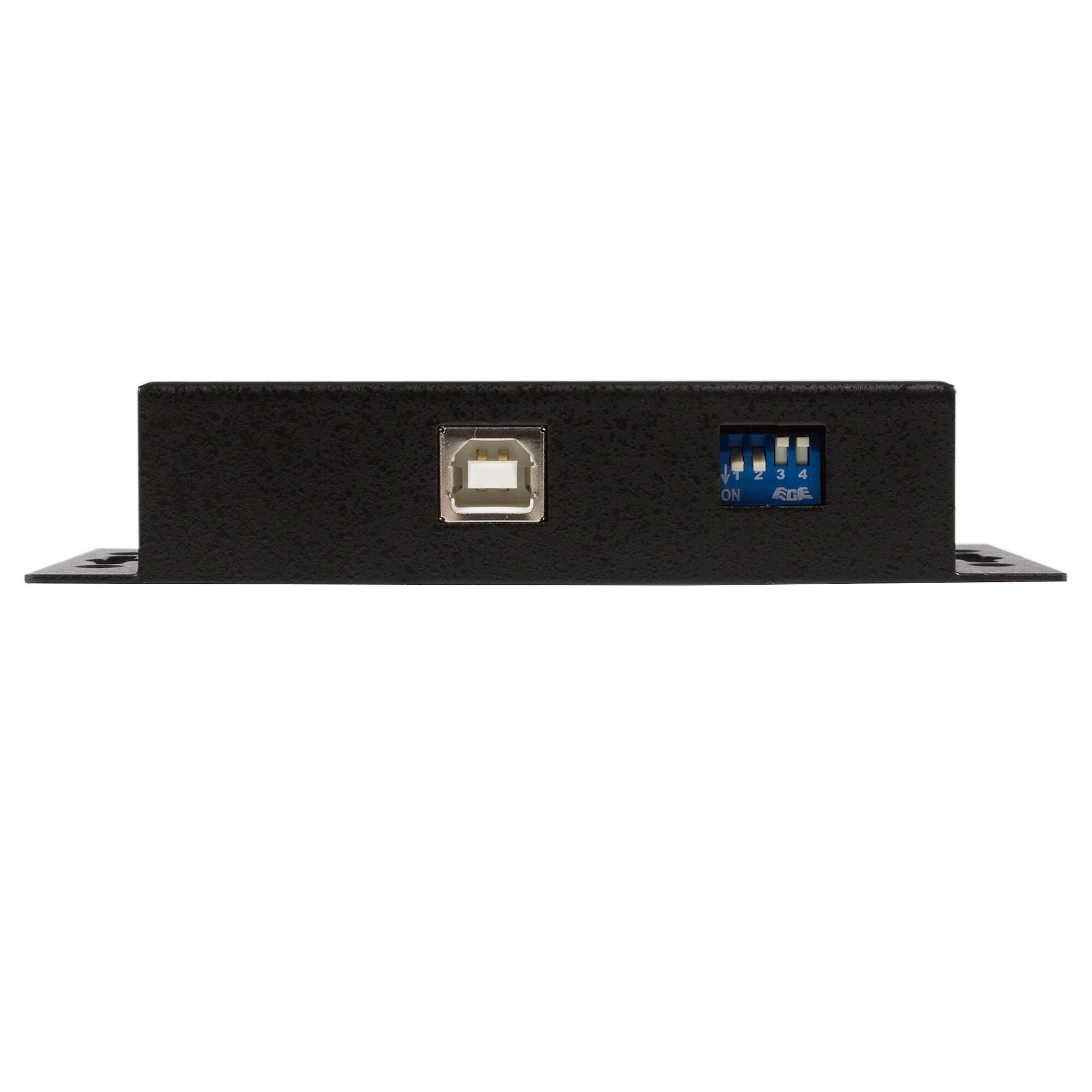

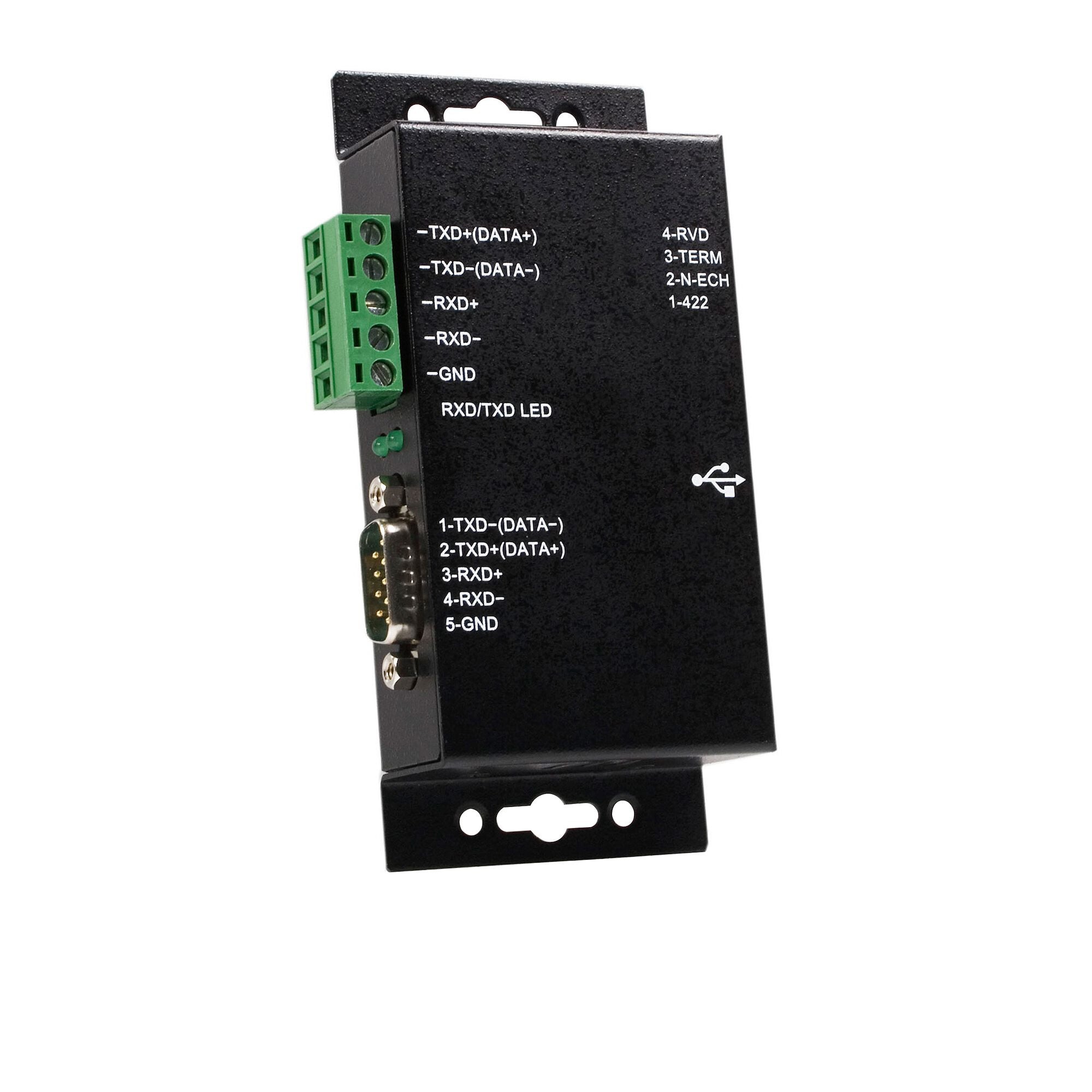

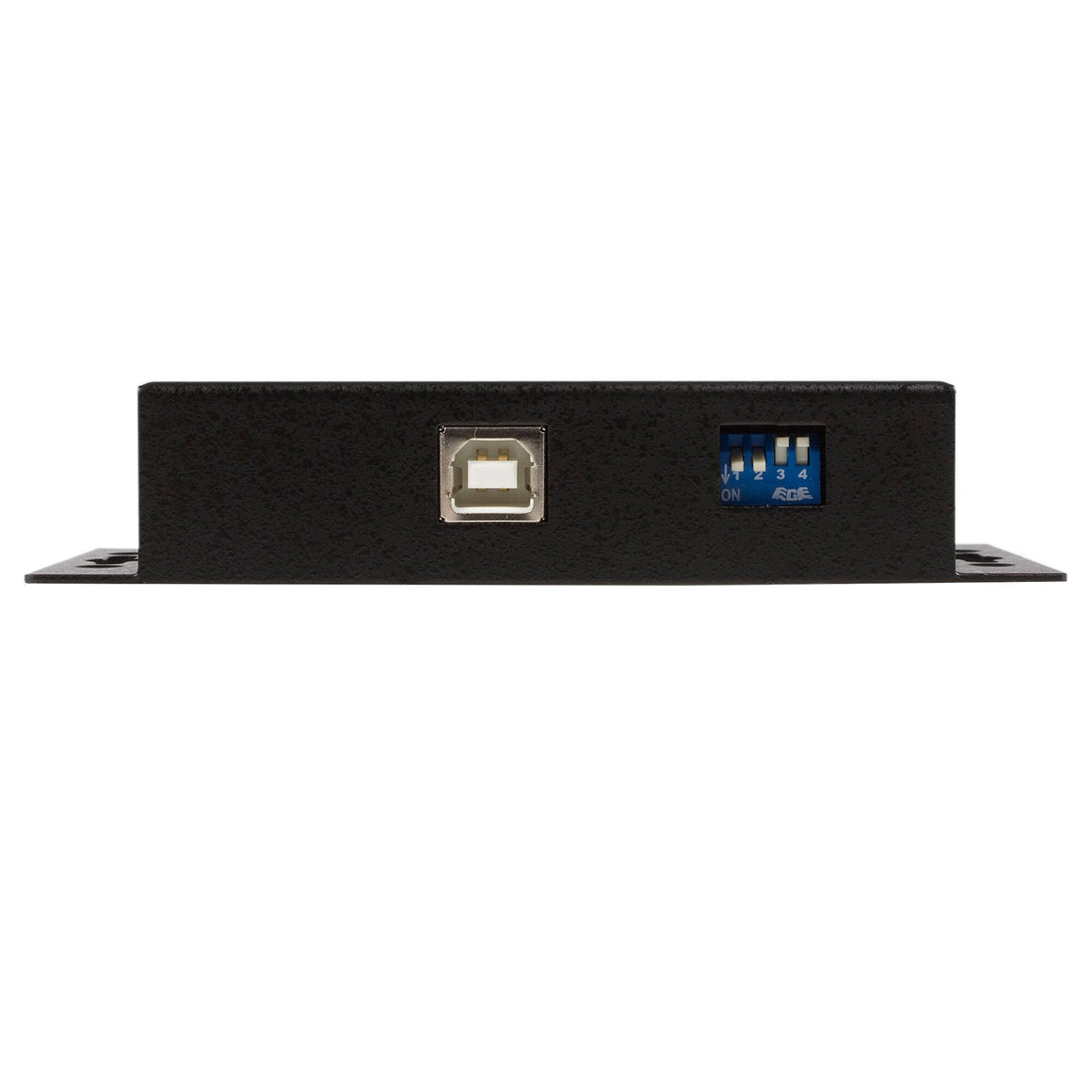

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| Cable length |
1.8 m |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 2 |
RS-422/485 |
| Connector 1 |
USB B |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Relative humidity |
5 - 95% |
| Weight & dimensions |
|---|
| Weight |
180 g |
| Height |
23 mm |
| Depth |
118 mm |
| Width |
64 mm |
| Packaging content |
|---|
| Cables included |
USB |
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
390 g |
| Package height |
160 mm |
| Package depth |
230 mm |
| Package width |
45 mm |
| Logistics data |
|---|
| Master (outer) case height |
511 mm |
| Master (outer) case length |
400 mm |
| Master (outer) case width |
502 mm |
| Products per master (outer) case |
50 pc(s) |
