Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber

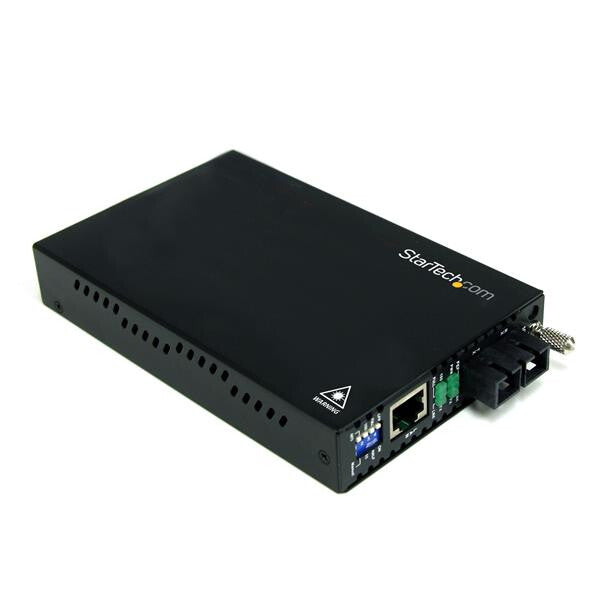

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

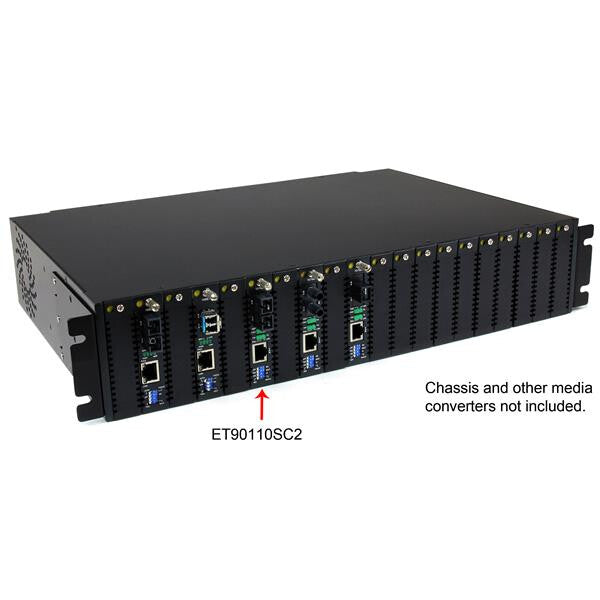

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
| Network |
|---|
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Maximum data transfer rate |
200 Mbit/s |
| Performance |
|---|
| Fiber mode structure |
Multi-mode |
| Wavelength-division multiplexing (WDM) |
No |
| Wavelength |
1310 nm |
| Maximum transfer distance |
2000 m |
| Features |
|---|
| Product colour |
Black |
| Housing material |
Steel |
| Internal |
No |
| Ports & interfaces |
|---|
| Fiber optic connector |
SC |
| Fiber ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Power |
|---|
| Power plug type |
Type M |
| Power over Ethernet (PoE) |
No |
| Output current |
1.6 A |
| Output voltage |
12 V |
| Input voltage |
100 - 240 V |
| Weight & dimensions |
|---|
| Weight |
600 g |
| Height |
24 mm |
| Depth |
153 mm |
| Width |
87 mm |
| Packaging content |
|---|
| Manual |
Yes |
| AC adapter included |
Yes |
| Packaging data |
|---|
| Package weight |
779 g |
| Package height |
77 mm |
| Package depth |
233 mm |
| Package width |
190 mm |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Dimensions (WxDxH) |
95 x 160 x 20 mm |
| Full duplex |
Yes |
