Extend a DisplayPort 1.4 connection or safeguard against port/connector strain

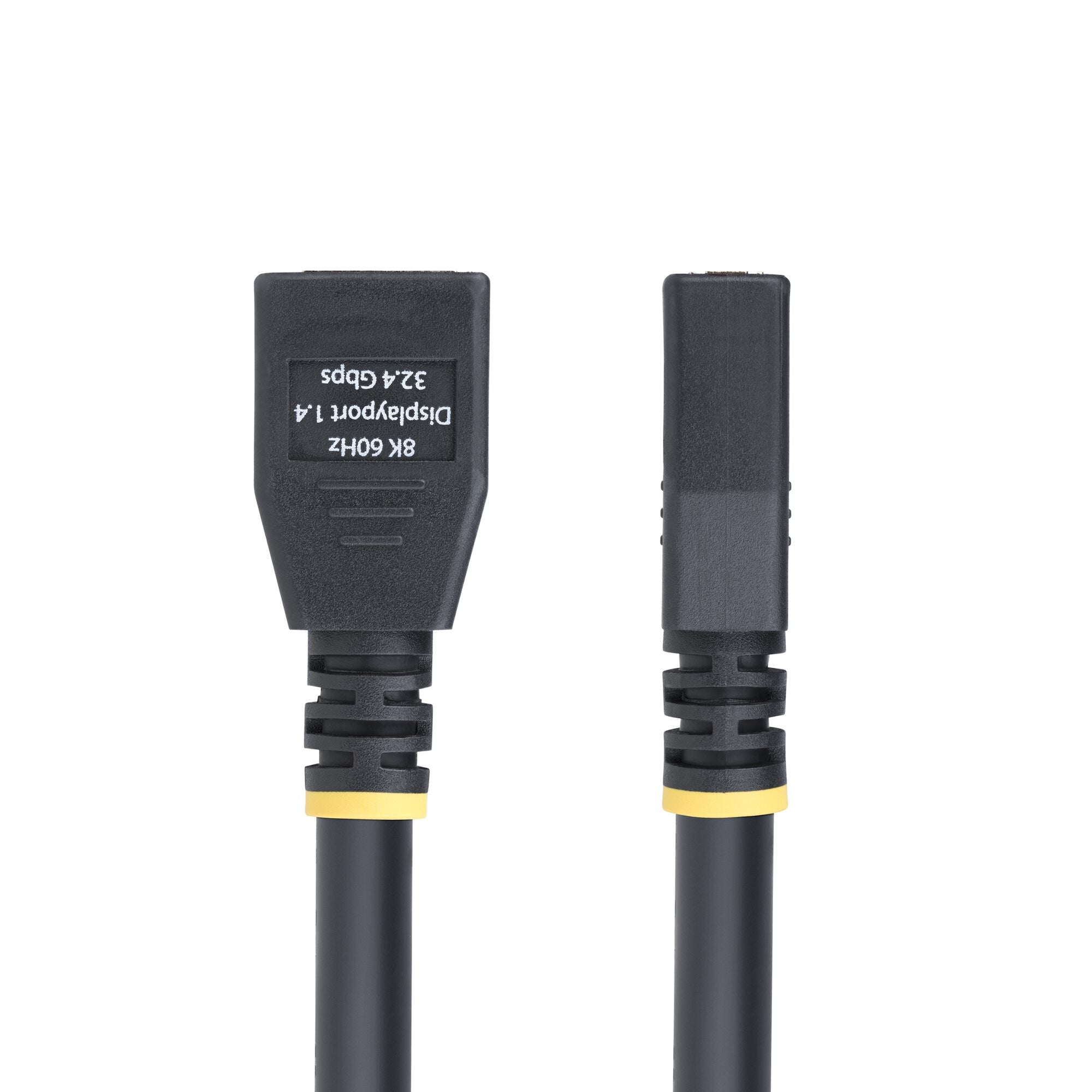

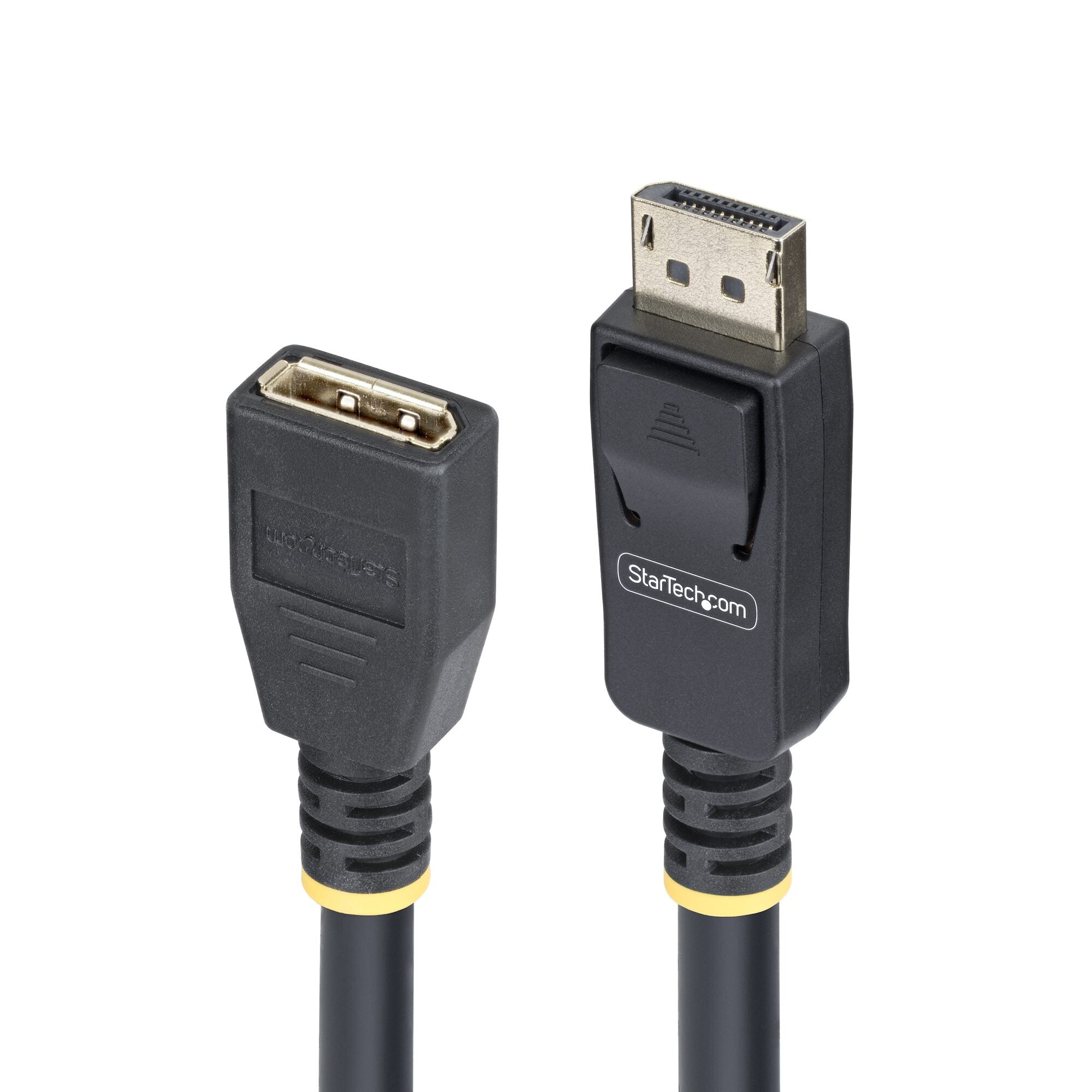

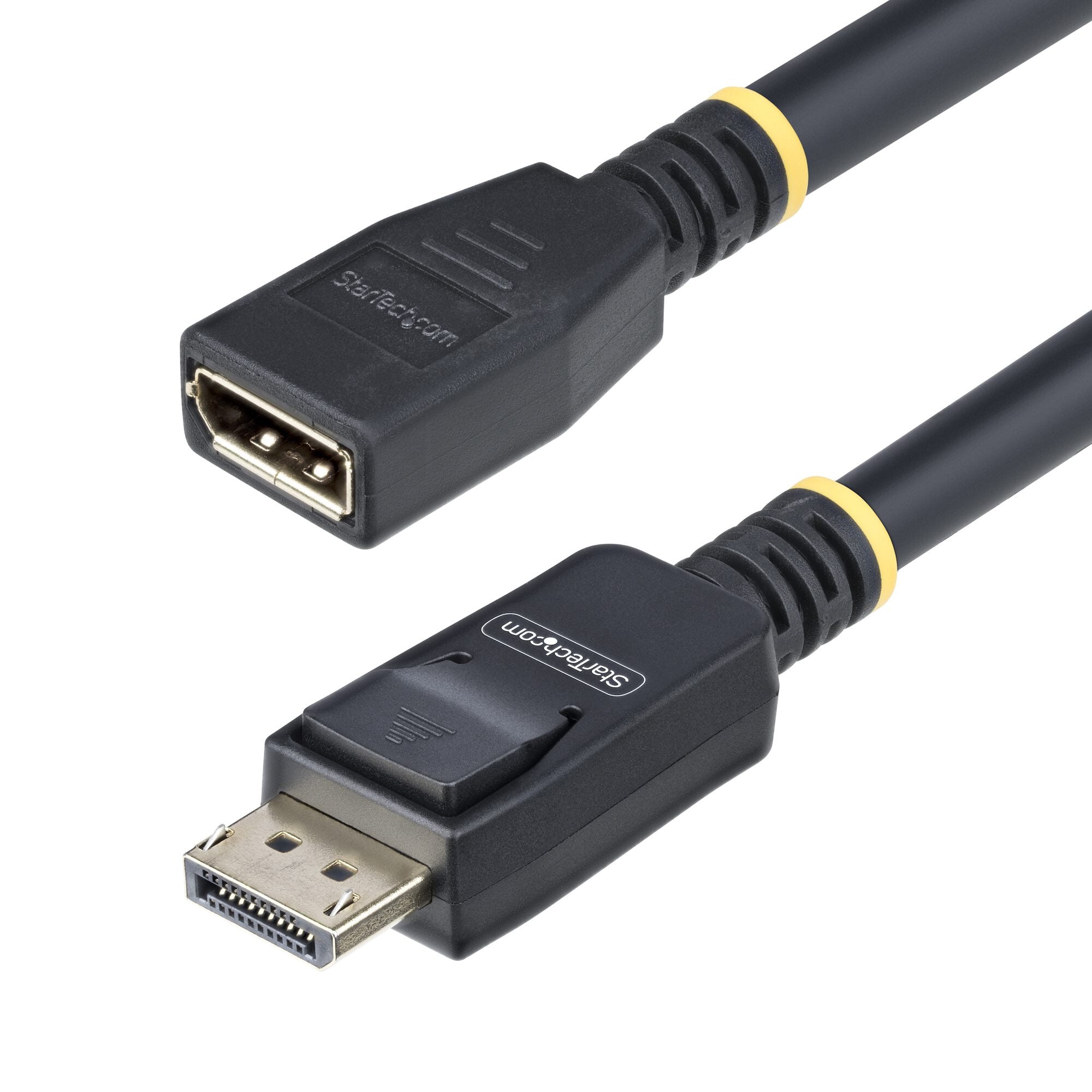

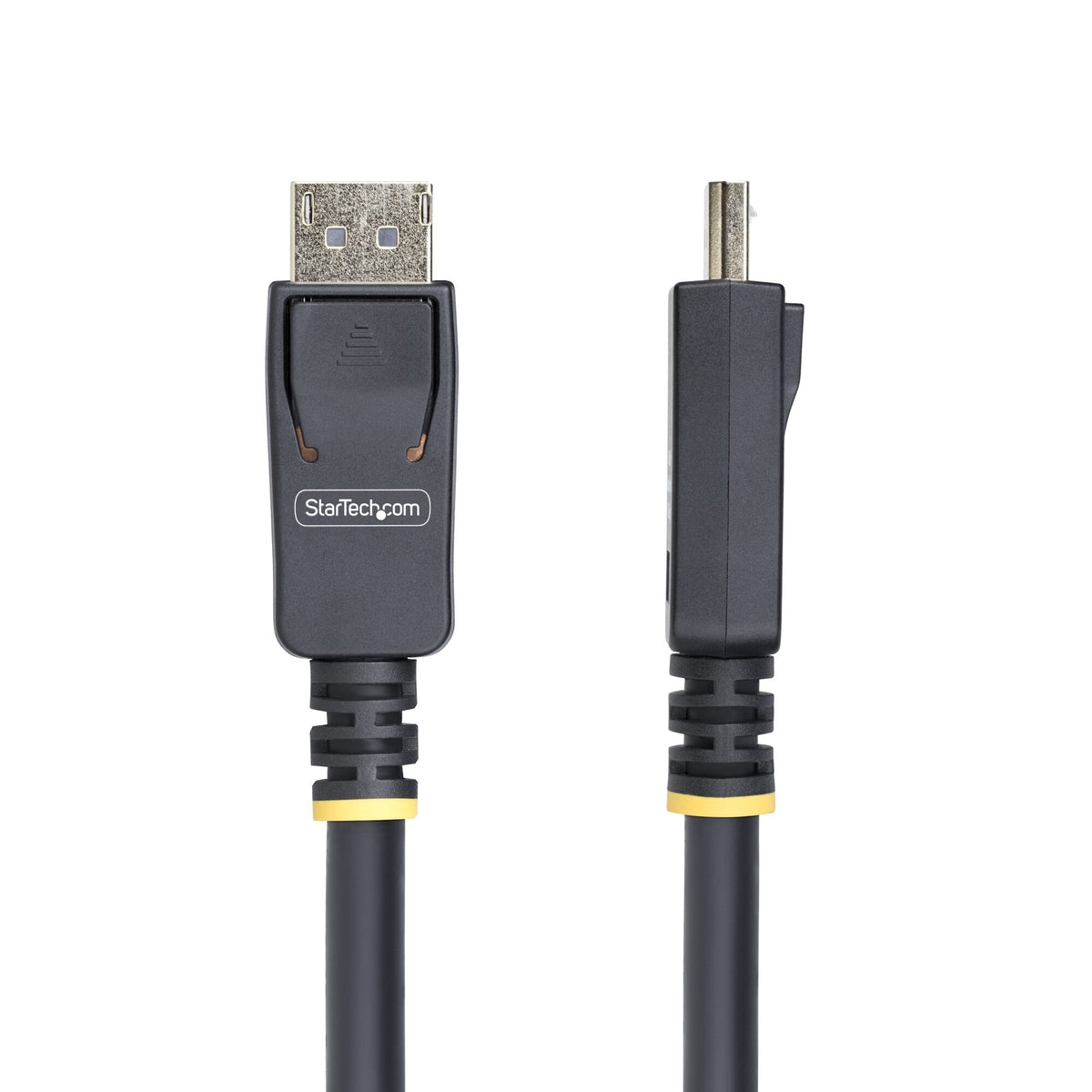

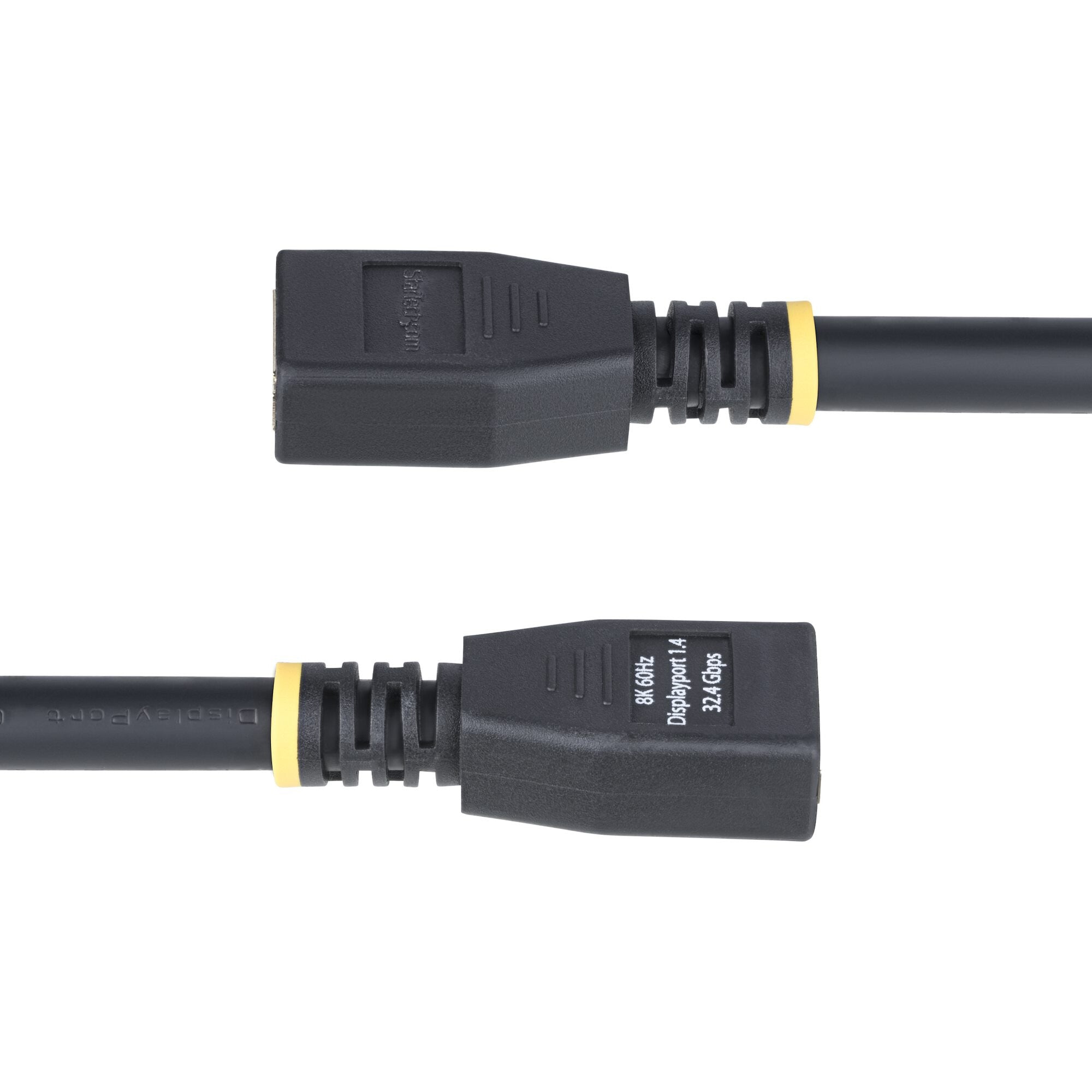

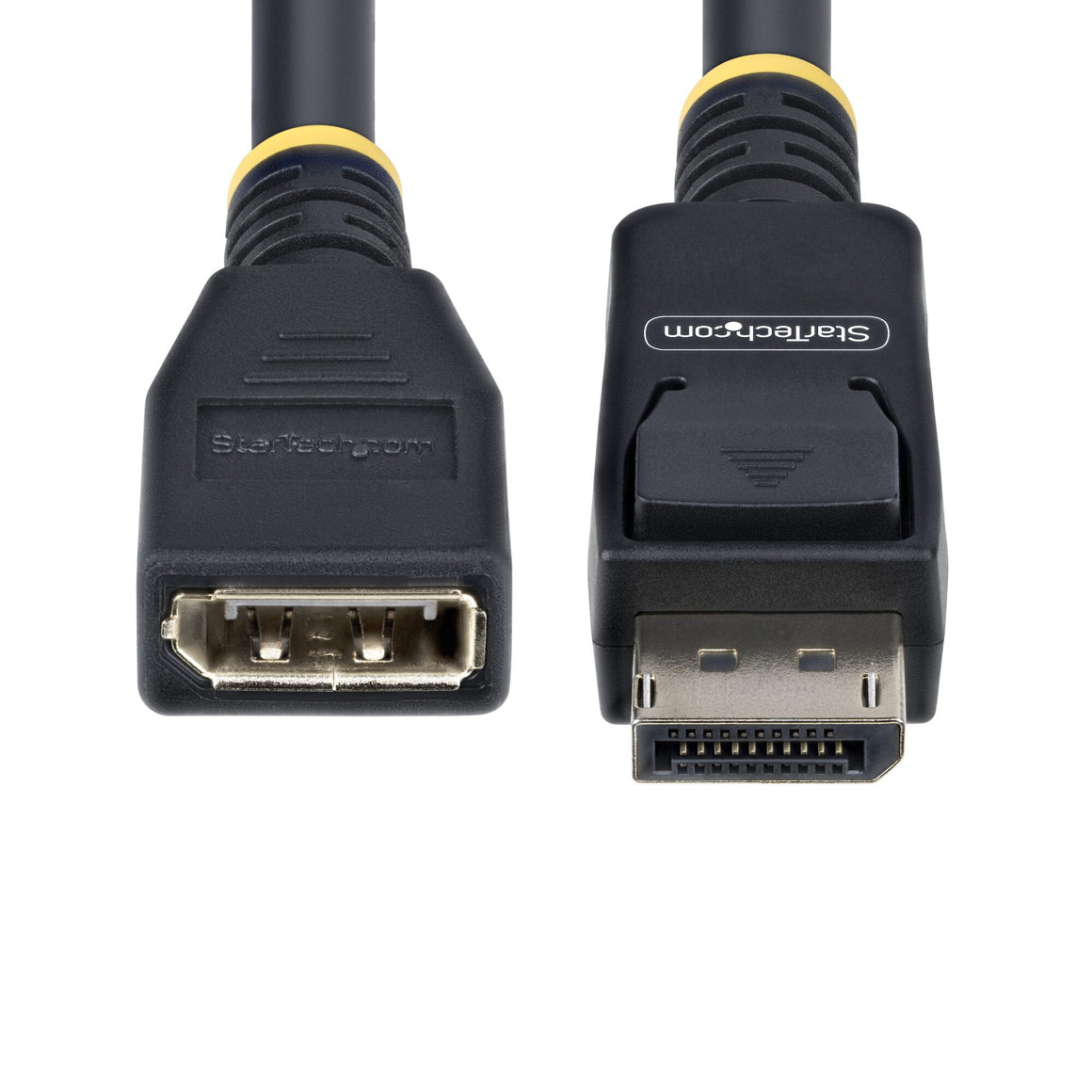

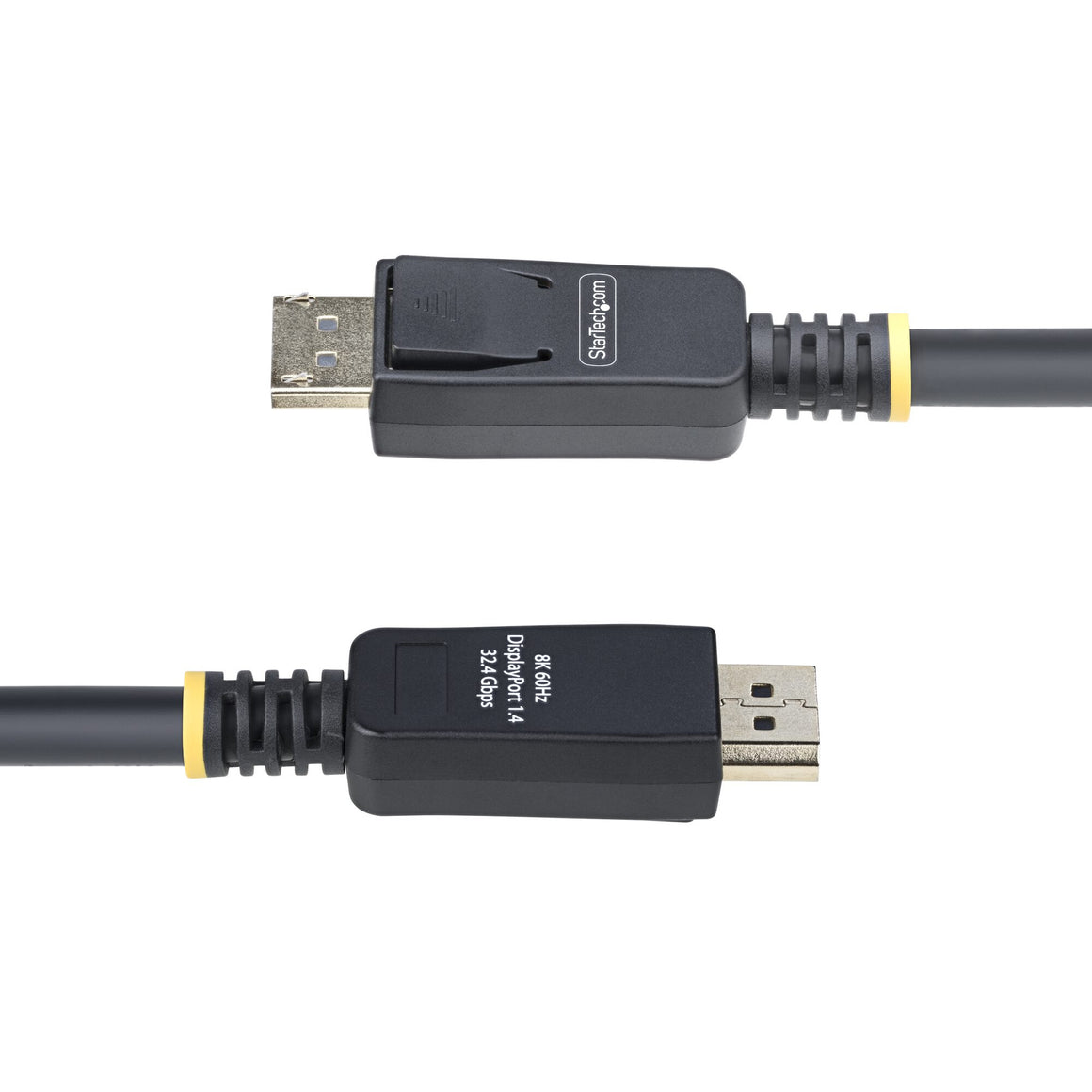

This high quality DisplayPort 1.4 Extension Cable provides extra reach for greater setup versatility, and reduces wear and tear of the DP port on your monitor or other devices. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DisplayPort cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.4 performance.
Full DisplayPort Capability
This male-to-female DisplayPort extension cable supports all DisplayPort 1.4 features:
• Resolutions up to 8K 60Hz or 4K 144Hz
• High speeds with a bandwidth of up to 32.4Gbps
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• High Dynamic Range (HDR) for higher contrast ratio and vivid colors
• Crystal-clear sound with up to 32 digital audio channels
This DisplayPort extension cable is backwards compatible with earlier versions of DisplayPort, ensuring seamless integration with existing DisplayPort devices.
The StarTech.com Advantage
Features |
Fire-resistance rating |
VW-1 |
Multi-Stream Transport (MST) |
Yes |
Bandwidth |
32400 MB/s |
High Dynamic Range (HDR) supported |
Yes |
AWG wire size |
30 |
Jacket material |
Thermoplastic elastomer (TPE) |
Cable shielding |
Aluminum mylar foil |
Cable material |
Copper |
Product colour |
Black |
Maximum refresh rate |
144 Hz |
Supported graphics resolutions |
3840 x 2160, 7680 x 4320 |
Maximum resolution |
7680 x 4320 pixels |
DisplayPort version |
1.4 |
Connector contacts plating |
Gold |
Connector 2 form factor |
Straight |
Connector 1 form factor |
Straight |
Connector 2 gender |
Female |
Connector 1 gender |
Male |
Connector 2 |
DisplayPort |
Connector 1 |
DisplayPort |
Cable length |
3 m |
Operational conditions |
Operating relative humidity (H-H) |
5 - 85% |
Storage temperature (T-T) |
-20 - 70 °C |
Operating temperature (T-T) |
0 - 50 °C |
Certificates |
Compliance certificates |
CE, RoHS |
Sustainability |
Doesn't contain |
Halogen |
Weight & dimensions |
Weight |
240 g |
Cable diameter |
8.4 mm |
Packaging data |
Package weight |
246 g |
Package height |
20 mm |
Package depth |
200 mm |
Package width |
220 mm |
Logistics data |
Products per master (outer) case |
40 pc(s) |
Master (outer) case height |
210 mm |
Master (outer) case length |
320 mm |
Master (outer) case width |
500 mm |
