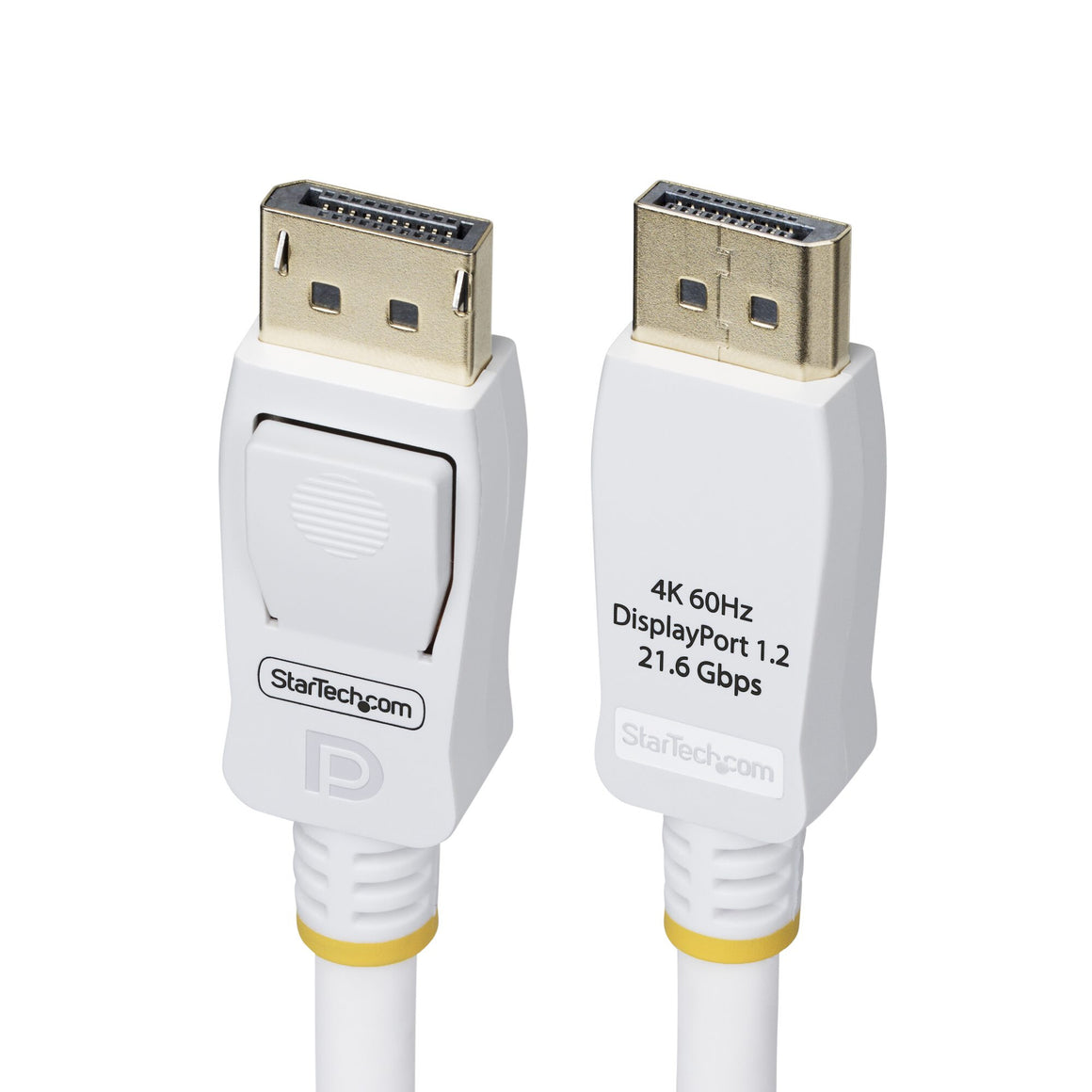

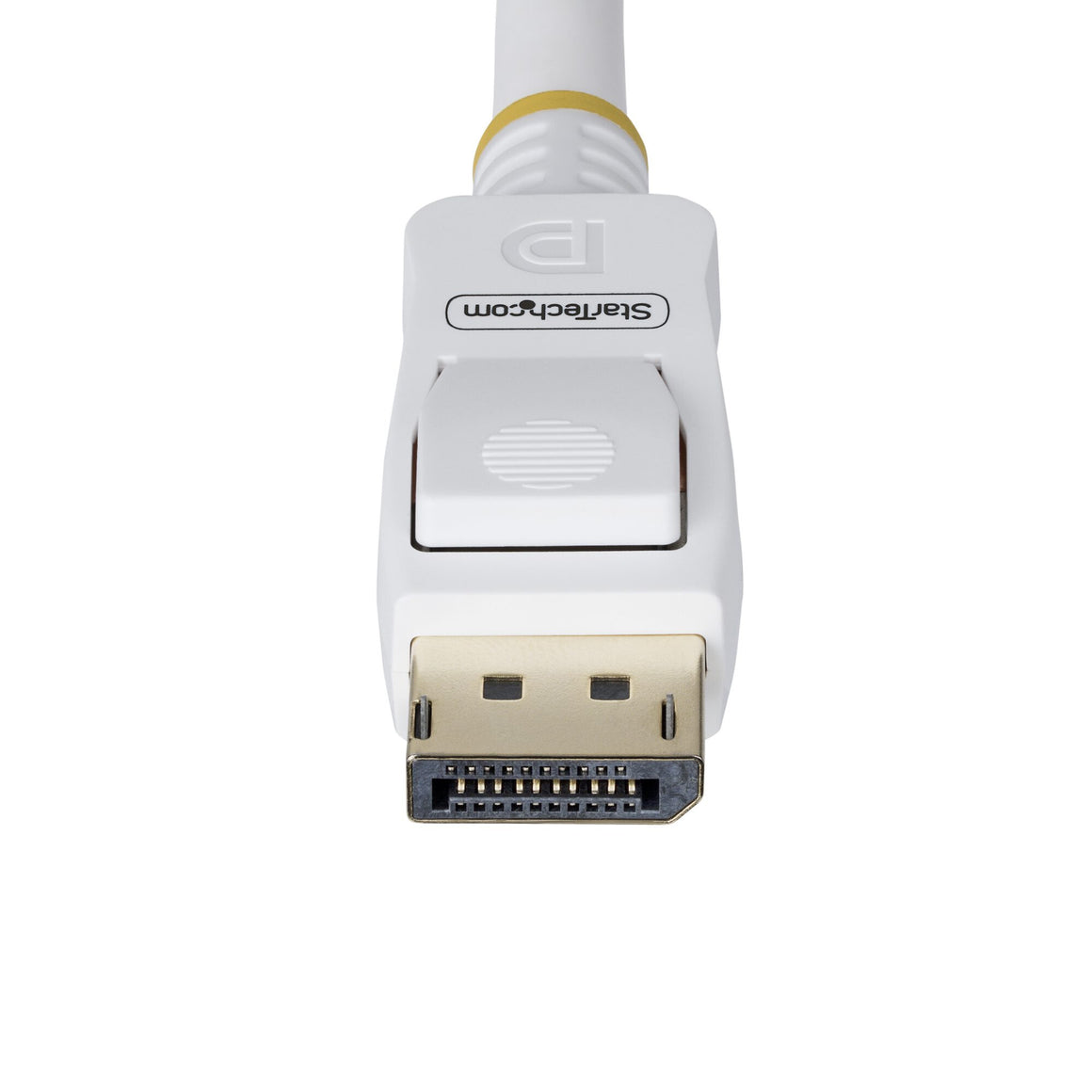

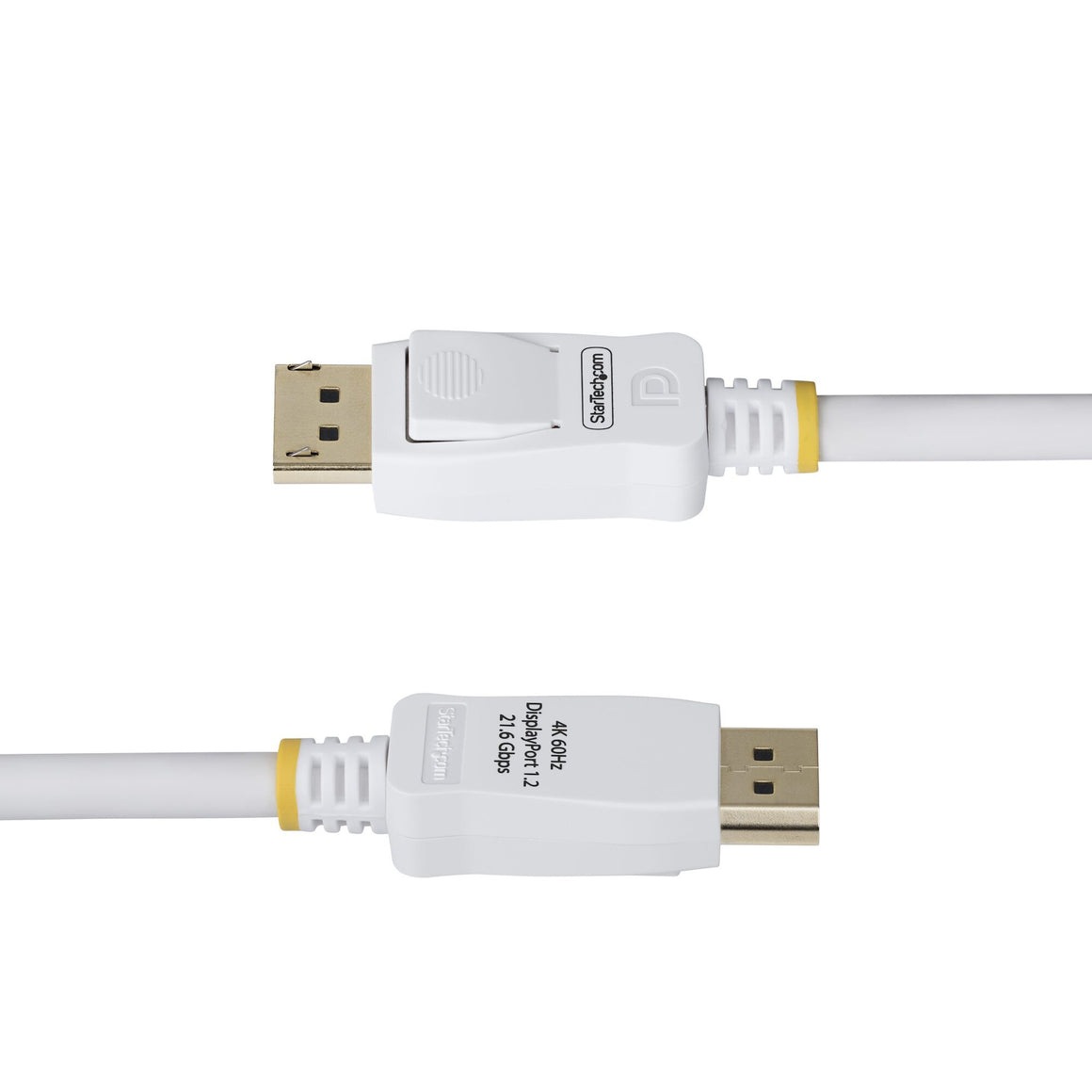

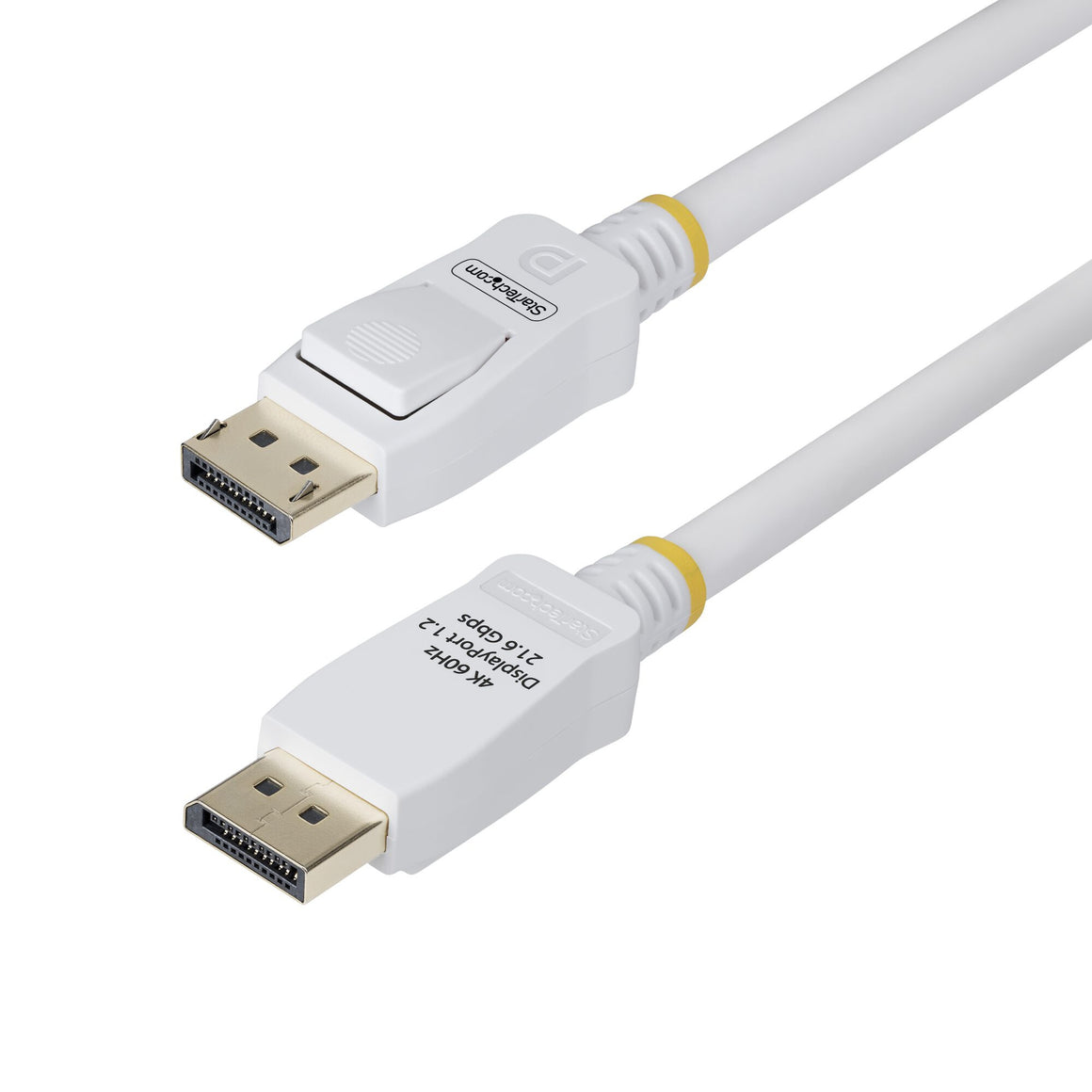

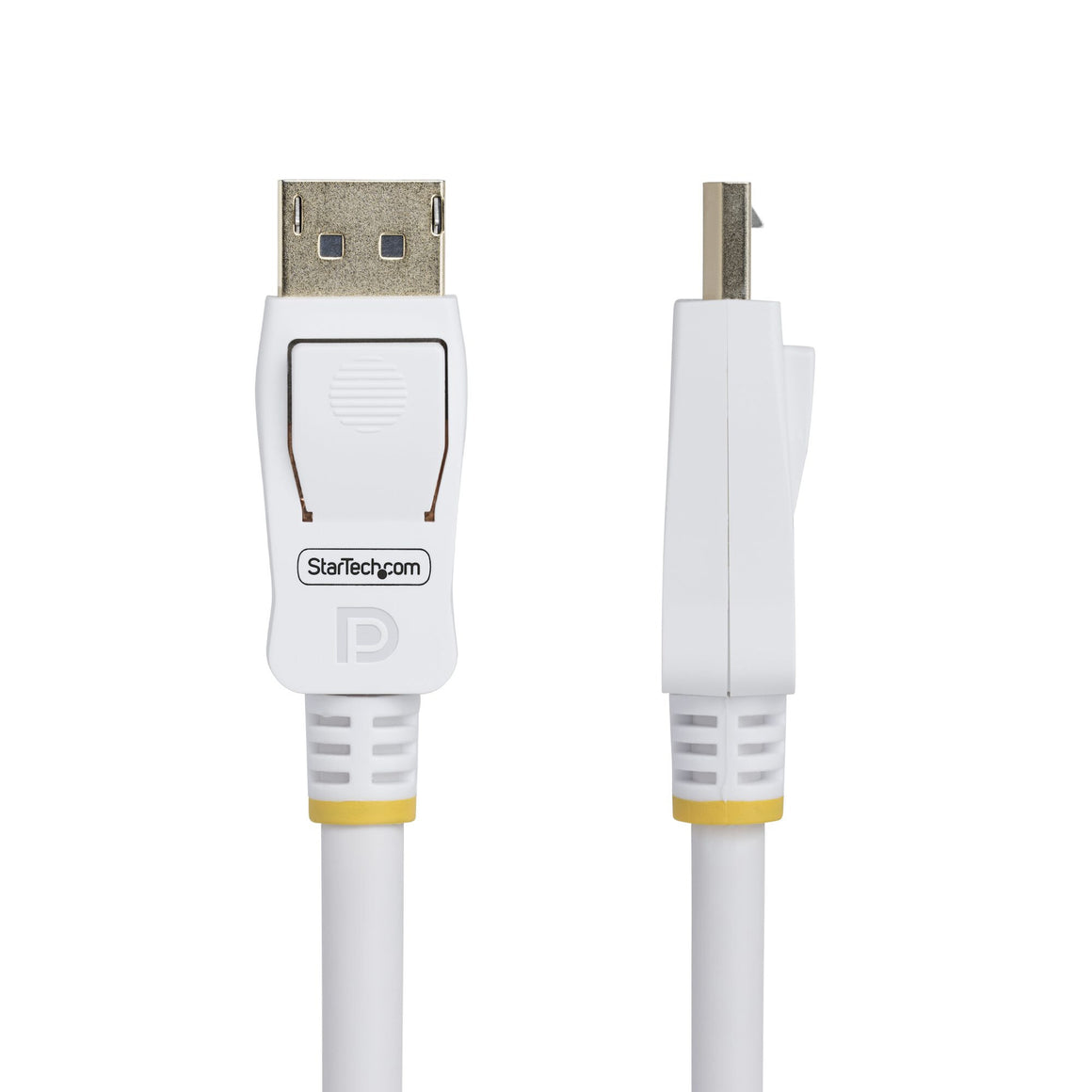

StarTech.com 10ft (3m) White VESA Certified DisplayPort 1.2 Cable, 4K 60Hz, 21.6Gbps, Latching DP Connectors, DP 1.2 DisplayPort Cable, DP Monitor Cord, M/M

SKU: DP12-CABLE-10FTW
Regular price £17.15 inc. VAT
  • HIGH PERFORMANCE: DP 1.2 Cable is designed for UHD-enabled DisplayPort devices; Choose the right DP cable at-a-glance with performance markings on connectors for quick and easy identification; Up to 21.6Gbps for seamless 4K 60Hz video
  • VESA CERTIFIED: DP 1.2 Cable is VESA certified for guaranteed performance and compatibility, ensuring reliable signal consistency and smooth video playback on any DP display; Backward compatible with earlier DP versions
  • QUALITY CONSTRUCTION: Nickel-plated latching DP connectors enable a precise fit and prevents accidental disconnections; Aluminum mylar shield for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant
  • APPLICATIONS: Ideal for 4K UHD displays; Up to 144Hz refresh rate at 1440p resolution; Suitable for high performance GPUs and workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a 4K docking station
  • SPECS: White; 10-foot (3-meter); VESA Certified DisplayPort 1.2; Supports HBR2/MST/HDCP 1.3; 4K 60Hz/1440p 144Hz/1080p 240Hz; 21.6Gbps; 8-ch Audio; Backward Compatible w/DP 1.1; 28AWG; 7.5mm (0.3in) O.D.

Enable seamless 4K 60Hz video using this VESA-Certified DP 1.2 Cable

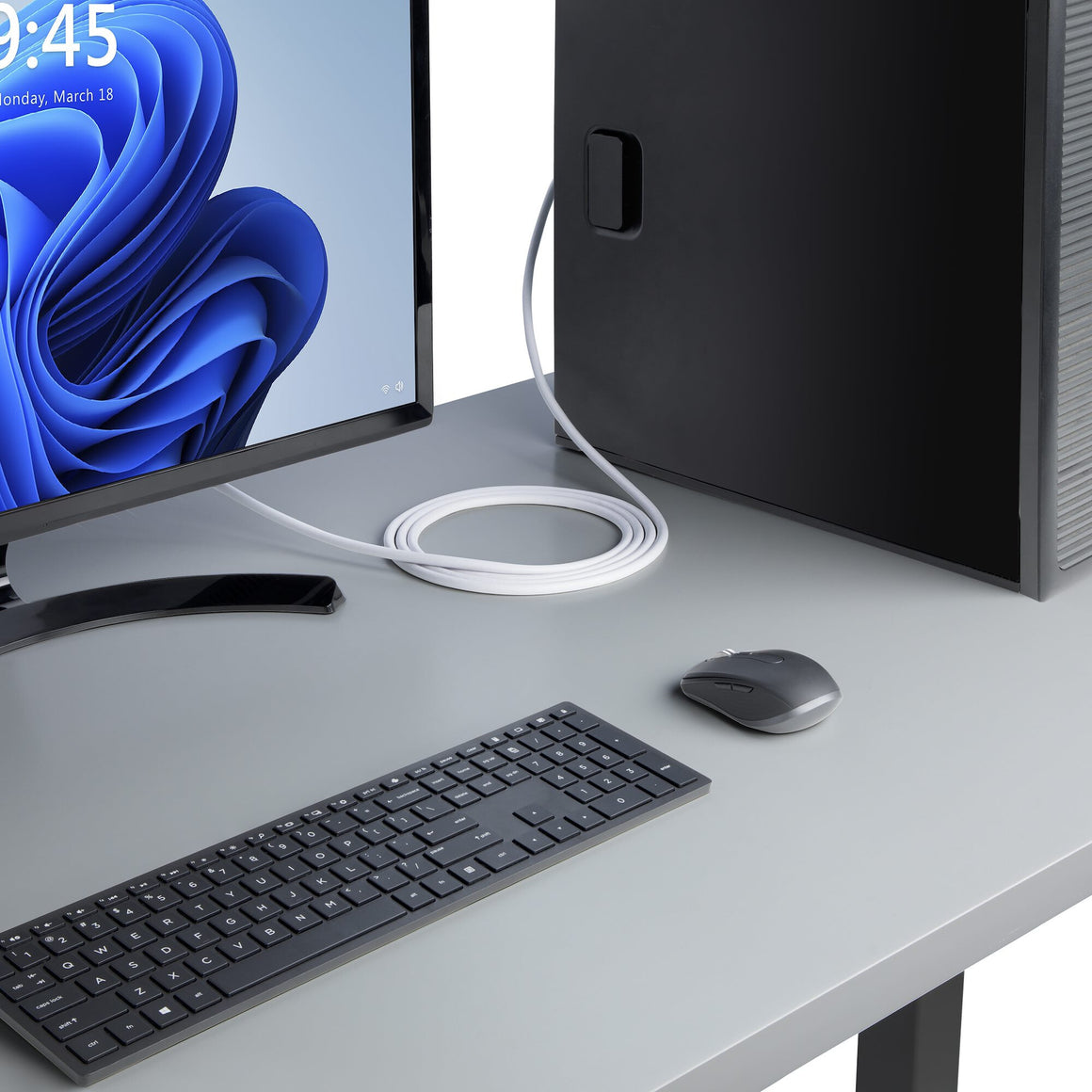

Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.

Durable Design

This DisplayPort cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.

Supported DisplayPort 1.2 Features:

This DisplayPort cable supports full DP 1.2 features:

• Resolutions up to 4K 60Hz using a compatible DP source and display
• 21.6Gbps bandwidth supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 1.3 for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Up to 8 Uncompressed Digital Audio Channels
• 3D Stereo support for 3D video formats
• Backward compatible with previous DP versions

This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

The StarTech.com Advantage

Features
Number of conductors 19
Fire-resistance rating VW-1
Cable type Round cable
Multi-Stream Transport (MST) Yes
Channels quantity 7.1 channels
Data transfer rate 21.6 Gbit/s
AWG wire size 28
Cable shielding Aluminum mylar foil
Product colour White
Latching connectors Yes
HDCP version 1.3
HDCP Yes
Maximum refresh rate 240 Hz
Supported video modes 1080p, 1440p, 2160p
Supported graphics resolutions 2560 x 1440, 4096 x 2160, 1920 x 1080 (HD 1080)
Maximum resolution 4096 x 2160 pixels
DisplayPort version 1.2
Connector contacts plating Nickel
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 DisplayPort
Connector 1 DisplayPort
Cable length 3 m
Operational conditions
Operating relative humidity (H-H) 5 - 85%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 192 g
Cable diameter 7.5 mm
Packaging data
Package weight 200 g
Package height 20 mm
Package depth 200 mm
Package width 220 mm
Logistics data
Products per master (outer) case 40 pc(s)
Master (outer) case height 210 mm
Master (outer) case length 320 mm
Master (outer) case width 500 mm
