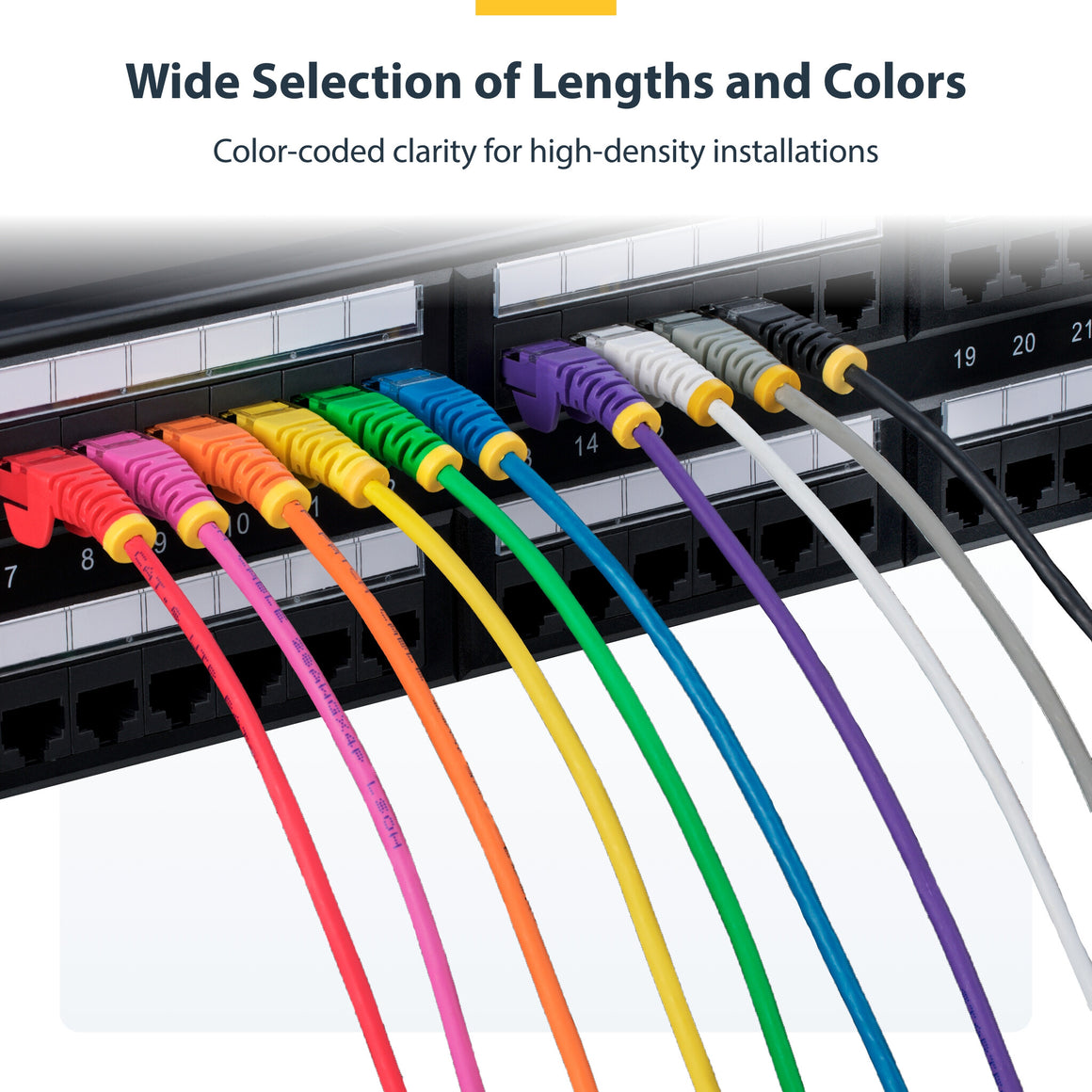

Route Slim Cat6 cables through high density installations for optimal flexibility and airflow

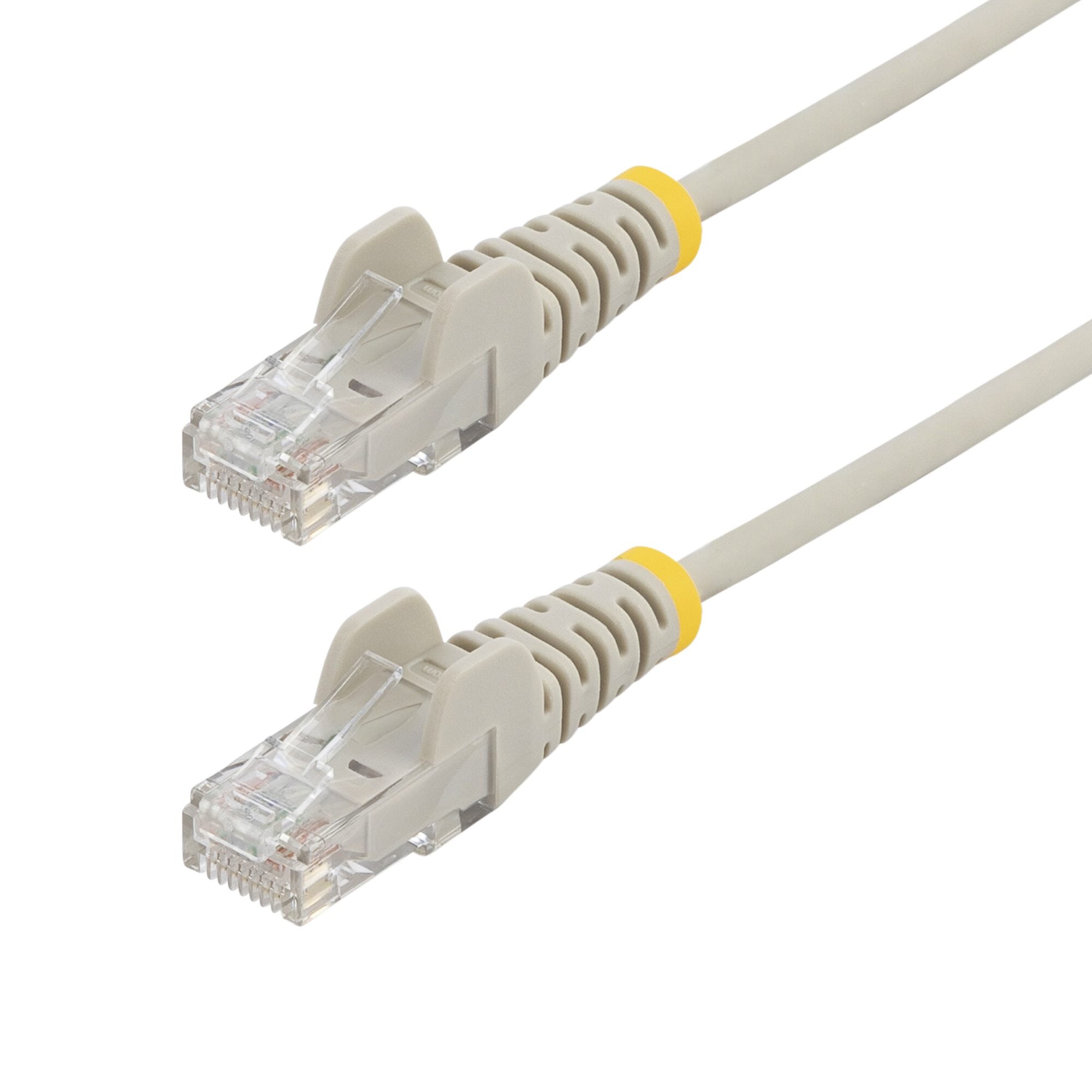

This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.
Improved Airflow

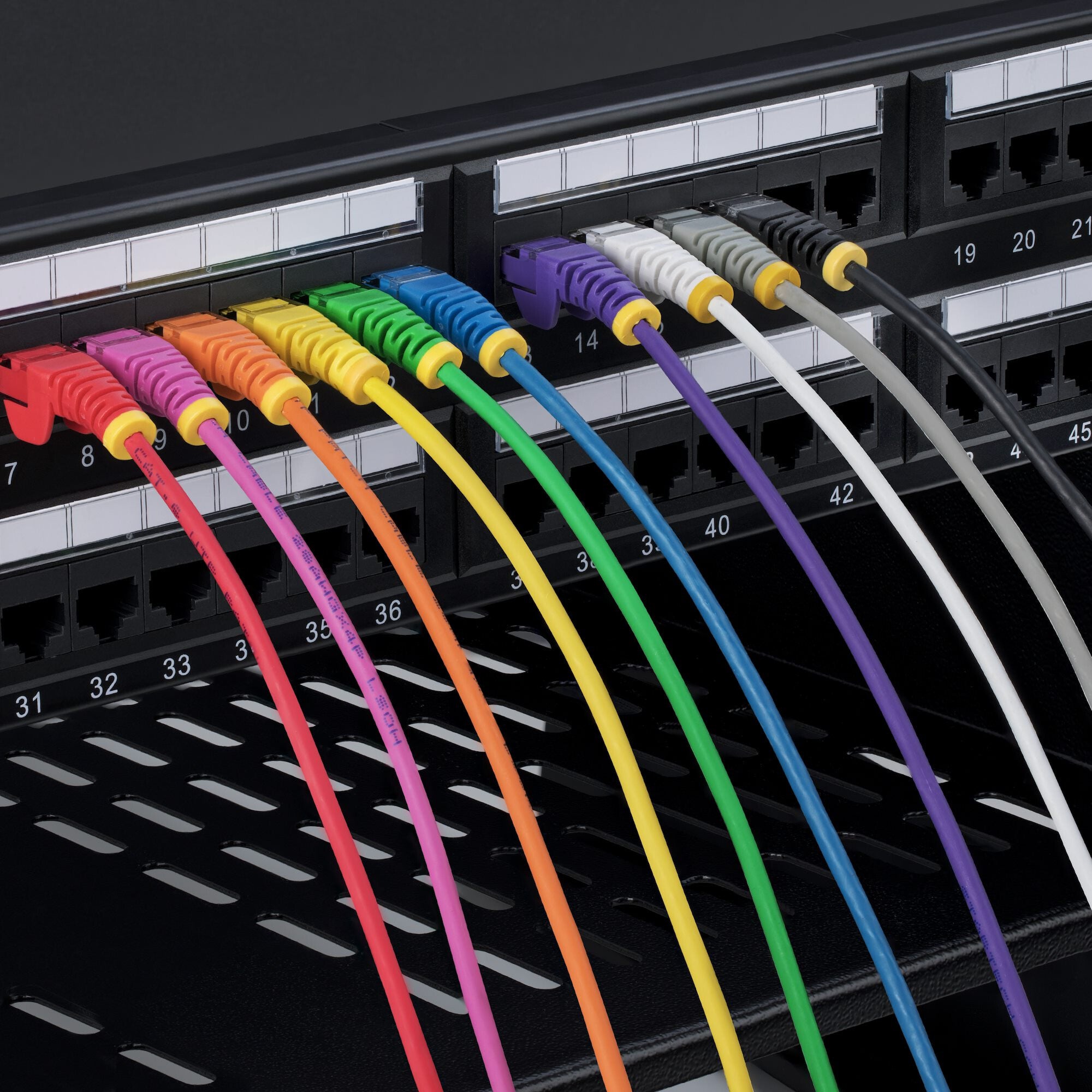

The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.

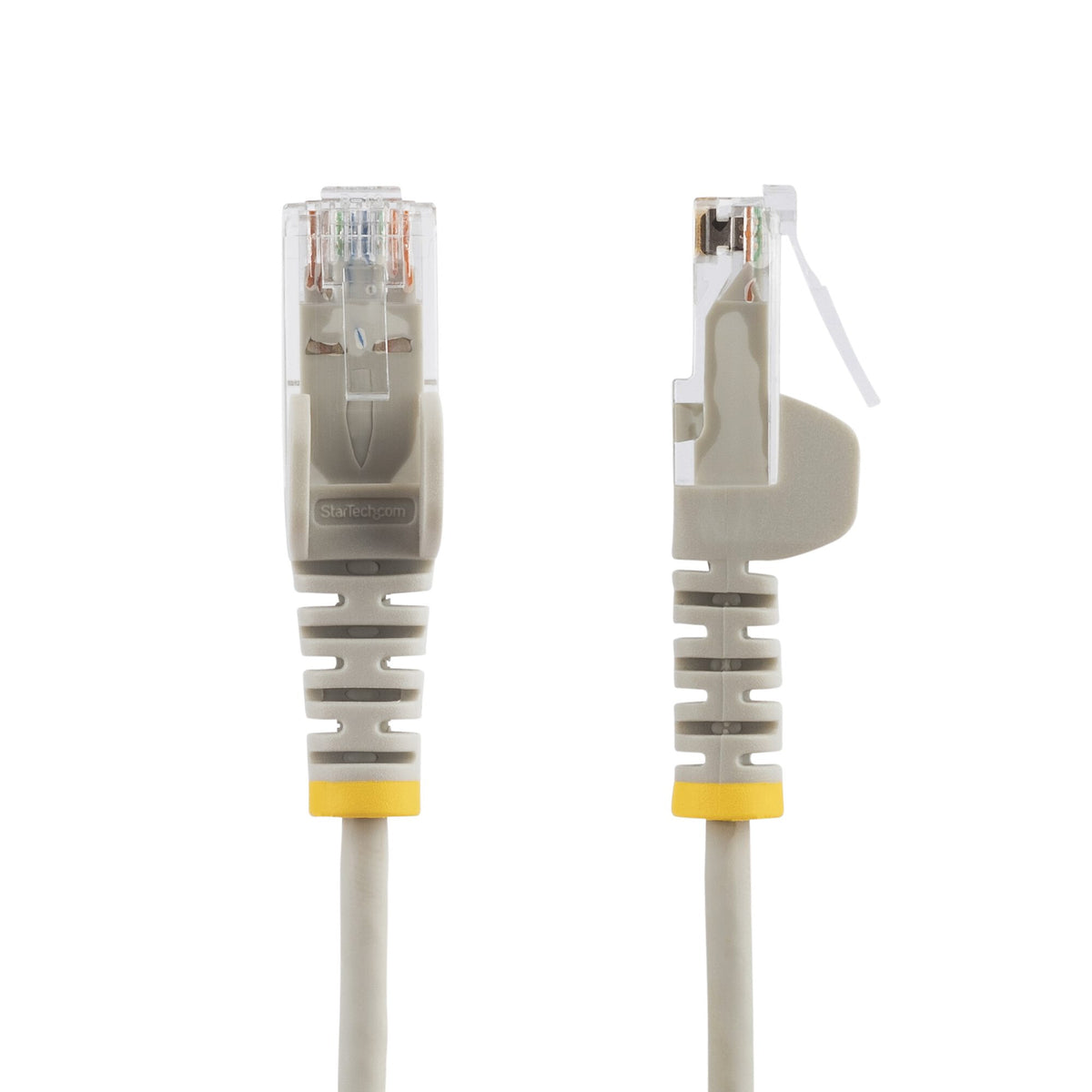

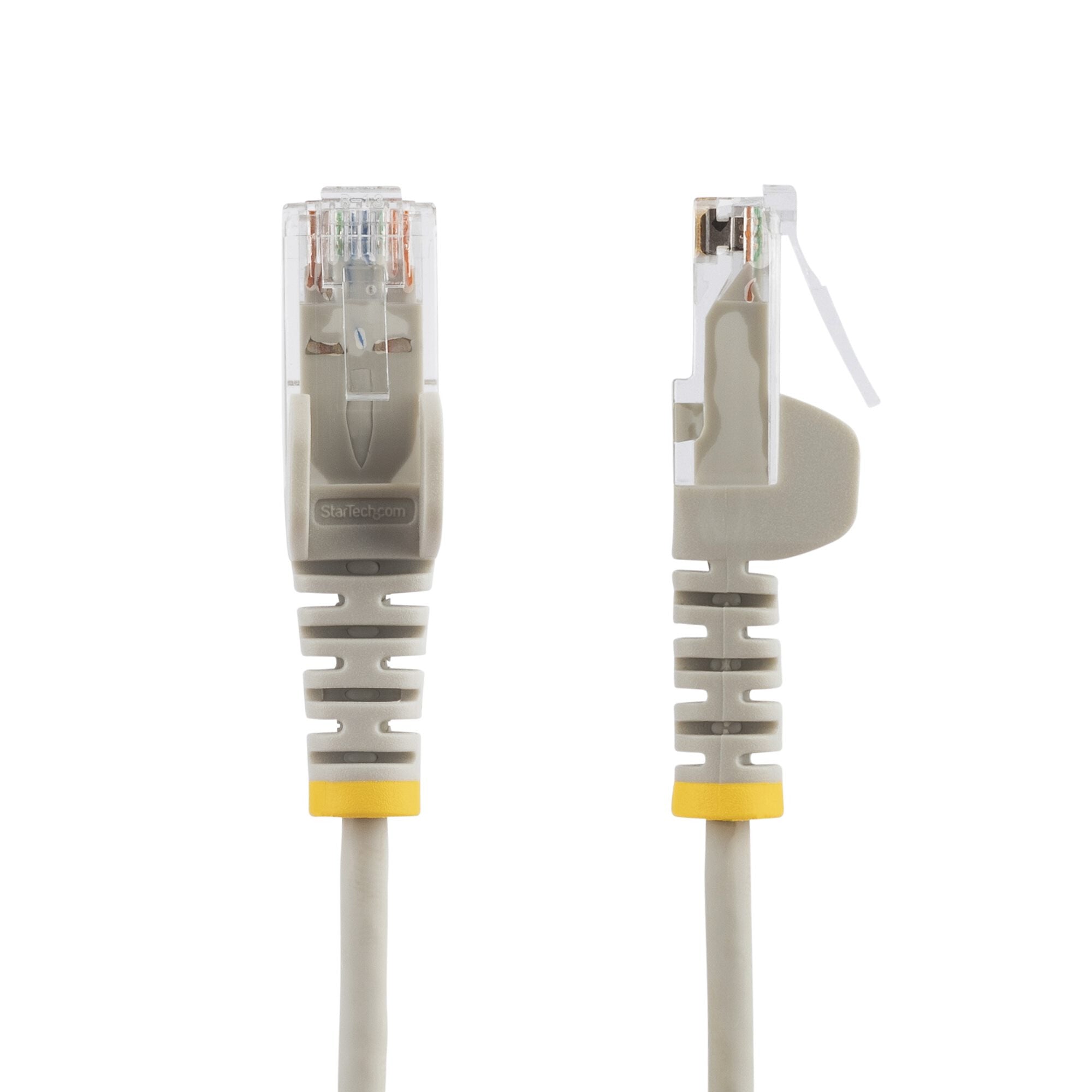

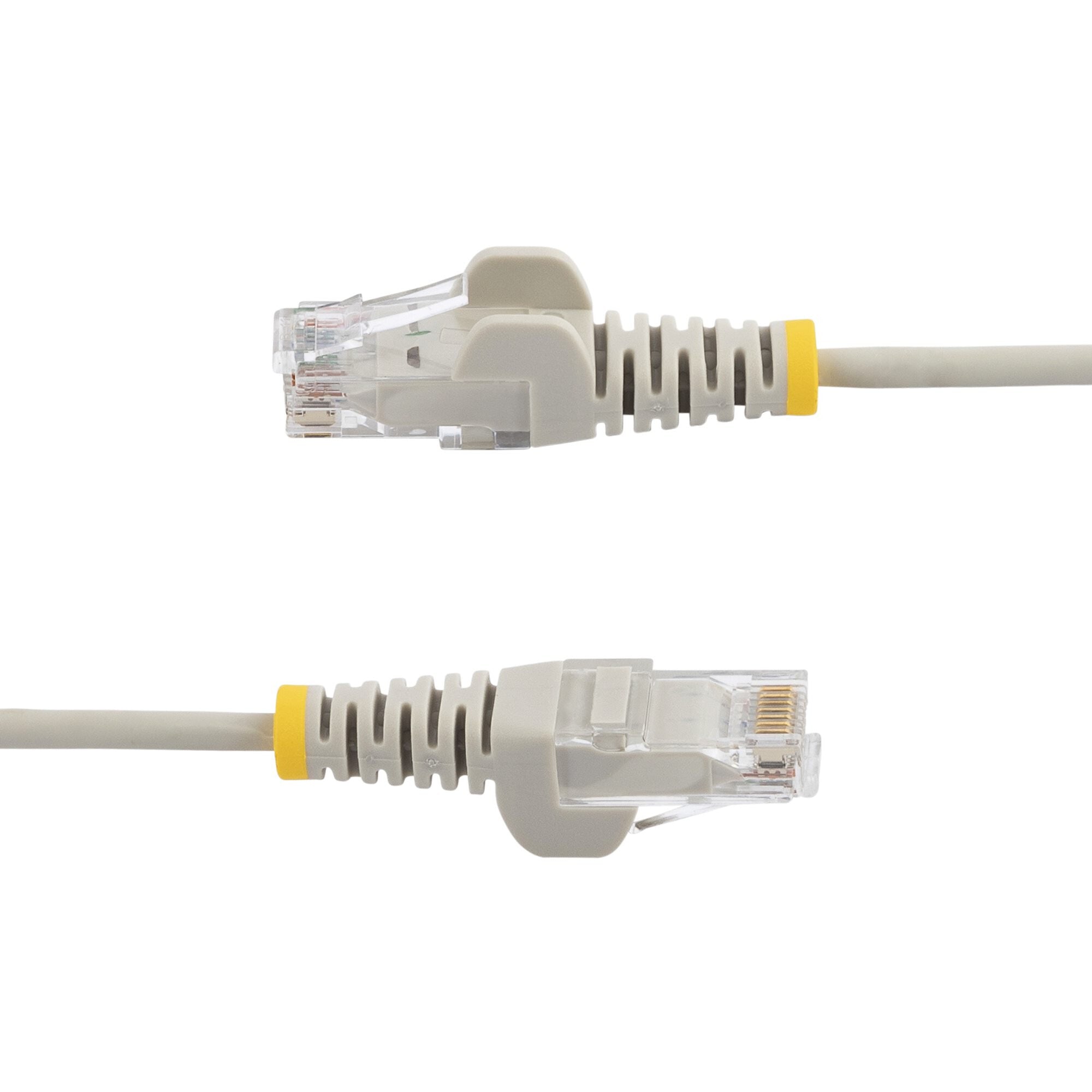

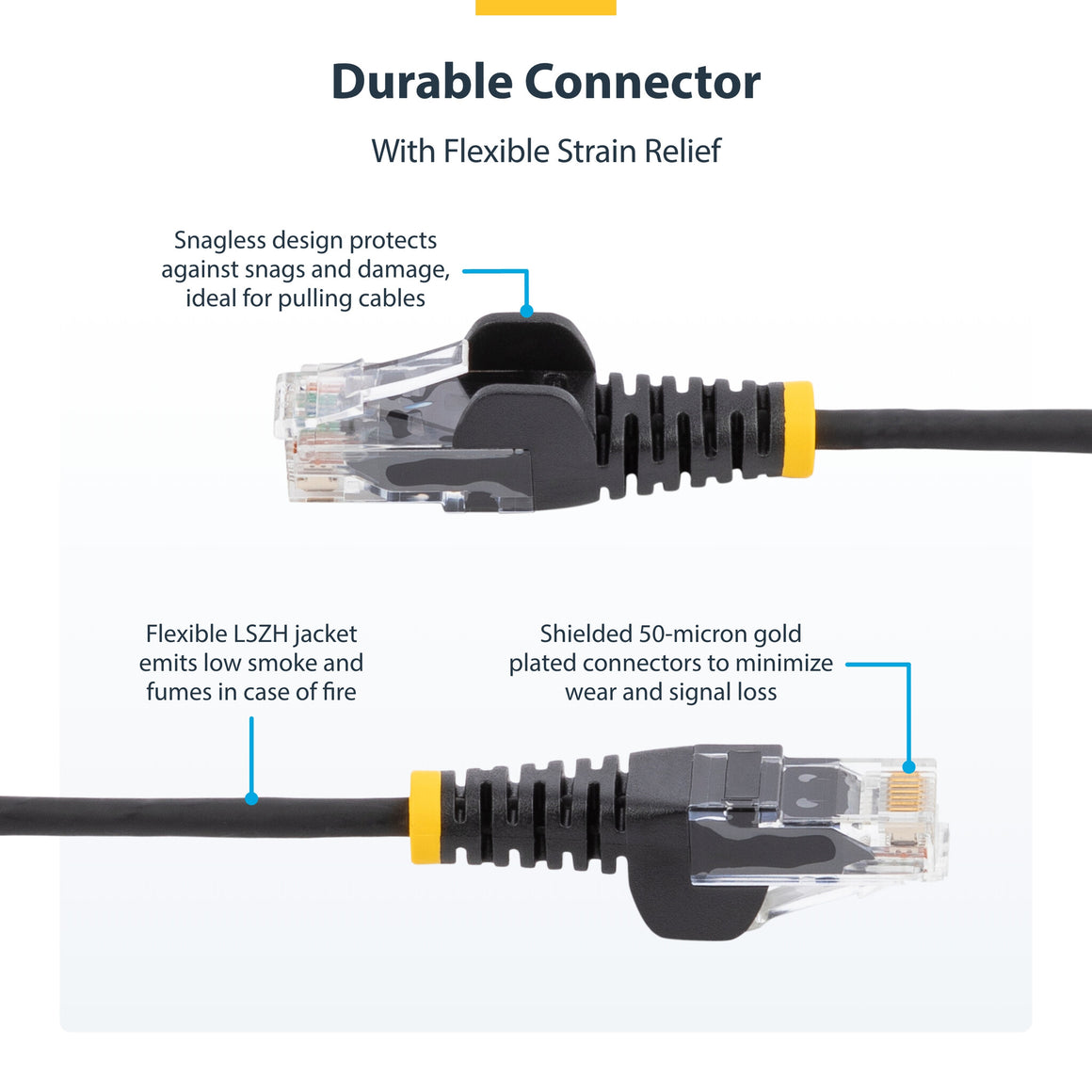

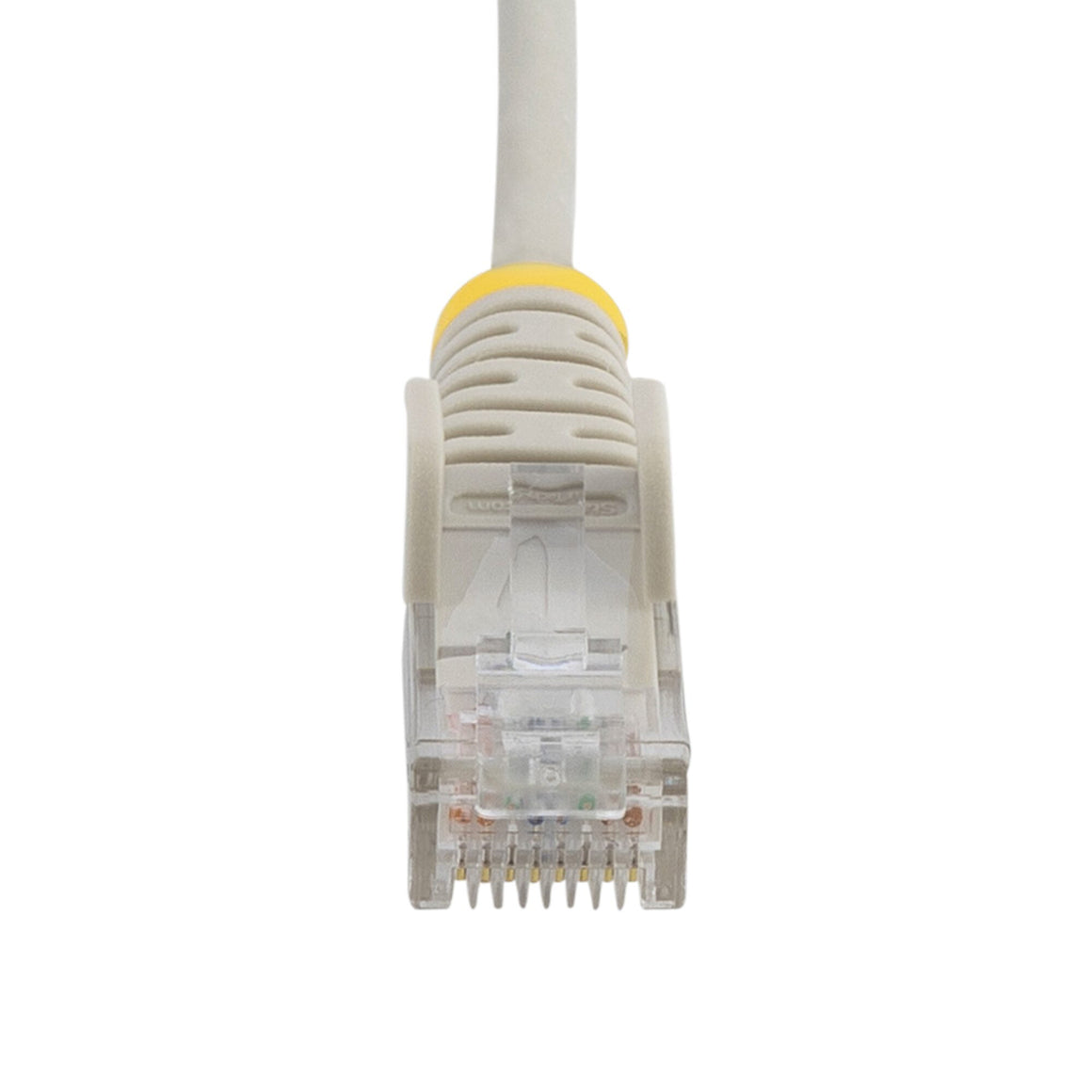

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.
Durable Construction

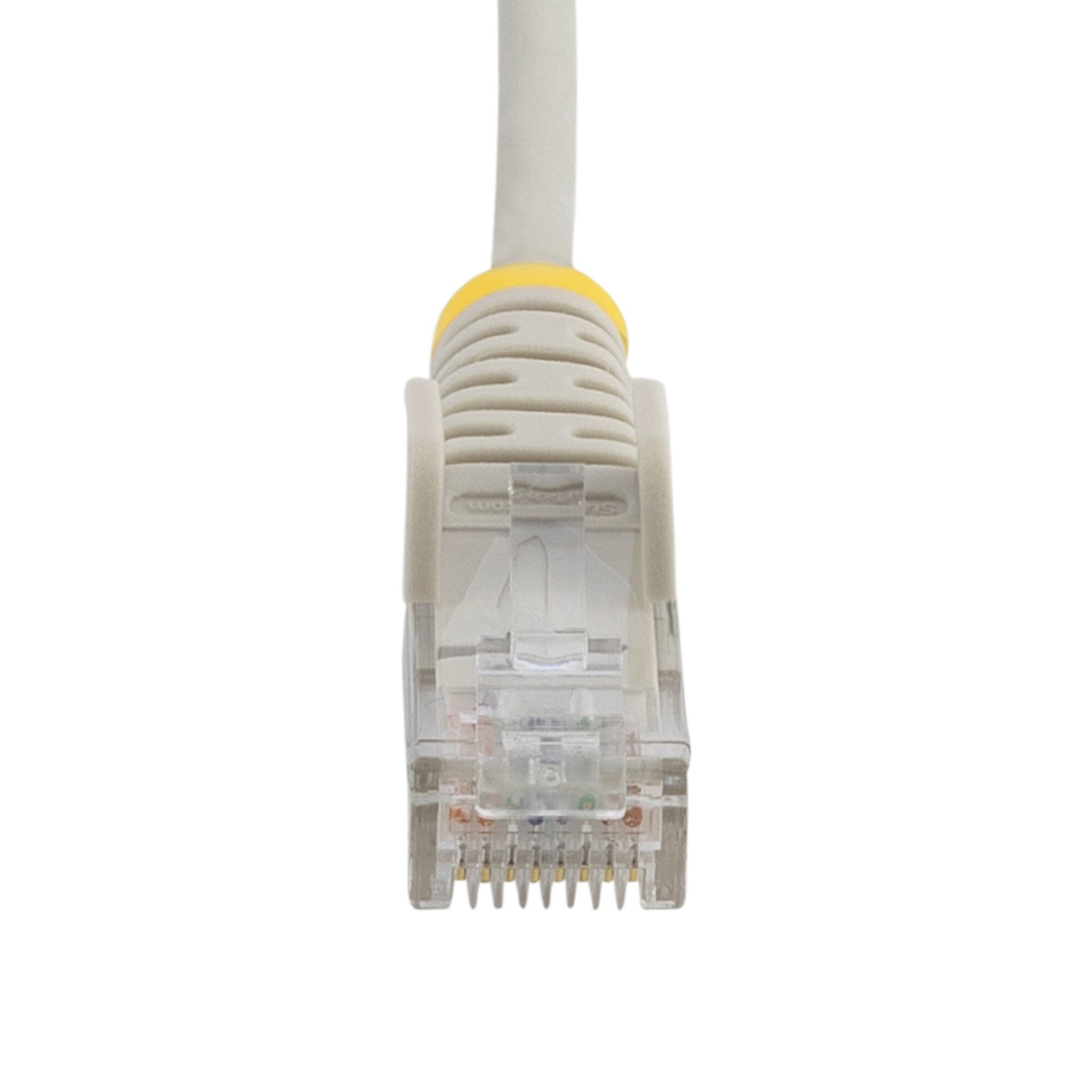

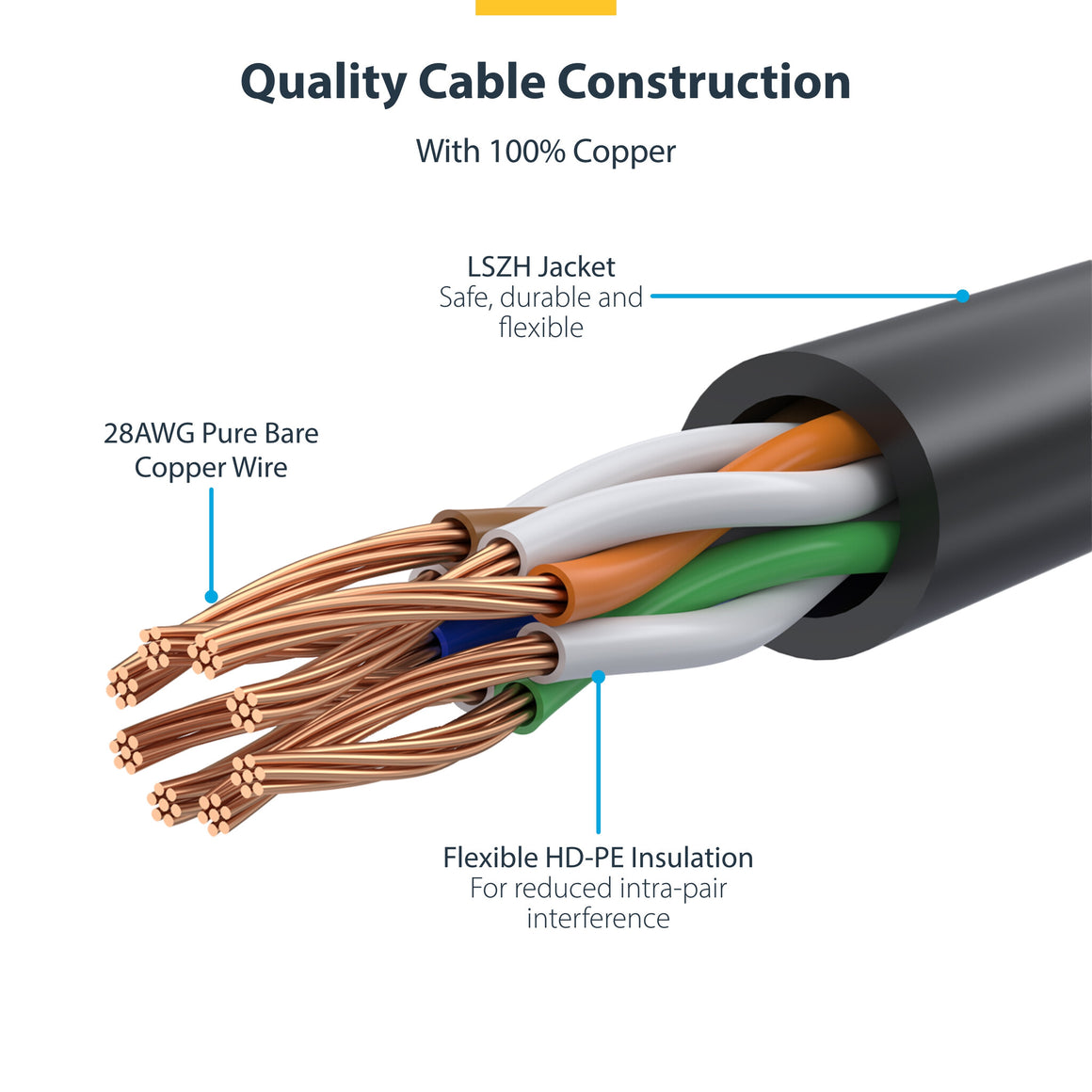

The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Tested for Reliability
The Slim CAT6 patch cable is tested to comply with ANSI/TIA 568 C.2 requirements for guaranteed Cat6 performance. The cable is Fluke Tested to ensure minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 90W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.
The StarTech.com Advantage
| Features |
|---|
| Plug and Play |
Yes |
| Snagless cable boot |
Yes |
| Total Power over Ethernet (PoE) budget |
100 W |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Power over Ethernet (PoE) |
Yes |
| Frequency |
250 MHz |
| Data transfer rate |
1000 Mbit/s |
| AWG wire size |
28 |
| Networking standards |
IEEE 802.3bt |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Cabling technology |
10/100/1000Base-T(X) |
| Conductor material |
Copper |
| Conductor type |
Stranded |
| Cable shape |
Round |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Connector contacts plating |
Gold |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
RJ-45 |
| Connector 1 |
RJ-45 |
| Product colour |
Grey |
| Cable shielding |
U/UTP (UTP) |
| Cable standard |
Cat6 |
| Cable length |
10 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
10 - 60 °C |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Outer diameter |
3.6 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
174 g |
| Package height |
40 mm |
| Package depth |
220 mm |
| Package width |
200 mm |
| Logistics data |
|---|
| Products per master (outer) case |
70 pc(s) |
| Master (outer) case height |
250 mm |
| Master (outer) case length |
420 mm |
| Master (outer) case width |
420 mm |
