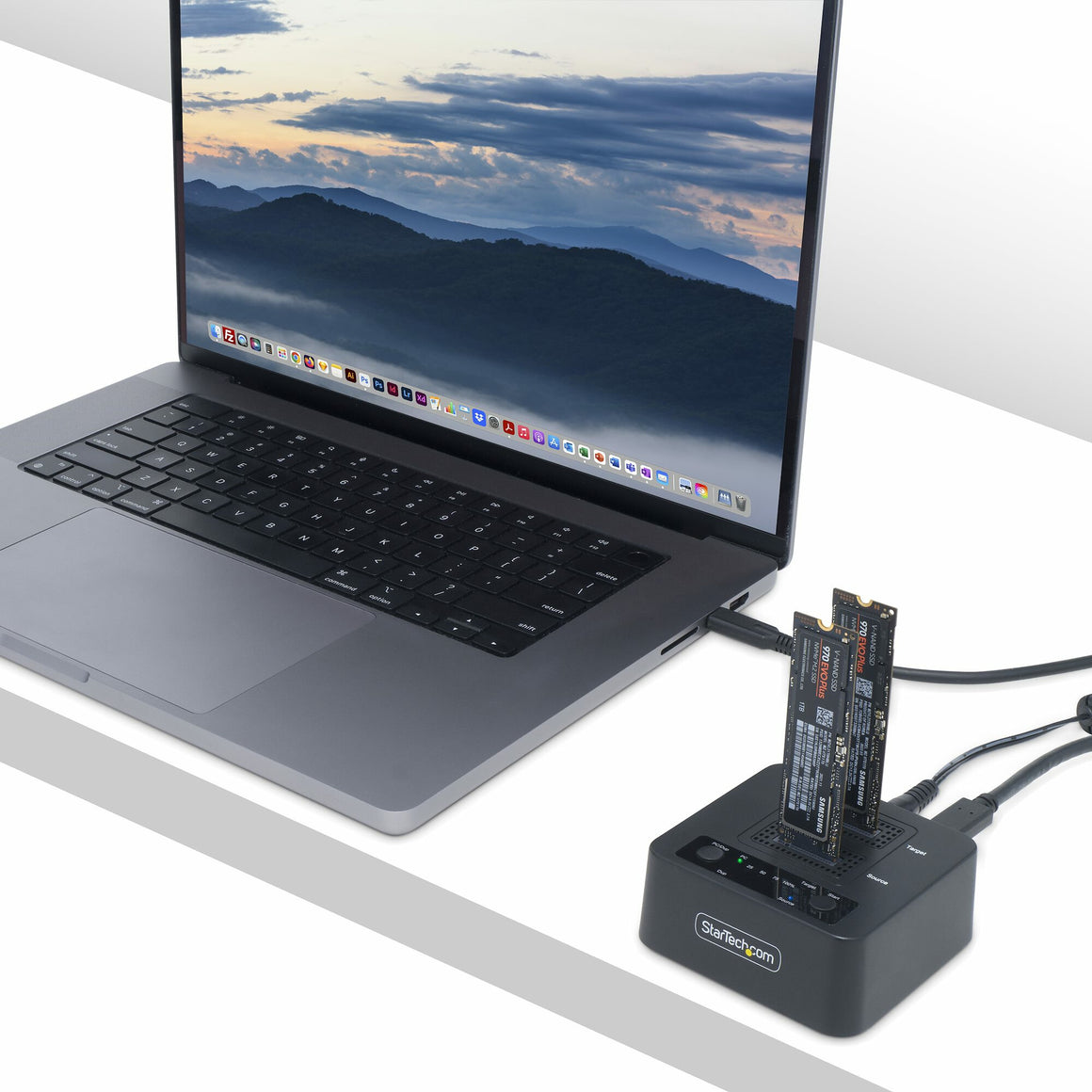

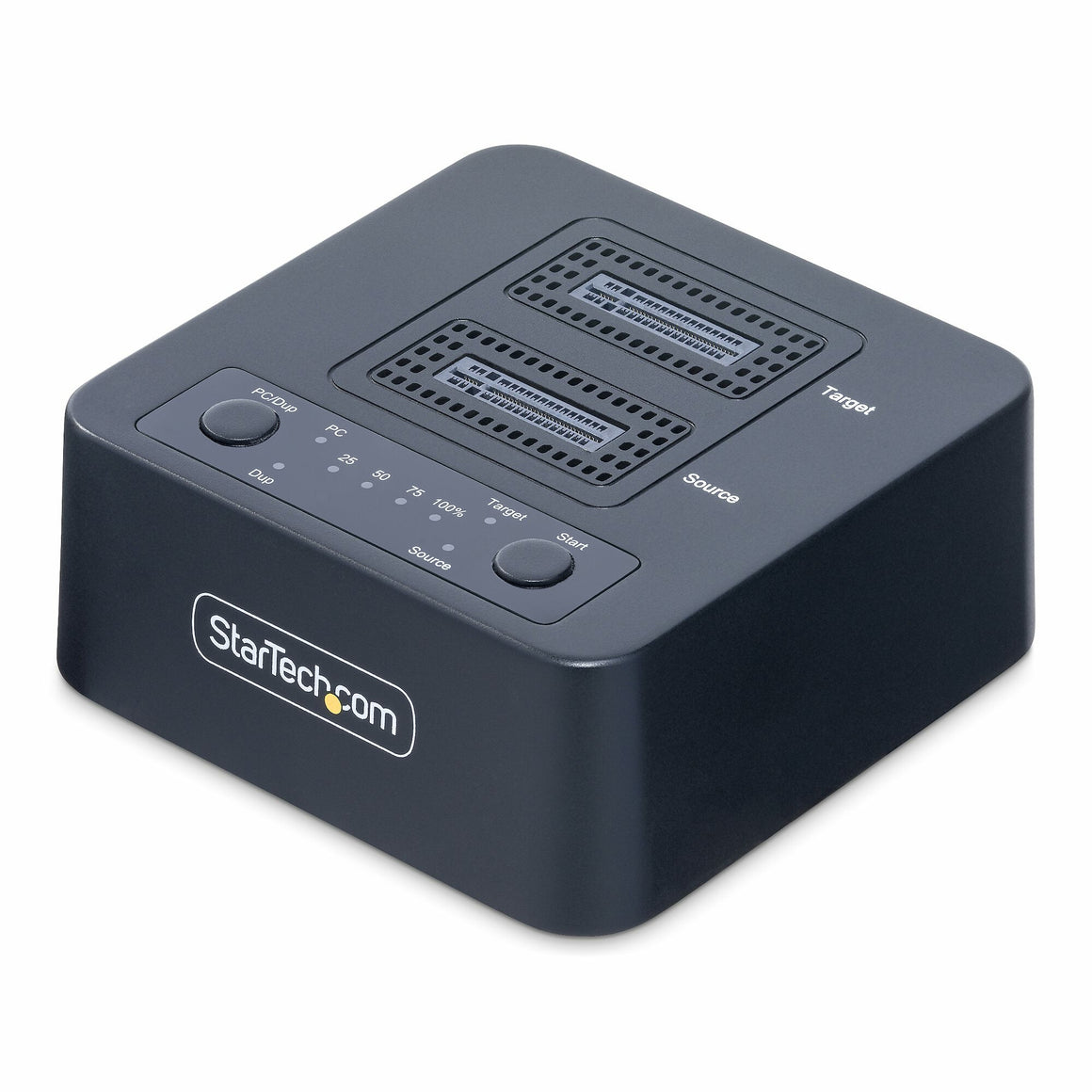

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.

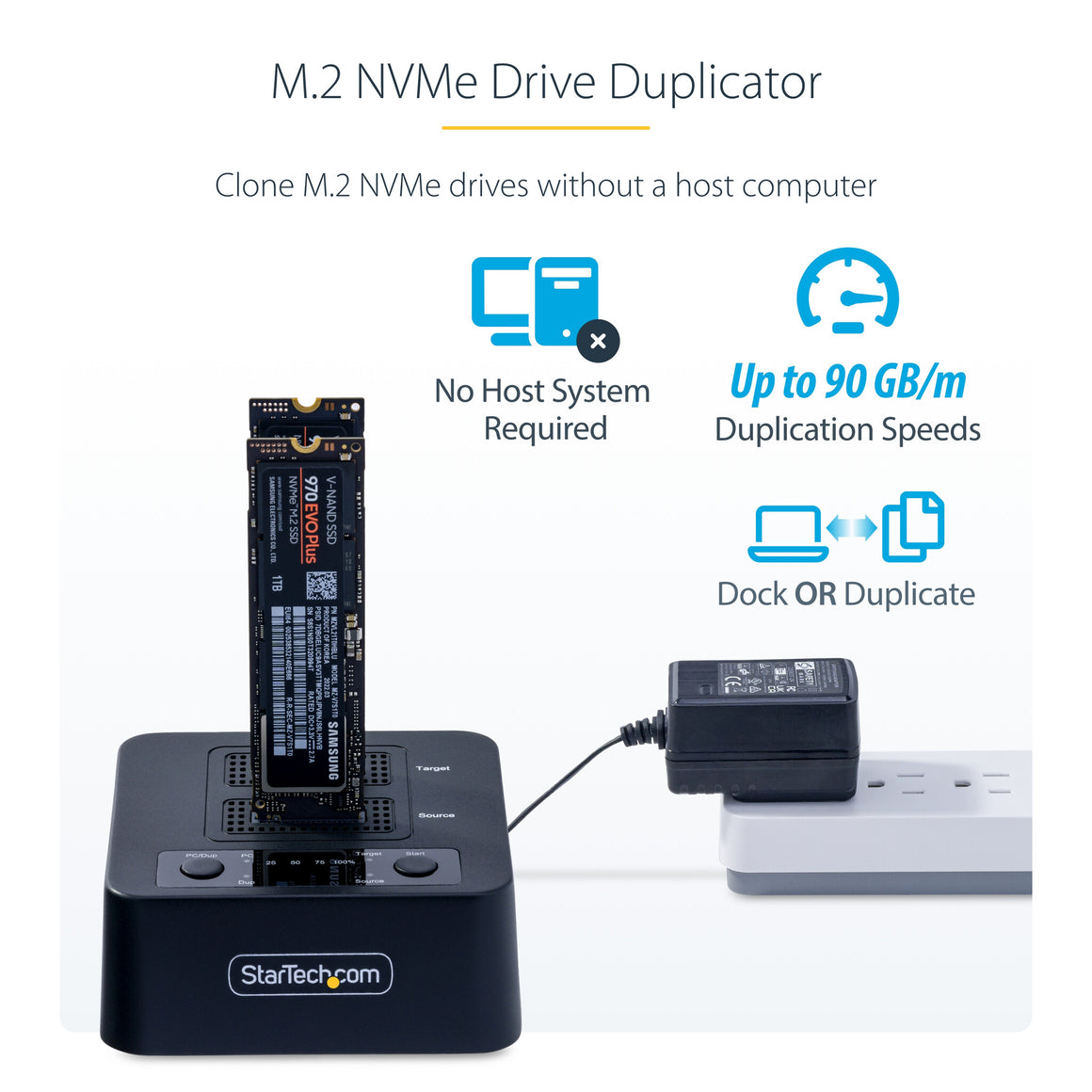

High-Speed M.2 NVMe Duplication

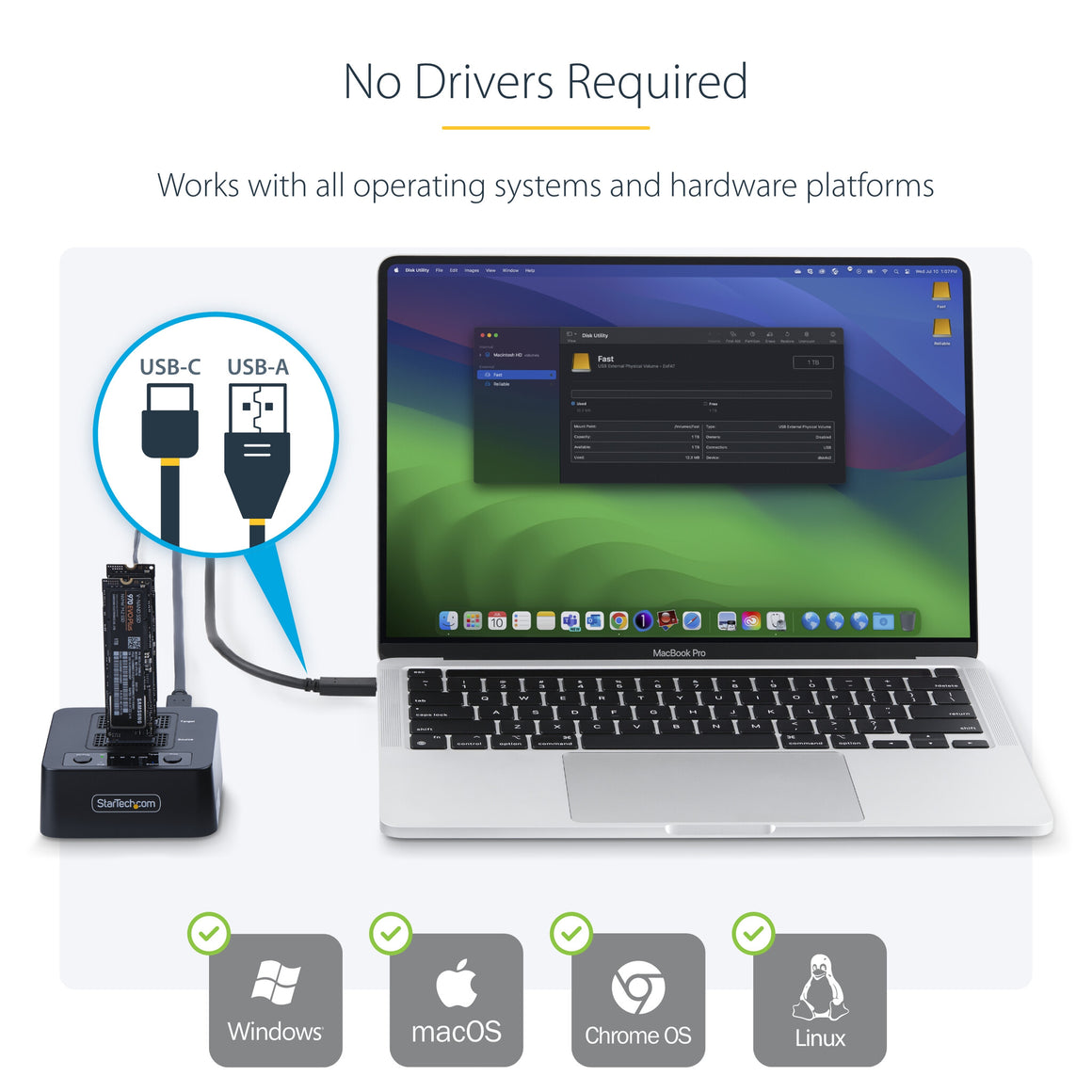

Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.

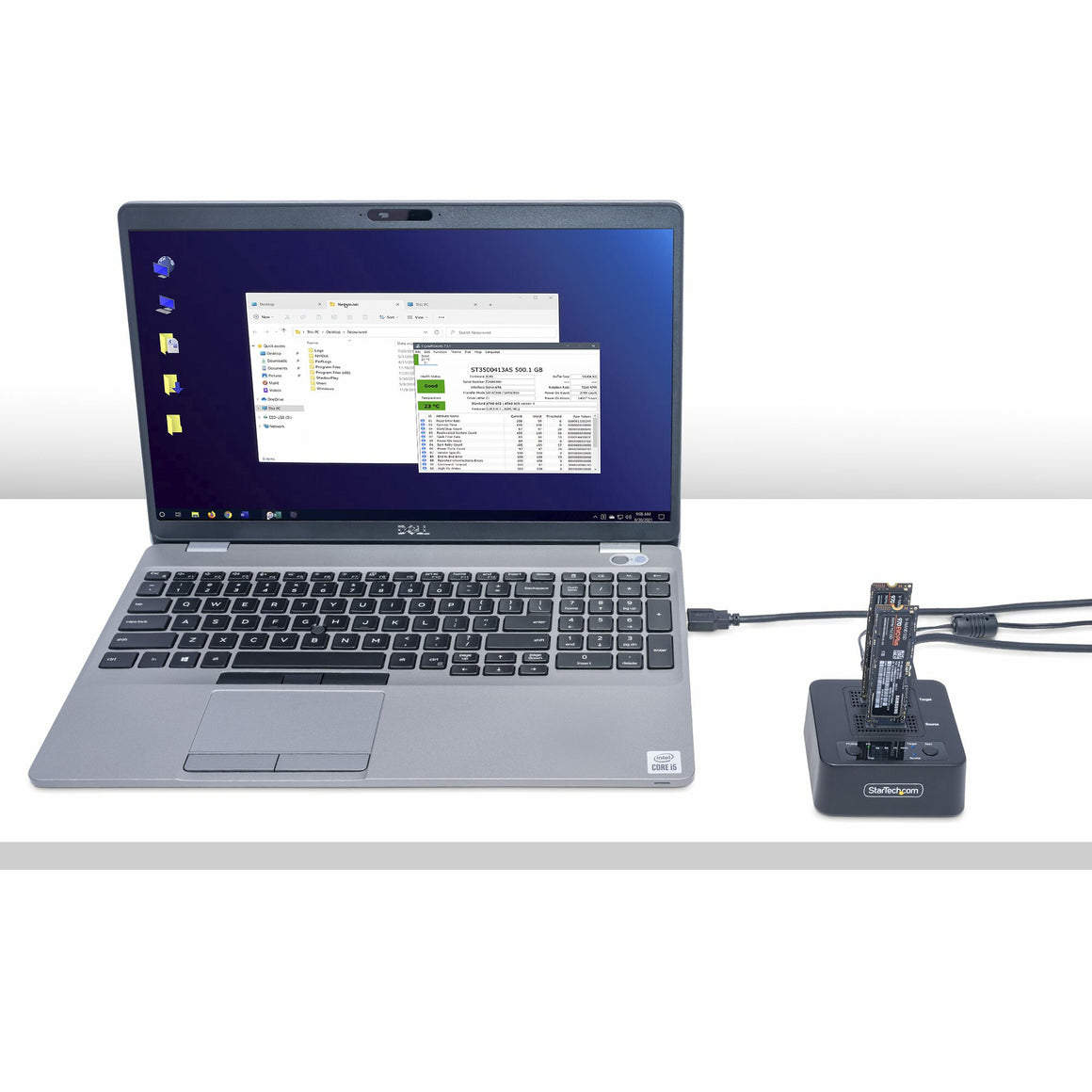

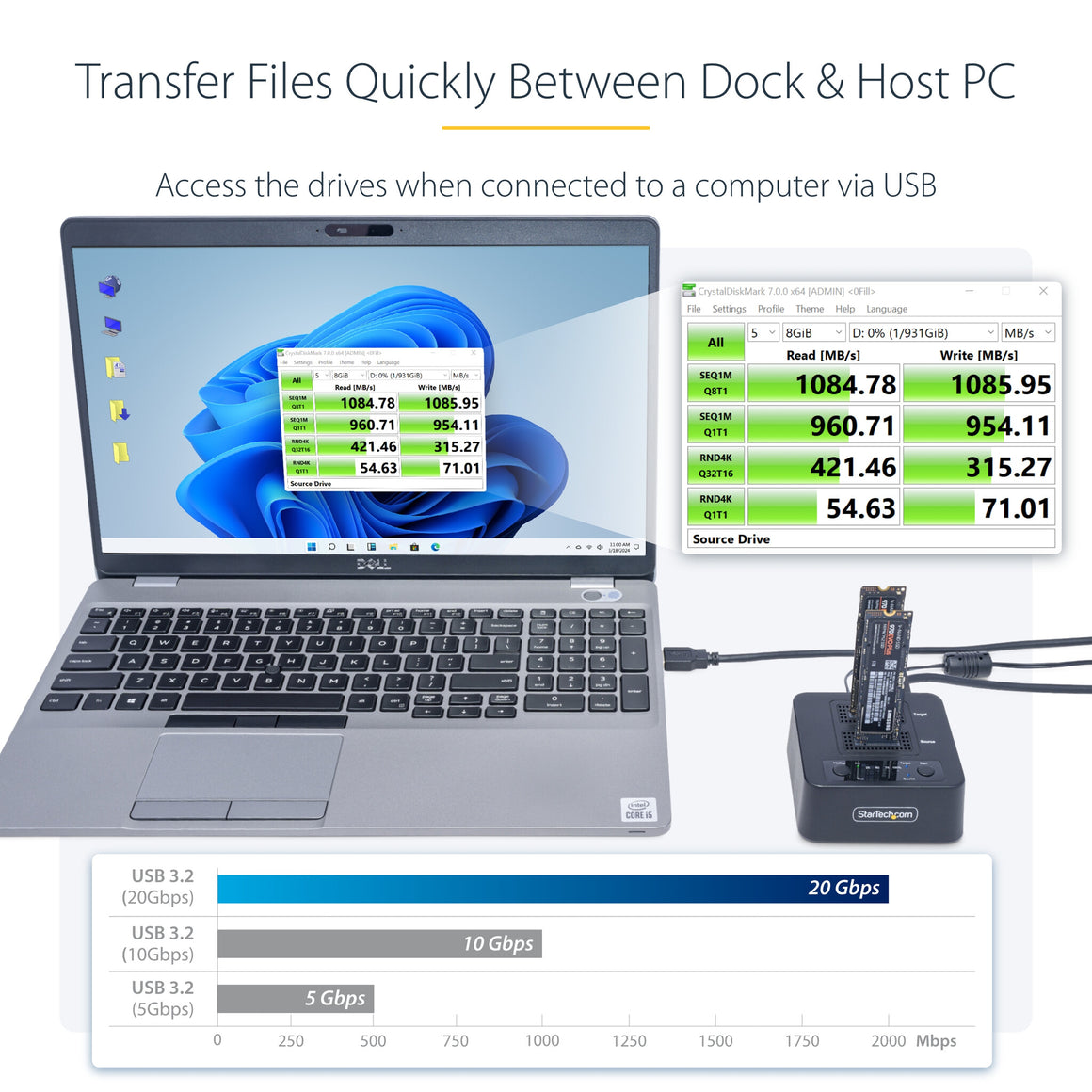

NVMe Drive Access over USB 3.2 Gen2x2

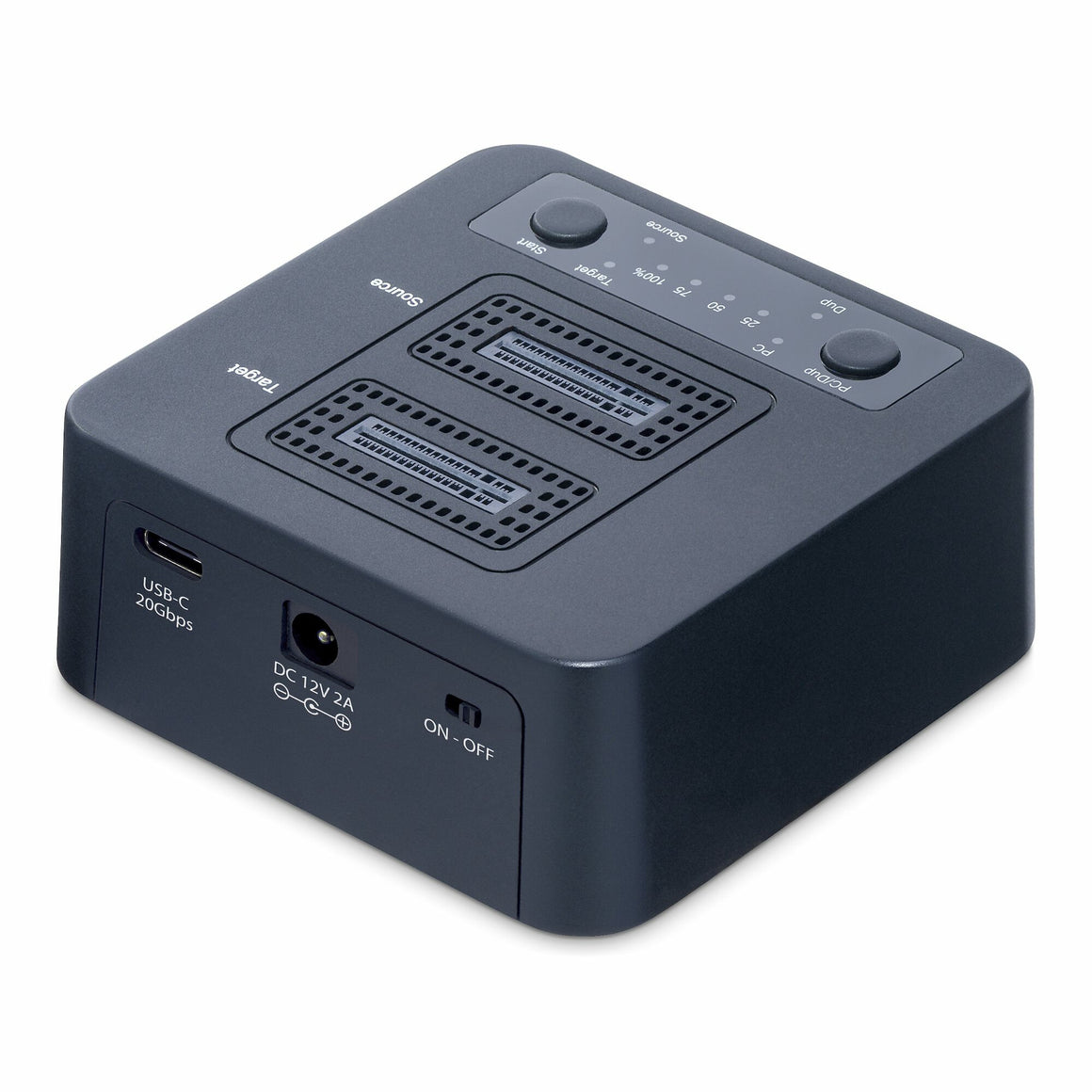

The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly

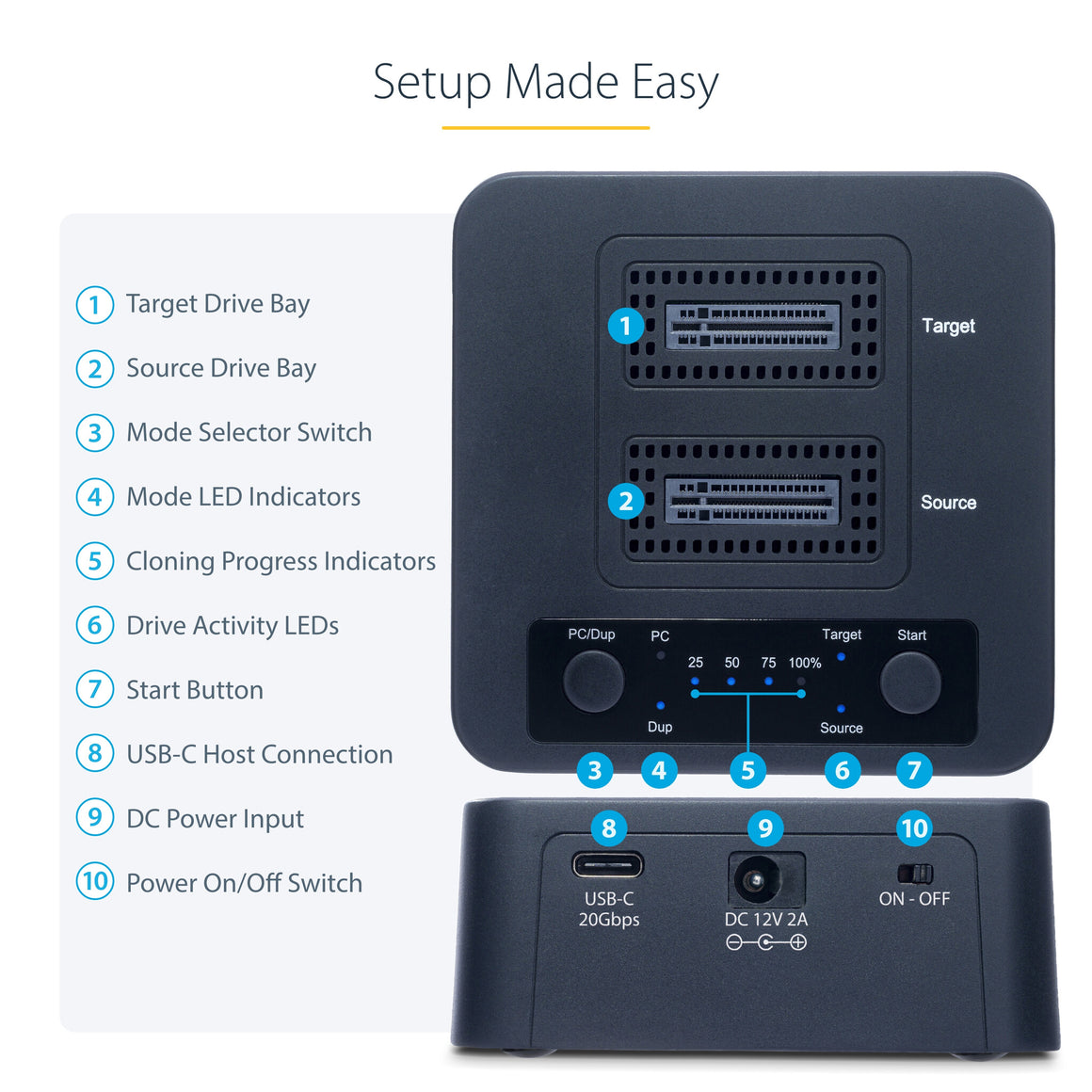

The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.

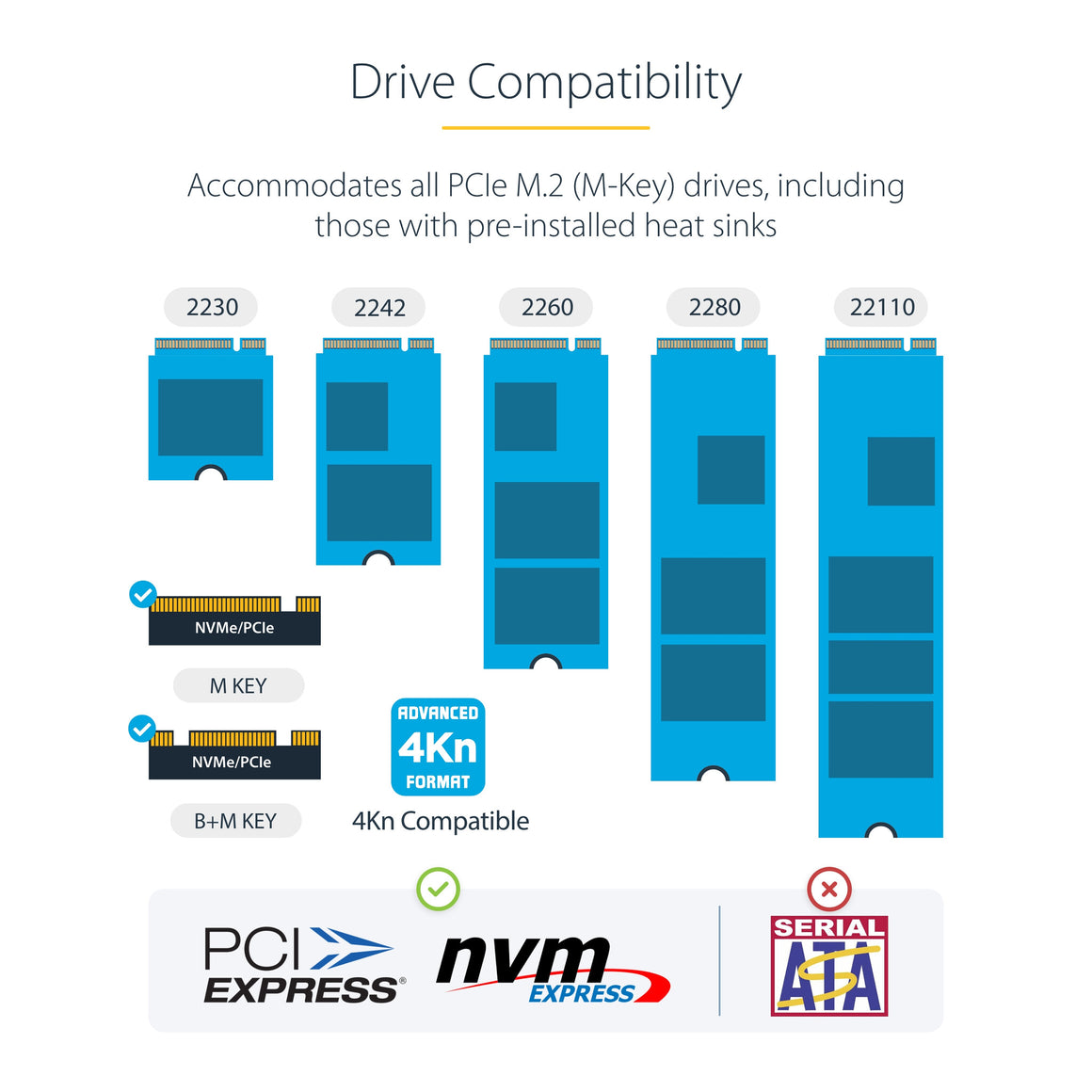

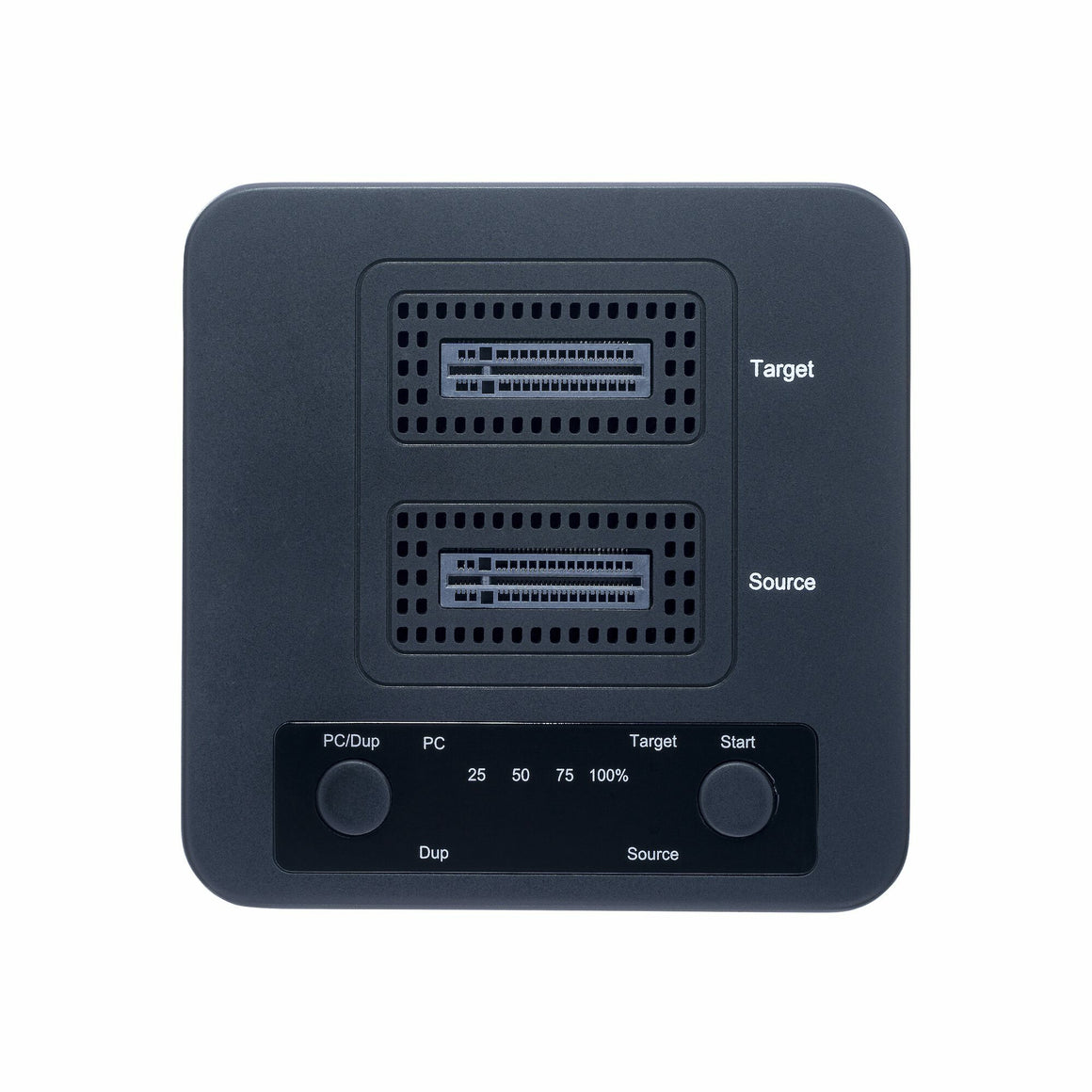

The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
| Features |
|---|
| Number of fans |
1 fan(s) |
| Fan diameter |
6 cm |
| LED indicators |
Yes |
| Chipset |
JMS586U |
| Plug and Play |
Yes |
| Hot-swap drive bays |
No |
| Transfer rate |
90 GB/min |
| Duplicator operating modes |
Copy |
| Interface |
USB 3.2 Gen 2 (3.1 Gen 2) |
| USB connector type |
USB Type-C |
| Number of simultaneous copies |
1 copies |
| Housing material |
Plastic |
| Product colour |
Black |
| Product type |
HDD/SSD duplicator |
| Hard drive |
|---|
| SSD support |
Yes |
| SSD interface |
M.2 |

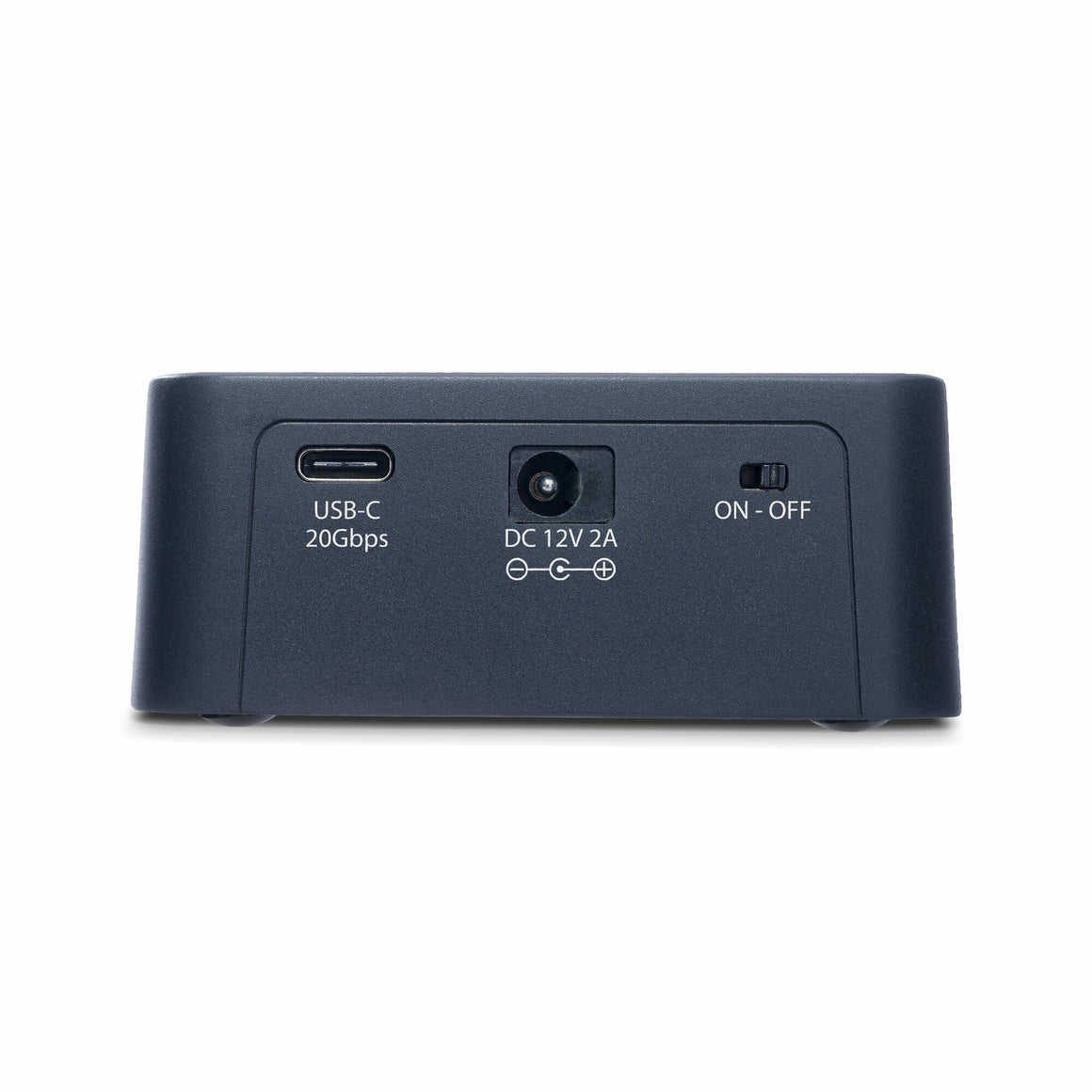

| Power |
|---|
| Included power plug types |
ANZ, EU, NA, UK |
| Power plug type |
Type M |
| Input current |
0.6 A |
| Output voltage |
12 V |
| Output current |
2 A |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
0.1 W |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
77 x 77 x 44 mm |
| Weight |
129 g |
| Packaging data |
|---|
| Package weight |
140 g |
| Package height |
95 mm |
| Package depth |
90 mm |
| Package width |
160 mm |

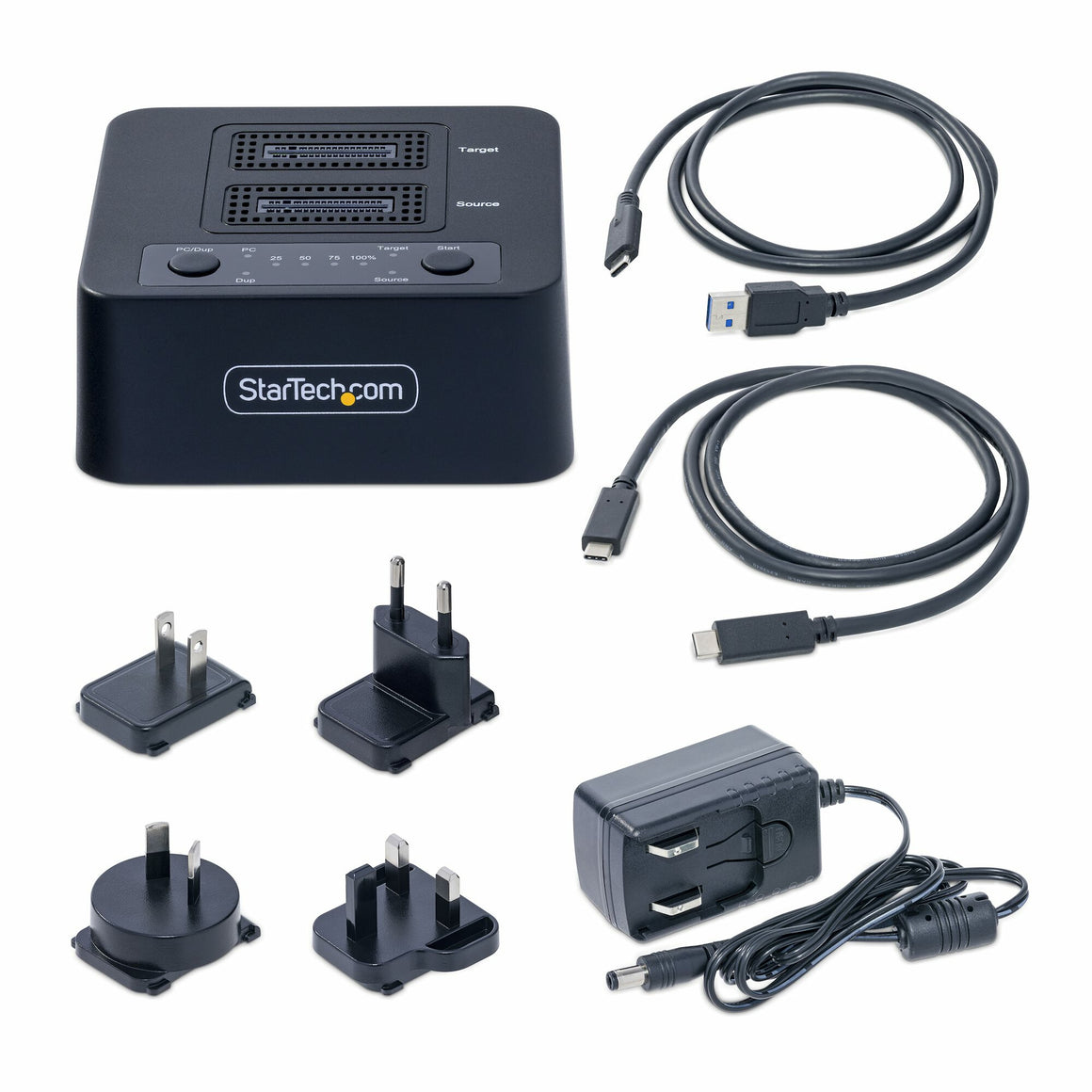

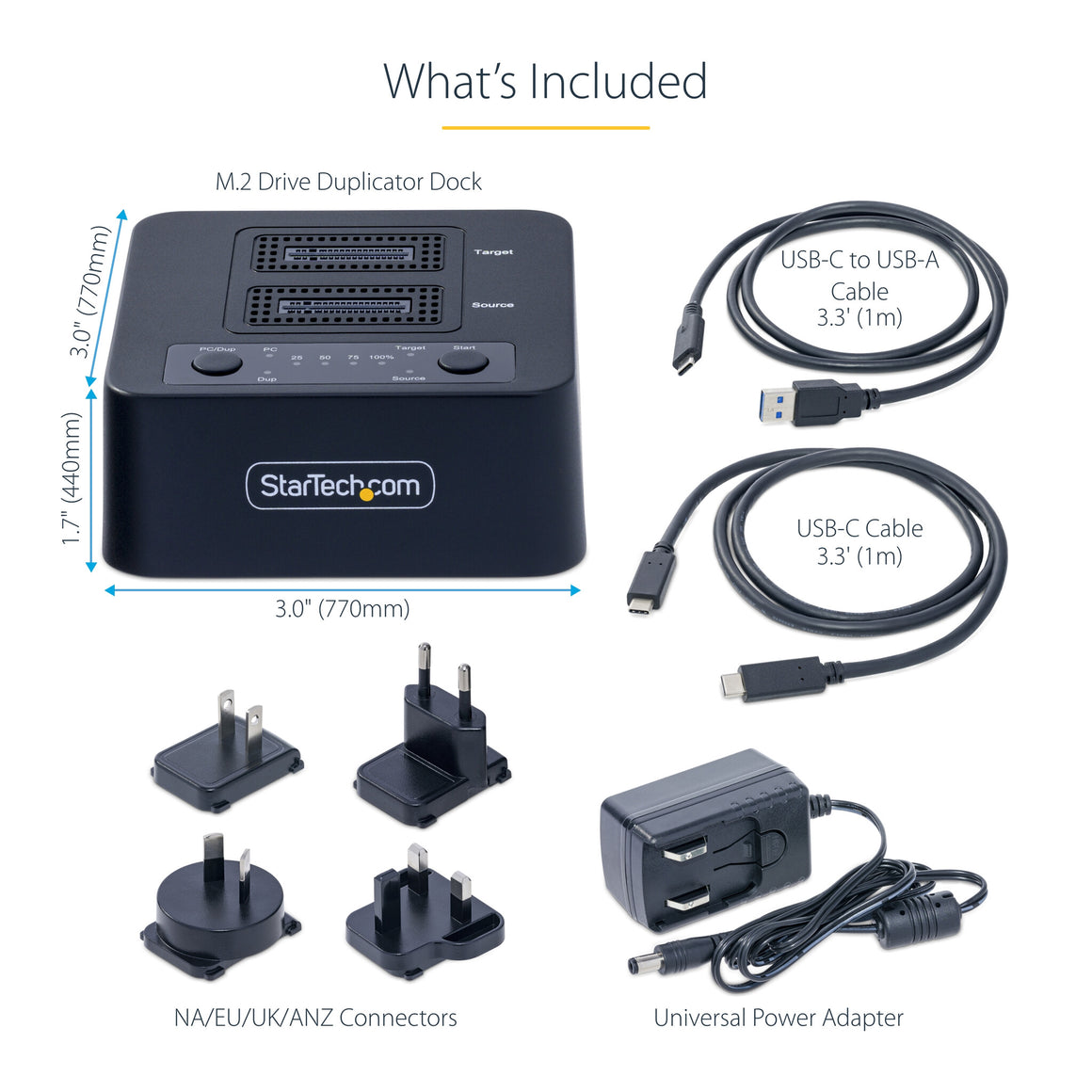

| Packaging content |
|---|
| Cables included |
USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| AC adapter included |
Yes |
| Manual |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 55 °C |
| Storage temperature (T-T) |
-20 - 55 °C |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case length |
338 mm |
| Master (outer) case width |
500 mm |
| Master (outer) case height |
220 mm |
| Products per master (outer) case |
20 pc(s) |
