Connect a remote USB 2.0 device to your computer over long distances
Extend a USB 2.0 connection up to 492 ft (150 m) with this USB Extender Kit. Connect the transmitter to the receiver, using existing Ethernet cabling that is Cat5e or better (e.g., Cat 6, 6a, etc.). No software or configuration is required. Conveniently control remote USB devices in warehouses, classrooms, board rooms, and other long-range application environments.
Overcome Distance Limitations
This USB Extender Kit enables you to exceed the limitations posed by traditional USB cable lengths, to establish long-range USB connections. Use this kit for a wide variety of applications such as remote surveillance and monitoring with a webcam (up to 1080p resolution), controlling machines at a distance, remote printing, connecting retail barcode scanners, and many other applications. In addition, the remote unit is connected to a power source, using the included power adapter, for applications requiring USB bus power.
Rugged Durability

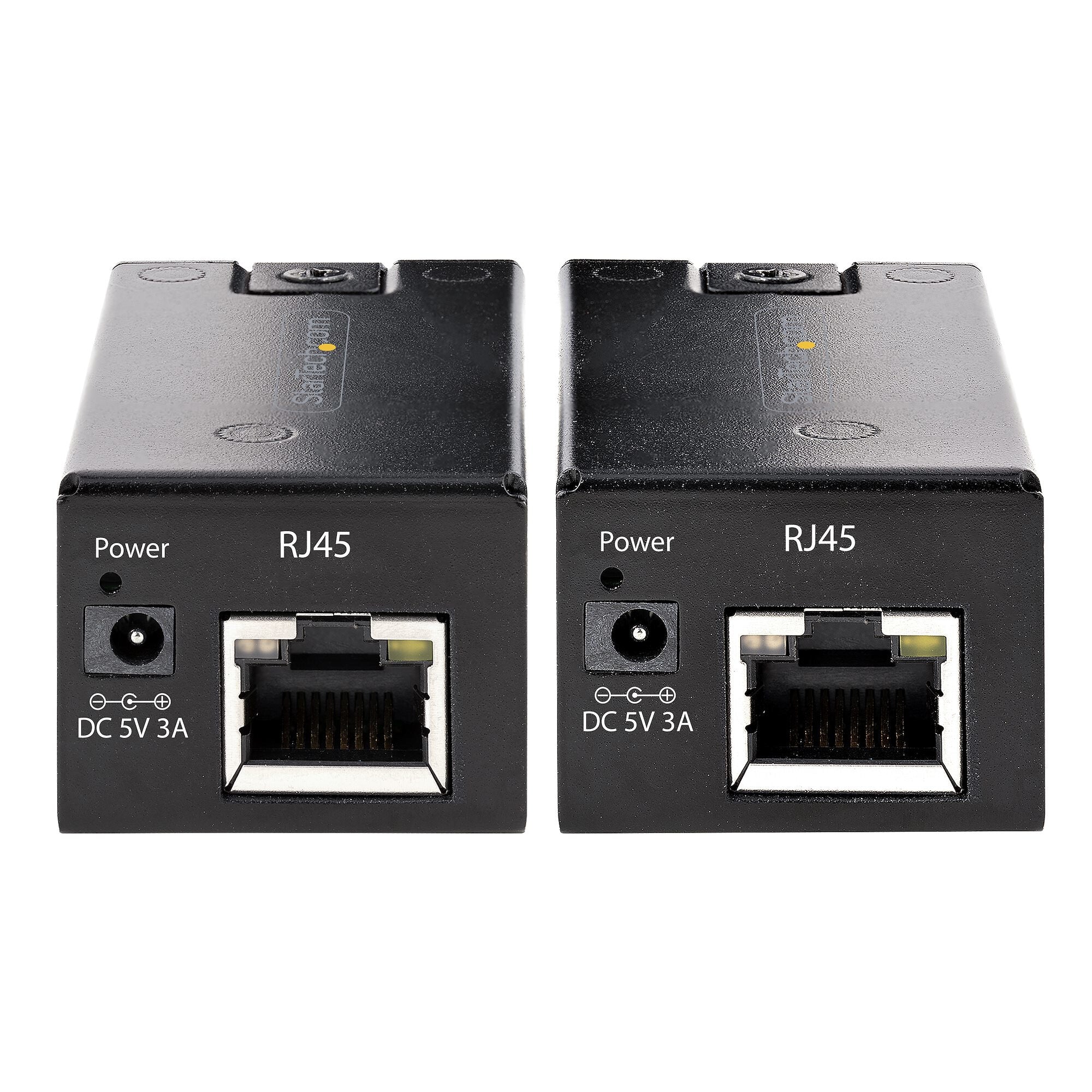

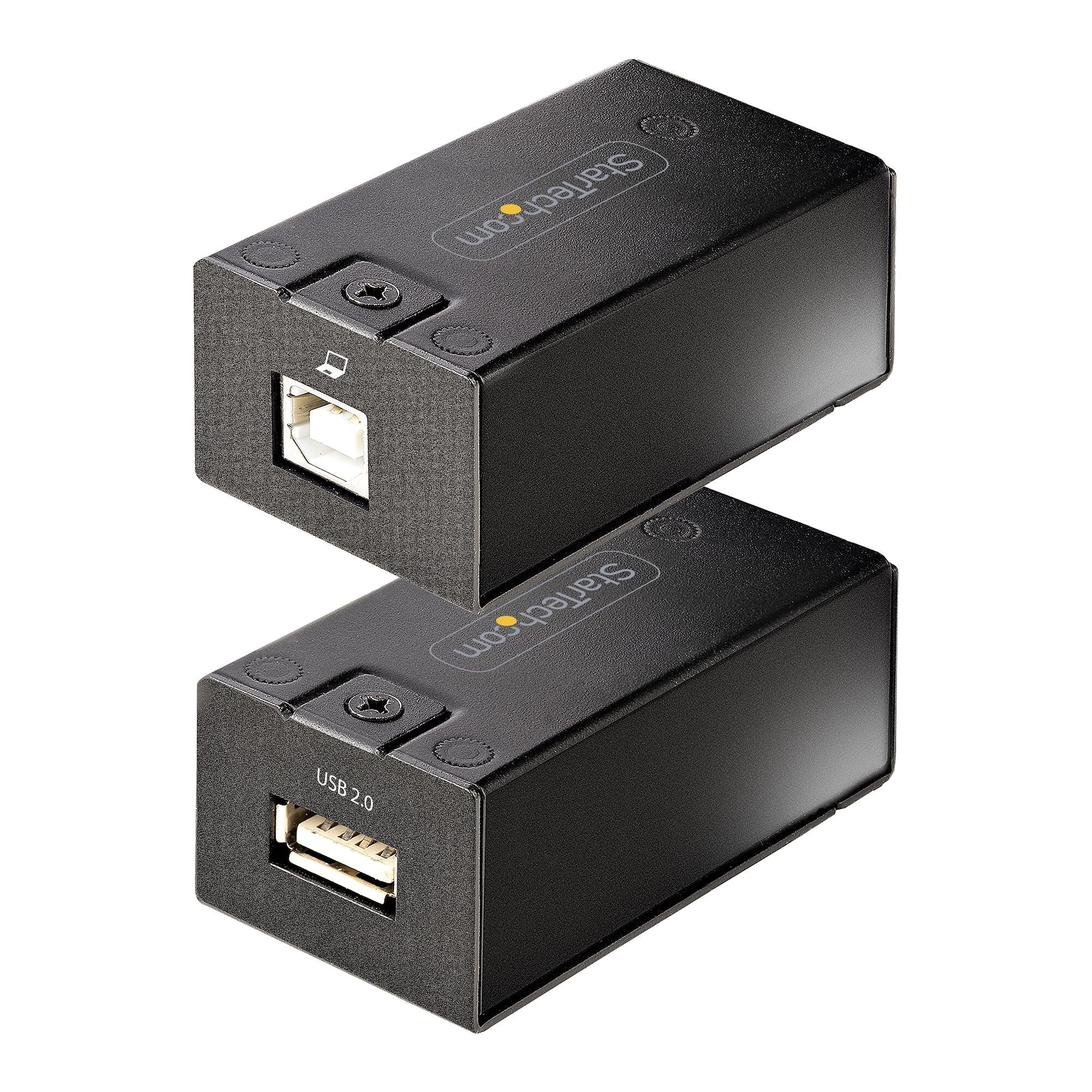

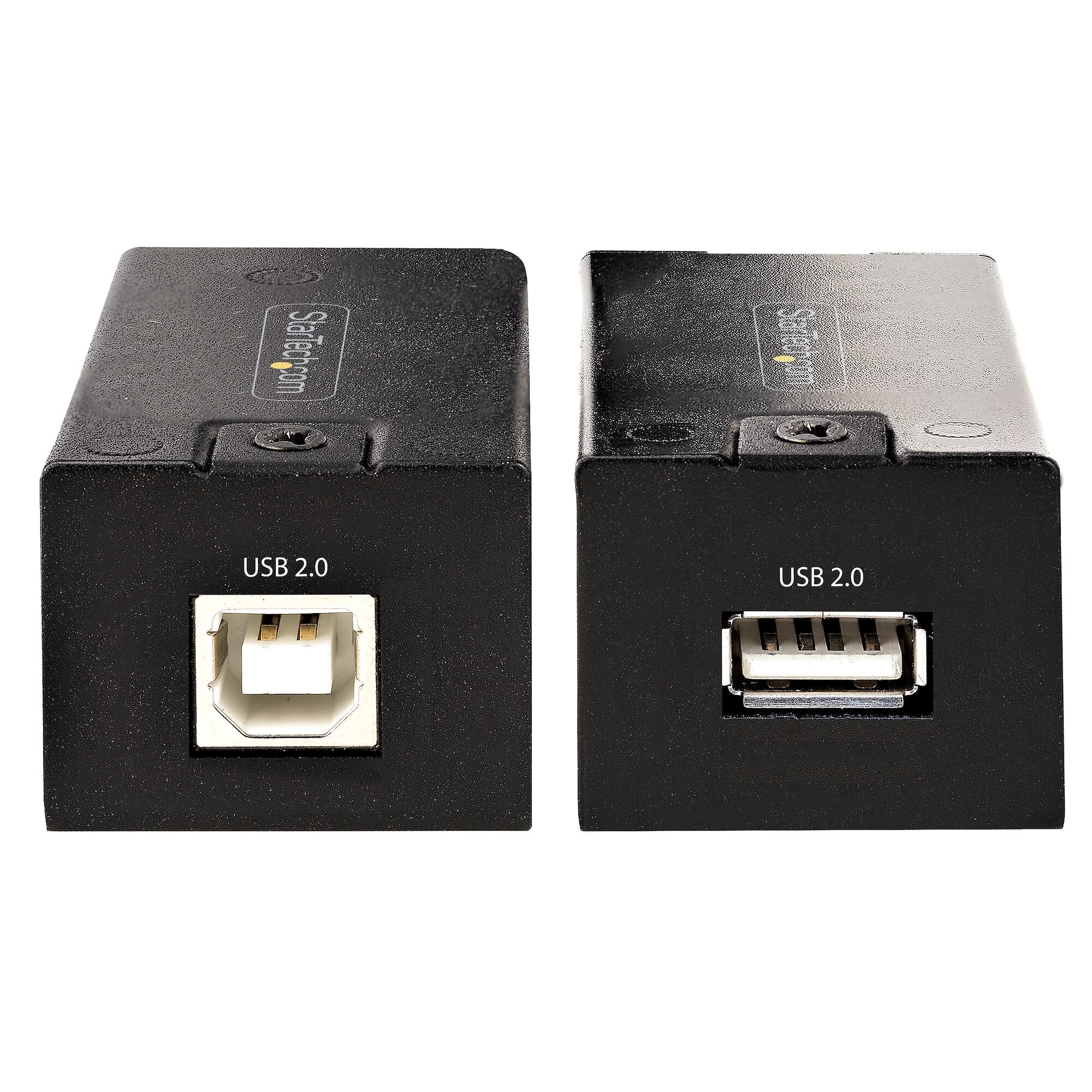

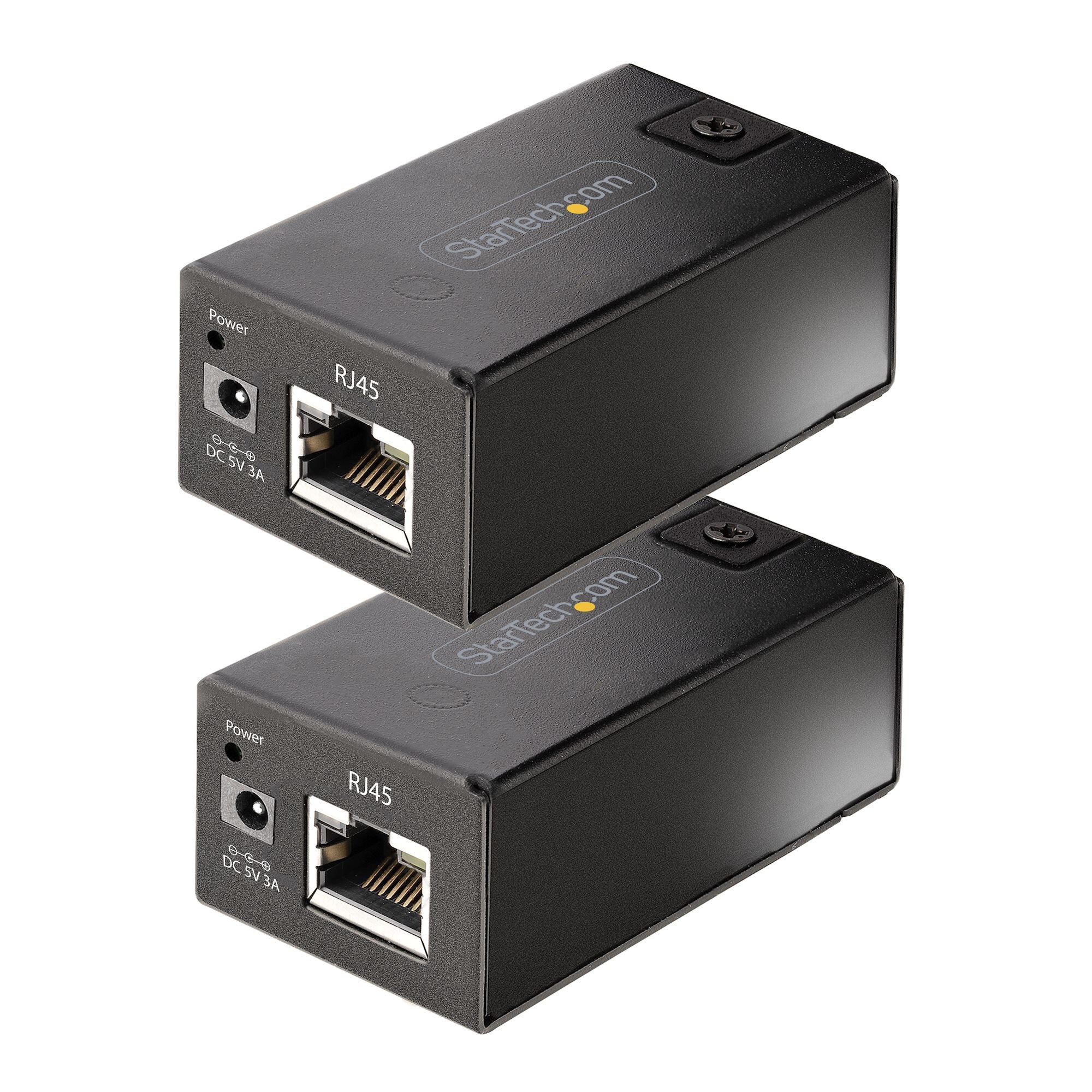

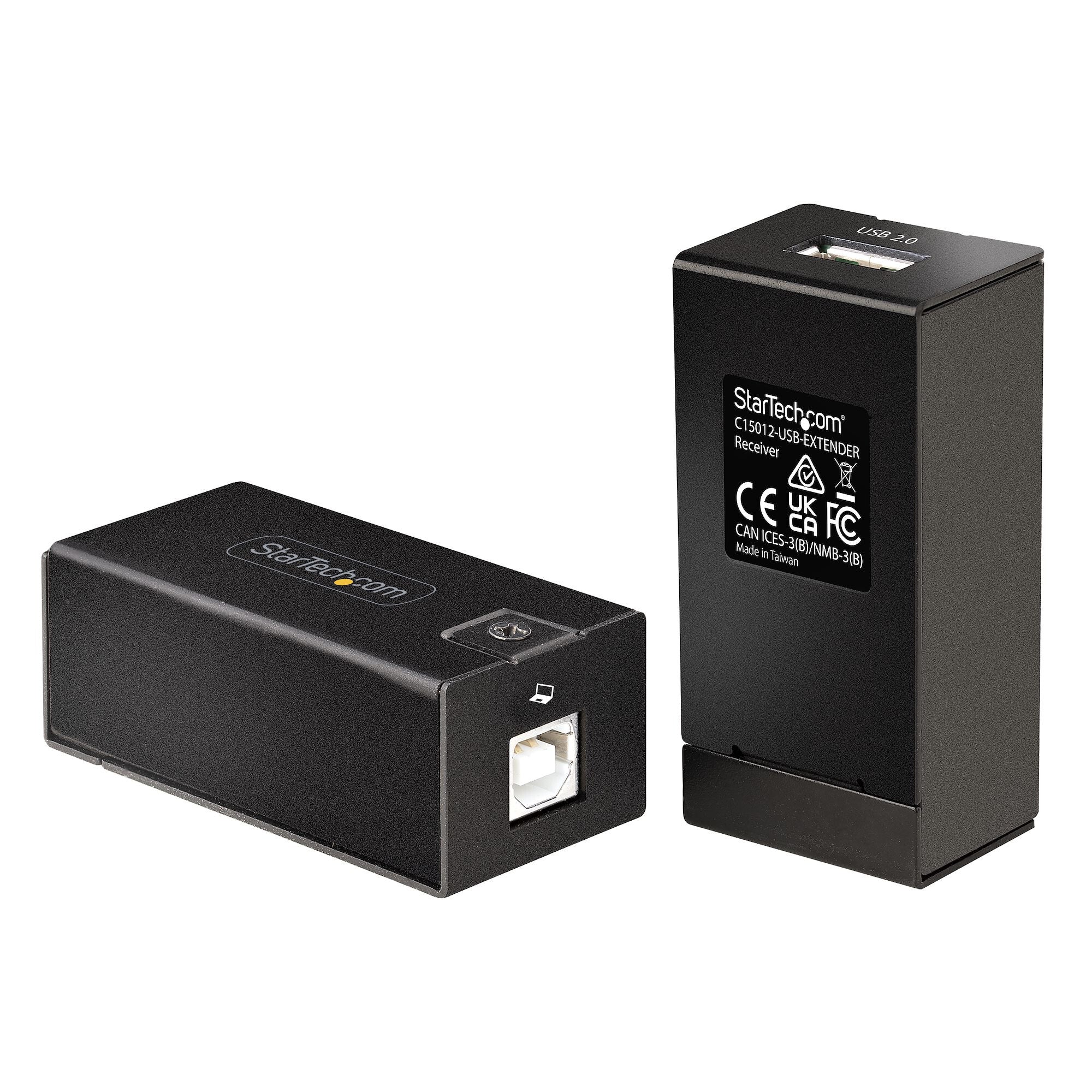

The local and remote units feature a metal exterior for extra protection and longevity in harsher environments. With dimensions of only 1.3 x 1.0 x 2.65 in (32.2 x 25.4 x 67.3 mm), both units are very compact, allowing for installations in tight spaces.
Ease of Use
The USB over Ethernet cable extender kit is compatible with any operating system and does not require any additional software to work. Set up the units by connecting them on a point-to-point connection, using your existing Ethernet cabling (Cat5e or better). This kit is not compatible with network switches and routers. The Extender is compatible with USB 2.0, USB 1.1, and USB 1.0 peripherals.
The C15012-USB-EXTENDER is TAA compliant and backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Technical details |
|---|
| Plug and Play |
Yes |
| Compliance certificates |
CE, RoHS |
| Housing material |
Metal |
| LED indicators |
Power |
| Cable types supported |
Cat5e, Cat6 |
| Product colour |
Black |
| Maximum transfer distance |
150 m |
| Data transfer rate |
480 Mbit/s |
| Type |
Console transmitter & receiver |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| RJ-45 ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
1 |
| USB 2.0 Type-A ports quantity |
1 |
| Weight & dimensions |
|---|
| Package weight |
173 g |
| Package height |
60 mm |
| Package depth |
194 mm |
| Package width |
220 mm |
| Weight |
173 g |
| Height |
25 mm |
| Depth |
32 mm |
| Width |
67 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |

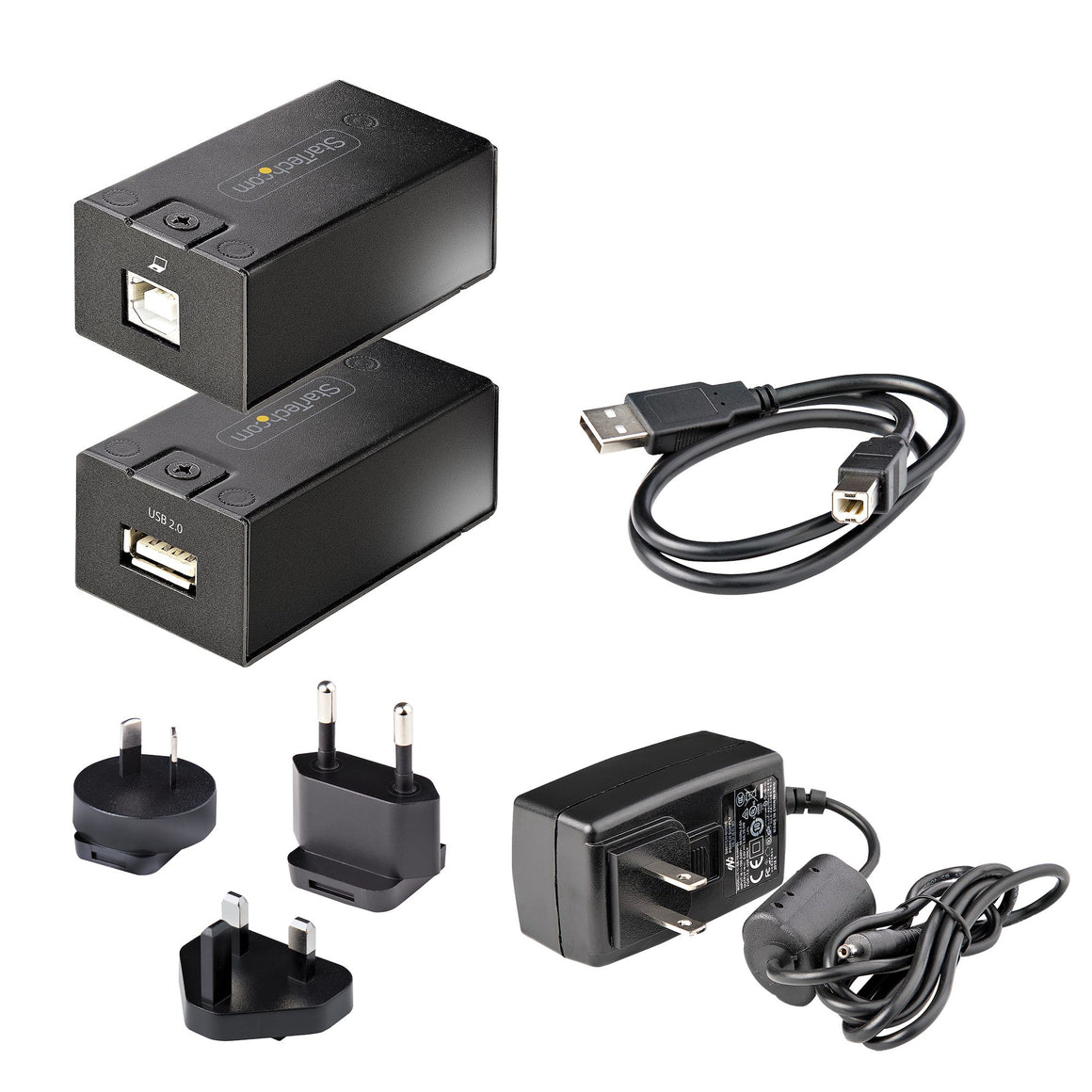

| Packaging content |
|---|
| AC adapter included |
Yes |
| Cables included |
USB Type-A to USB Type-B |
| Power |
|---|
| Power plug type |
Type H |
| Output current |
3 A |
| Output voltage |
5 V |
| Input current |
0.6 A |
| Input voltage |
100 - 240 V |
| Power consumption (typical) |
15 W |
| Power source type |
DC |
| Logistics data |
|---|
| Products per master (outer) case |
12 pc(s) |
| Master (outer) case height |
278 mm |
| Master (outer) case length |
400 mm |
| Master (outer) case width |
400 mm |
