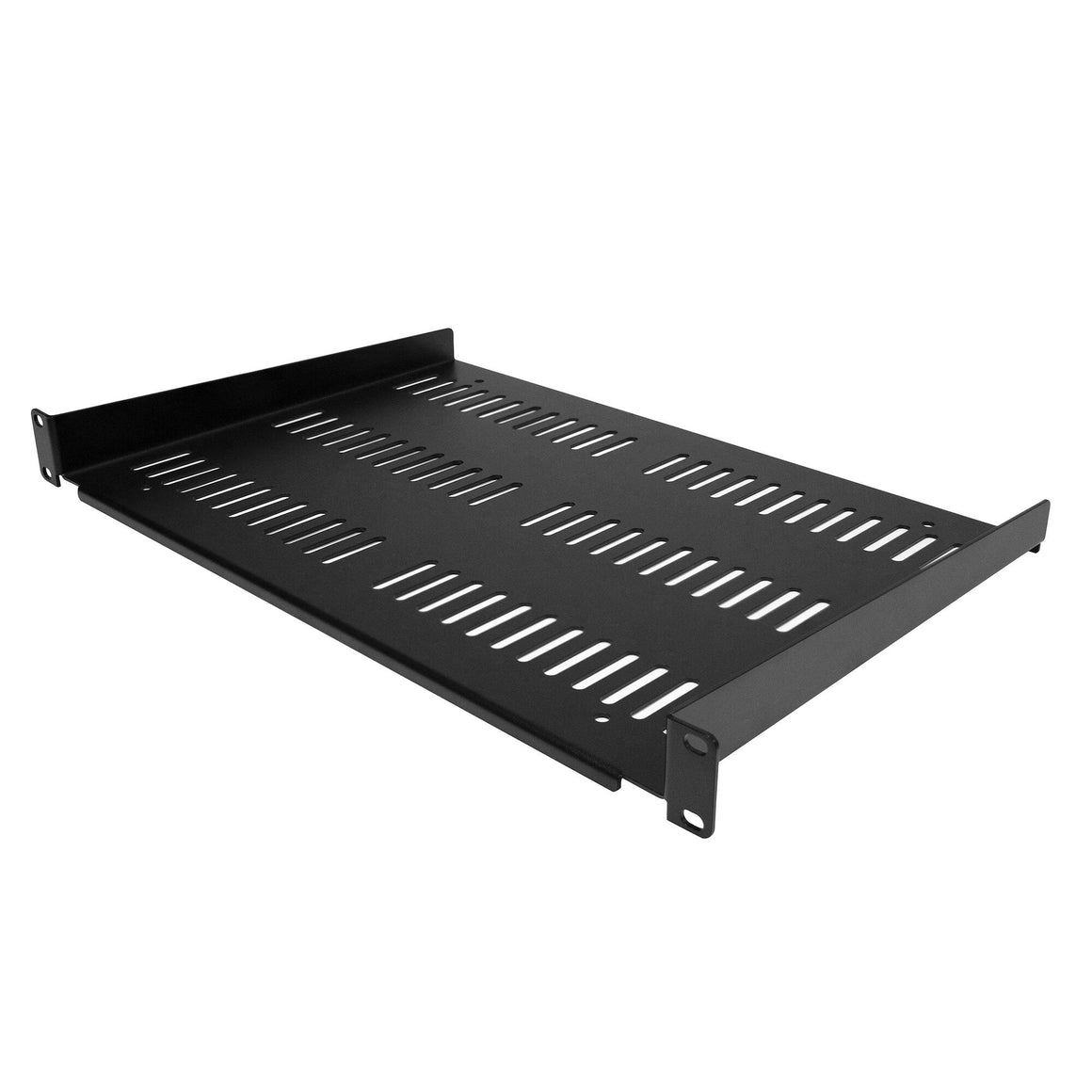

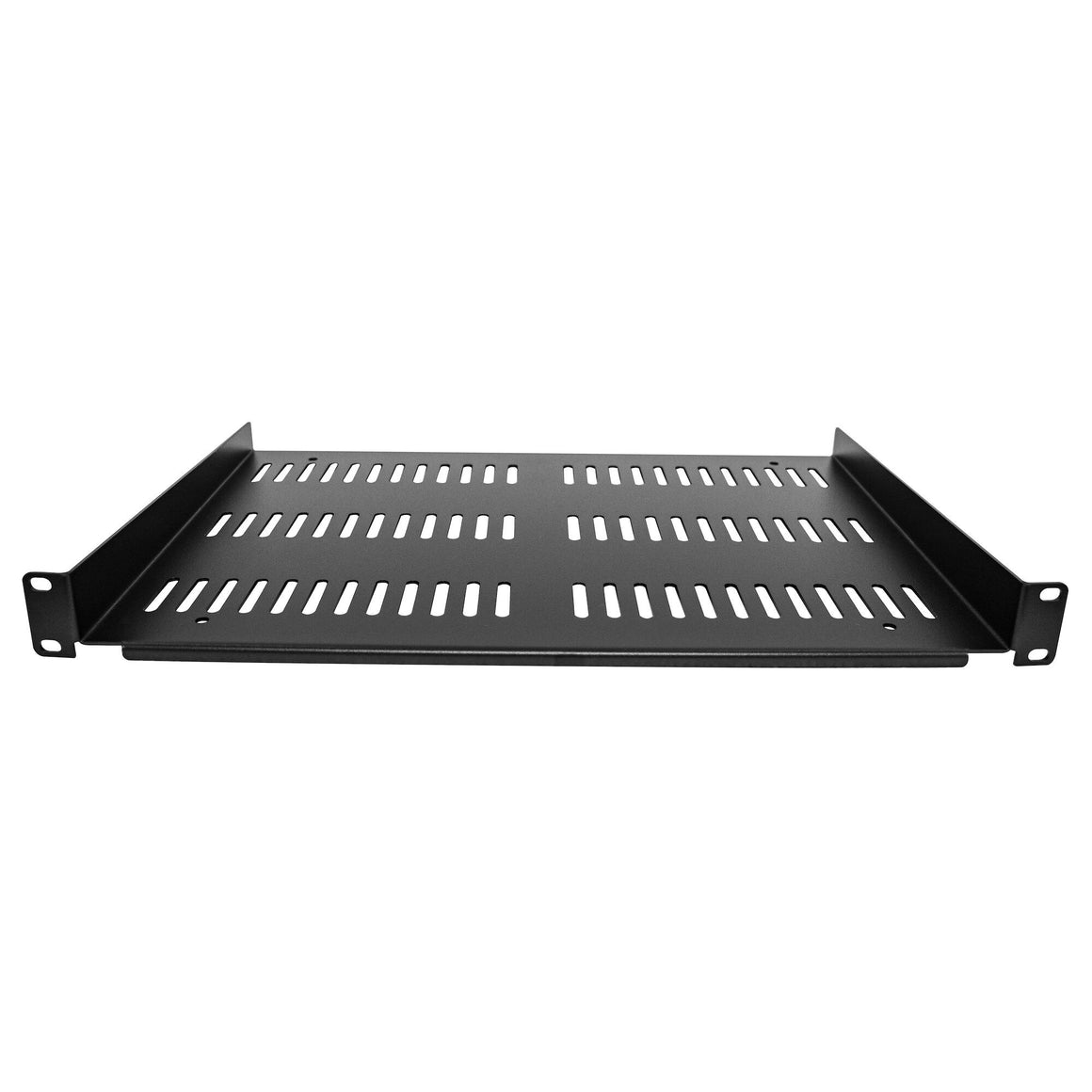

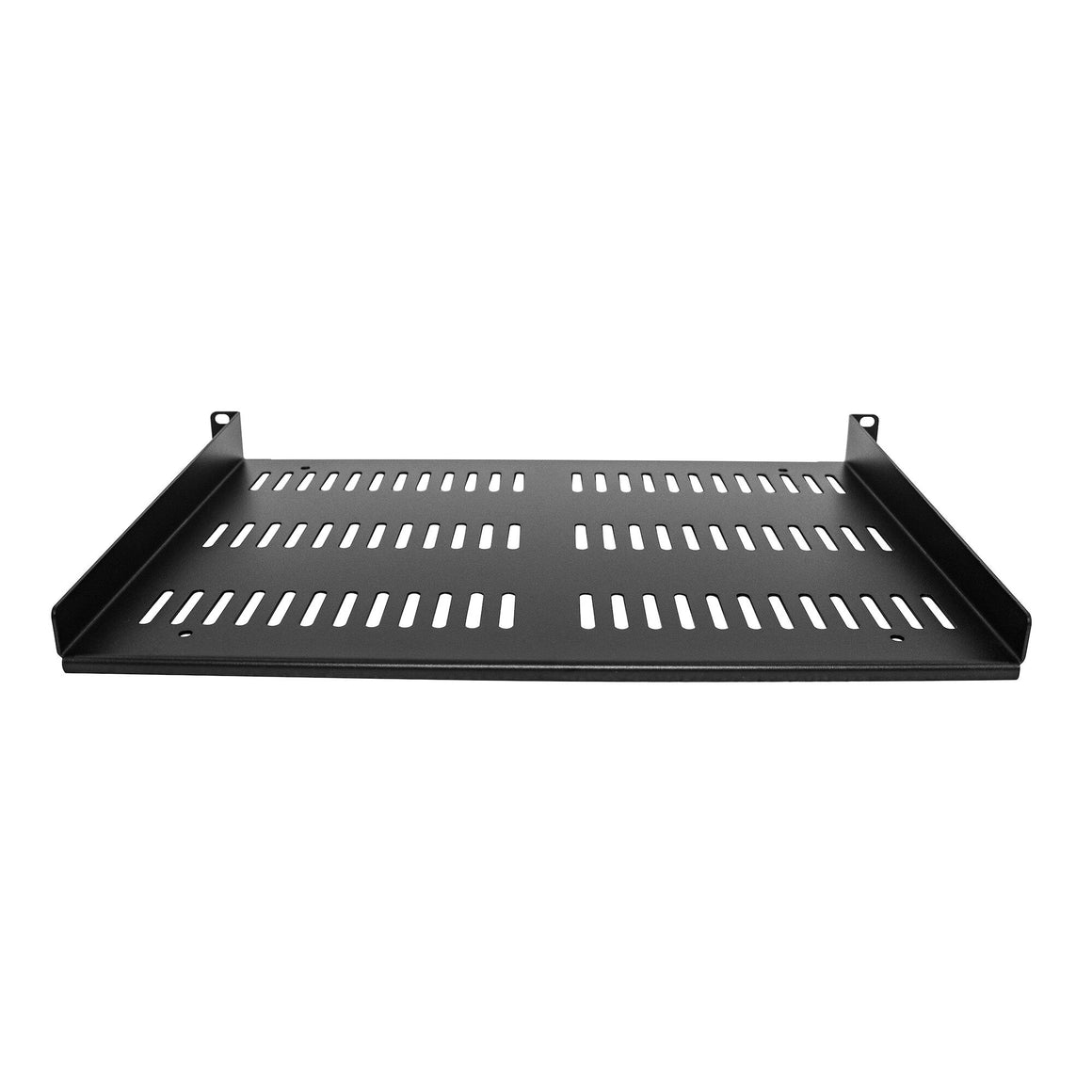

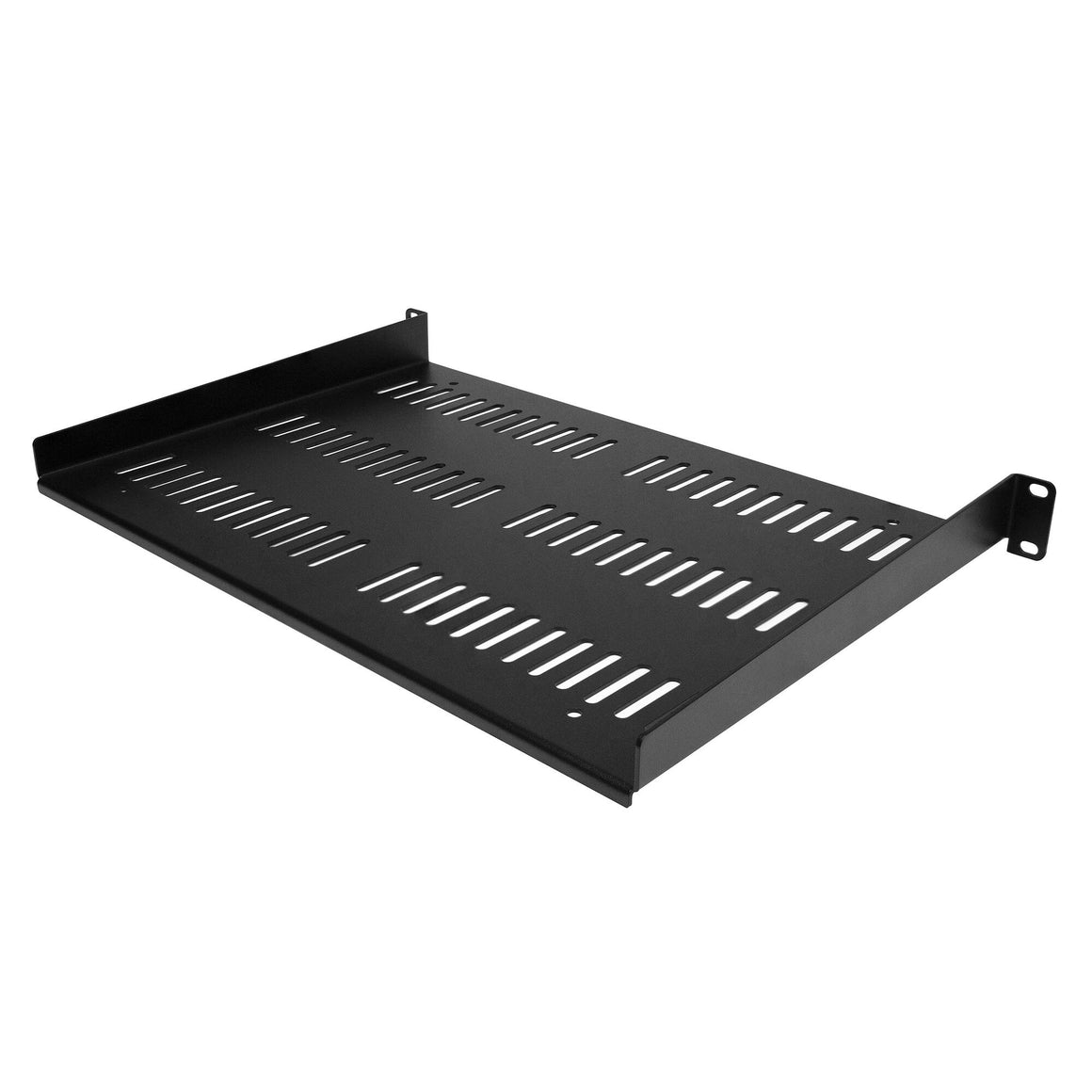

Add a sturdy, 1U server rack shelf into almost any rack or cabinet
The SHELF-1U-12-FIXED-V lets you add 1U 12 inches (30.5 cm) deep shelf to any EIA-310 compliant 19-inch rack or cabinet. The shelf is vented to improve airflow and help lower temperatures in your rack.
Quality construction
The fixed-rack shelf can hold up to 55 lbs (25 kg) of equipment and is constructed using 2.0 mm SPCC commercial-grade cold-rolled steel for long-term durability and sturdiness. Accommodate your accessories or non-mountable devices for ease of access or connectivity to your equipment.
Maximize ventilation
The vented shelf plate improves the airflow helping to dissipate heat away from your equipment for extended and cooler operation.
Hardware included

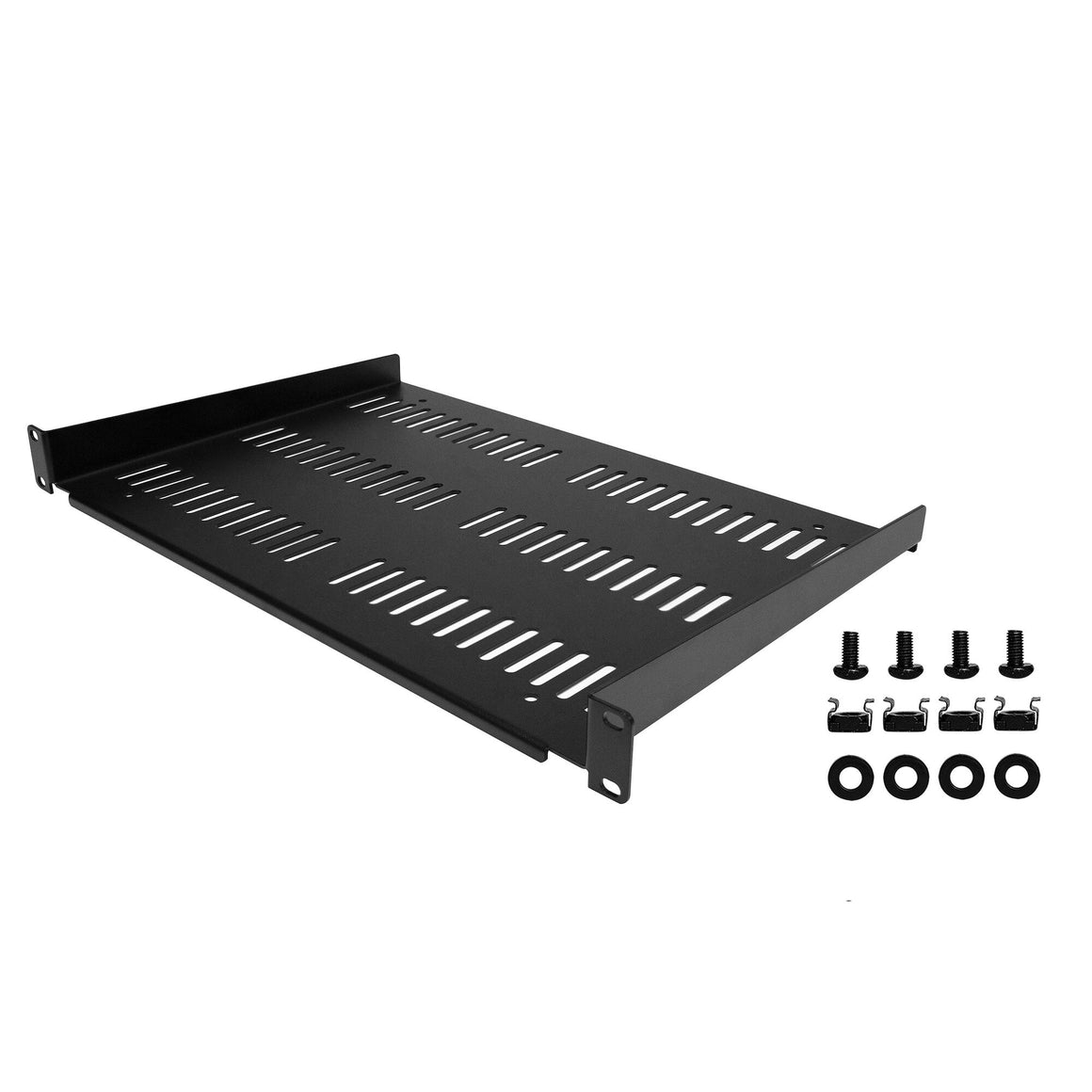

Conveniently includes M6 square cage nuts and M6 screws to set it up in no time.
The SHELF-1U-12-FIXED-V is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
| Rack capacity |
1U |
| Maximum weight capacity |
25 kg |
| Housing material |
SPCC |
| Product colour |
Black |
| Type |
Rack shelf |
| Weight & dimensions |
|---|
| Weight |
2.2 kg |
| Height |
43 mm |
| Depth |
305 mm |
| Width |
483 mm |
| Packaging data |
|---|
| Package weight |
3 kg |
| Package height |
120 mm |
| Package depth |
550 mm |
| Package width |
370 mm |
| Packaging content |
|---|
| Washers included |
Yes |
| Cage nuts included |
Yes |
| Screws included |
Yes |
| Screw type |
M6 |
| Quick installation guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85389099 |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case height |
565 mm |
| Master (outer) case length |
630 mm |
| Master (outer) case width |
385 mm |
