SKU: PR22GIP-NETWORK-CARD

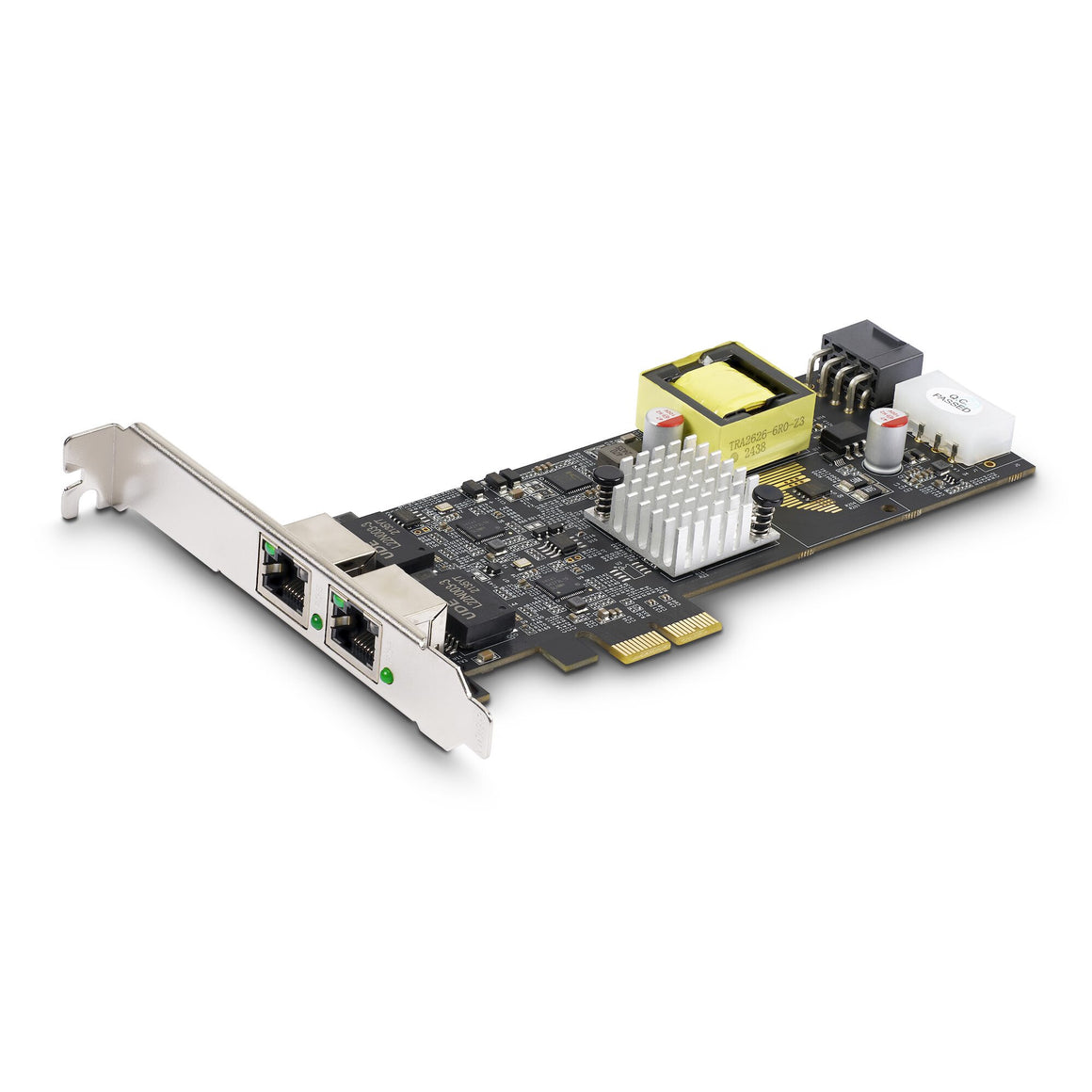

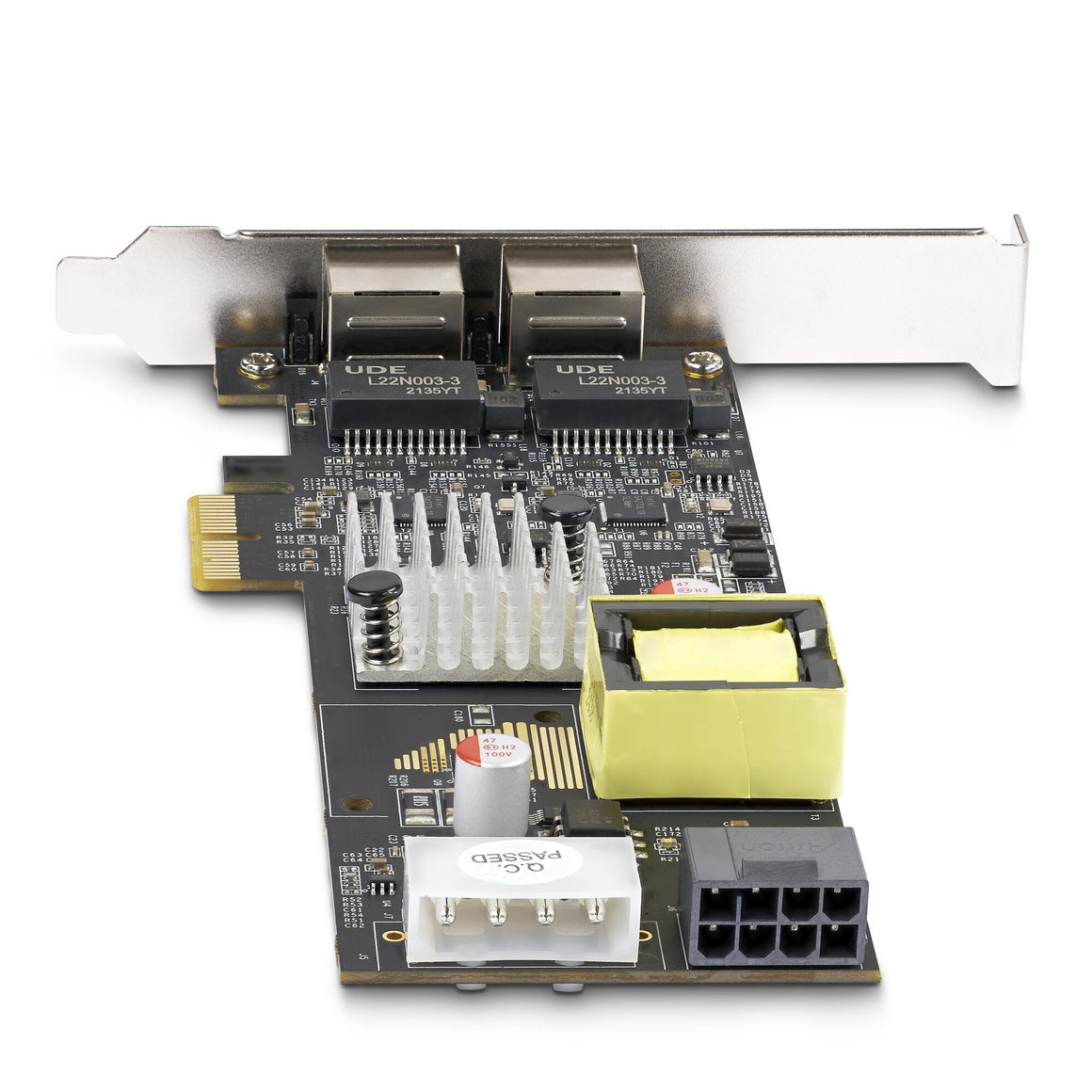

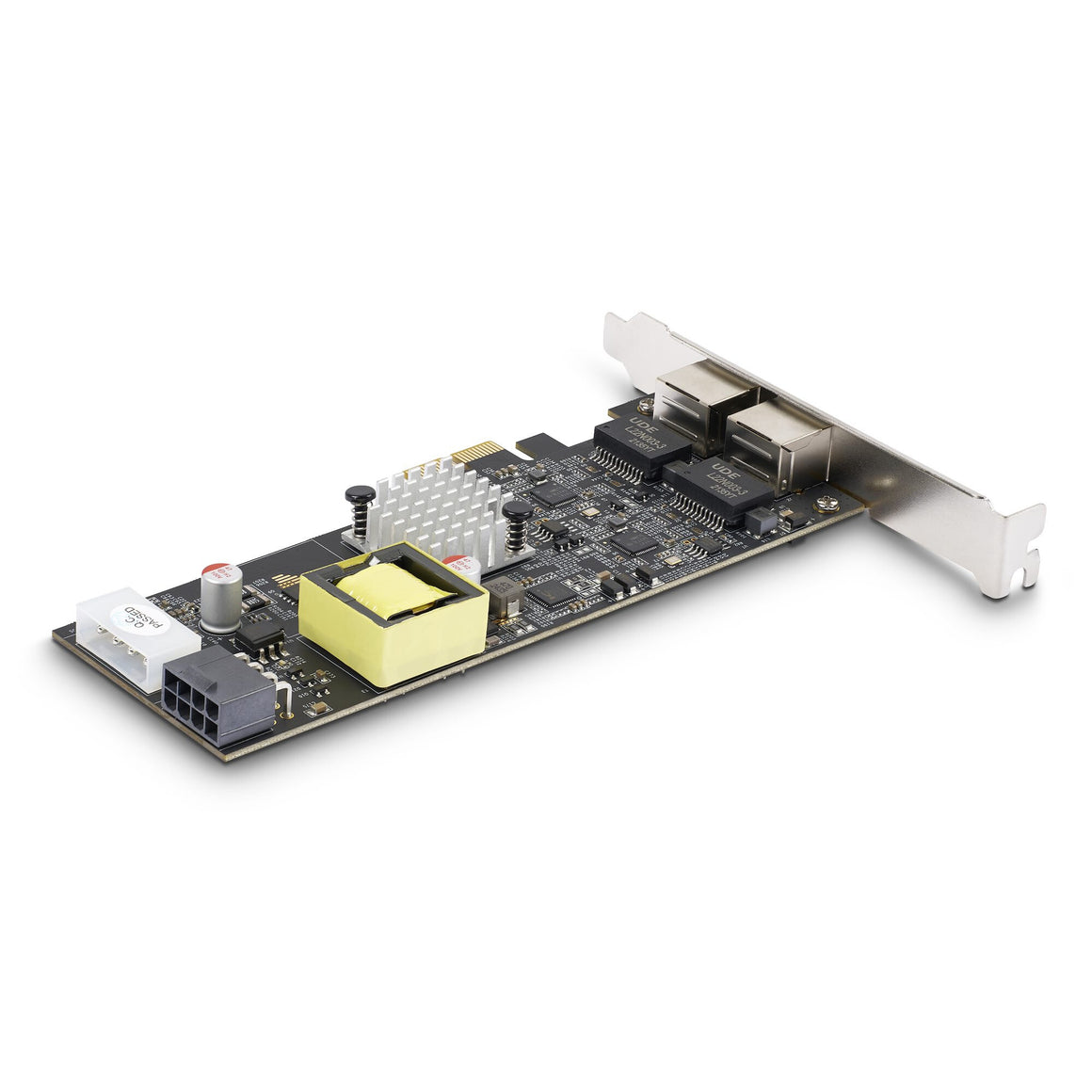

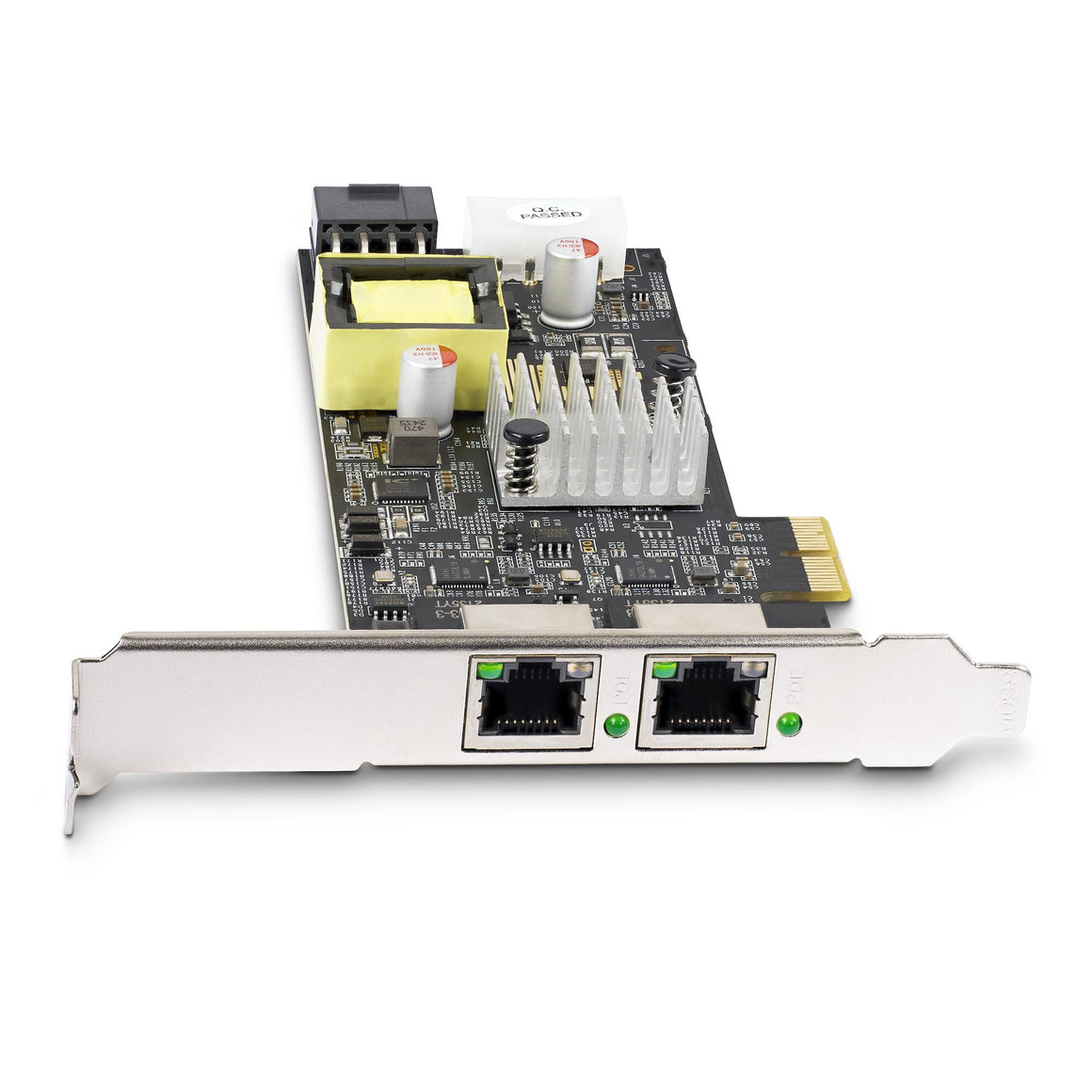

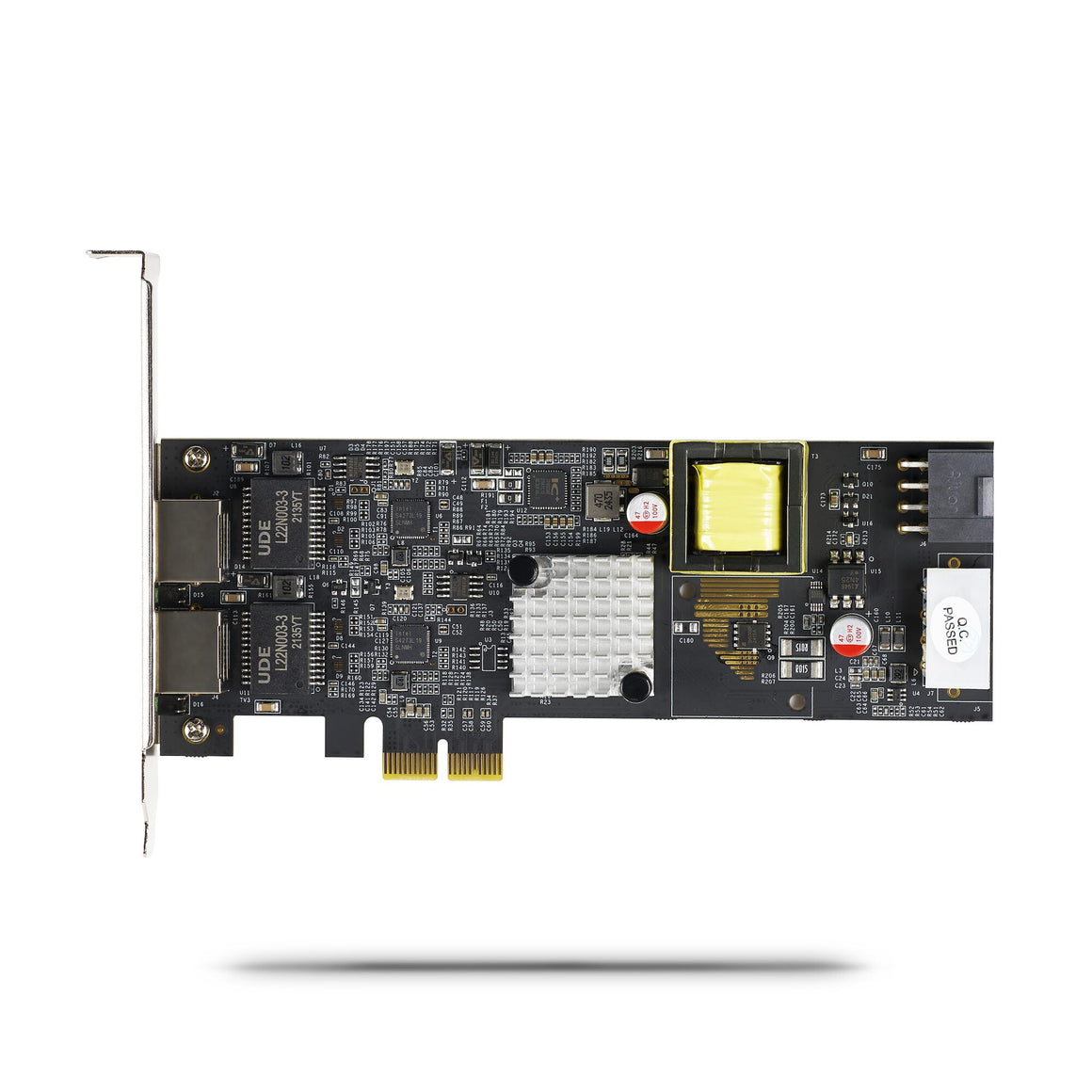

StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered

£186.42

2-PORT 2.5G POE ETHERNET CARD: High-performance PCIe 2.5Gbps network card with dual Intel I225-V chips; Leverage existing Cat5e/Cat6 cabling (or better) without the use of a Power over Ethernet injector; NBASE-T compatible (802.3bz); PCI Express 2.0 x2
POE+ COMPLIANT: Ethernet NIC provides up to 30W PSE and 25.5W PD per port at 48V DC to connected devices; Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras
IT MANAGEMENT: Intel vPro for remote management and troubleshooting; PXE boot enabled for centralized OS deployment and updates; 9K jumbo frame for reduced packet overhead; Remote system boot via WoL; VLAN support for efficient network management
BUILD QUALITY: LAN card features built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, and LAN transformers maintain signal quality and reduced EMI for reliable communication
COMPATIBILITY: 2.5GBASE-T variable speed options (2.5G/1G/100M/10M) with auto-negotiation; Multi-gigabit network interface card for PC is compatible with Windows, Windows Server, VMware, and Linux; Low profile bracket included for hardware compatibility

Add a Power-over-Ethernet (PoE) 2.5Gbps Port to a PCI Express-enabled Computer

This 2.5 GbE network interface card (NIC) features dual Intel I225-V chipsets with Intel vPro technology to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing CAT5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Power Over Ethernet

The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power per port to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supplies or PoE injectors for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.

Enhance Existing Hardware

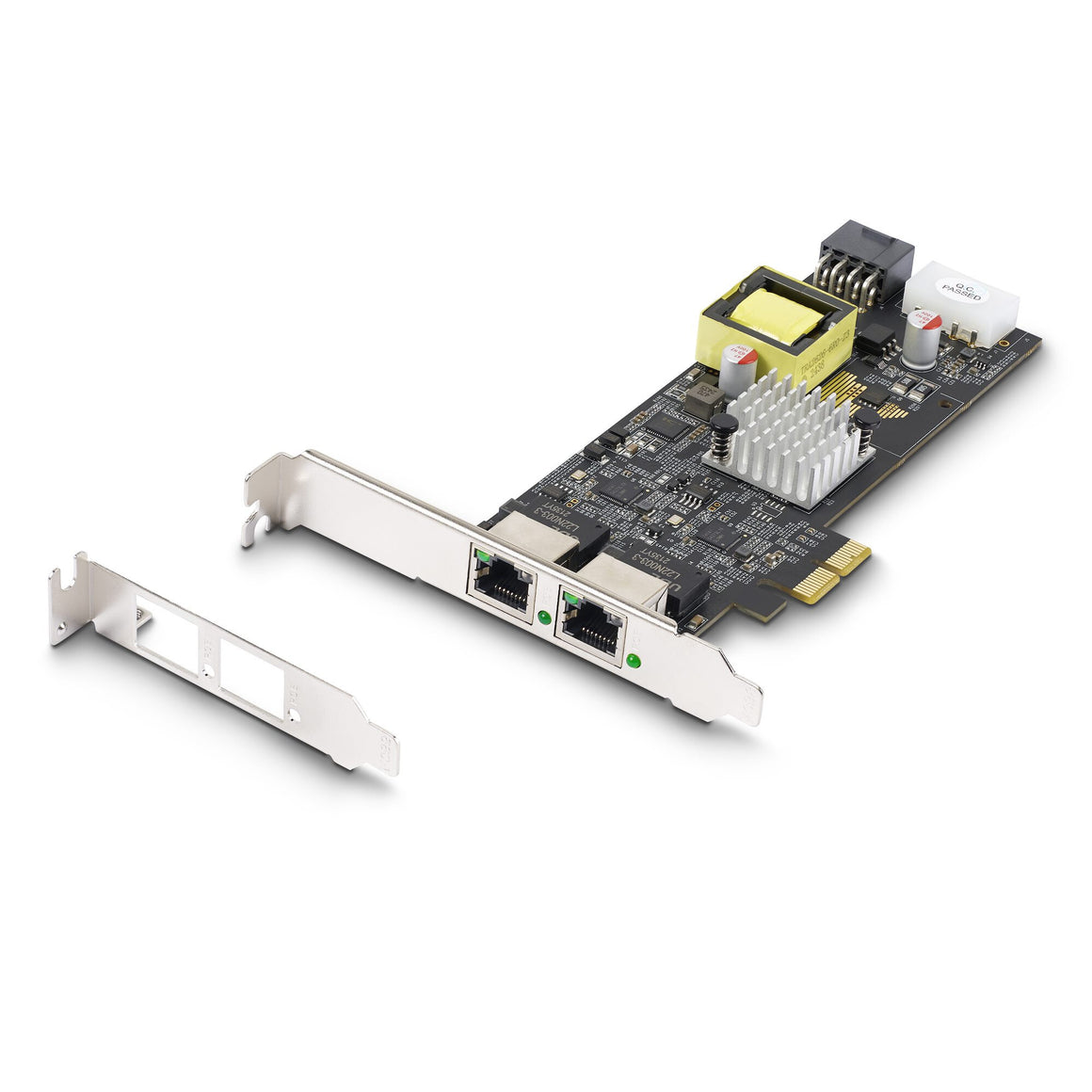

The network interface card connects through an available PCI Express x2 2.0 (or higher) expansion slot. The card ships with a standard-profile bracket pre-installed and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9K jumbo frame, full-duplex, and Intel vPro technology.

The StarTech.com Advantage

Ports & interfaces
PCI version	2.0
Power over Ethernet (PoE) ports quantity	2
Ethernet LAN (RJ-45) ports	2
Host interface	PCI Express
Connectivity technology	Wired

Network
VLAN support	Yes
Quality of Service (QoS) support	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Full duplex	Yes
Auto MDIX IEEE	Yes
Wake-on-LAN ready	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN	Yes
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Maximum data transfer rate	2500 Mbit/s

Design
LED indicators	Yes
Chipset	Intel I225-V
Component for	PC/Server
Internal	Yes

Power
Output voltage	48 V

System requirements
Server operating systems supported	Windows Server 2019, Windows Server 2022
Linux operating systems supported	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Operational conditions
Operating relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 55 °C

Weight & dimensions
Weight	111 g
Height	22 mm
Depth	180 mm
Width	121 mm

Packaging data
Package weight	106 g
Package height	38 mm
Package depth	144 mm
Package width	207 mm

Packaging content
Quick installation guide	Yes
Mounting brackets included	Yes

Technical details
Compliance certificates	RoHS

Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case height	320 mm
Master (outer) case length	420 mm
Master (outer) case width	440 mm
