Share a mouse, keyboard, USB hub, and dual 4K 60Hz DisplayPort monitors, between two DisplayPort-enabled computers, featuring dual-view video matrix capabilities
The Video Matrix KVM Switch allows you to view one display from each connected computer and switch the keyboard, mouse, and audio device between the selected displays using hotkeys. You can also switch all connected peripherals and both monitors like a standard KVM.
Universal Compatibility
The TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system, including Windows, macOS, and Linux. No software is required, and it is compatible with all hardware platforms such as Intel, AMD, and Apple Silicon.
Customizable Switching

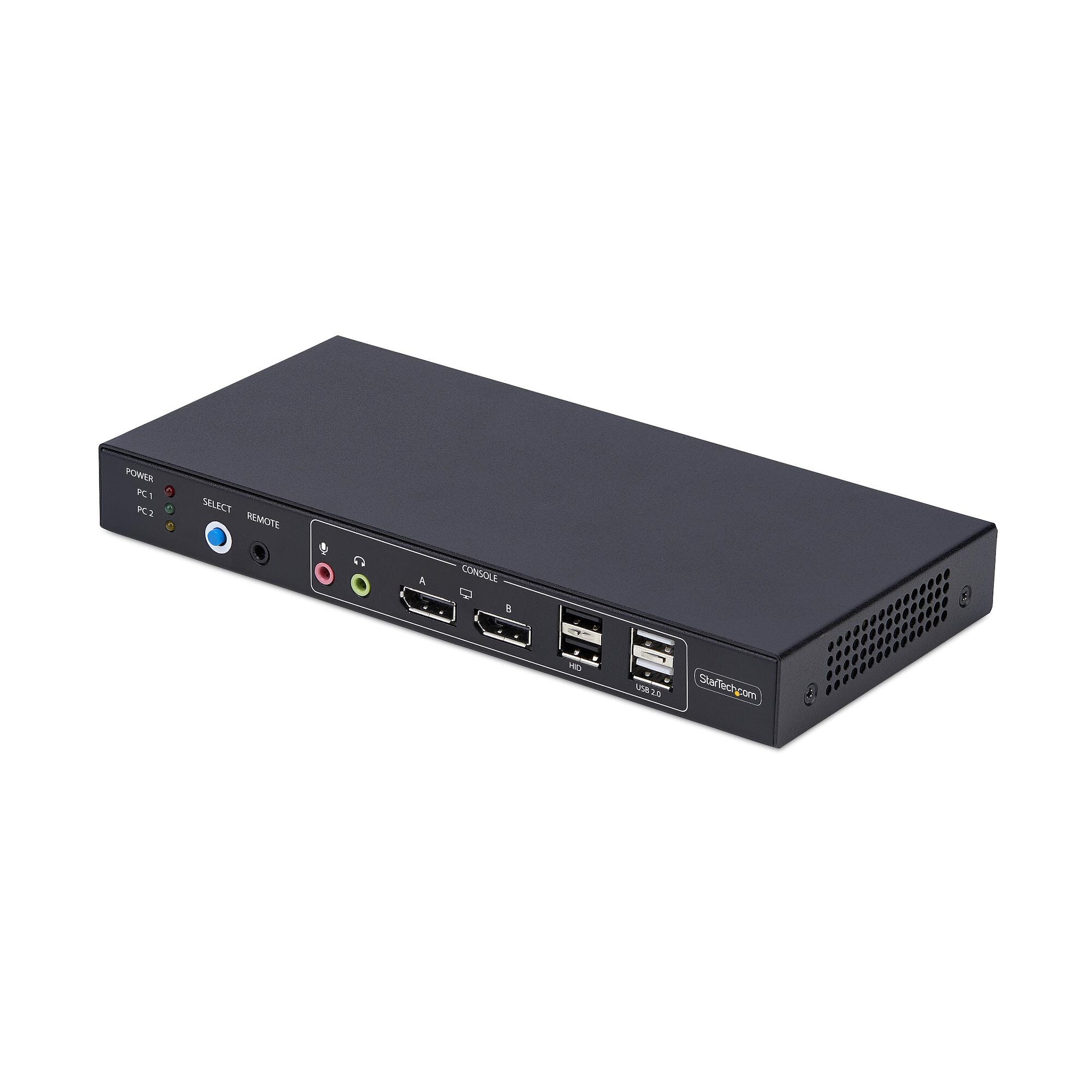

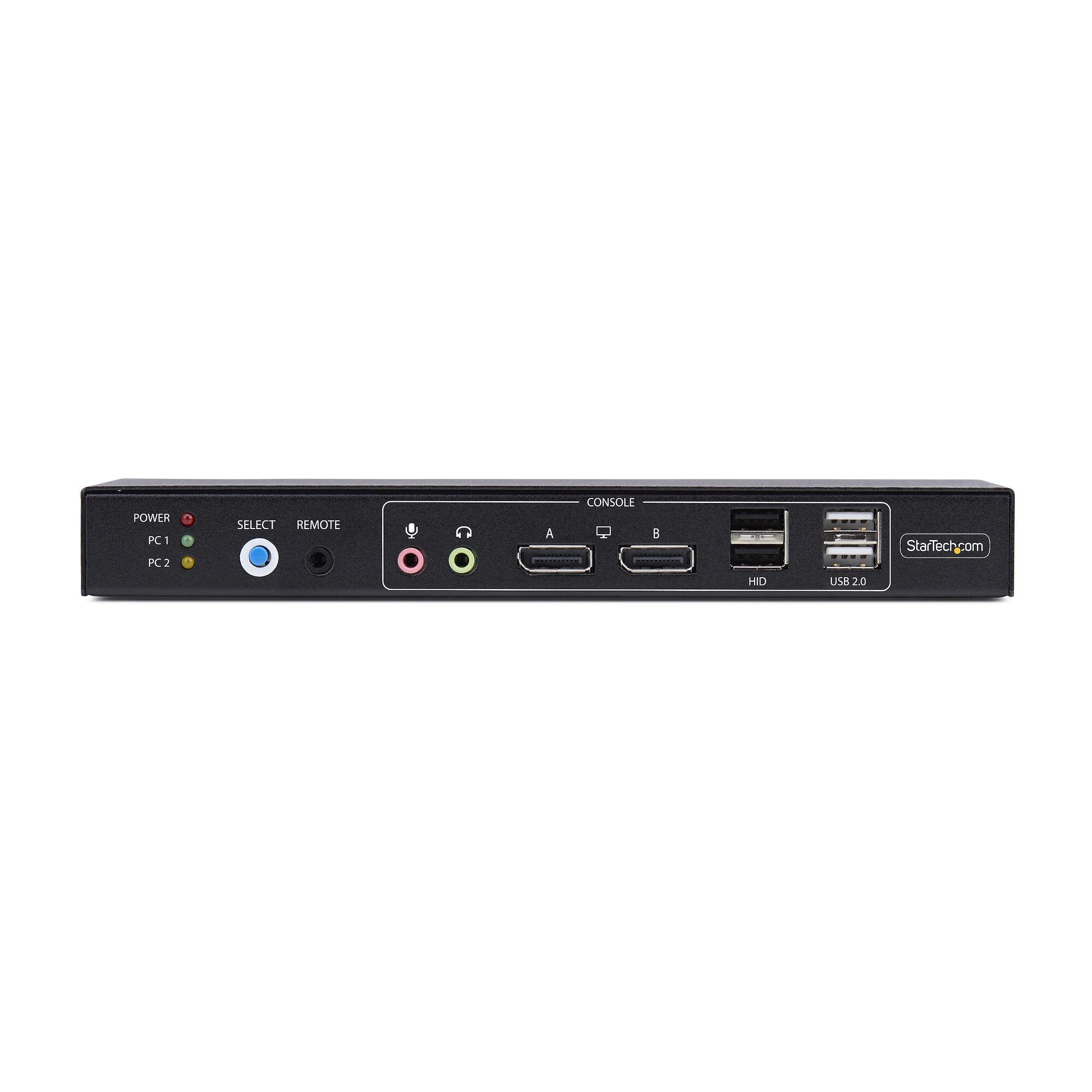

Switching KVM ports is easy with the front-facing push button, hotkeys, or the included remote selector cable. An audible buzzer provides confirmation, and LEDs offer quick visual port selection status.
Reliable Performance
The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in a variety of environments, and it offers 8kV Air/6kV Contact ESD protection.
USB Audio
Eliminate the need to connect 3.5mm cables from the computers to the KVM by using this KVM switch's built-in USB audio device, which provides 3.5mm audio jacks for both microphone and speakers. This setup simplifies your workspace by integrating audio management directly into the KVM switch.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Number of microphone inputs |
1 |
| Headphone outputs |
1 |
| Audio connections |
Yes |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB hub |
Yes |
| Console DisplayPorts ports quantity |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity |
4 |
| USB 2.0 Type-B ports quantity |
2 |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
4 |
| Video port type |
DisplayPort |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| Audio channels |
2.0 |
| Daisy chain |
No |
| Scan interval |
10,20,30,40,50,60 s |
| Data transfer rate (max) |
0.48 Gbit/s |
| Maximum resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
|---|
| Mean time between failures (MTBF) |
87298 h |
| Hot keys |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Wired remote switch |
Yes |
| Housing material |
Aluminium, Steel |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| On Screen Display (OSD) |
No |
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
36 W |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, UK, US |
| Output current |
3 A |
| Output voltage |
12 V |
| Input current |
1 A |
| Input voltage |
100 - 240 V |
| Power source |
DC |
| Sustainability |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
626 g |
| Height |
26 mm |
| Depth |
221 mm |
| Width |
105 mm |
| Packaging data |
|---|
| Package weight |
1.5 kg |
| Package height |
78 mm |
| Package depth |
292 mm |
| Package width |
250 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Other features |
|---|
| IP control |
No |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case height |
333 mm |
| Master (outer) case length |
419 mm |
| Master (outer) case width |
539 mm |
