SKU: AF221CE-POE-INJECTOR

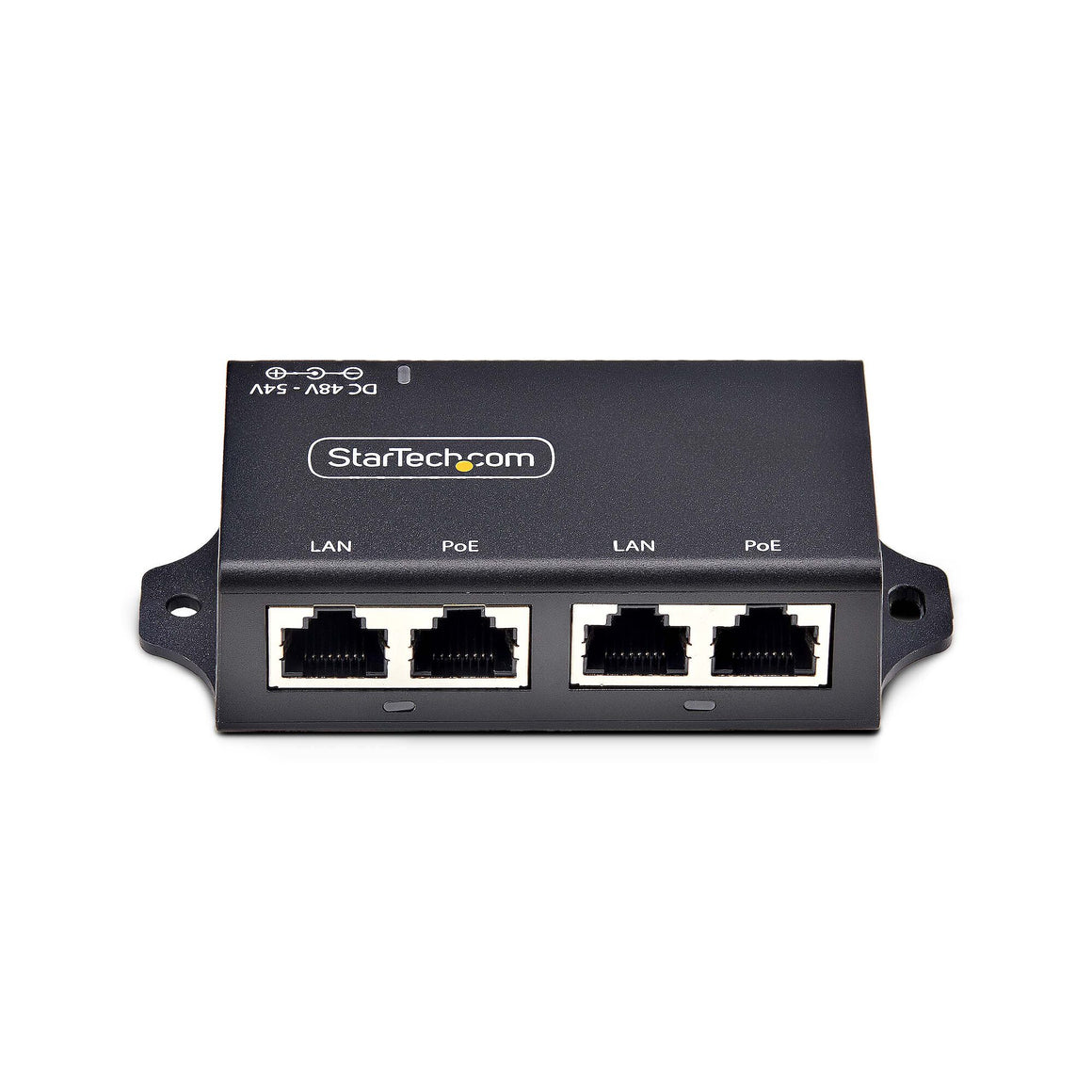

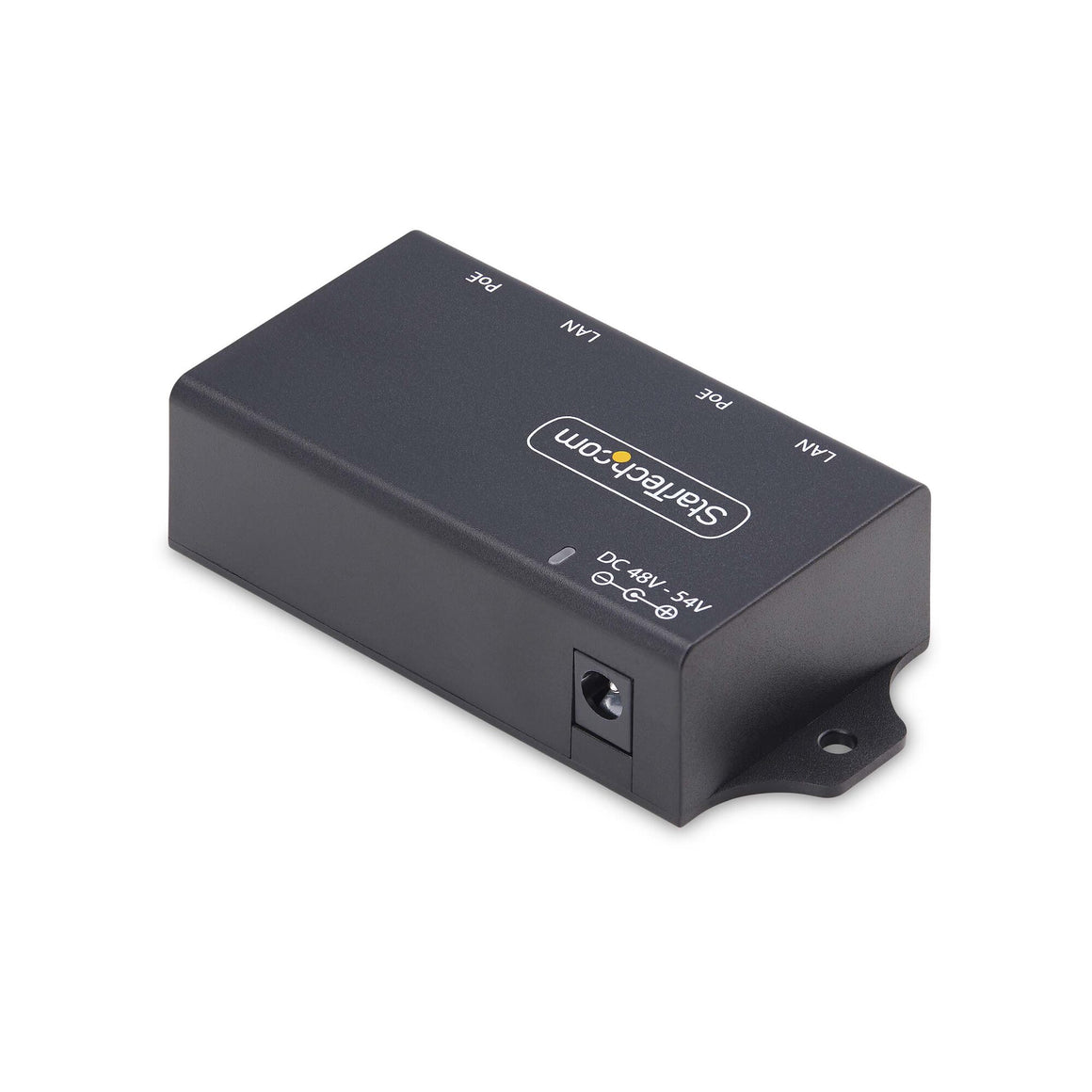

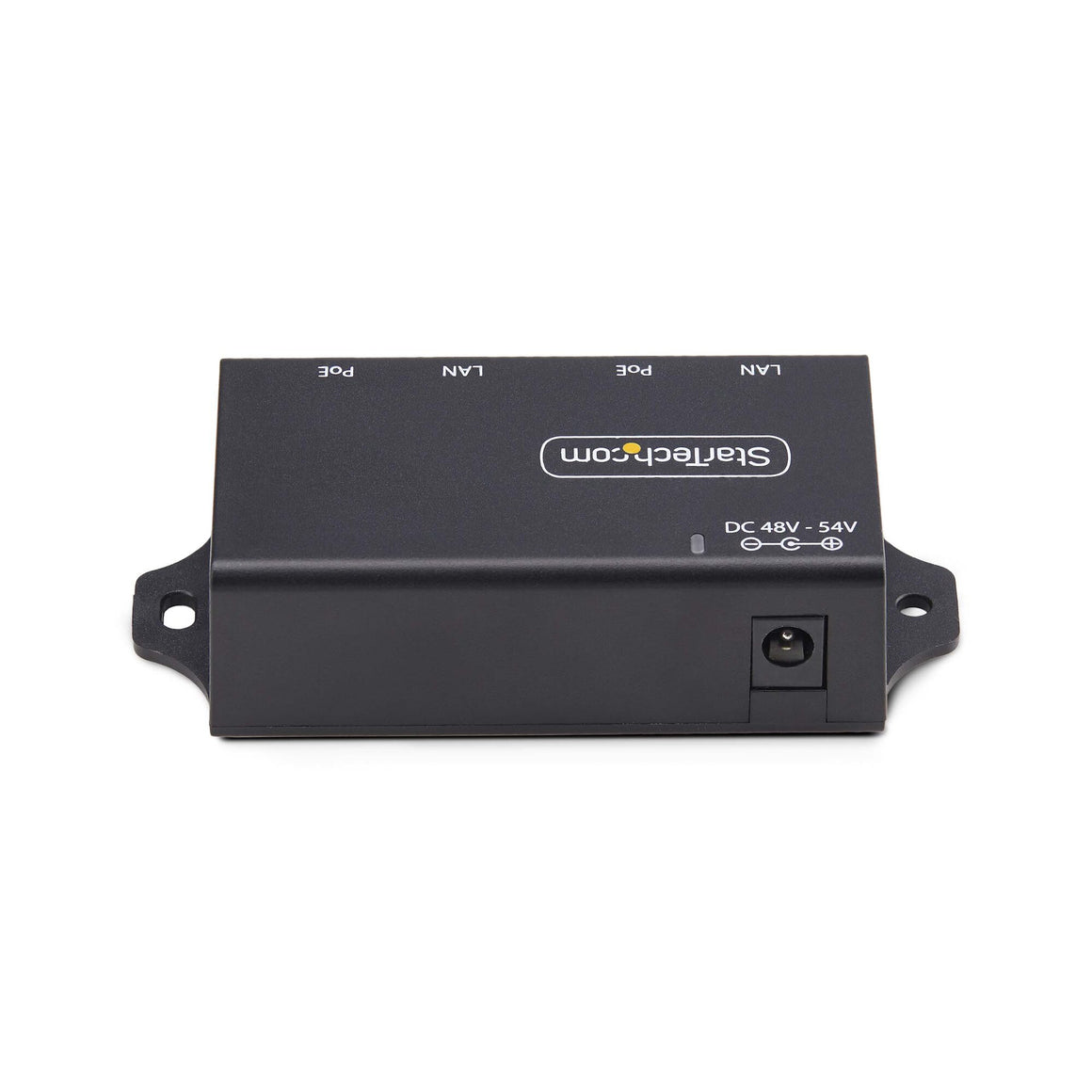

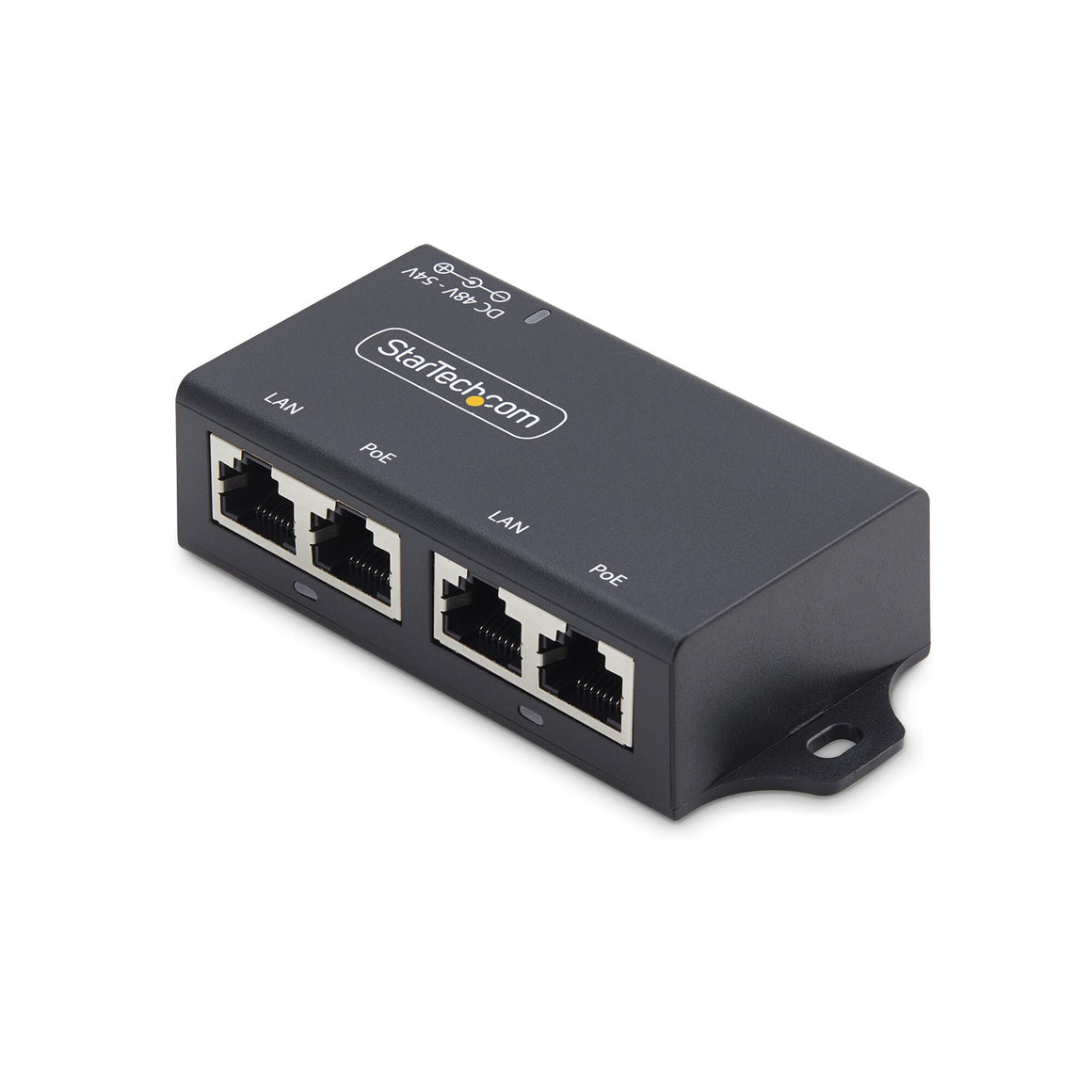

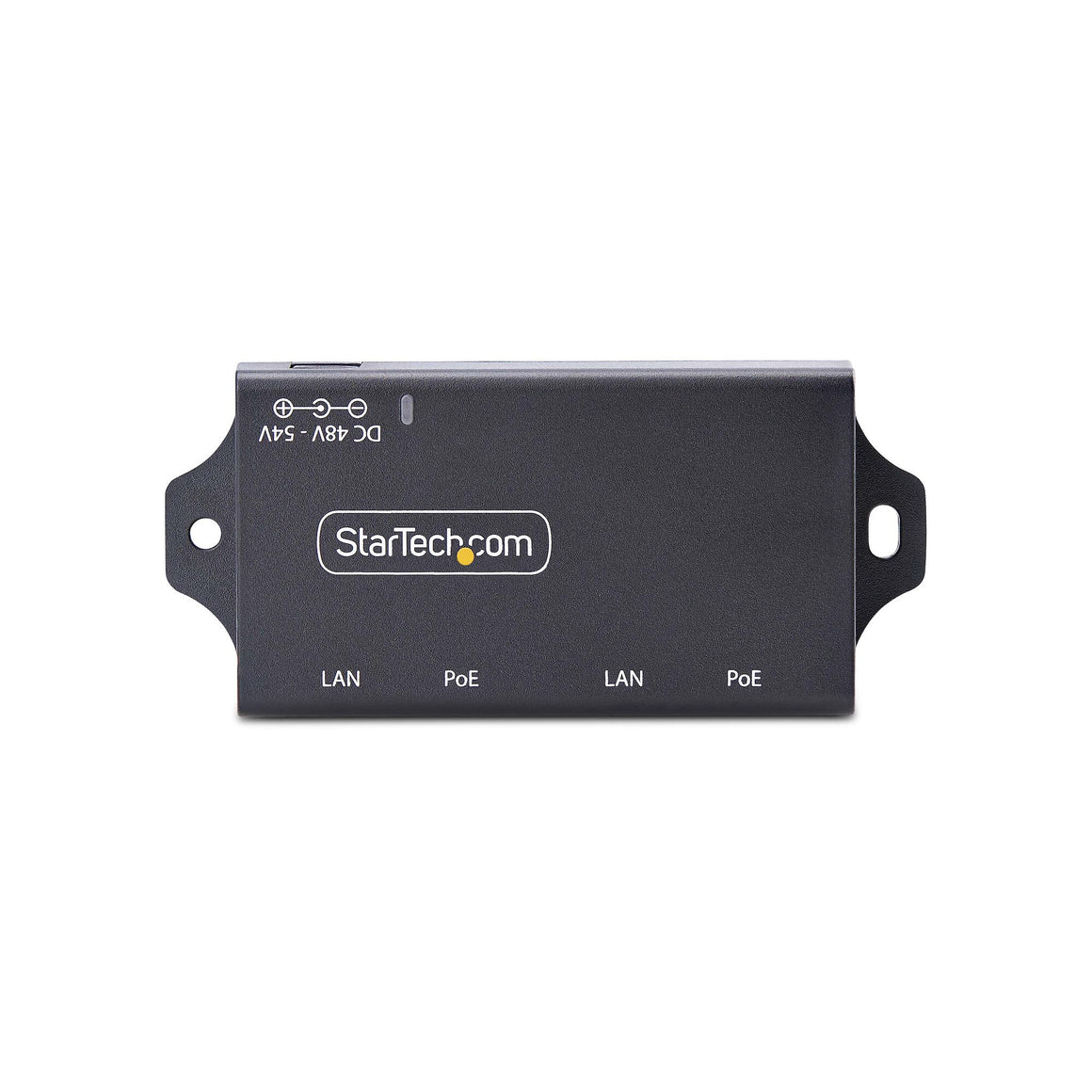

StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet

StarTech.com
£72.43
iFrame
  • TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
  • NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV
  • HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
  • APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet
  • TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch (82x25x46mm)

Supply power and data to two PoE devices over standard Ethernet cabling

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

The StarTech.com Advantage

Network
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
Auto MDI/MDI-X Yes
Chipset IC Plus - IP802AR
Web-based management No
Power over Ethernet (PoE) Yes
Cabling technology 10/100/1000
Ethernet LAN data rates 10,1000,100 Mbit/s
Ethernet interface type Gigabit Ethernet, Fast Ethernet
Features
Auto-negotiation Yes
Jumbo frames support Yes
Jumbo frames 9000
LED indicators Yes
Maximum operating distance 100 m
Surge protection Yes
Wall mountable Yes
Housing material Plastic
Product colour Black
Ports & interfaces
DC-in jack Yes
RJ-45 output ports 2
RJ-45 input ports 2
Ethernet LAN (RJ-45) ports 4
Power
Suitable for use in country/location Europe, United Kingdom
Power plug type Type M
Total Power over Ethernet (PoE) budget 30 W
Surge protection voltage 2 kV
Power consumption (max) 65 W
Output current 1.25 A
AC adapter output voltage 52 V
Input current 1.5 A
AC adapter input voltage 100 - 240 V
Output power 30 W
Certificates
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Weight & dimensions
Weight 60 g
Height 25 mm
Depth 102 mm
Width 46 mm
Packaging content
Quick installation guide Yes
Packaging data
Package weight 105 g
Package height 38 mm
Package depth 144 mm
Package width 207 mm
Logistics data
Products per master (outer) case 40 pc(s)
Master (outer) case height 320 mm
Master (outer) case length 420 mm
Master (outer) case width 440 mm
