Turn almost any 2.5" SATA/SAS drive into a 3.5" drive

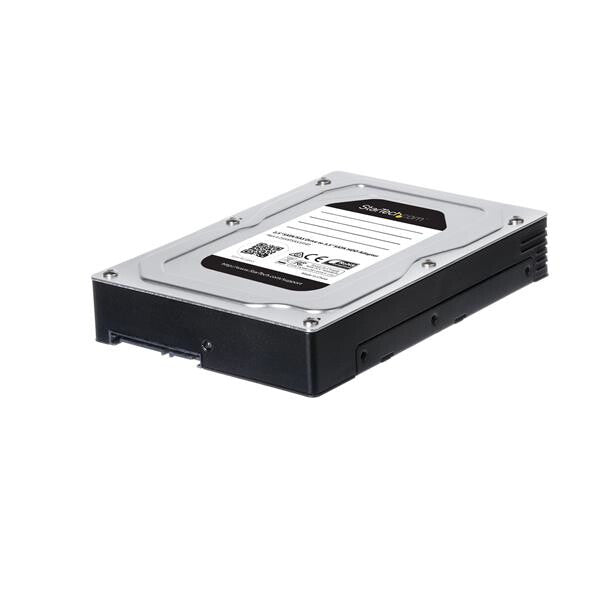

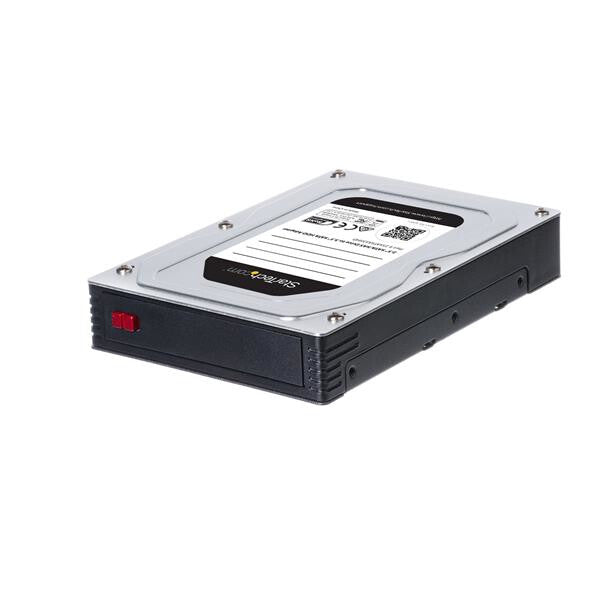

This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes.
Convert a 2.5" drive into a 3.5" drive
The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.
To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps.
Easy and flexible installation

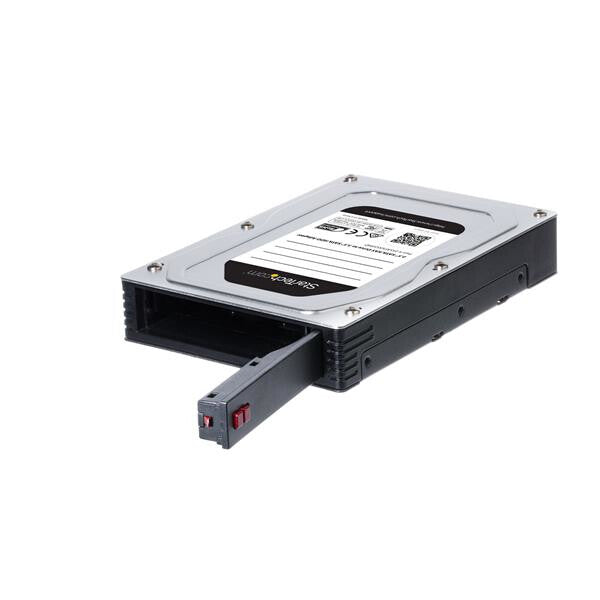

You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required.
The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive.
Identify and track your drives
The adapter includes a label you can use to track and record information about the installed drive.
The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Supports 2.5" form factor drives up to 15 mm in height
- Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
- Tool-less 2.5" drive installation
| Features |
|---|
| Certification |
CE, FCC |
| Number of fans |
0 fan(s) |
| Data transfer rate |
6 Gbit/s |
| Key lock |
No |
| S.M.A.R.T. support |
Yes |
| Hot-swap |
Yes |
| Supported storage drive heights |
7,9.5,12.5,15 mm |
| Material |
Aluminium, Plastic |
| HDD interface |
Serial ATA, Serial Attached SCSI (SAS) |
| HDD size |
2.5" |
| Number of HDDs supported |
1 |
| Product colour |
Black, Silver |
| Type |
Carrier panel |
| Size (imperial) |
8.89 cm (3.5") |
| Weight & dimensions |
|---|
| Width |
101 mm |
| Depth |
146 mm |
| Height |
26 mm |
| Weight |
252 g |
| Packaging data |
|---|
| Package weight |
252 g |
| Package dimensions (WxDxH) |
112 x 160 x 35 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 55 °C |
| Operating relative humidity (H-H) |
5 - 65% |
| Storage temperature (T-T) |
0 - 55 °C |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
