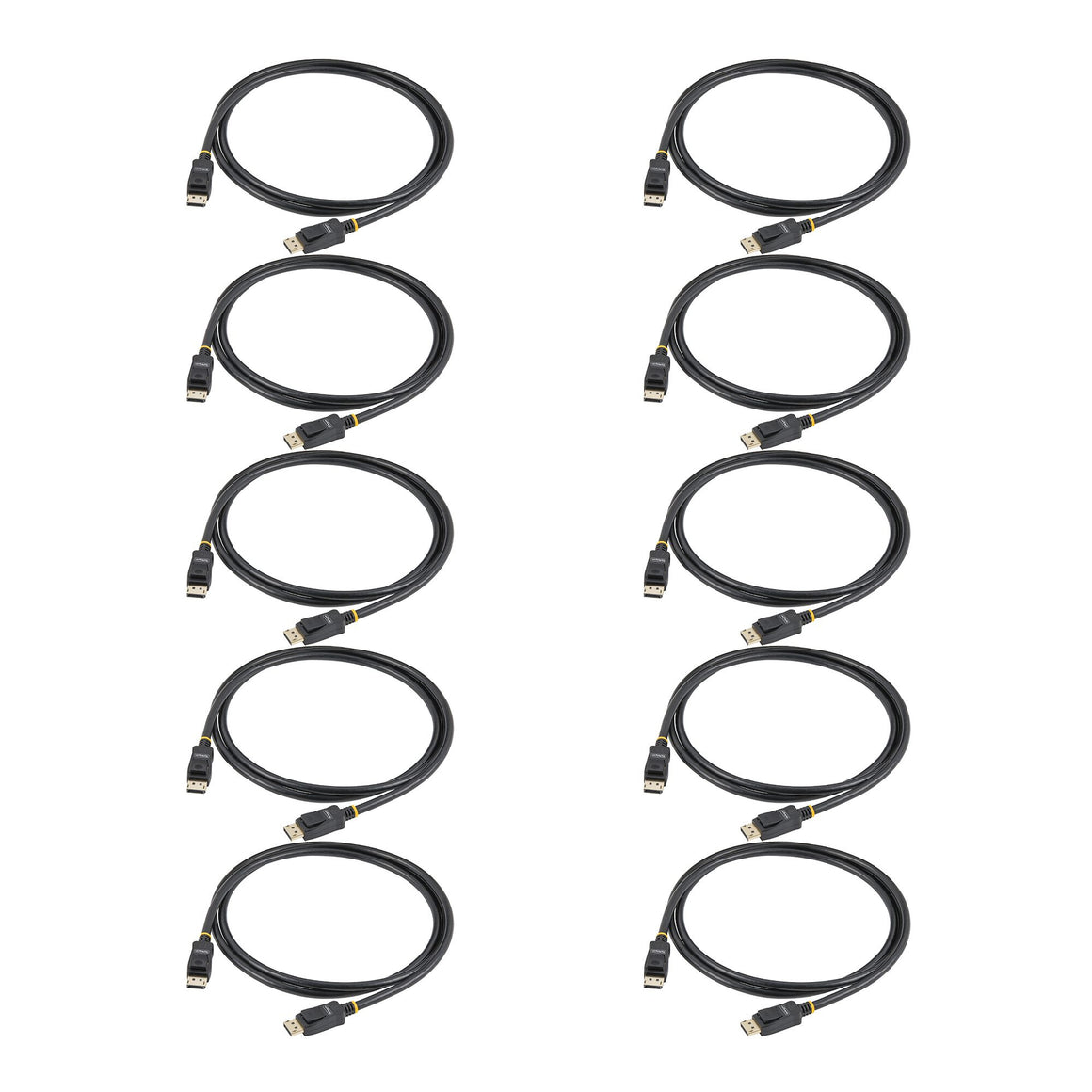

Set up multiple 4K UHD connections using this DisplayPort Cable 10 Pack
Faciliate multi-monitor setups using this DisplayPort 1.2 Cable 10-Pack. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 4K workstations, docks, and high performance GPUs. Connect a 4K 60Hz UHD DisplayPort monitor to a host computer or MST hub.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility with DP 1.1.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket and can be routed around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching gold-plated DP connectors attach securely to prevent accidental disconnection.
Supported DisplayPort 1.2 Features:
The Certified DisplayPort Cable supports the following DP 1.2 features:
• Resolutions up to 4K 60Hz, using a compatible DP source and display
• Supports high refresh rates including 1080p 120Hz and 1440p 75Hz
• High-Bandwidth Digital Content Protection (HDCP) for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 8 Uncompressed Digital Audio Channels
• Backward compatible with DP 1.1
This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
Features |
Number of conductors |
19 |
Cable type |
Round cable |
Multi-Stream Transport (MST) |
Yes |
Data transfer rate |
21.6 Gbit/s |
AWG wire size |
28 |
Jacket material |
Thermoplastic elastomer (TPE) |
Cable shielding |
Aluminum mylar foil |
Cable rating |
CMG (CM) |
Product colour |
Black |
Latching connectors |
Yes |
HDCP |
Yes |
Maximum refresh rate |
120 Hz |
Maximum resolution |
3840 x 2160 pixels |
Connector contacts plating |
Nickel |
Connector 2 form factor |
Straight |
Connector 1 form factor |
Straight |
Connector 2 gender |
Male |
Connector 1 gender |
Male |
Connector 2 |
DisplayPort |
Connector 1 |
DisplayPort |
Cable length |
2 m |
Operational conditions |
Operating relative humidity (H-H) |
10 - 85% |
Storage temperature (T-T) |
-20 - 70 °C |
Operating temperature (T-T) |
0 - 40 °C |
Certificates |
Compliance certificates |
CE, RoHS |
Weight & dimensions |
Weight |
134 g |
Cable diameter |
7.3 mm |
Packaging data |
Package weight |
1.4 kg |
Package height |
100 mm |
Package depth |
460 mm |
Package width |
350 mm |
Packaging content |
Quantity per pack |
10 pc(s) |
Logistics data |
Products per master (outer) case |
5 pc(s) |
Master (outer) case height |
210 mm |
Master (outer) case length |
500 mm |
Master (outer) case width |
320 mm |
