Connect your VGA monitor with the highest quality connection available

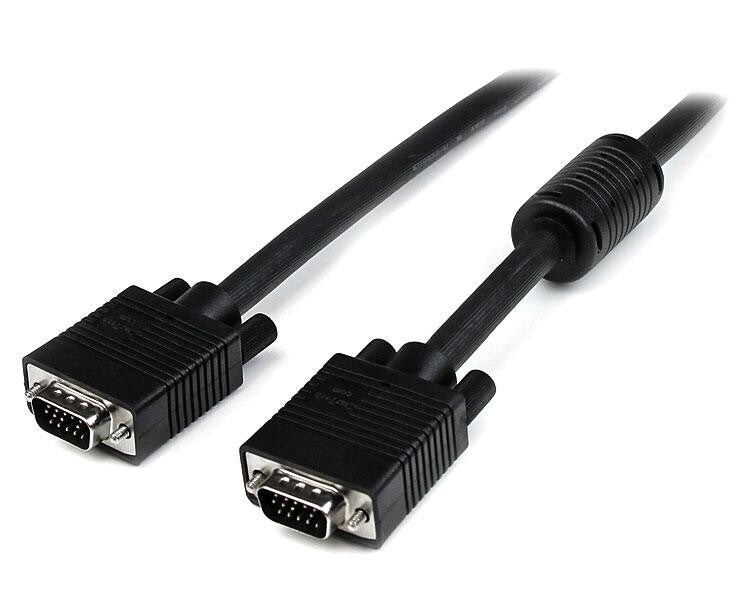

The MXTMMHQ2M High Resolution VGA Cable (2-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.

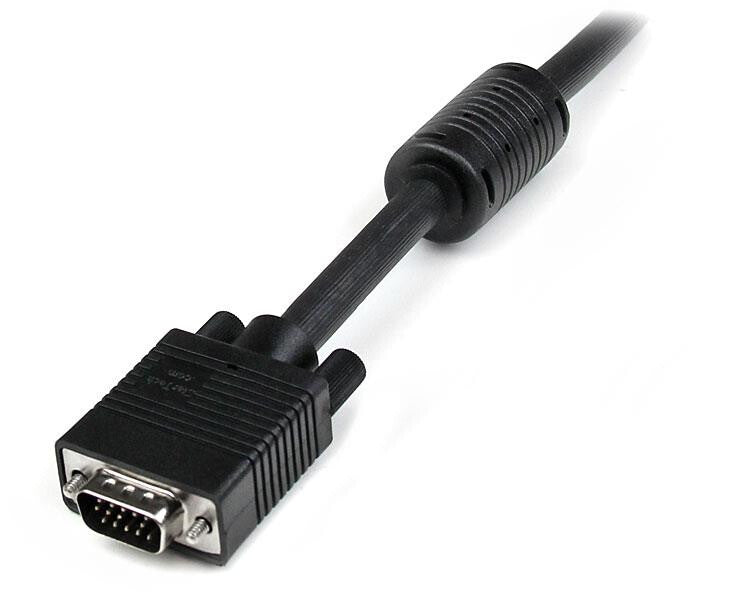

This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty
| Features |
|---|
| Plug and Play |
Yes |
| Impedance |
75 Ω |
| Number of conductors |
14 |
| Cable rating |
CMG (CM) |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Nickel |
| AWG wire size |
28 |
| Cable shielding |
Aluminum mylar foil |
| Supported graphics resolutions |
1920 x 1200 (WUXGA) |
| Product colour |
Black |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 |
VGA (D-Sub) |
| Cable length |
2 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating temperature (T-T) |
0 - 60 °C |
| Certificates |
|---|
| Certification |
CE, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
275 g |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
300 g |
| Package height |
52 mm |
| Package depth |
220 mm |
| Package width |
200 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
