Increase peripheral and equipment accessibility with this vented sliding cabinet shelf
The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack.

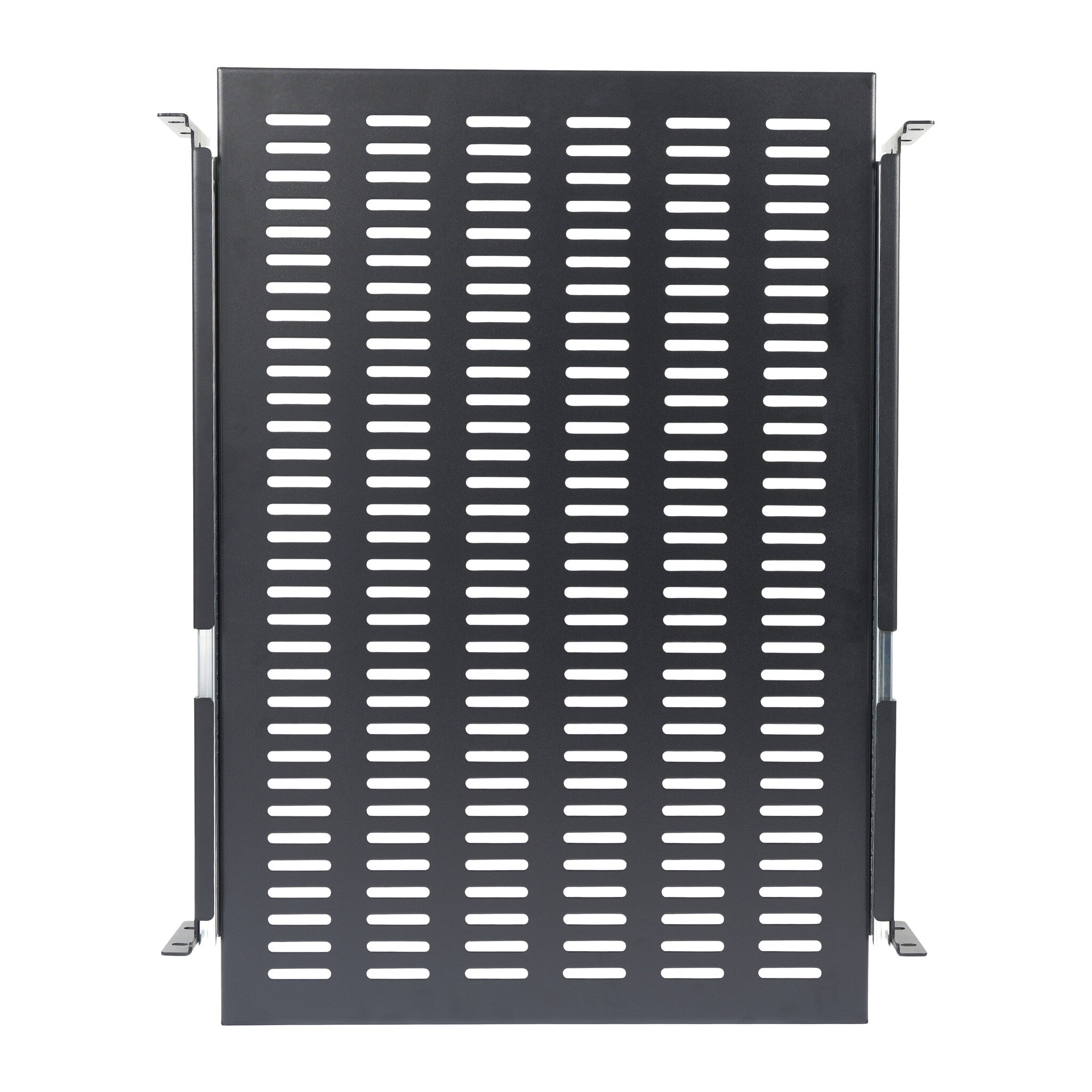

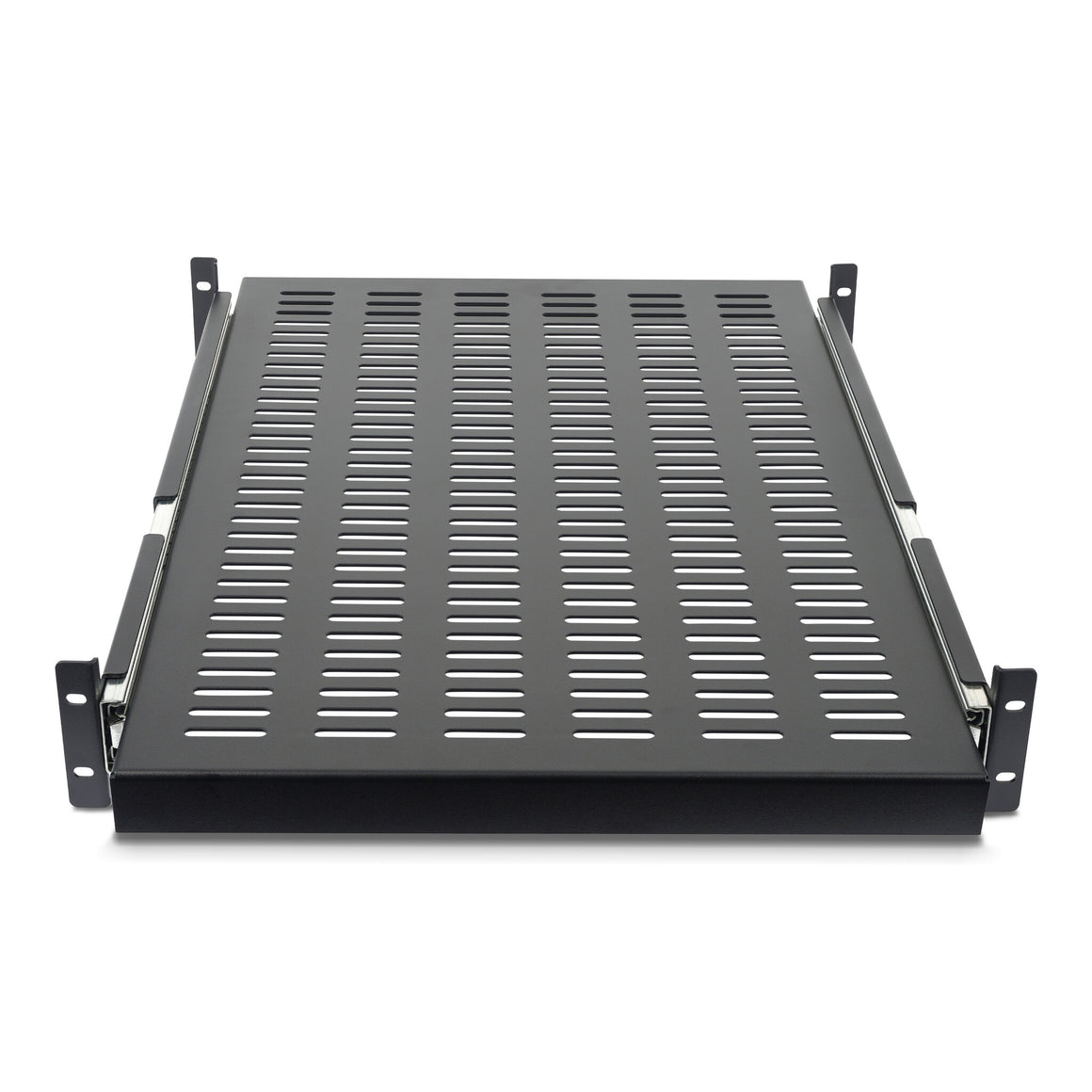

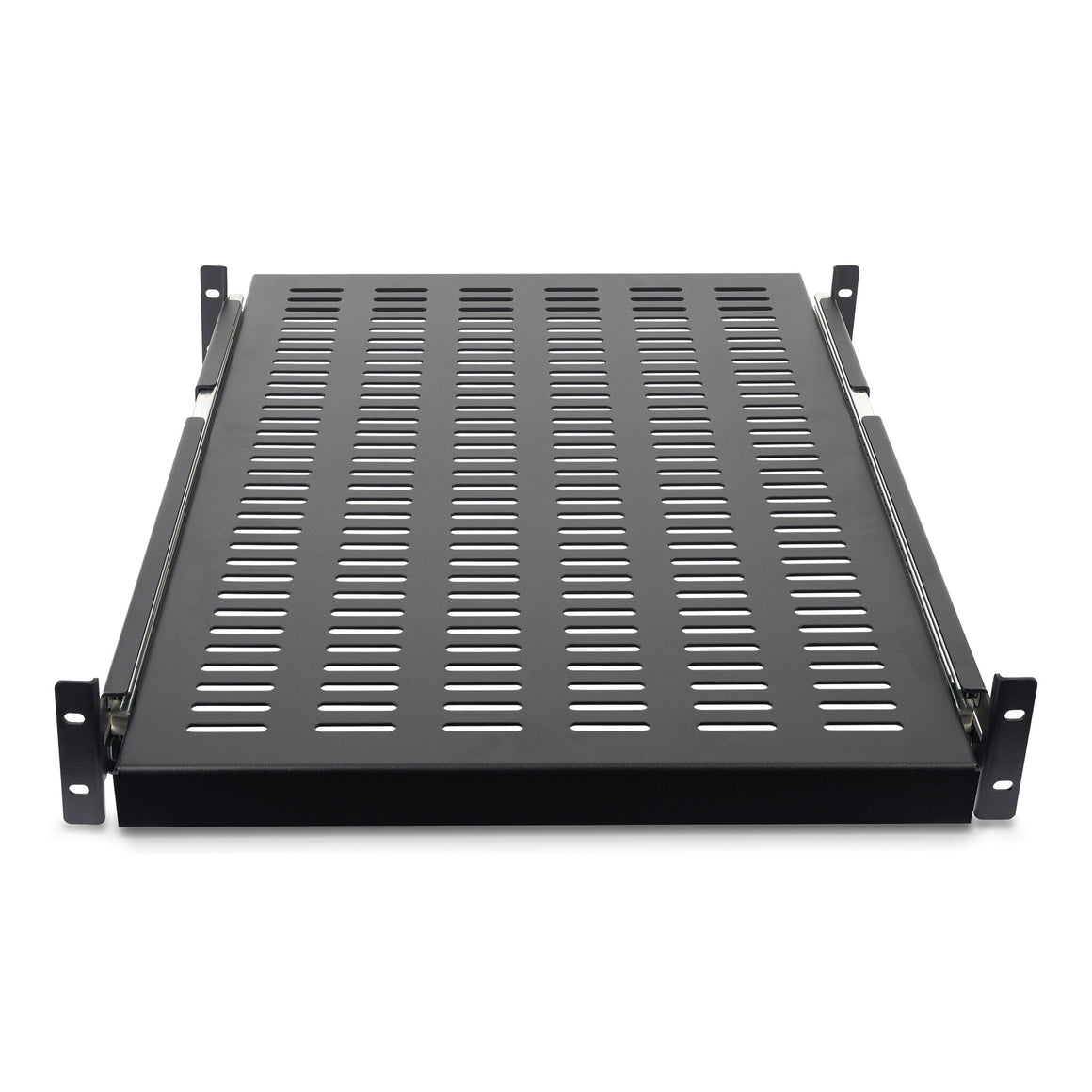

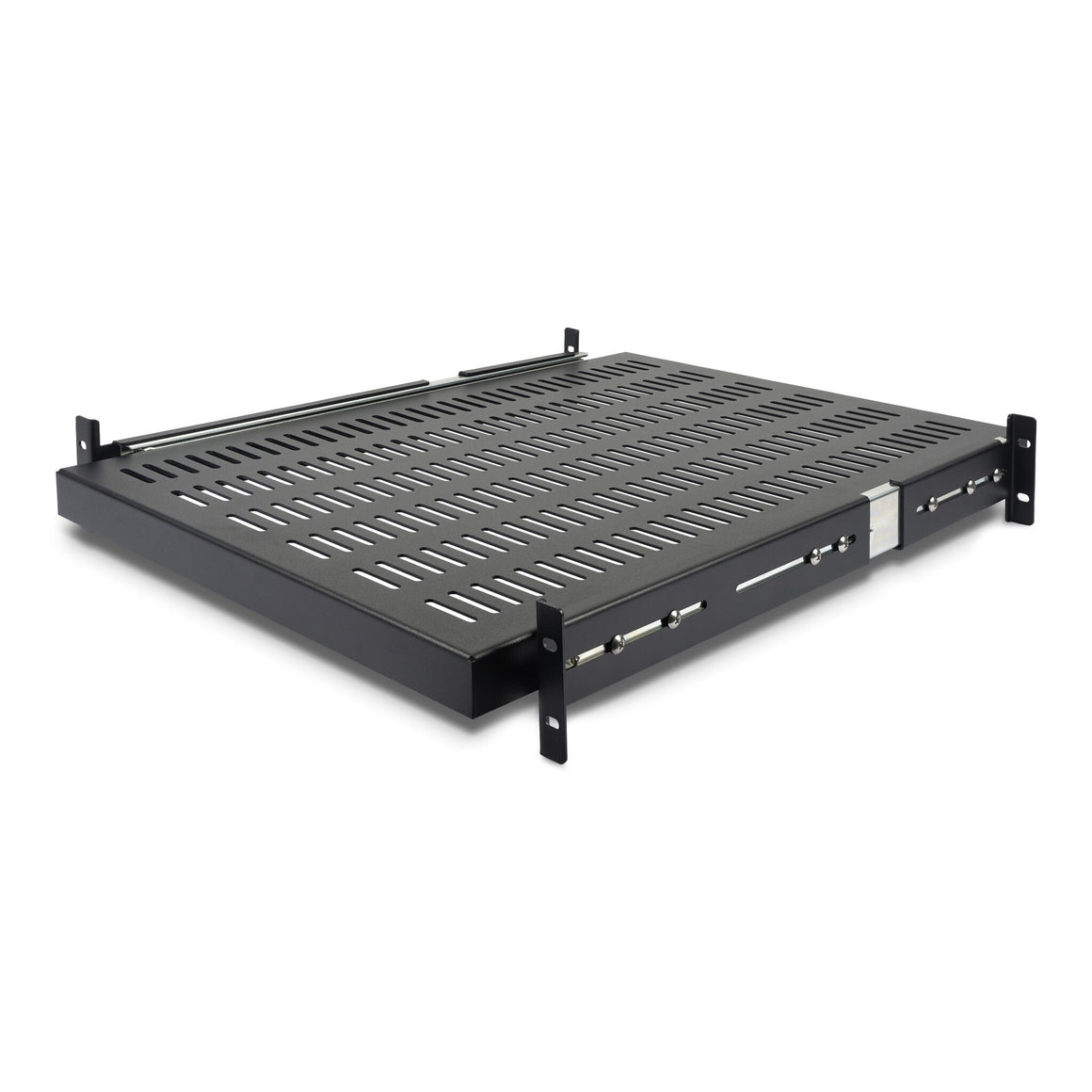

Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.
The StarTech.com Advantage
| Features |
|---|
| Compliance industry standards |
EIA RS310-C |
| Rack capacity |
2U |
| Maximum weight capacity |
22.7 kg |
| Housing material |
Steel |
| Product colour |
Black |
| Type |
Adjustable shelf |
| Weight & dimensions |
|---|
| Weight |
6.4 kg |
| Mounting depth (min) |
51 cm |
| Mounting depth (max) |
74.4 cm |
| Height |
45 mm |
| Depth |
610 mm |
| Width |
452 mm |
| Packaging data |
|---|
| Package weight |
8.4 kg |
| Package height |
138 mm |
| Package depth |
680 mm |
| Package width |
527 mm |
| Packaging content |
|---|

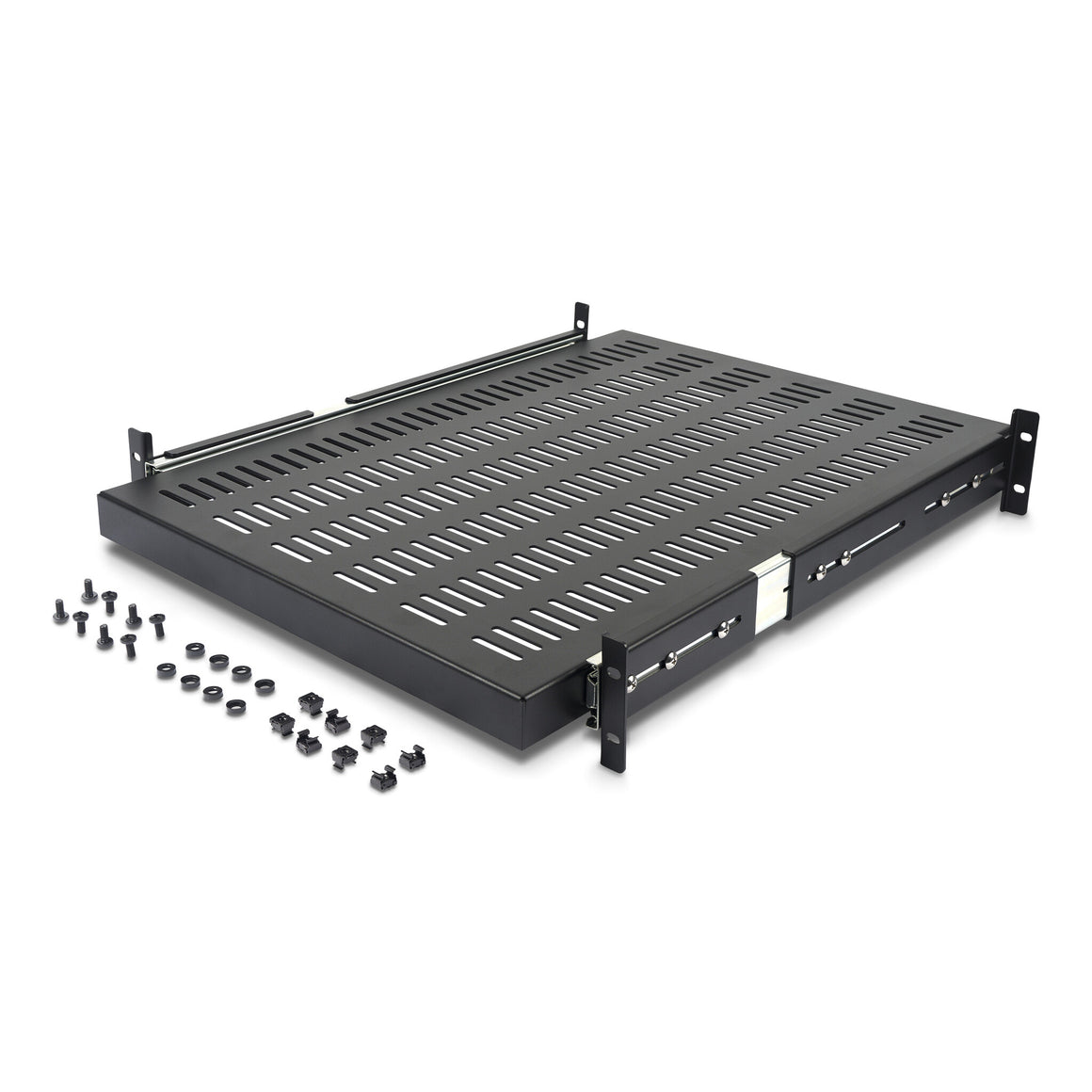

| Cage nuts included |
Yes |
| Number of cage nuts |
8 |
| Number of screws |
8 |
| Screws included |
Yes |
| Screw type |
M6 |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85389099 |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case height |
138 mm |
| Master (outer) case length |
680 mm |
| Master (outer) case width |
527 mm |
